Model # GNG12MW Official Thermador griddle

Here are the diagrams and repair parts for Official Thermador GNG12MW griddle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Screw 14-90-023
#11A

Main top assembly- image diagram

Screw

Part #14-90-023

The manufacturer no longer makes this part, and there's no substitute part

Griddle Handle 14-19-115-11
#4

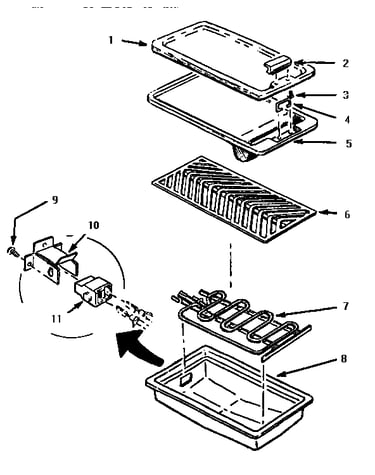

Griddle assembly- image diagram

Griddle handle

Part #14-19-115-11

The manufacturer no longer makes this part, and there's no substitute part

Griddle, Anodized 14-31-157-01
#5

Griddle assembly- image diagram

Griddle, anodized

Part #14-31-157-01

The manufacturer no longer makes this part, and there's no substitute part

Main Top Assembly 14-41-679-01
#1

Main top assembly- image diagram

Main top assembly

Part #14-41-679-01

The manufacturer no longer makes this part, and there's no substitute part

Switch Bracket 14-41-559-01
#18

Main top assembly- image diagram

Switch bracket

Part #14-41-559-01

The manufacturer no longer makes this part, and there's no substitute part

Box, Rough-in 14-41-465-01
#8

Main top assembly- image diagram

Box, rough-in

Part #14-41-465-01

The manufacturer no longer makes this part, and there's no substitute part

Infinite Switch 14-41-610
#11

Main top assembly- image diagram

Infinite switch

Part #14-41-610

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack 14-90-205
#3

Griddle assembly- image diagram

Screw, 2-pack

Part #14-90-205

The manufacturer no longer makes this part, and there's no substitute part

Conduit, Flexible, 3/8 X 54" 14-41-701
#10

Main top assembly- image diagram

Conduit, flexible, 3/8 x 54"

Part #14-41-701

The manufacturer no longer makes this part, and there's no substitute part

Grill 14-31-946-01
#6

Griddle assembly- image diagram

Grill

Part #14-31-946-01

The manufacturer no longer makes this part, and there's no substitute part
