Model # CLY1638BDB Official Magic Chef rv range

Here are the diagrams and repair parts for Official Magic Chef CLY1638BDB rv range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

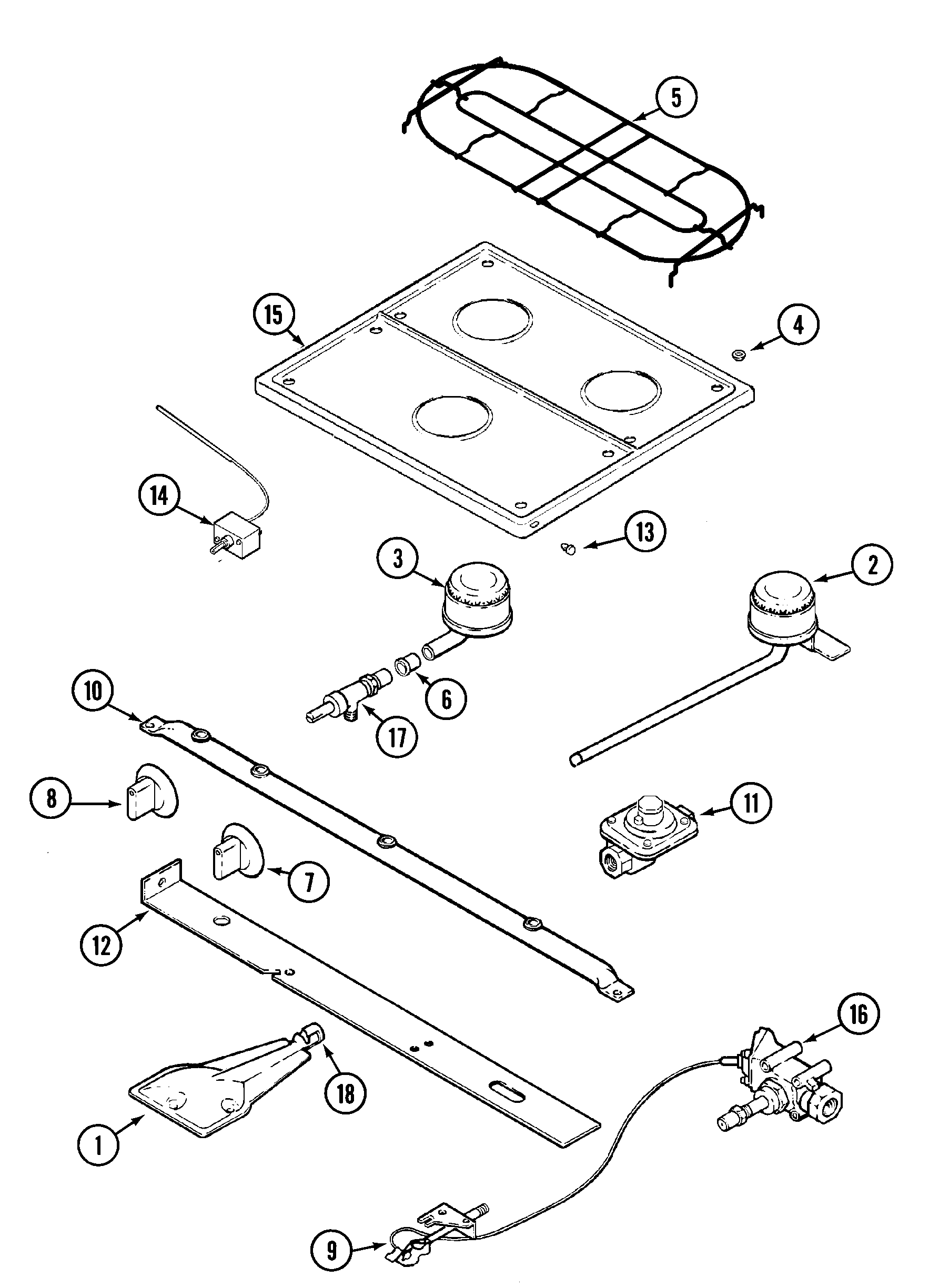

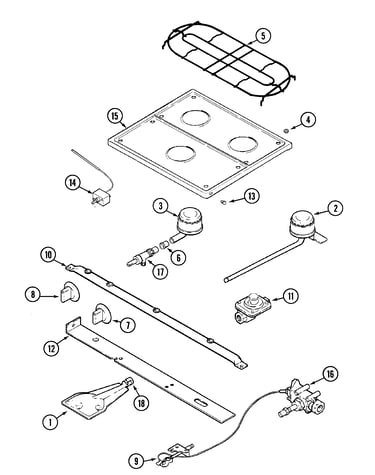

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Bracket Screw 7101P040-60
Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 7101P356-60
#5A

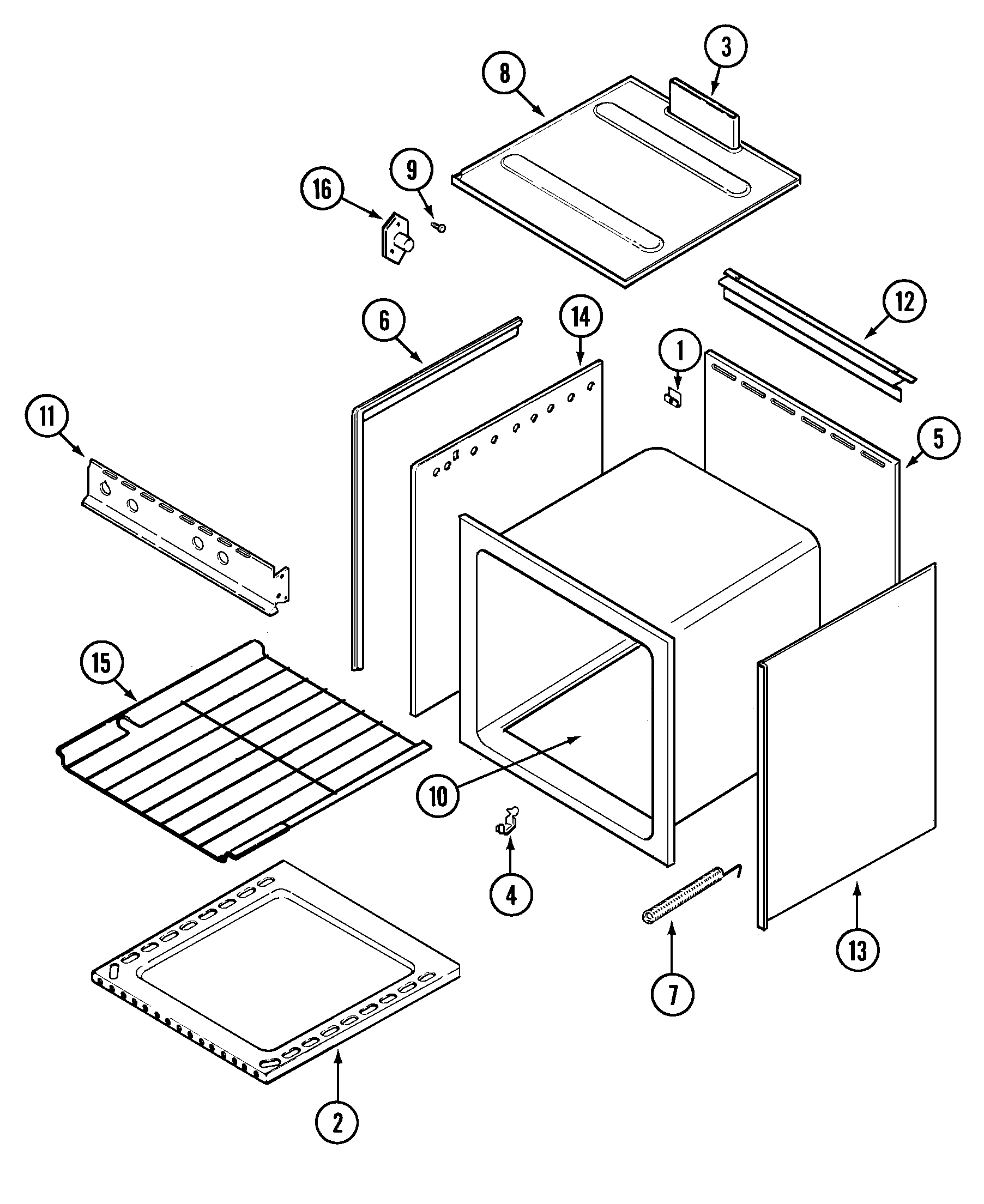

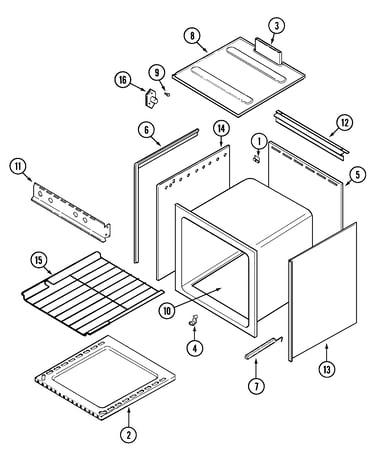

Oven diagram

Screw

Part #7101P356-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P356-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Thermostat Clip 7112P004-60
#4

Oven diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Screw 7101P064-60
Screw

Part #7101P064-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P064-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 74002481
#3A

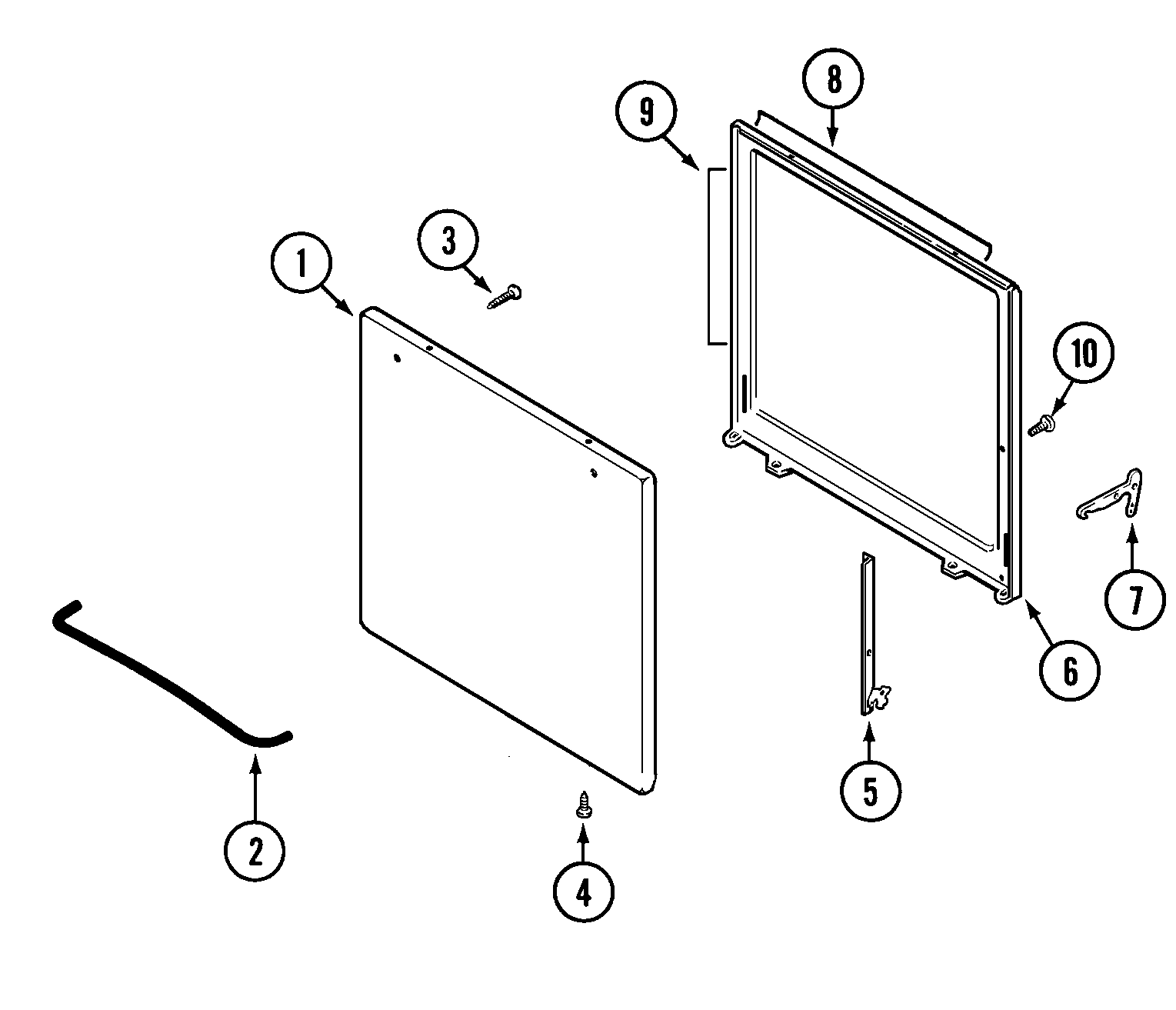

Door diagram

Screw

Part #74002481

This item is not returnable
$5.40
In Stock
Screw 7101P282-60
#3

Door diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 74003976
#2B

Oven diagram

Screw

Part #74003976

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 74003976. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Hinge 3418D092-34
#5A

Door diagram

Oven hinge

Part #3418D092-34

Replaced by #12400029

?
Manufacturer substitution
This part replaces 3418D092-34. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Trim 74002813
#6A

Oven diagram

Trim

Part #74002813

Replaced by #3608W056-70

?
Manufacturer substitution
This part replaces 74002813. Substitute parts can look different from the original.
$50.00
In Stock
Loxit Nut 1555222
Loxit nut

Part #1555222

The manufacturer no longer makes this part, and there's no substitute part
