Kenmore Elite
Side-By-Side Refrigerator

Model # 79551086011 Official Kenmore Elite refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 79551086011 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

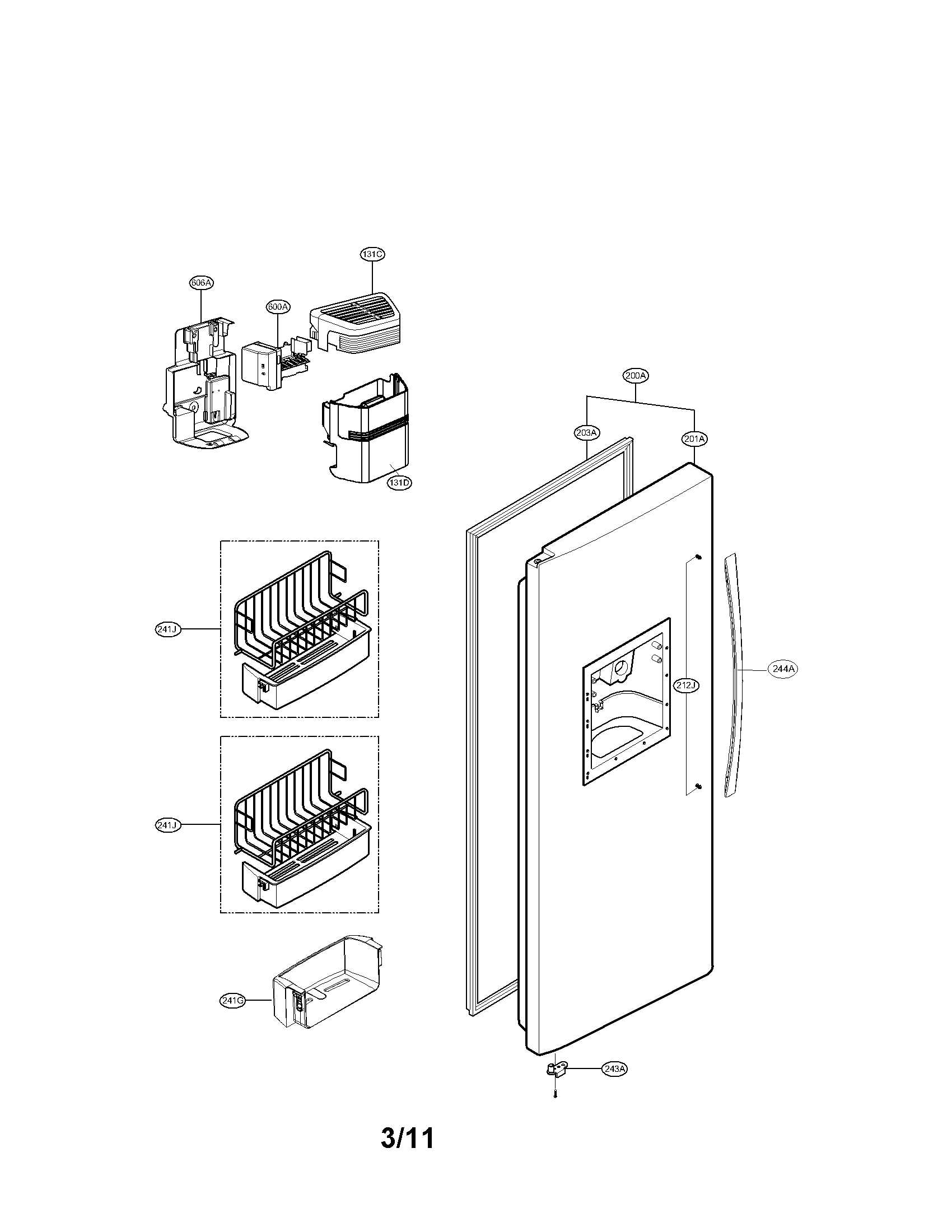

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Refrigerator Filter Dryer 5851JA2007A
#317A

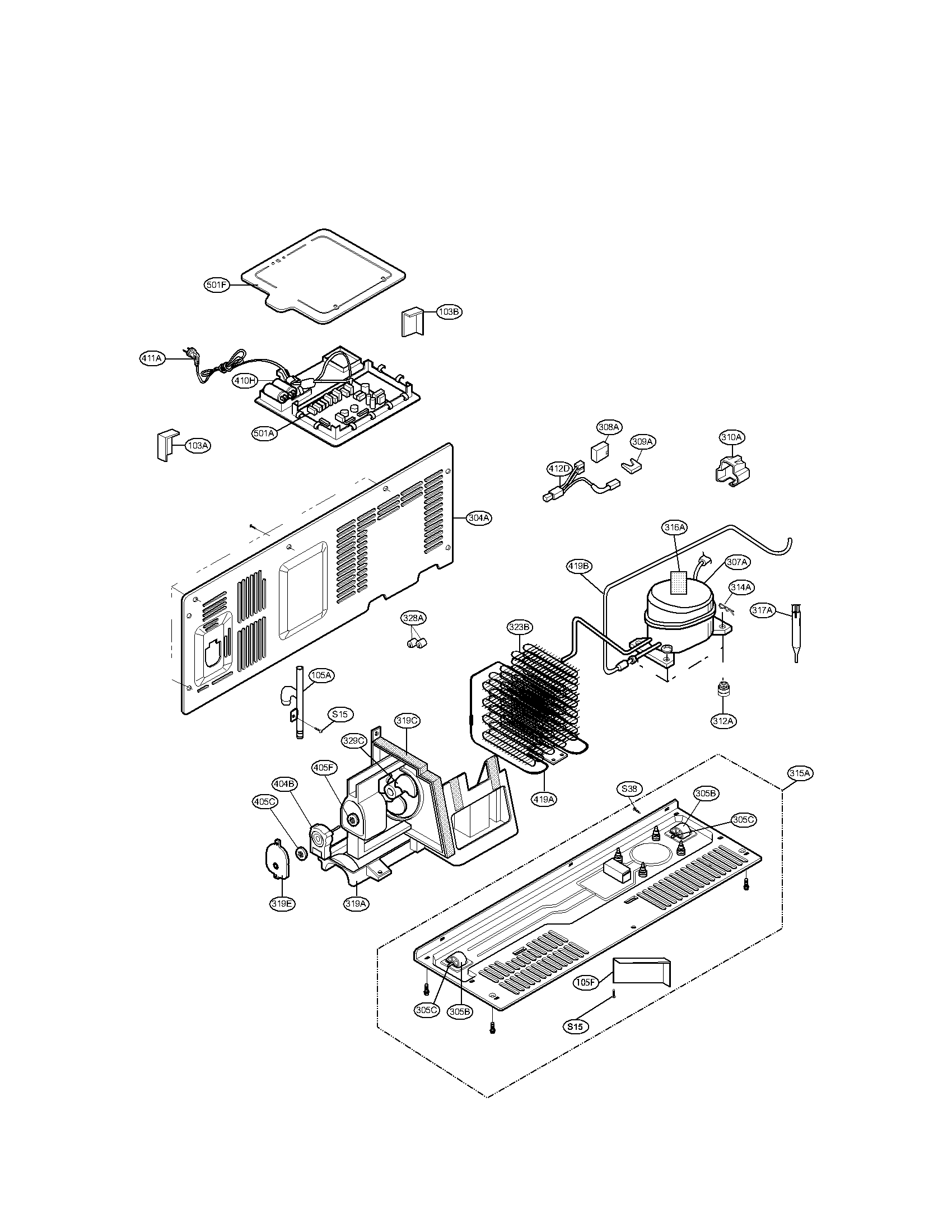

Machine compartment parts diagram

Refrigerator filter dryer

Part #5851JA2007A

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007A. Substitute parts can look different from the original.
BEST SELLER
$67.13 |
8% OFF Phone Price : $73.13
In Stock
Refrigerator Auger Motor EAU59551201
#405H

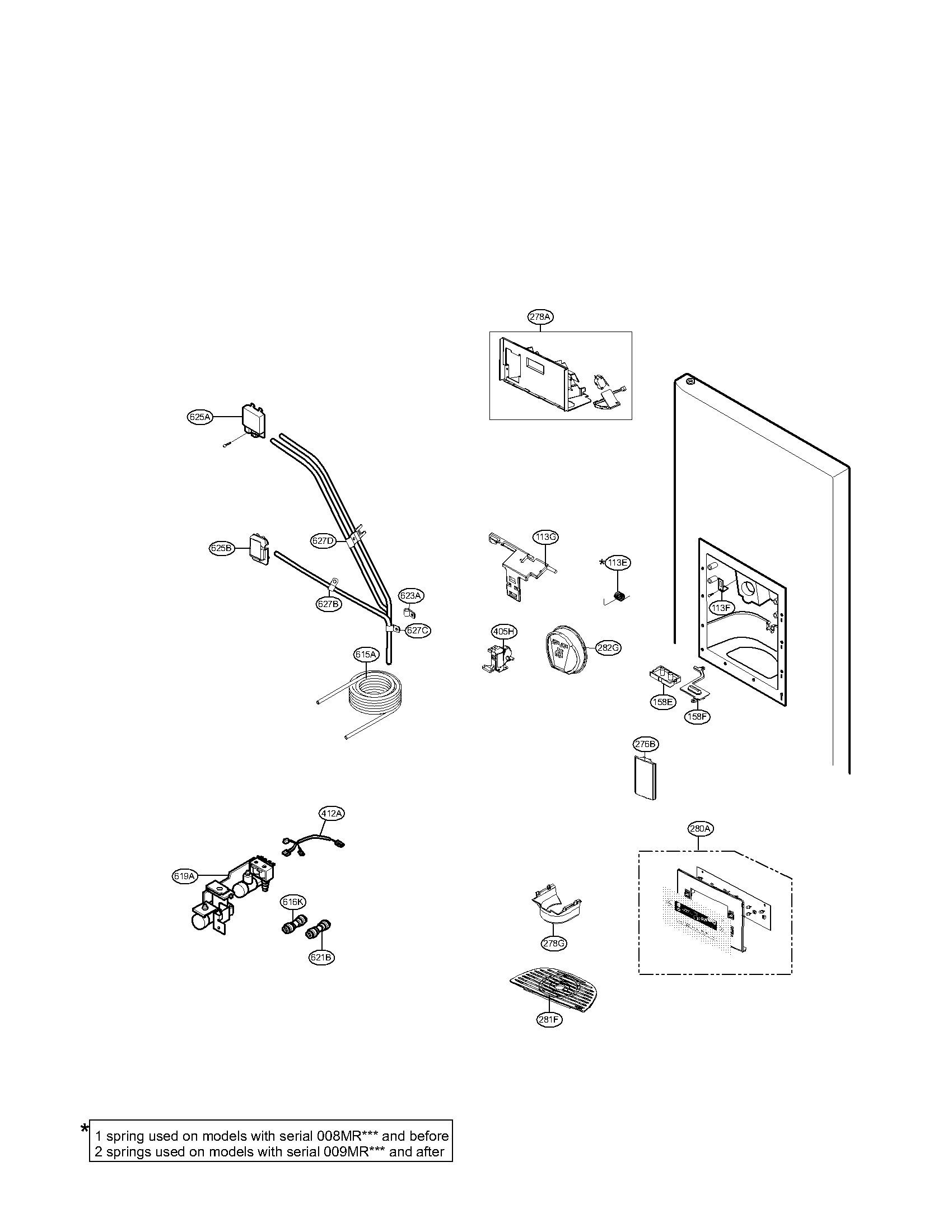

Ice, water, & dispenser parts diagram

Refrigerator auger motor

Part #EAU59551201

Replaced by #EAU59551204

?
Manufacturer substitution
This part replaces EAU59551201. Substitute parts can look different from the original.
BEST SELLER
$50.02 |
11% OFF Phone Price : $56.02
In Stock
Refrigerator Defrost Sensor Assembly 6615JB2002R
#401A

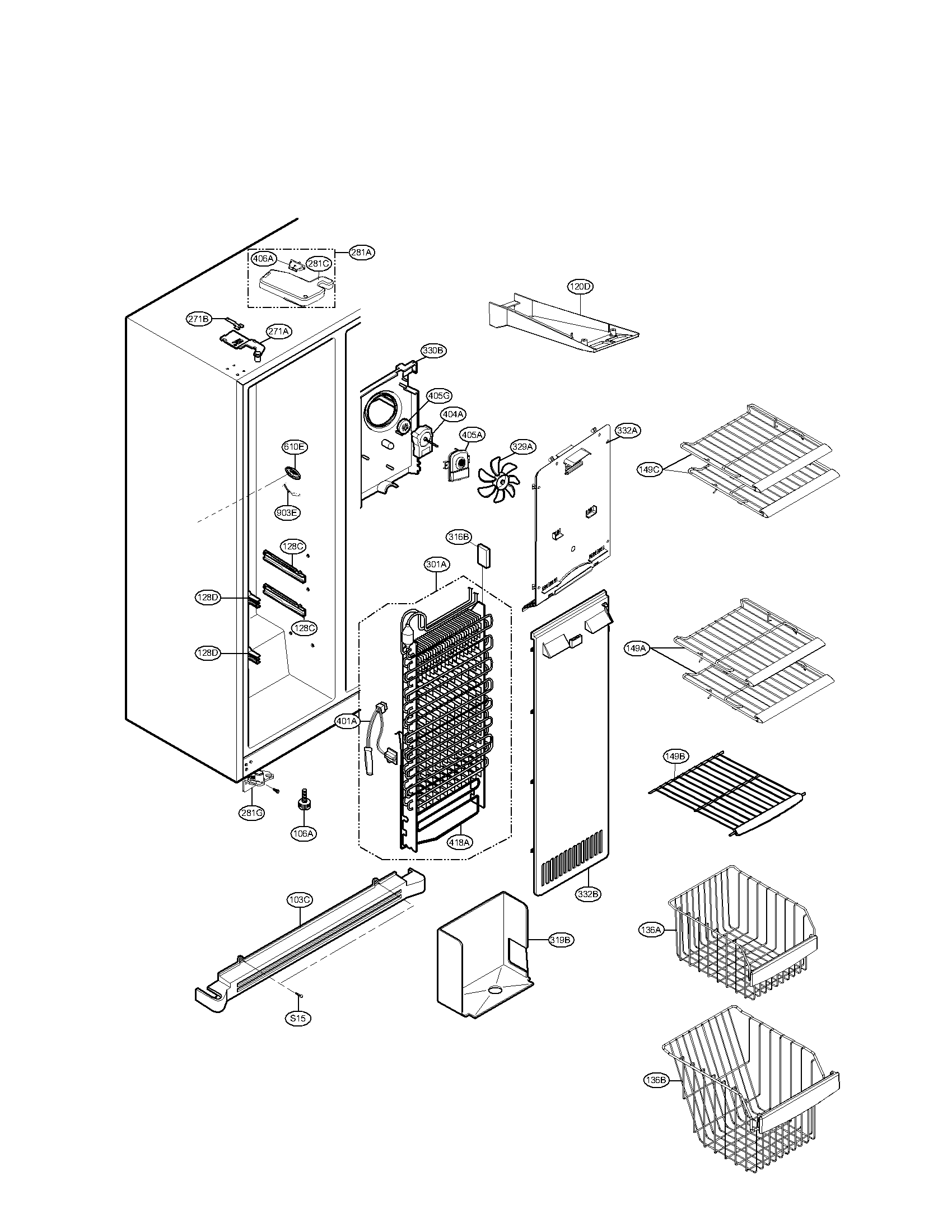

Freezer compartment parts diagram

Refrigerator defrost sensor assembly

Part #6615JB2002R

BEST SELLER
$33.81 |
15% OFF Phone Price : $39.81
In Stock
Refrigerator Water Tube Fitting MCD61866802
#621B

Ice, water, & dispenser parts diagram

Refrigerator water tube fitting

Part #MCD61866802

Replaced by #4932JA3002C

?
Manufacturer substitution
This part replaces MCD61866802. Substitute parts can look different from the original.
BEST SELLER
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Water Inlet Valve MJX42111401
#619A

Ice, water, & dispenser parts diagram

Refrigerator water inlet valve

Part #MJX42111401

Replaced by #5221JA2006D

?
Manufacturer substitution
This part replaces MJX42111401. Substitute parts can look different from the original.
BEST SELLER
$128.48 |
9% OFF Phone Price : $140.48
In Stock
Refrigerator Sensor 6500JK1003A
#903D

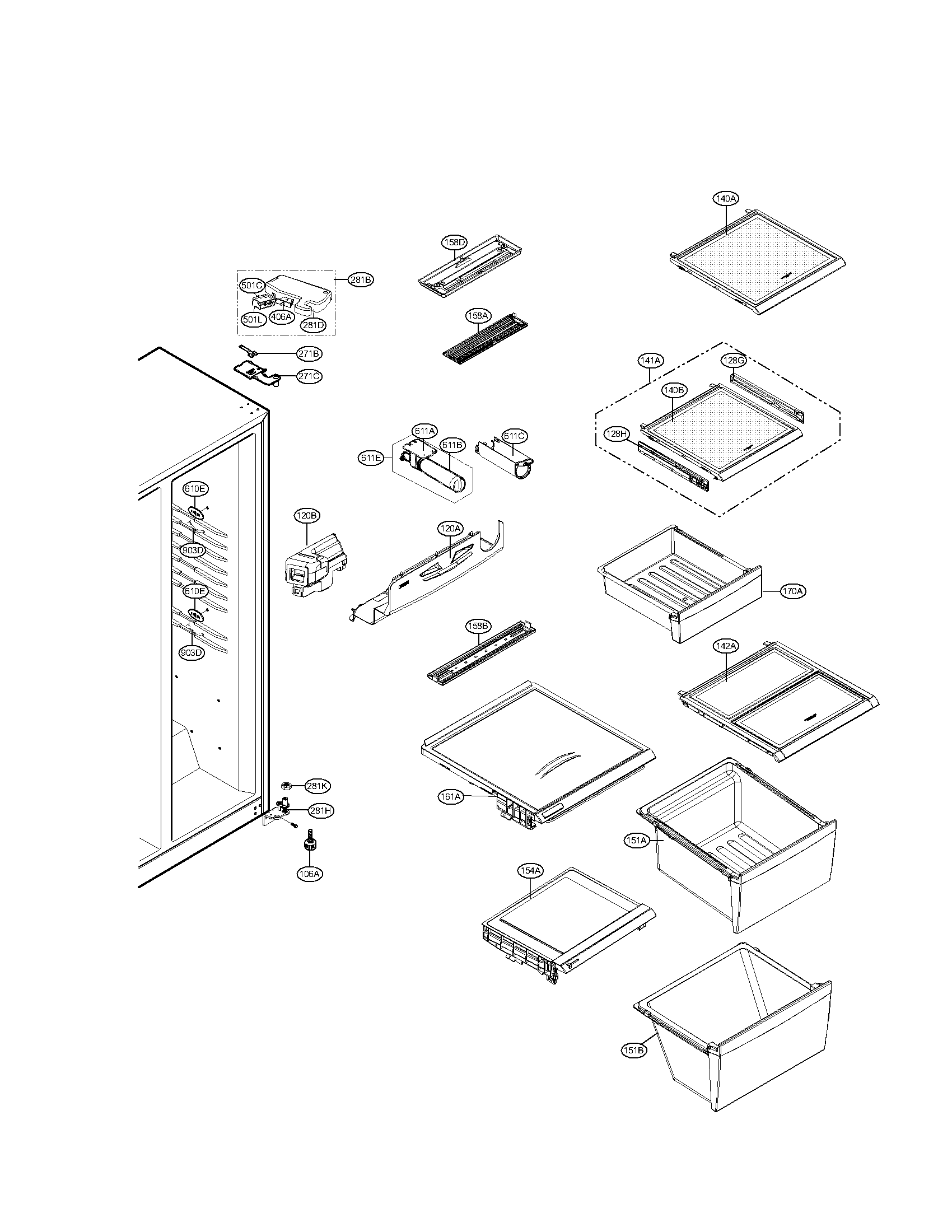

Refrigerator compartment parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
BEST SELLER
$26.29 |
19% OFF Phone Price : $32.29
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A
#314A

Machine compartment parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Door Bin AAP72911202
#241D

Refrigerator door parts diagram

Refrigerator door bin

Part #AAP72911202

Replaced by #MAN61844501

?
Manufacturer substitution
This part replaces AAP72911202. Substitute parts can look different from the original.
BEST SELLER
$86.82 |
6% OFF Phone Price : $92.82
In Stock
Refrigerator Water Tube Fitting MCD61866801
#616K

Ice, water, & dispenser parts diagram

Refrigerator water tube fitting

Part #MCD61866801

Replaced by #4932JA3002B

?
Manufacturer substitution
This part replaces MCD61866801. Substitute parts can look different from the original.
BEST SELLER
$11.11 |
15% OFF Phone Price : $13.11
In Stock
Refrigerator Door Hinge 4621JA3002H
#243B

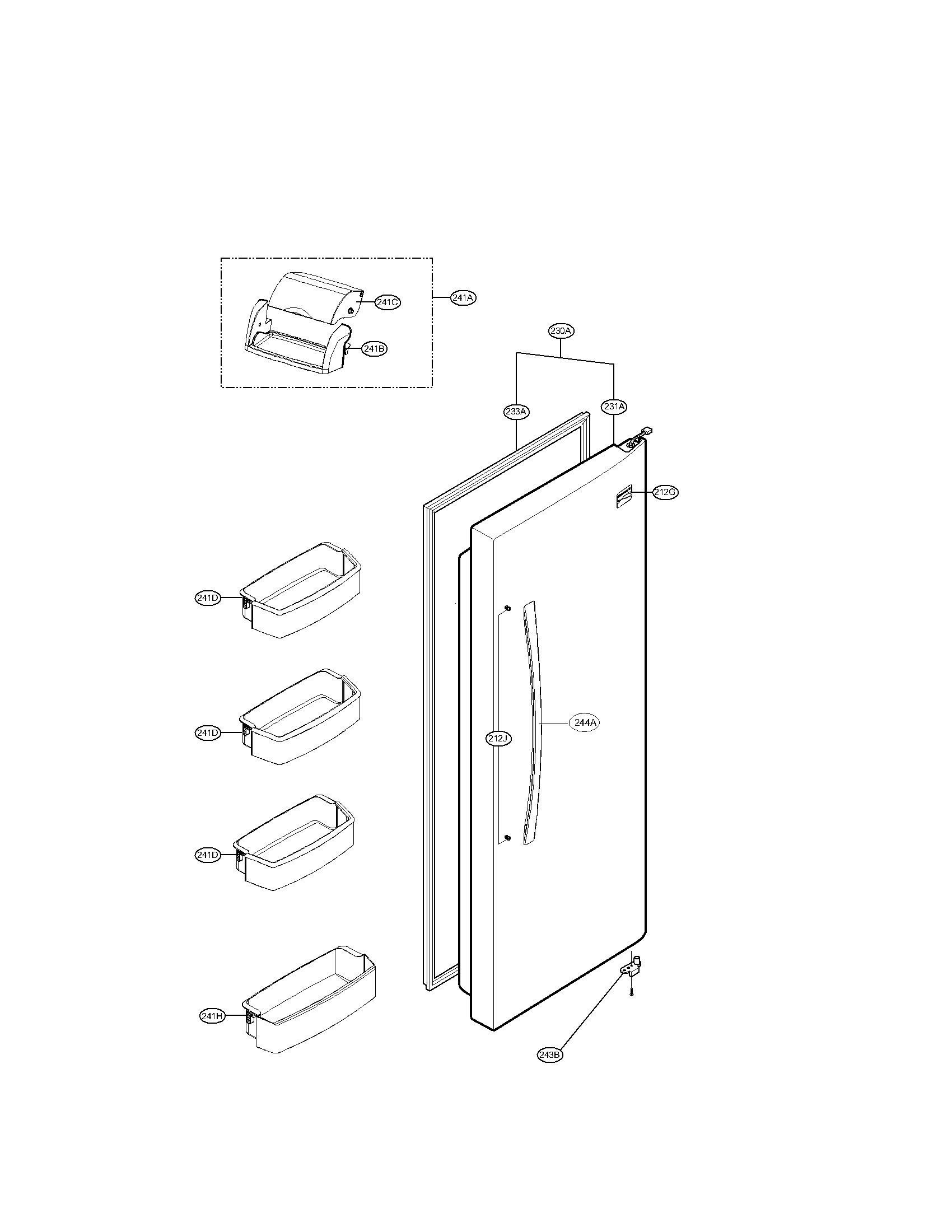

Refrigerator door parts diagram

Refrigerator door hinge

Part #4621JA3002H

Replaced by #AJC34211602

?
Manufacturer substitution
This part replaces 4621JA3002H. Substitute parts can look different from the original.
BEST SELLER
$16.64 |
11% OFF Phone Price : $18.64
In Stock
