GE
Downdraft Ventilation System

Model # ZVB36SB2SS Official GE downdraft vent system

Here are the diagrams and repair parts for Official GE ZVB36SB2SS downdraft vent system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Remote Sw Ki WB24X10102
#47

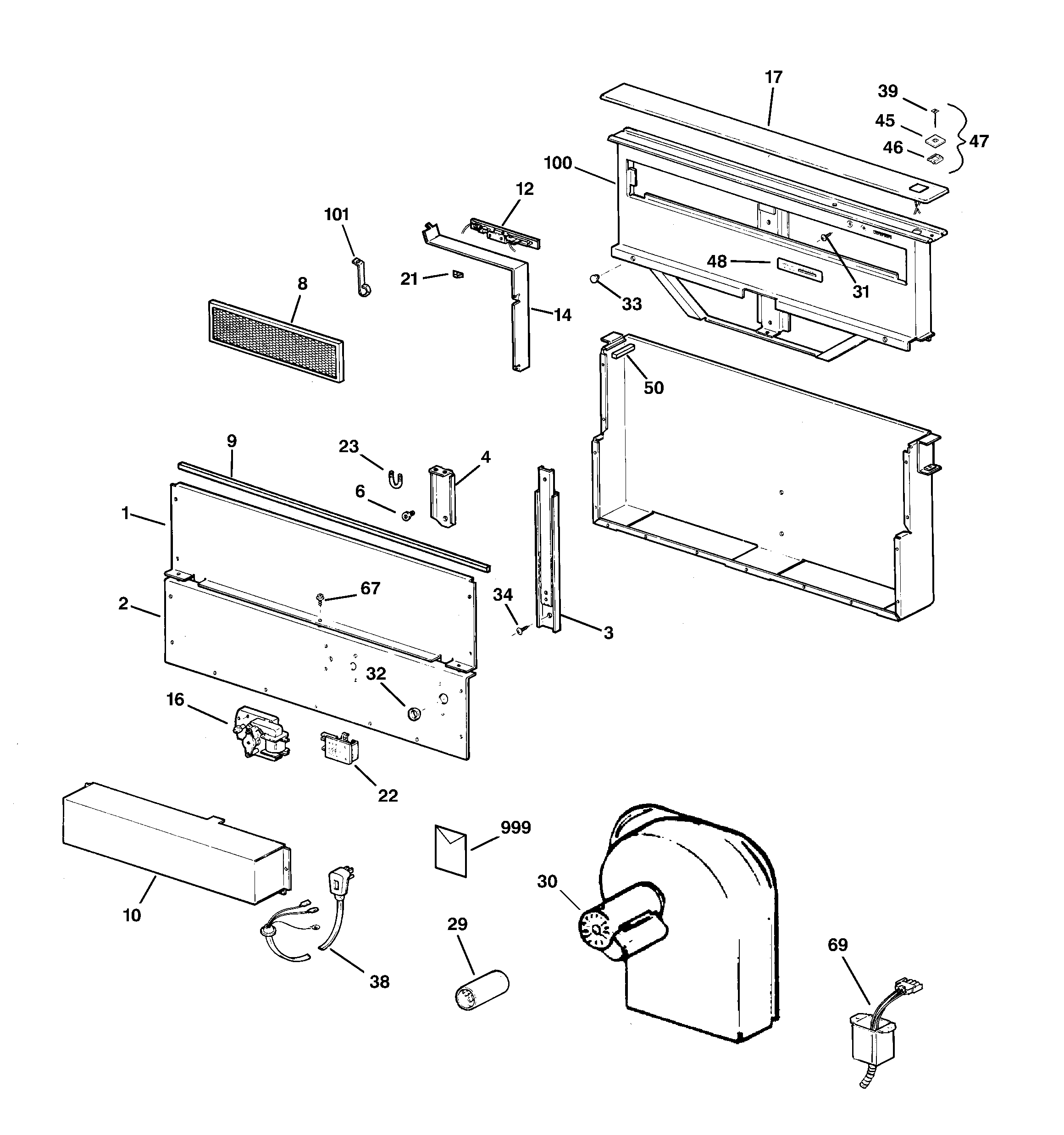

Range hood diagram

Remote sw ki

Part #WB24X10102

$286.49
In Stock
Installation 49-8938
#999

Range hood diagram

Installation

Part #49-8938

$17.99
In Stock
Downdraft Vent Switch Panel Trim, 36-in (stainless) (replaces Wb07x10829, Wb7x10337) WB07X10337
#17

Range hood diagram

Downdraft vent switch panel trim, 36-in (stainless) (replaces wb07x10829, wb7x10337)

Part #WB07X10337

$210.69 |
5% OFF Phone Price : $222.69
In Stock
Screw Pan He WB01X10008
#34

Range hood diagram

Screw pan he

Part #WB01X10008

Replaced by #WB01X10324

?
Manufacturer substitution
This part replaces WB01X10008. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Zvb30, 36 Us 49-8932
#999

Range hood diagram

Zvb30, 36 us

Part #49-8932

Replaced by #49-8932-1

?
Manufacturer substitution
This part replaces 49-8932. Substitute parts can look different from the original.
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Panel Gear 3 WB56X10151
#2

Range hood diagram

Panel gear 3

Part #WB56X10151

The manufacturer no longer makes this part, and there's no substitute part

U-bolt WB01X10004
#23

Range hood diagram

U-bolt

Part #WB01X10004

The manufacturer no longer makes this part, and there's no substitute part

Remote Trim WB07X10331
#46

Range hood diagram

Remote trim

Part #WB07X10331

The manufacturer no longer makes this part, and there's no substitute part

Downdraft Vent Up/down Switch Trim WB07X10333
#45

Range hood diagram

Downdraft vent up/down switch trim

Part #WB07X10333

The manufacturer no longer makes this part, and there's no substitute part

Seal WB02X10307
#50

Range hood diagram

Seal

Part #WB02X10307

The manufacturer no longer makes this part, and there's no substitute part
