Model # 79075854300 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79075854300 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

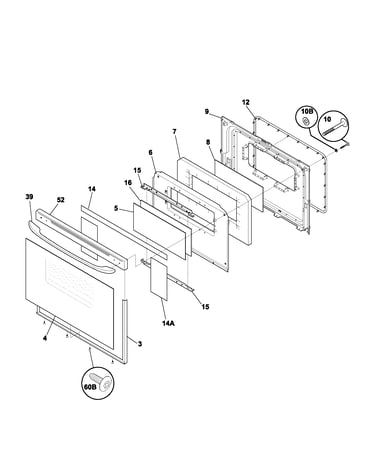

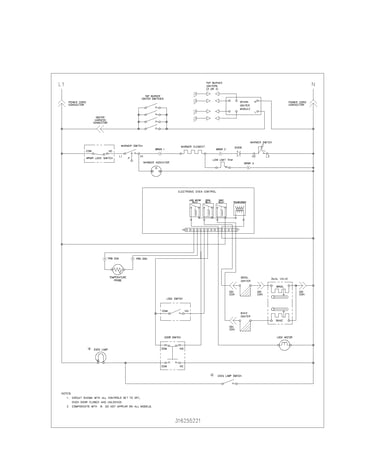

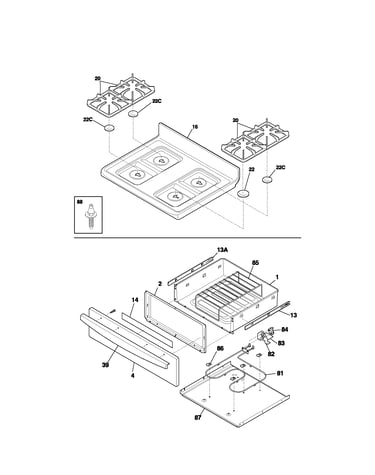

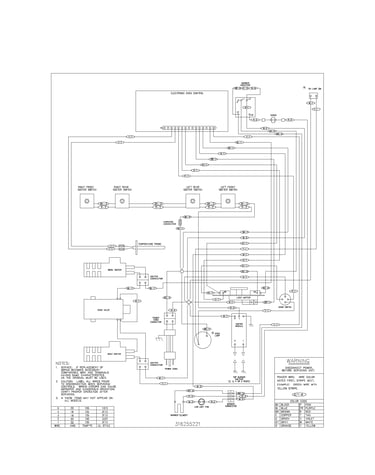

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 198 parts  |
Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

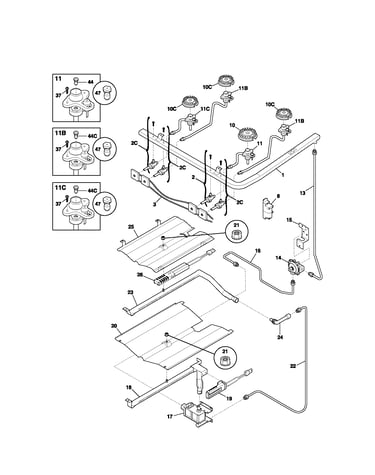

Burner diagram

Range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Range Oven Light Bulb 5303013071
#15

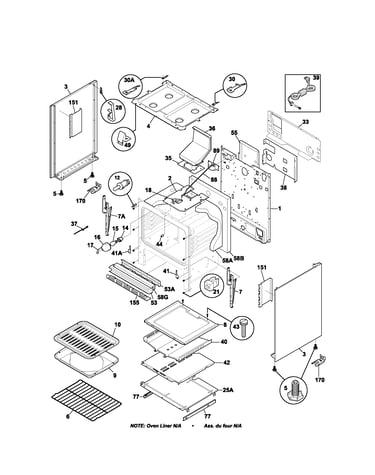

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Indicator Light 316022500
#14

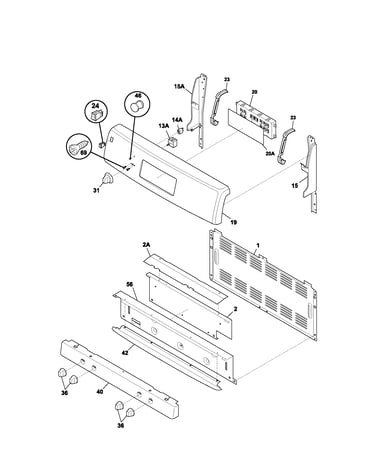

Backguard diagram

Range indicator light

Part #316022500

BEST SELLER
$40.21 |
13% OFF Phone Price : $46.21
In Stock
Igniter And Orifice Holder 316237800
#11C

Burner diagram

Igniter and orifice holder

Part #316237800

Replaced by #316237805

?
Manufacturer substitution
This part replaces 316237800. Substitute parts can look different from the original.
BEST SELLER
$90.44 |
6% OFF Phone Price : $96.44
In Stock
Range Surface Burner Head (replaces 7316212400) 316212400
#10C

Burner diagram

Range surface burner head (replaces 7316212400)

Part #316212400

BEST SELLER
$29.85 |
17% OFF Phone Price : $35.85
In Stock
Range Igniter Switch And Harness Assembly (replaces 316219000) 316219004
#3

Burner diagram

Range igniter switch and harness assembly (replaces 316219000)

Part #316219004

BEST SELLER
$94.10 |
6% OFF Phone Price : $100.10
In Stock
Cooktop Spark Module 316135701
#8

Burner diagram

Cooktop spark module

Part #316135701

Replaced by #316135702

?
Manufacturer substitution
This part replaces 316135701. Substitute parts can look different from the original.
BEST SELLER
$75.37 |
7% OFF Phone Price : $81.37
In Stock
Range Control Overlay 316220839
#20A

Backguard diagram

Range control overlay

Part #316220839

Replaced by #316220804

?
Manufacturer substitution
This part replaces 316220839. Substitute parts can look different from the original.
BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Control Overlay 316220840
#20A

Backguard diagram

Range control overlay

Part #316220840

Replaced by #316220804

?
Manufacturer substitution
This part replaces 316220840. Substitute parts can look different from the original.
BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
