Model # C7CEBAS3R1D3 Official GE espresso maker

Here are the diagrams and repair parts for Official GE C7CEBAS3R1D3 espresso maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Coffee Brewer Assembly WC01X20613
#5

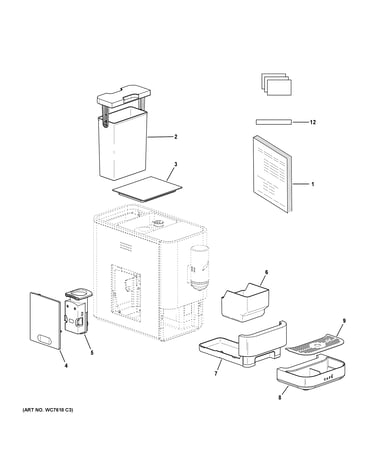

Auto espresso maker diagram

Coffee brewer assembly

Part #WC01X20613

$150.58
In Stock
Grate - Caf With Steam WC01X20702
#9

Auto espresso maker diagram

Grate - caf with steam

Part #WC01X20702

$20.71
In Stock
Hardness Tester WC01X20603
#12

Auto espresso maker diagram

Hardness tester

Part #WC01X20603

$11.11
In Stock
Disposal Box WC01X20601
#6

Auto espresso maker diagram

Disposal box

Part #WC01X20601

$17.71
In Stock
Water Tank And Lid Assembly - Caf Matte WC01X20682
#2

Auto espresso maker diagram

Water tank and lid assembly - caf matte

Part #WC01X20682

$36.40
In Stock
Drip Tray - Caf Matte Black WC01X20605
#8

Auto espresso maker diagram

Drip tray - caf matte black

Part #WC01X20605

$78.18
In Stock
Disposal Tray - Caf Matte Black WC01X20611
#7

Auto espresso maker diagram

Disposal tray - caf matte black

Part #WC01X20611

$26.60
In Stock
Coffee Bean Container Lid - Caf Matte Bl WC01X20600
#3

Auto espresso maker diagram

Coffee bean container lid - caf matte bl

Part #WC01X20600

$31.27
In Stock
Service Door - Caf Matte Black WC01X20623
#4

Auto espresso maker diagram

Service door - caf matte black

Part #WC01X20623

$24.73
In Stock
Pm Owners Manual 49-9000016
#1

Auto espresso maker diagram

Pm owners manual

Part #49-9000016

The manufacturer no longer makes this part, and there's no substitute part
