Husqvarna
Gas Walk-Behind Mower

Model # 917379131 Official Husqvarna lawn mower

Here are the diagrams and repair parts for Official Husqvarna 917379131 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |

Lawn & Garden Equipment Nut 409148
#33

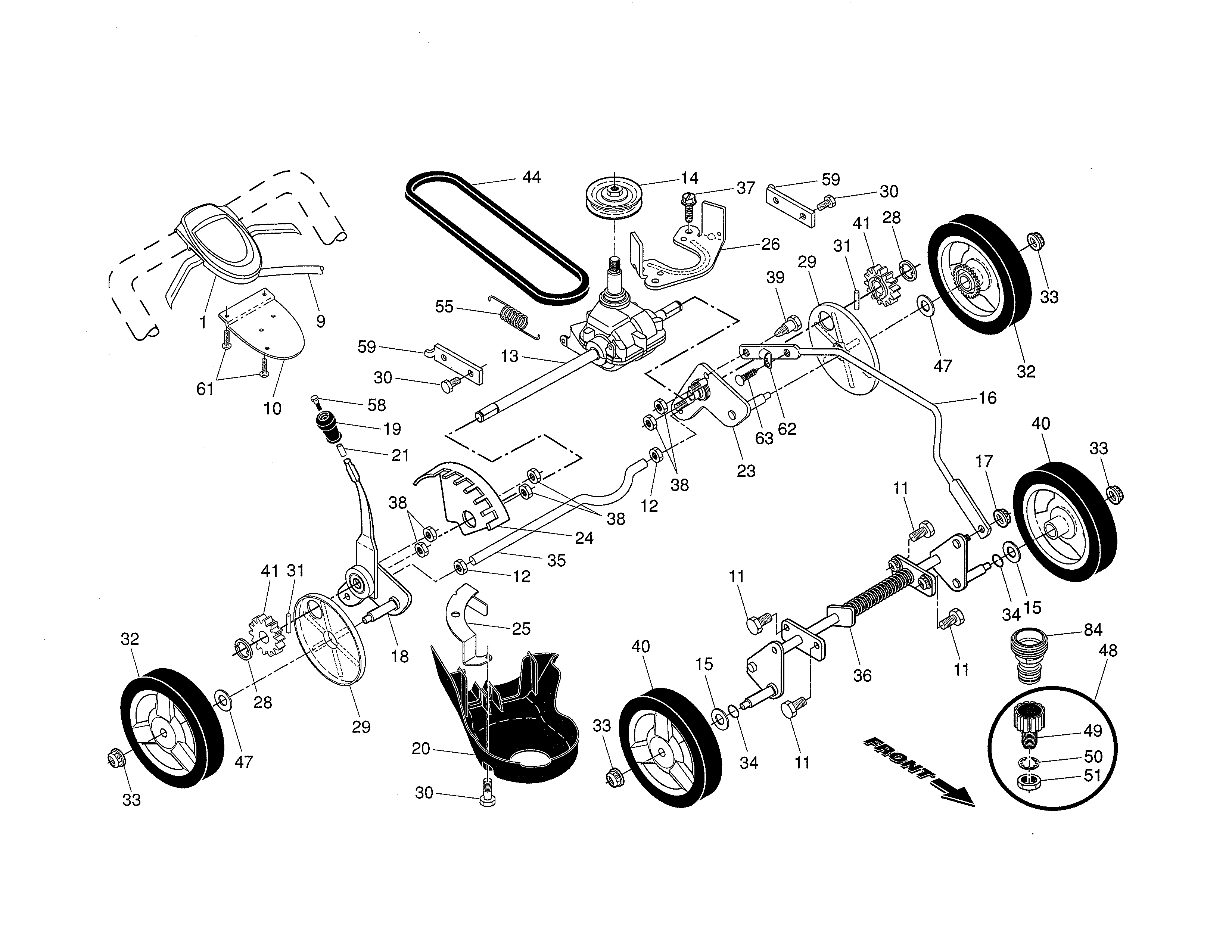

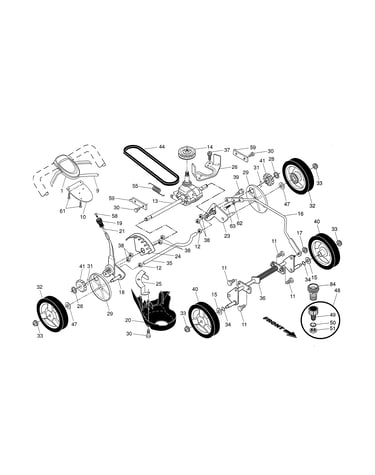

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31
16% OFF Phone Price : $6.31
In Stock
Blade Adapter 421782
#46

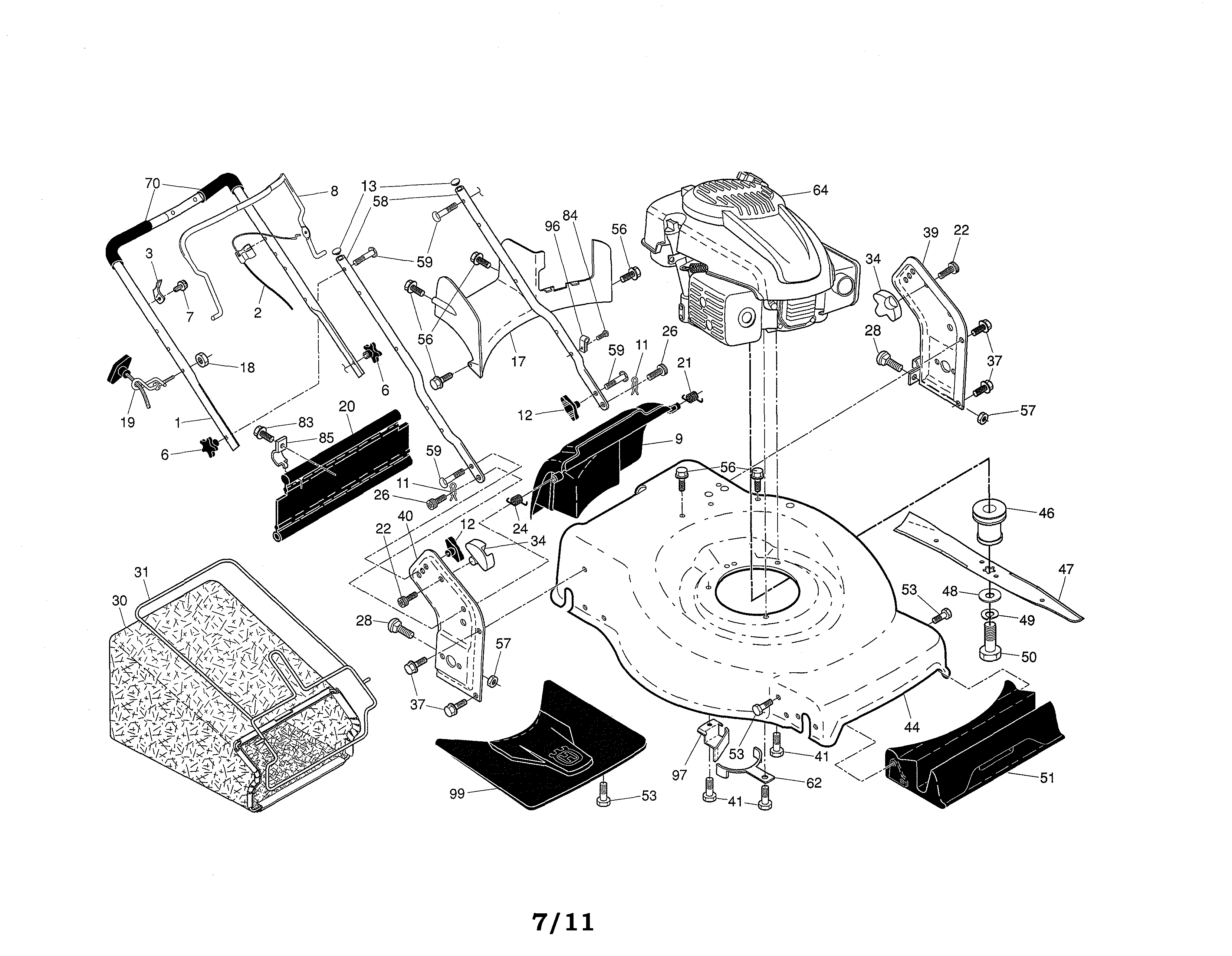

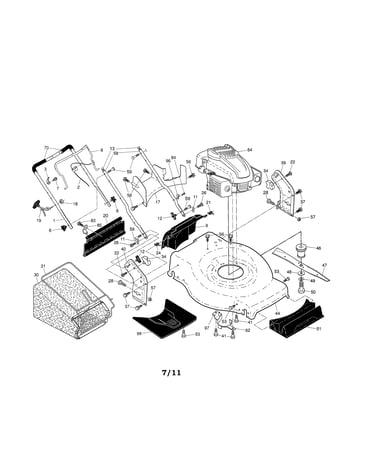

Engine/housing/handle diagram

Blade adapter

Part #421782

Replaced by #581473301

?
Manufacturer substitution
This part replaces 421782. Substitute parts can look different from the original.
BEST SELLER
$19.36
9% OFF Phone Price : $21.36
In Stock
Lawn Mower Wheel Dust Cover 189403
#29

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Grass Bag Frame 419951
#31

Engine/housing/handle diagram

Lawn mower grass bag frame

Part #419951

Replaced by #585054702

?
Manufacturer substitution
This part replaces 419951. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.98
20% OFF Phone Price : $29.98
In Stock
Return Spring 406558
#55

Drive control/gear case/wheels diagram

Return spring

Part #406558

Replaced by #532406558

?
Manufacturer substitution
This part replaces 406558. Substitute parts can look different from the original.
BEST SELLER
$9.31
10% OFF Phone Price : $10.31
In Stock
Washer 67725
#47

Drive control/gear case/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Handle Knob 182398
#6

Engine/housing/handle diagram

Handle knob

Part #182398

Replaced by #532182398

?
Manufacturer substitution
This part replaces 182398. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Nut.flange.5 155377
#57

Engine/housing/handle diagram

Nut.flange.5

Part #155377

Replaced by #596039201

?
Manufacturer substitution
This part replaces 155377. Substitute parts can look different from the original.
This item is not returnable
In Stock
Door.rear.as 431390
#9

Engine/housing/handle diagram

Door.rear.as

Part #431390

Replaced by #593304501

?
Manufacturer substitution
This part replaces 431390. Substitute parts can look different from the original.
$39.98
13% OFF Phone Price : $45.98
In Stock
Lawn Mower Rear Skirt Mounting Bracket (replaces 429081x004) 429801X004
#85

Engine/housing/handle diagram

Lawn mower rear skirt mounting bracket (replaces 429081x004)

Part #429801X004

Replaced by #532434530

?
Manufacturer substitution
This part replaces 429801X004. Substitute parts can look different from the original.
This item is not returnable
In Stock
