Model # U4609--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4609- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Kenmore Vacuum Switch 28218043
#12A

Motor assembly diagram

Kenmore vacuum switch

Part #28218043

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hoover Vacuum Bag, Type A, 3-pack 4010001A
#21

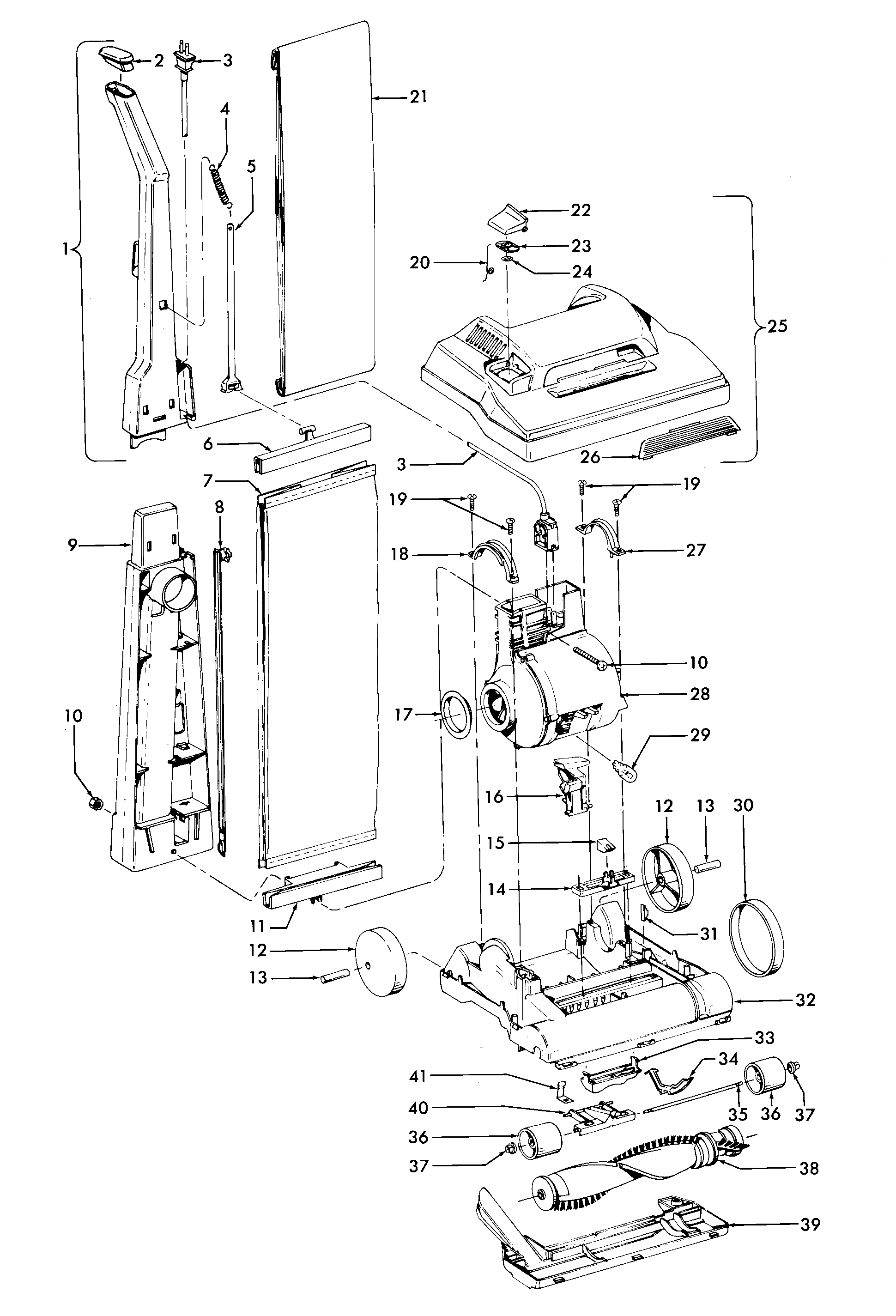

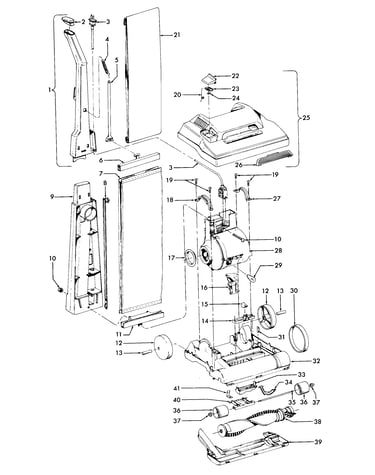

Handle, mainbody, outerbag, hood diagram

Kenmore hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36131057
#18

Handle, mainbody, outerbag, hood diagram

Vacuum motor mount

Part #36131057

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Furniture Nozzle 38614029
Kenmore vacuum furniture nozzle

Part #38614029

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Retainer 36131056
#37

Handle, mainbody, outerbag, hood diagram

Vacuum wheel retainer

Part #36131056

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522011
#12

Handle, mainbody, outerbag, hood diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Control Rod 38456036
#8

Handle, mainbody, outerbag, hood diagram

Vacuum handle release control rod

Part #38456036

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 34572002
#41

Handle, mainbody, outerbag, hood diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 214793DA
#1

Motor assembly diagram

Vacuum screw

Part #214793DA

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Right 36423016
#1

Agitator diagram

Vacuum beater bar housing end cap, right

Part #36423016

The manufacturer no longer makes this part, and there's no substitute part
