Model # GT1521NDFW Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GT1521NDFW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

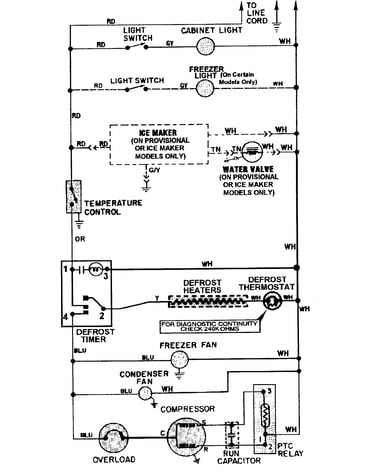

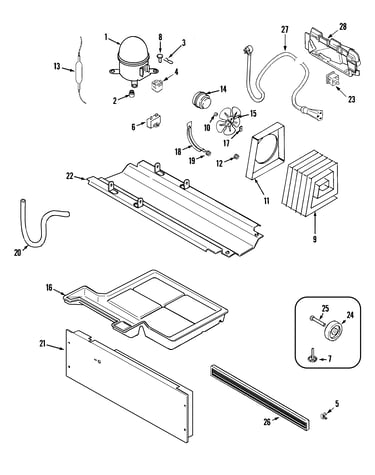

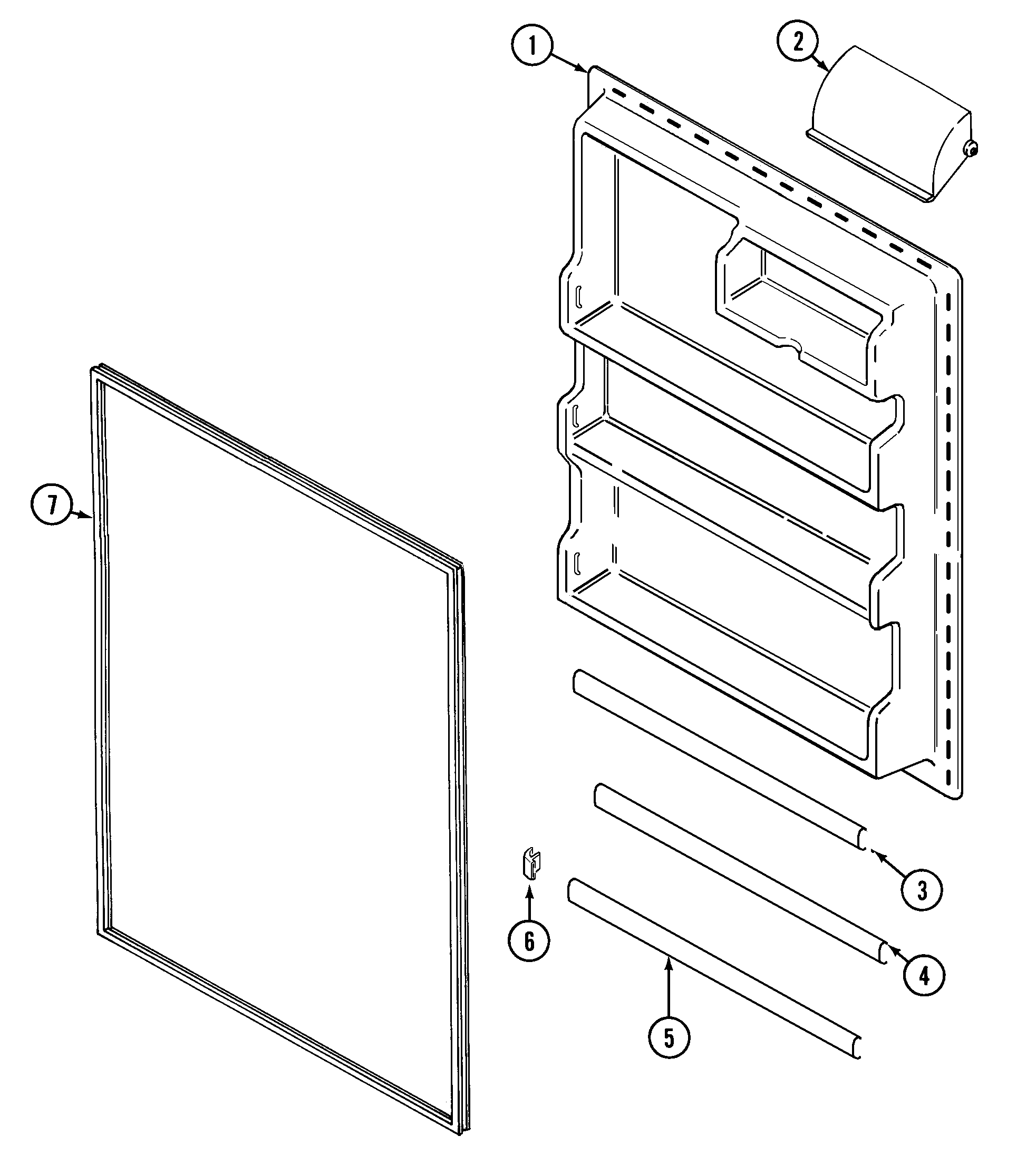

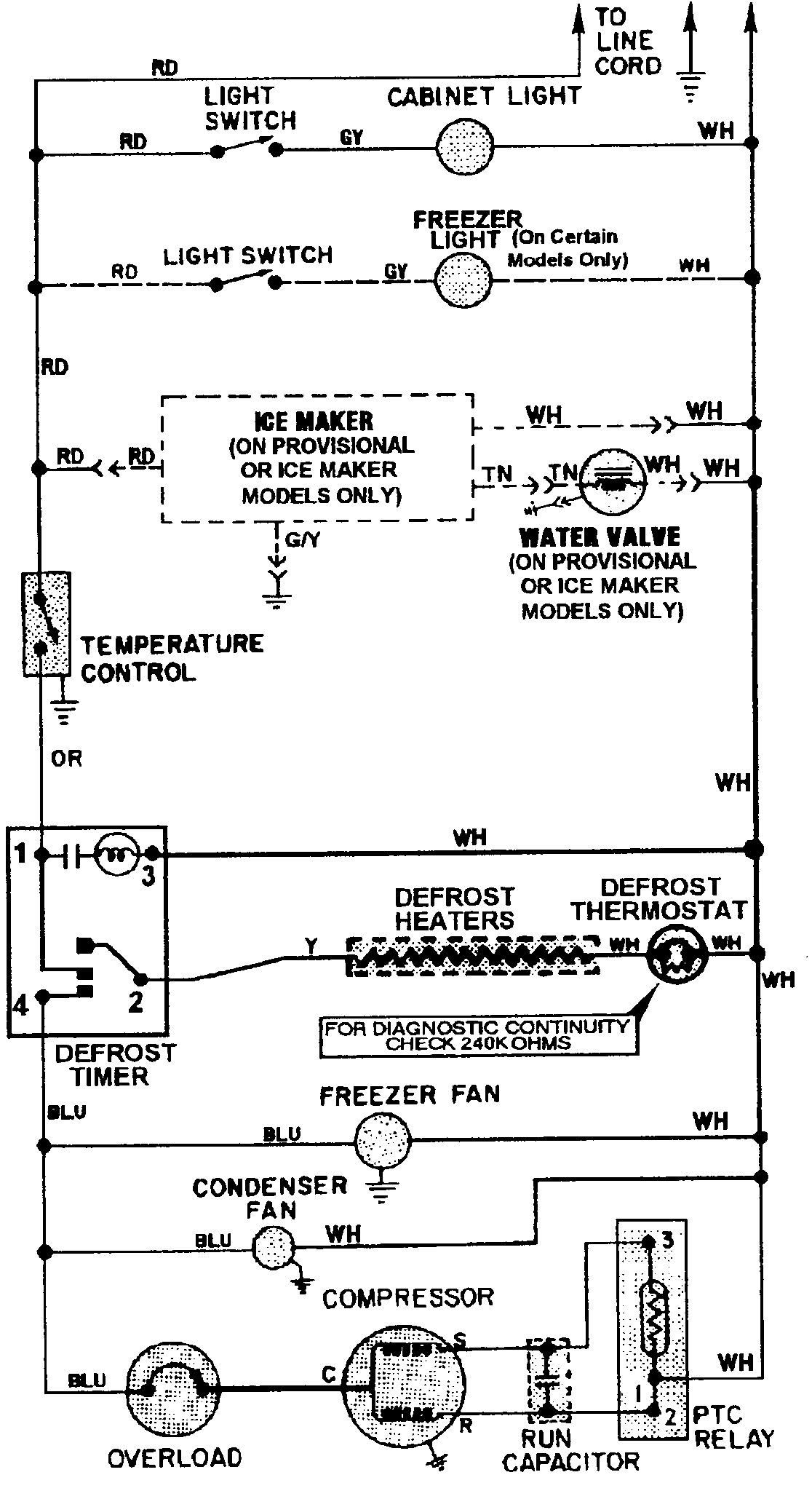

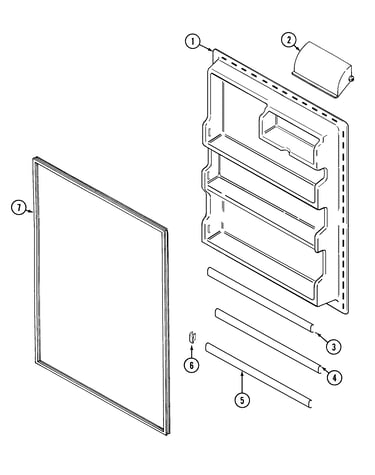

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Refrigerator Uv Dye Dryer 13900-1
Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 61003026
#8

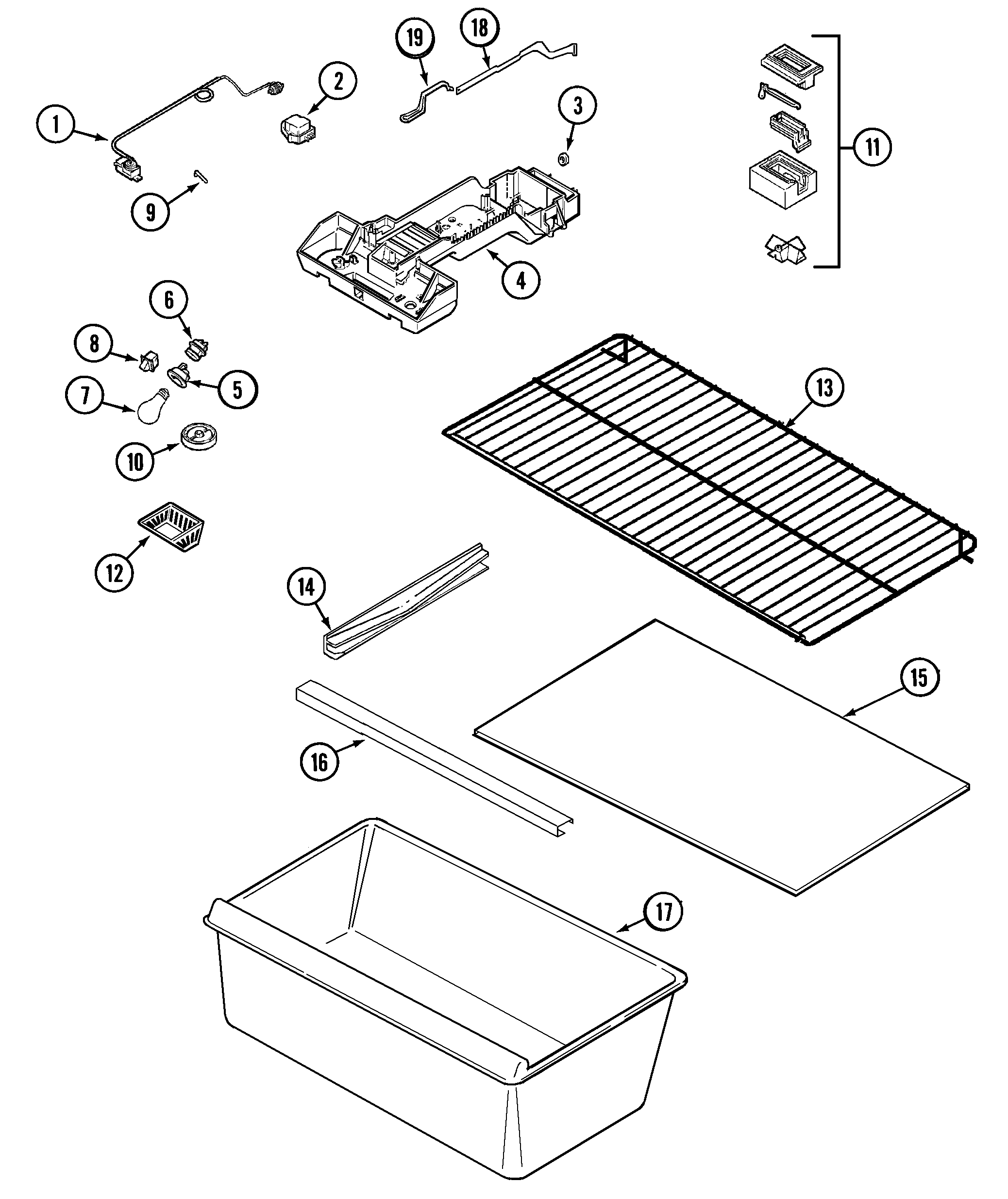

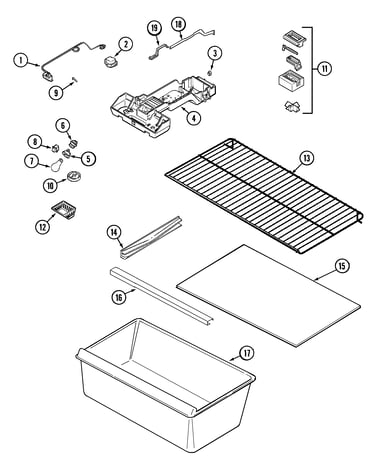

Fresh food compartment diagram

Refrigerator light switch

Part #61003026

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 61003026. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Screw 65275-50
Refrigerator screw

Part #65275-50

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 65275-50. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock

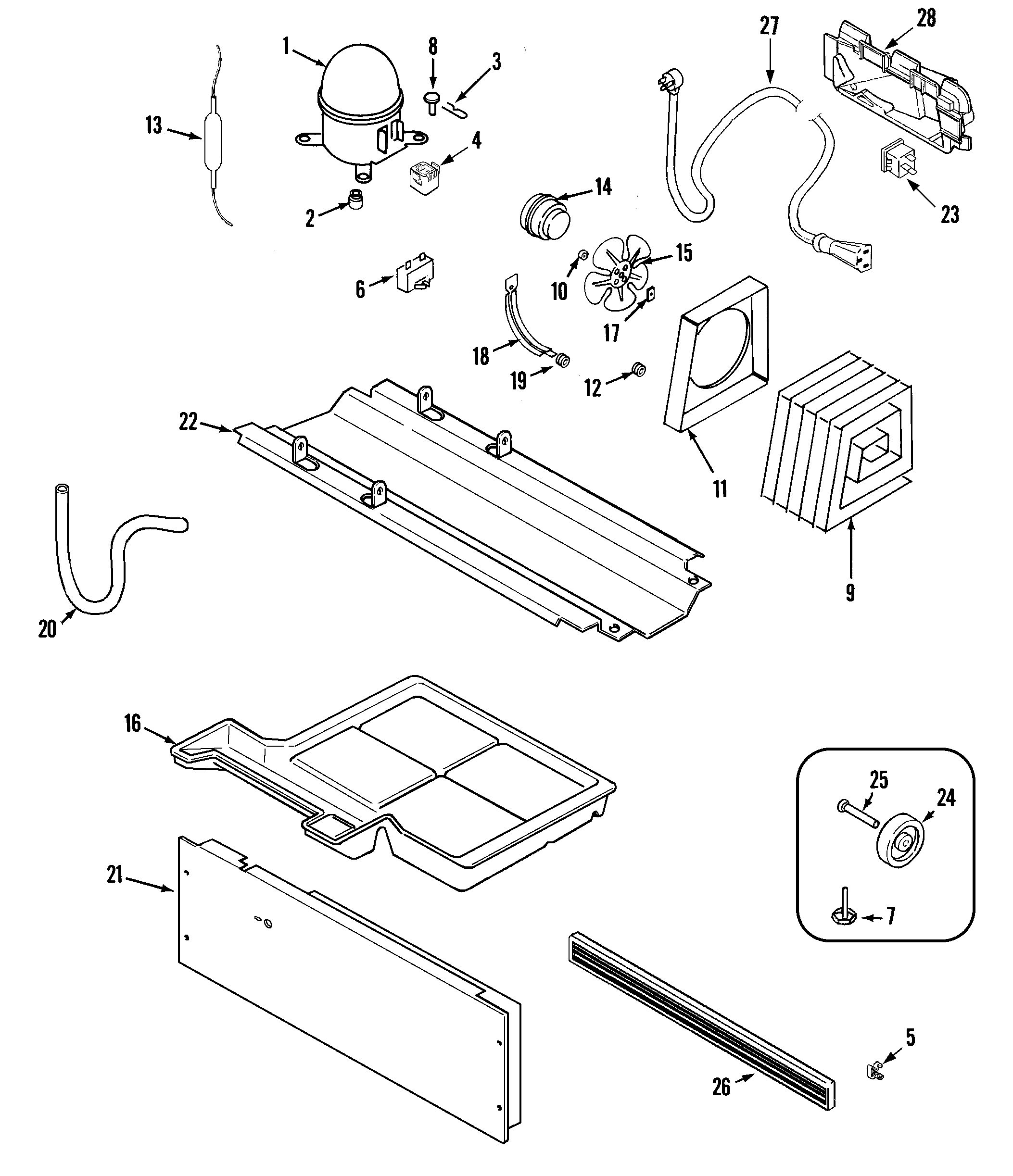

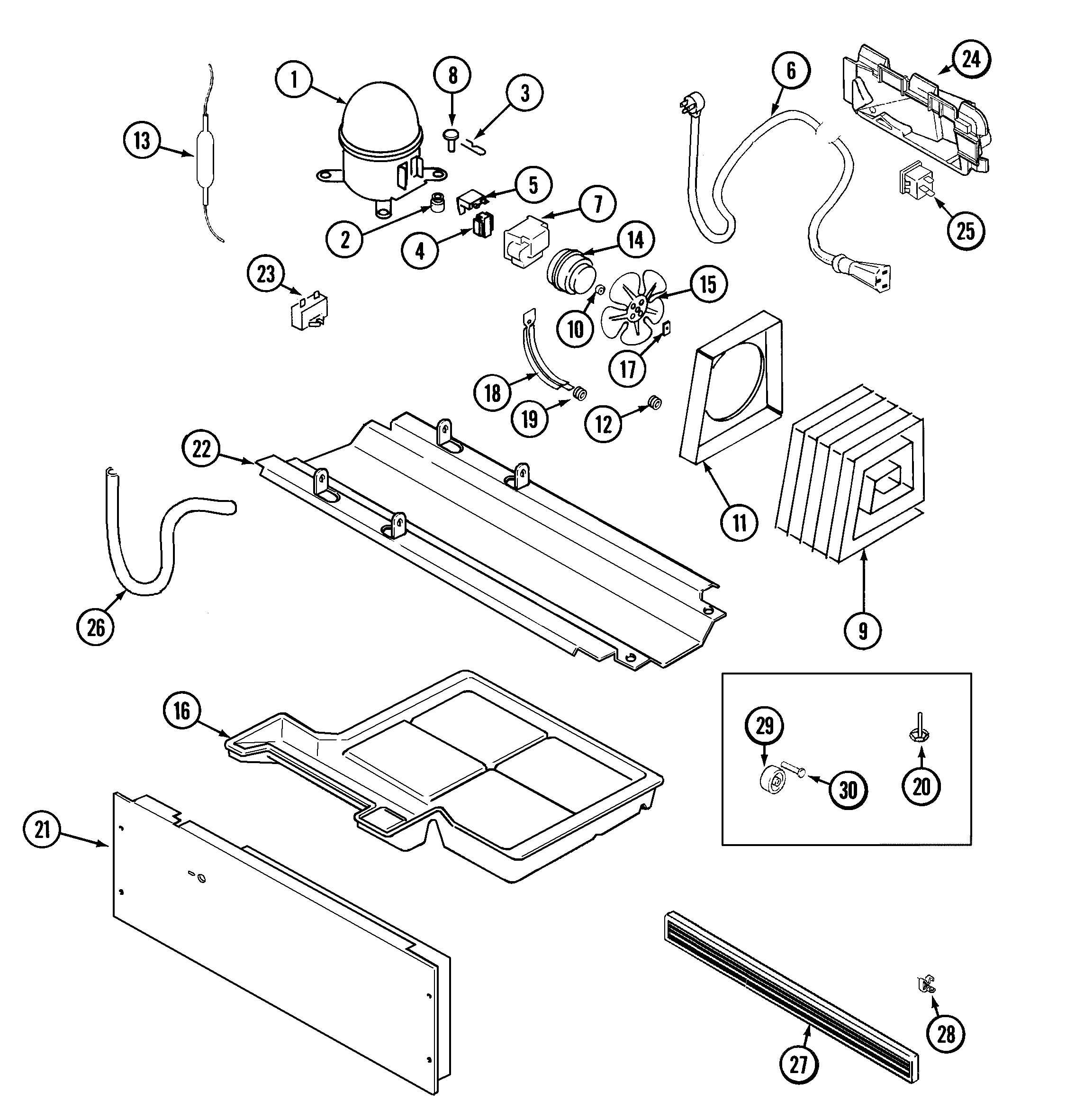

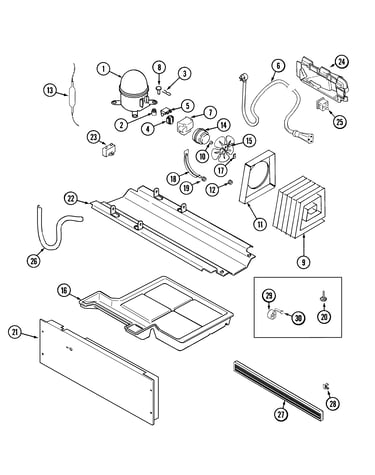

Refrigerator Condenser Blade 60683-1
Refrigerator condenser blade

Part #60683-1

Replaced by #WP12587601

?
Manufacturer substitution
This part replaces 60683-1. Substitute parts can look different from the original.
$62.33 |
9% OFF Phone Price : $68.33
In Stock
Refrigerator Screw 61002429
#2B

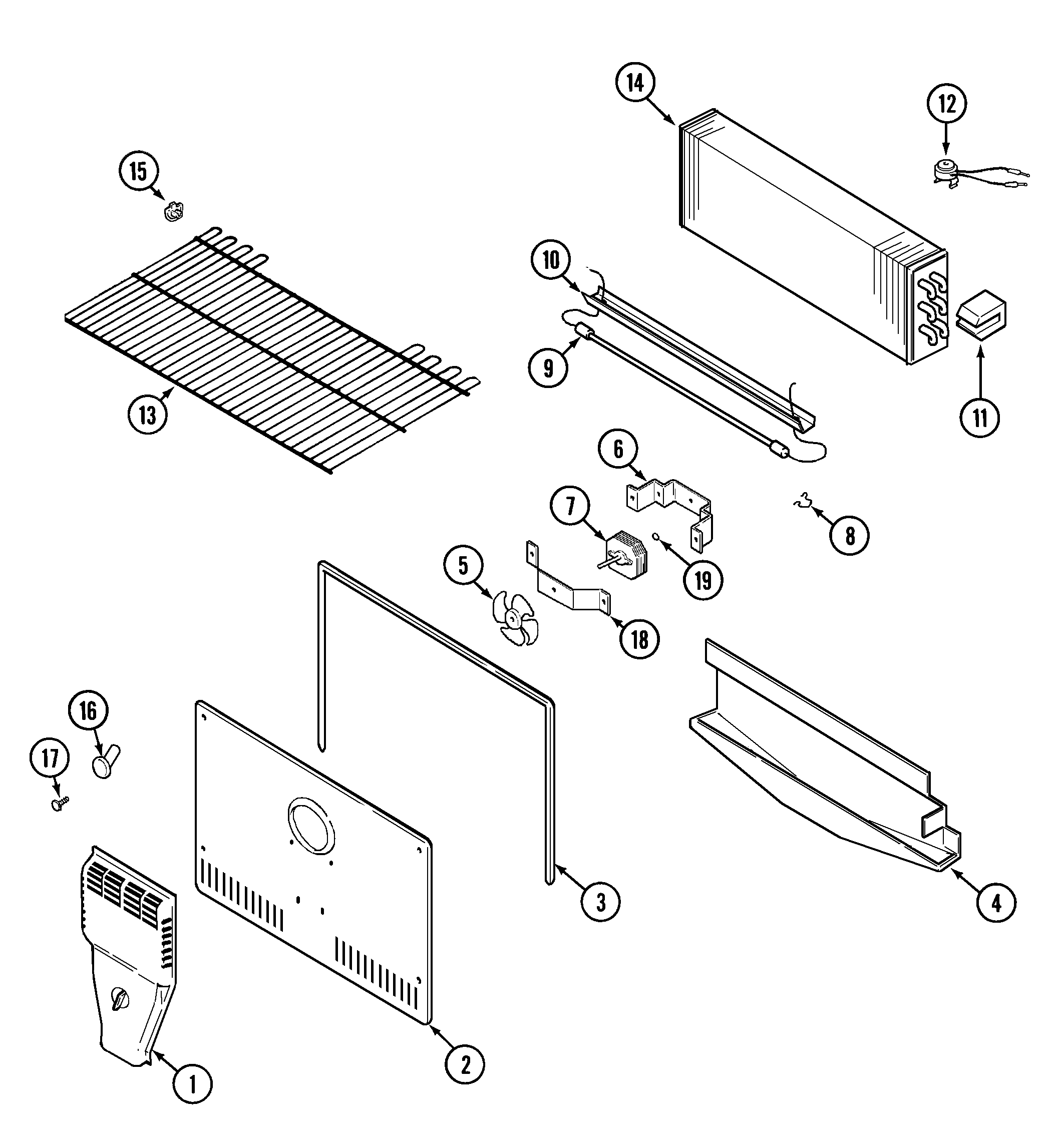

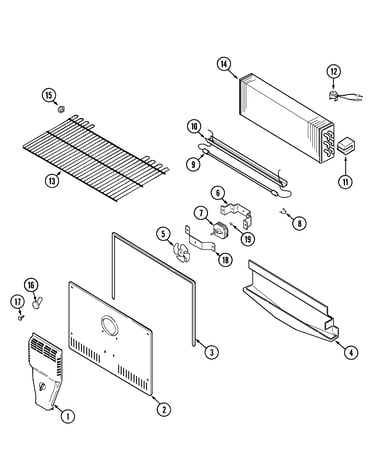

Freezer compartment diagram

Refrigerator screw

Part #61002429

Replaced by #WP489474

?
Manufacturer substitution
This part replaces 61002429. Substitute parts can look different from the original.
This item is not returnable
$4.86 |
17% OFF Phone Price : $5.86
In Stock
Refrigerator Control Knob 61001996
#10

Fresh food compartment diagram

Refrigerator control knob

Part #61001996

Replaced by #WP61006073

?
Manufacturer substitution
This part replaces 61001996. Substitute parts can look different from the original.
This item is not returnable
$23.71 |
20% OFF Phone Price : $29.71
In Stock

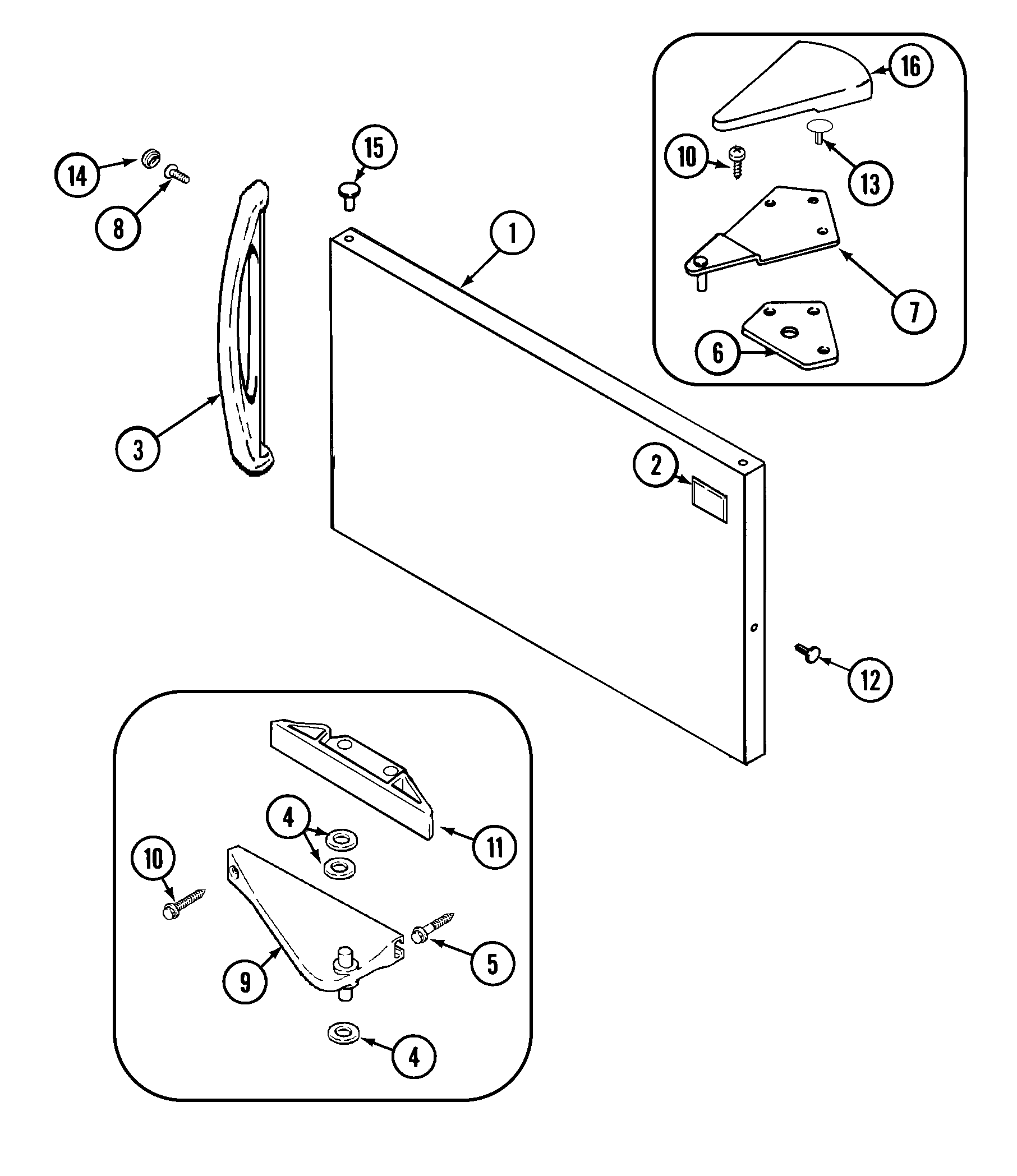

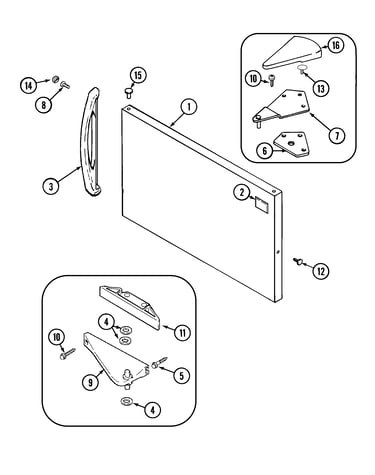

Hinge Washer 61002231
Hinge washer

Part #61002231

Replaced by #WP61002231

?
Manufacturer substitution
This part replaces 61002231. Substitute parts can look different from the original.
This item is not returnable
$6.84 |
13% OFF Phone Price : $7.84
In Stock
Refrigerator Thermostat 61004831
#12

Freezer compartment diagram

Refrigerator thermostat

Part #61004831

Replaced by #WP61002992

?
Manufacturer substitution
This part replaces 61004831. Substitute parts can look different from the original.
$61.92 |
9% OFF Phone Price : $67.92
In Stock
Refrigerator Door Hinge Pin, Lower 61001925
#9

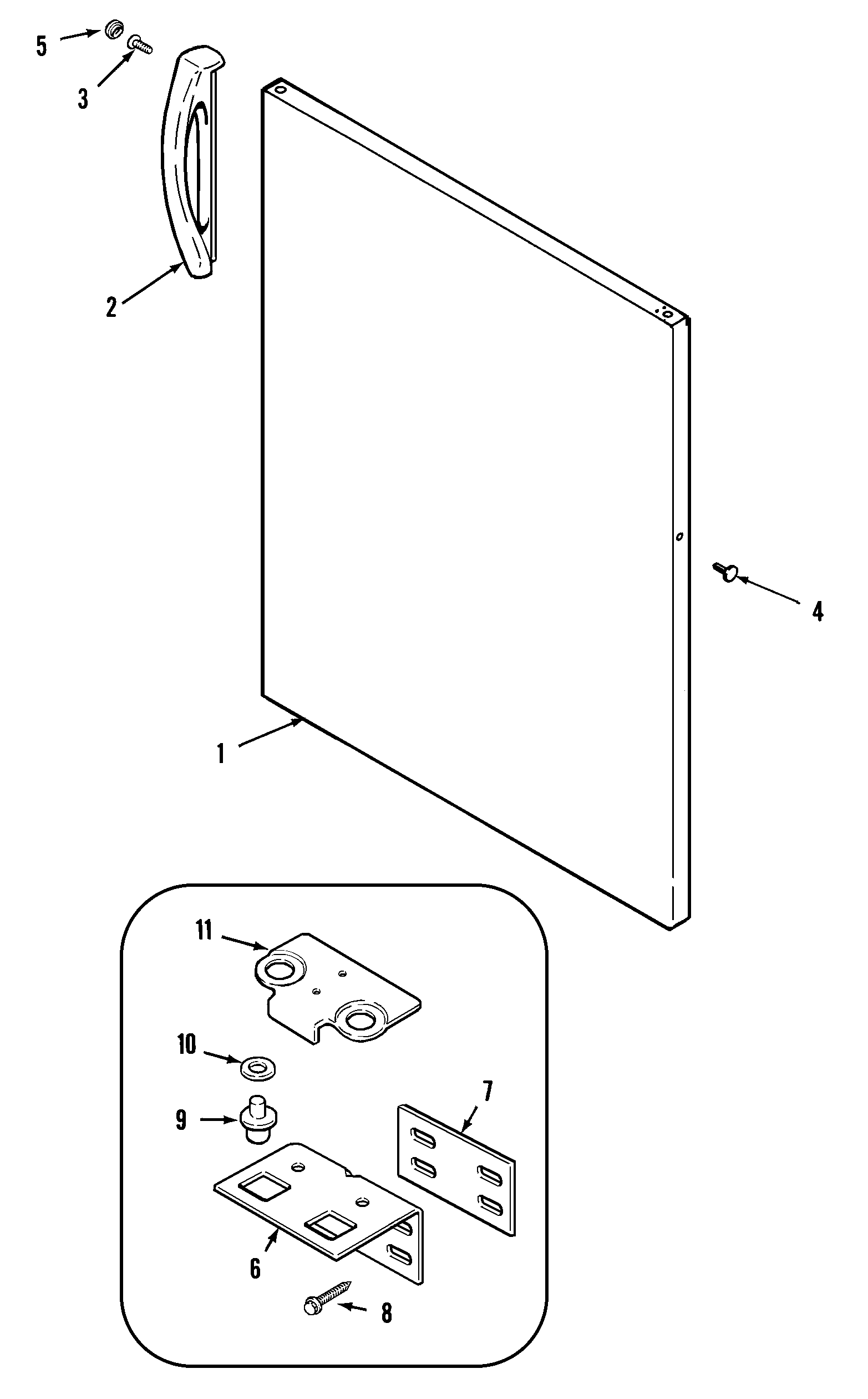

Fresh food outer door diagram

Refrigerator door hinge pin, lower

Part #61001925

Replaced by #WP61001925

?
Manufacturer substitution
This part replaces 61001925. Substitute parts can look different from the original.
This item is not returnable
$17.95 |
10% OFF Phone Price : $19.95
In Stock
Refrigerator Shelf Trim 61001962
#3

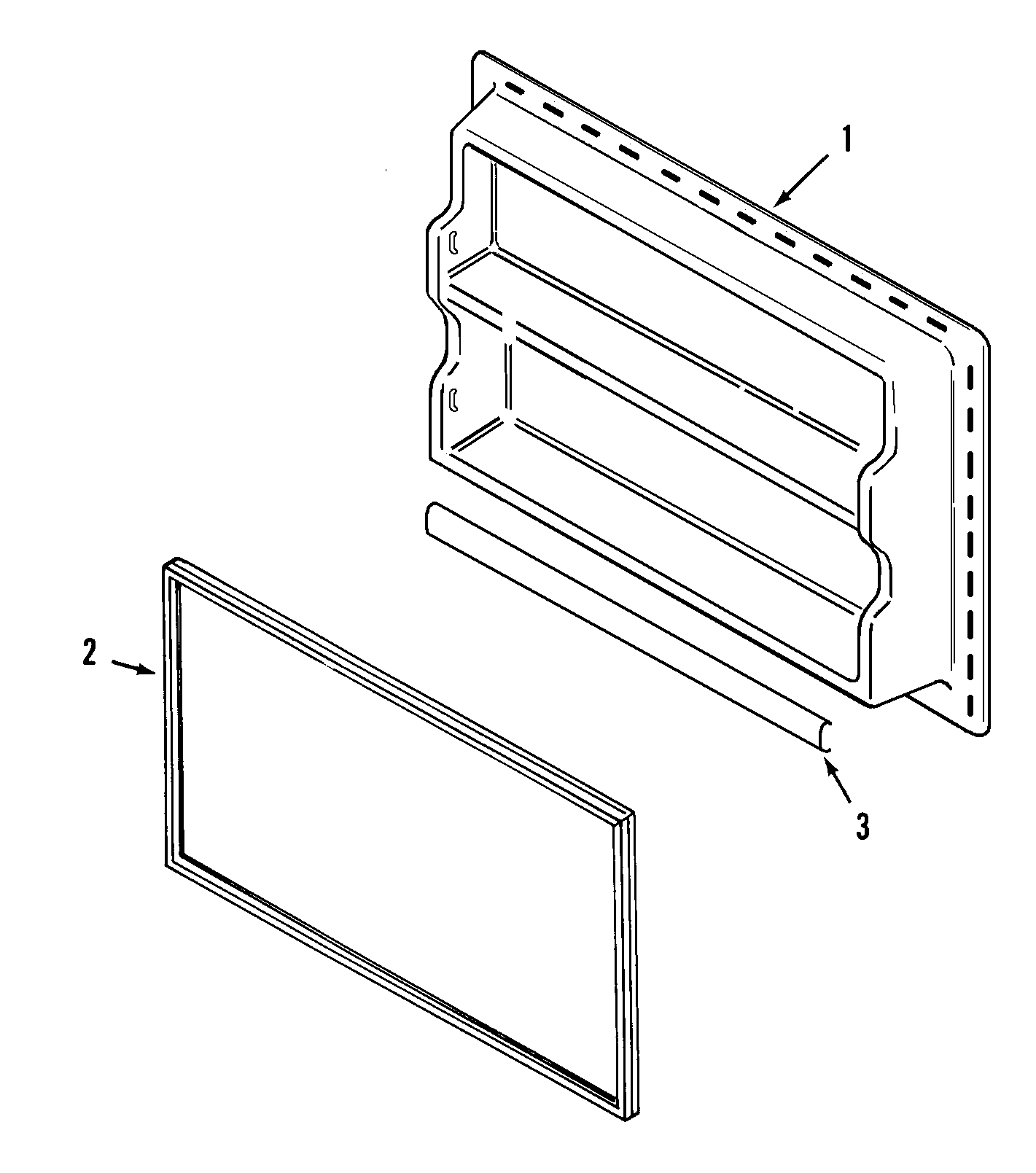

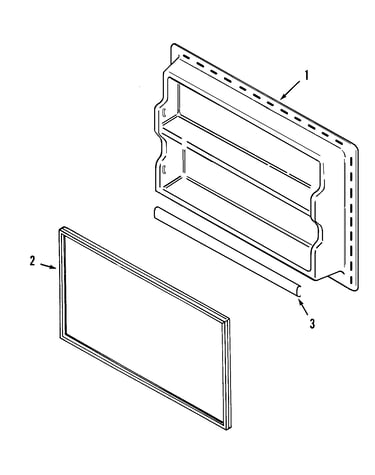

Freezer inner door diagram

Refrigerator shelf trim

Part #61001962

Replaced by #W11045462

?
Manufacturer substitution
This part replaces 61001962. Substitute parts can look different from the original.
$44.99 |
12% OFF Phone Price : $50.99
In Stock
