Craftsman
Gas Walk-Behind Mower

Model # 917376390 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376390 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Lawn & Garden Equipment Nut 409148
#29

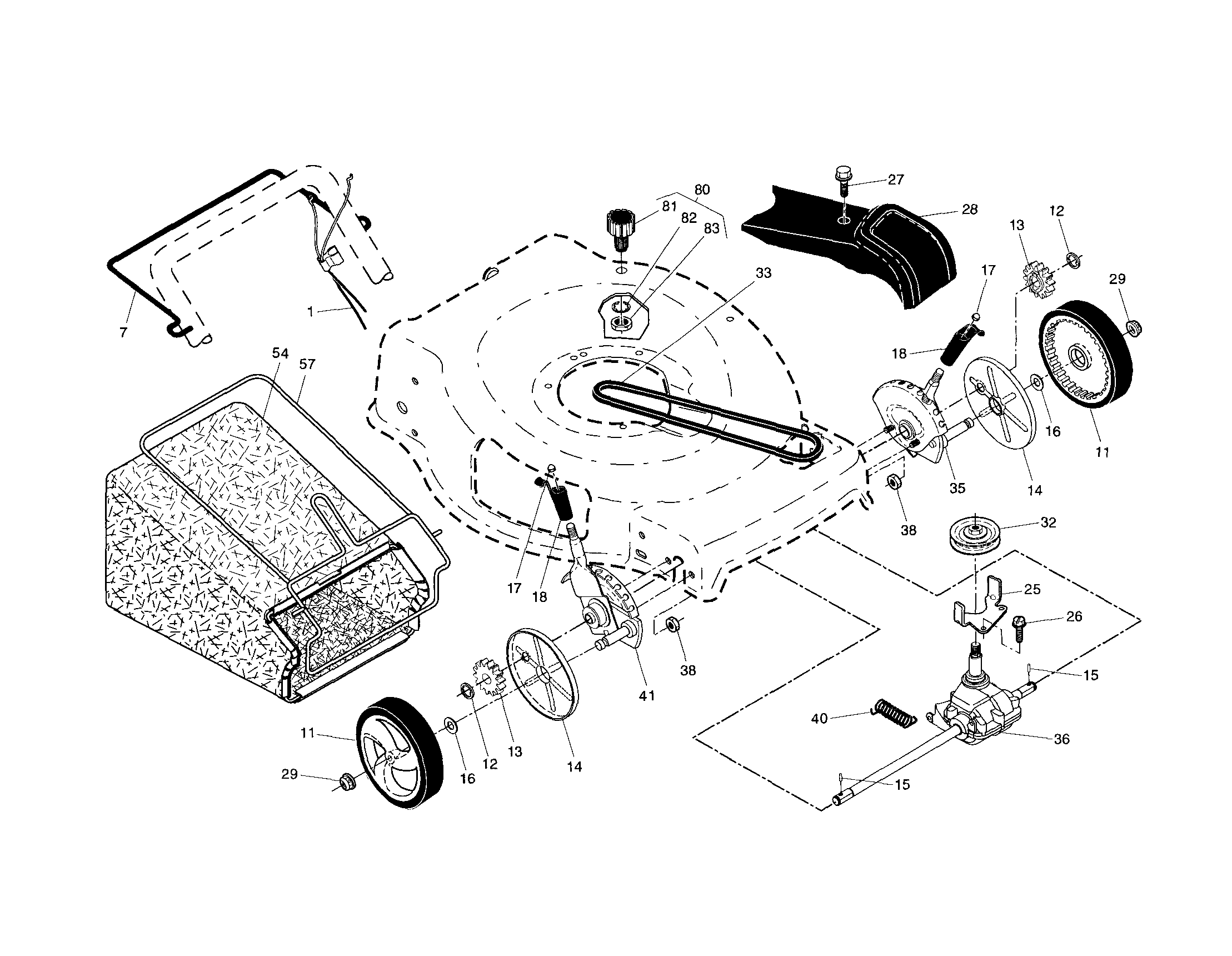

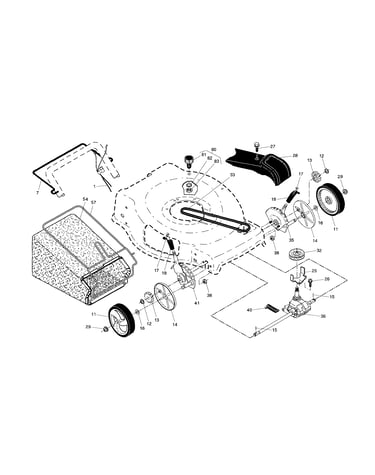

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Hex Flange Nut 409149
#25

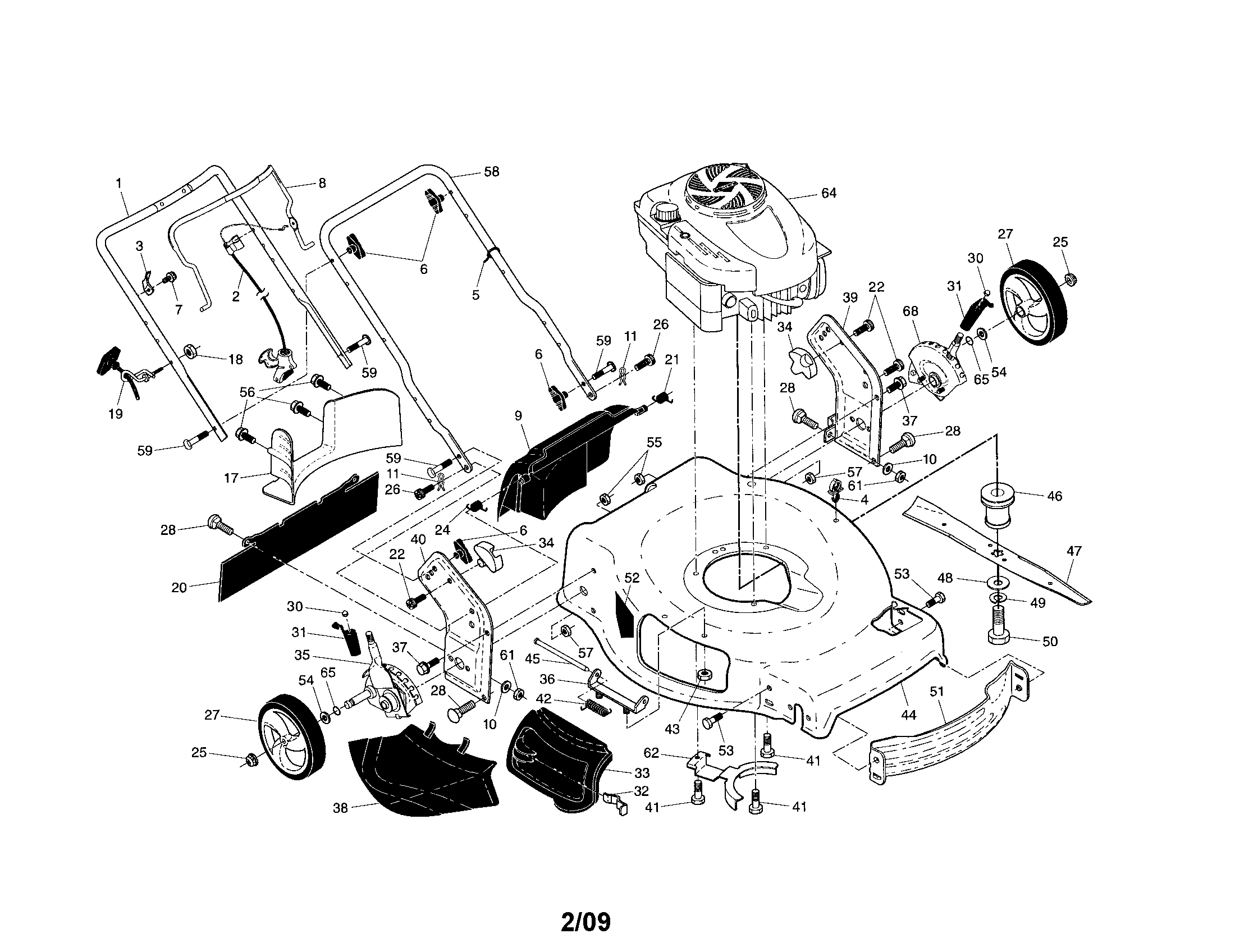

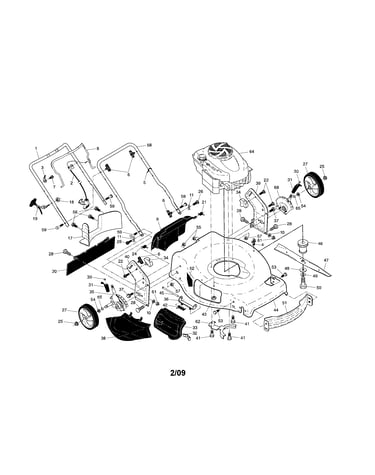

Engine/housing/handle diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Wheel And Tire, 8 X 1.75-in 194231X460
#11

Drive control/gear case/wheels diagram

Lawn mower wheel and tire, 8 x 1.75-in

Part #194231X460

Replaced by #583719501

?
Manufacturer substitution
This part replaces 194231X460. Substitute parts can look different from the original.
BEST SELLER
$34.31 |
15% OFF Phone Price : $40.31
In Stock
Hndl.knob.bl 189713X428
#6

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Control Cable 425076
#2

Engine/housing/handle diagram

Control cable

Part #425076

Replaced by #587326601

?
Manufacturer substitution
This part replaces 425076. Substitute parts can look different from the original.
BEST SELLER
$33.08 |
15% OFF Phone Price : $39.08
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$8.22 |
11% OFF Phone Price : $9.22
In Stock
Lawn Mower Grass Bag Frame 419951
#57

Drive control/gear case/wheels diagram

Lawn mower grass bag frame

Part #419951

Replaced by #585054702

?
Manufacturer substitution
This part replaces 419951. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Transmission 420397
#36

Drive control/gear case/wheels diagram

Transmission

Part #420397

Replaced by #589600601

?
Manufacturer substitution
This part replaces 420397. Substitute parts can look different from the original.
BEST SELLER
$101.96 |
11% OFF Phone Price : $113.96
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Screw, 5/16-18 X 3/4-in 17000512
#37

Engine/housing/handle diagram

Screw, 5/16-18 x 3/4-in

Part #17000512

Replaced by #428867

?
Manufacturer substitution
This part replaces 17000512. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
