Here are the diagrams and repair parts for Official KitchenAid KSM154GBQES0 5-quart stand mixer with tilt head, as well as links to manuals and error code tables, if available.

Owner’s manual

By Schematic

By Part

SELECT DIAGRAM

Browse Parts forKSM154GBQES0 5-Quart Stand Mixer with Tilt Head

#15

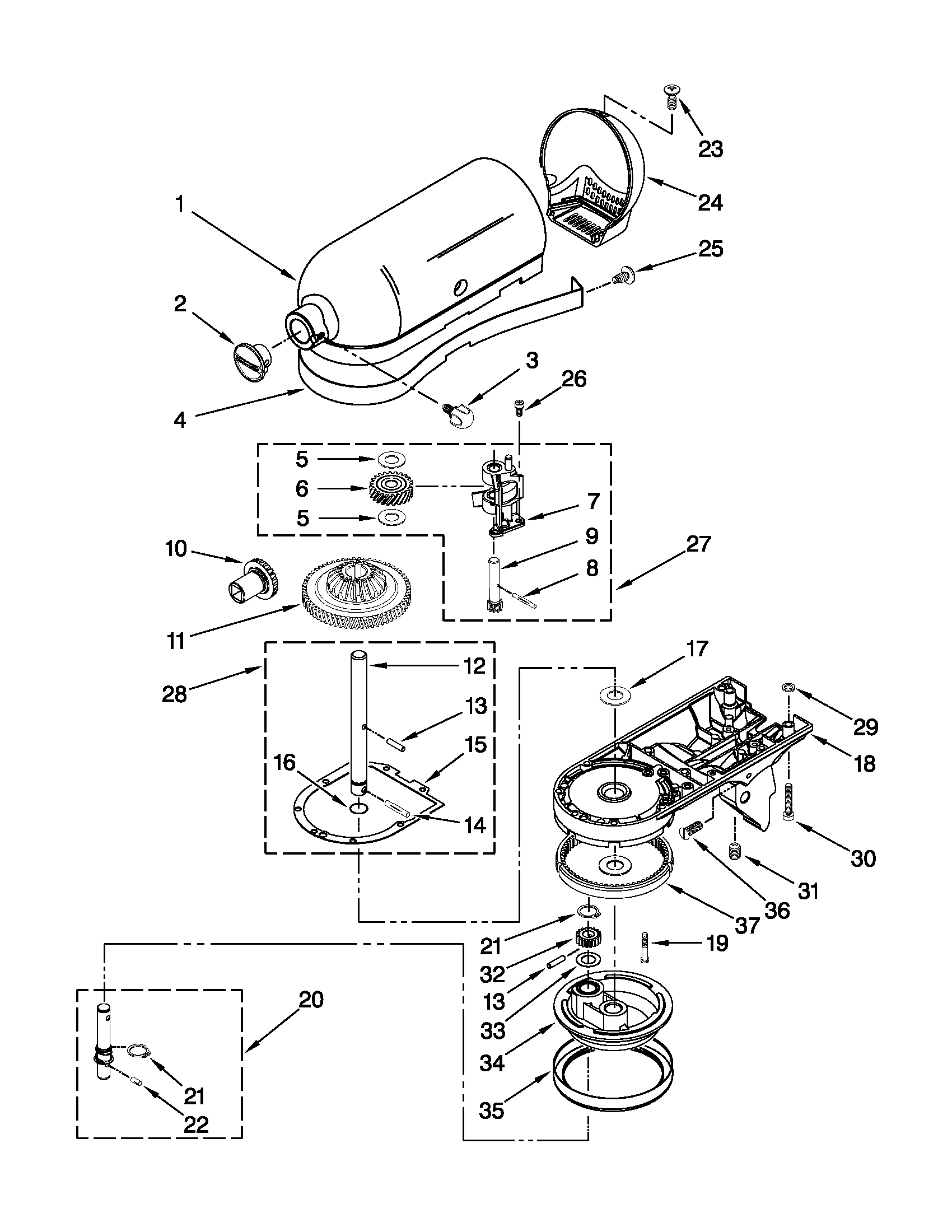

Case, gearing and planetary unit diagram
Gasket
Part #4162324
Replaced by #WP4162324
?
Manufacturer substitution
This part replaces 4162324. Substitute parts can look different from the original.
5 (1)
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Qty
#19

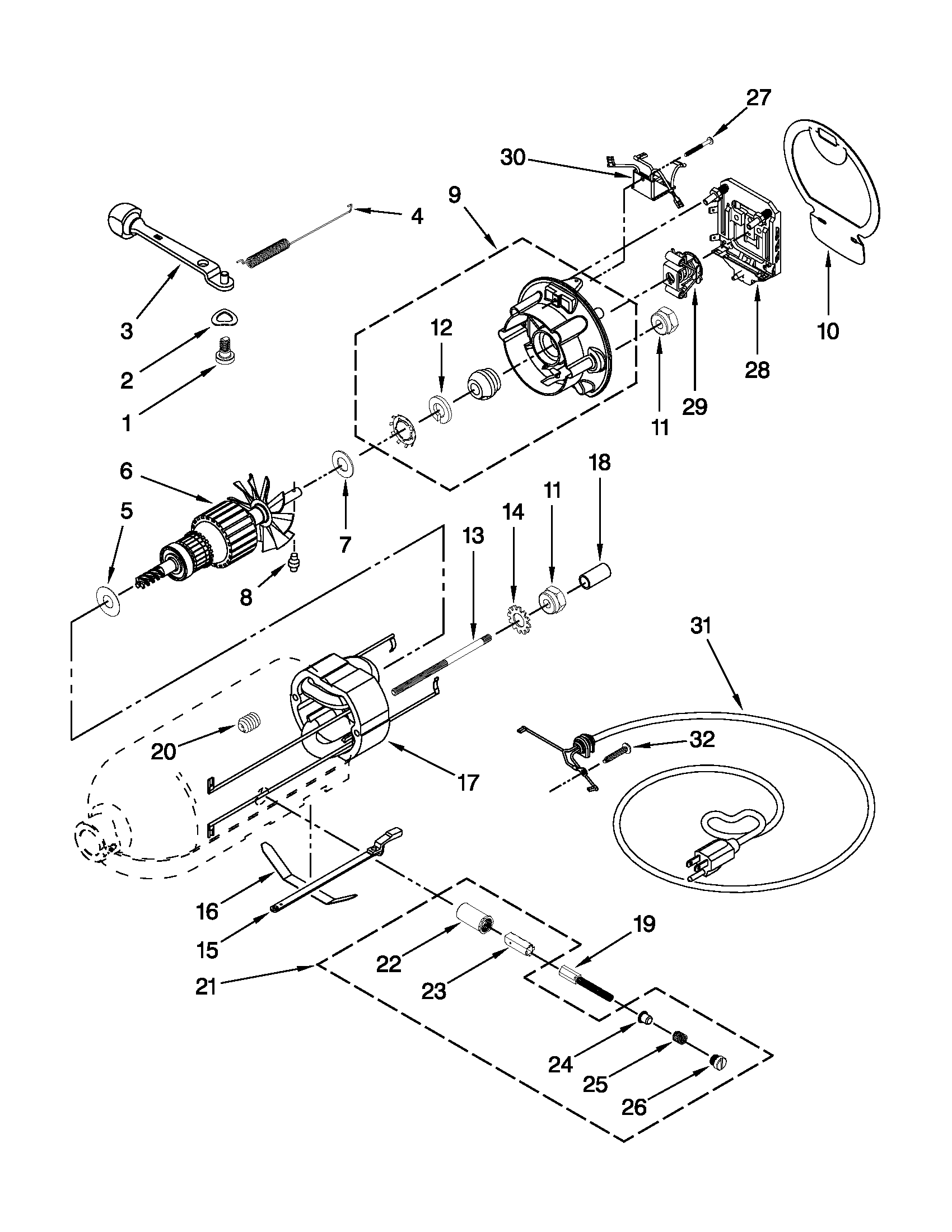

Motor and control parts diagram
Brush-mtr
Part #W10380496
Replaced by #WPW10380496
?
Manufacturer substitution
This part replaces W10380496. Substitute parts can look different from the original.
$7.50 |
12% OFF Phone Price : $8.50
In Stock
Qty
#27
Case, gearing and planetary unit diagram
Stand mixer worm gear assembly
Part #240309-2
Replaced by #WP240309-2
?
Manufacturer substitution
This part replaces 240309-2. Substitute parts can look different from the original.
5 (4)
$32.07 |
16% OFF Phone Price : $38.07
In Stock
Qty
#8
Case, gearing and planetary unit diagram
Pin-groove
Part #9705444
Replaced by #WP9705444
?
Manufacturer substitution
This part replaces 9705444. Substitute parts can look different from the original.
1 (1)
This item is not returnable
$5.19 |
16% OFF Phone Price : $6.19
In Stock
Qty
#15
Motor and control parts diagram
Link-speed
Part #3184176
Replaced by #W11557271
?
Manufacturer substitution
This part replaces 3184176. Substitute parts can look different from the original.
This item is not returnable
$4.35 |
19% OFF Phone Price : $5.35
In Stock
Qty
#30
Motor and control parts diagram
Stand mixer phase control board
Part #W10325124
Replaced by #WPW10325124
?
Manufacturer substitution
This part replaces W10325124. Substitute parts can look different from the original.
4.4 (7)
This item is not returnable
$16.63 |
11% OFF Phone Price : $18.63
In Stock
Qty
#10
Motor and control parts diagram
Seal
Part #240775-1
Replaced by #WP240775-1
?
Manufacturer substitution
This part replaces 240775-1. Substitute parts can look different from the original.
5 (2)
This item is not returnable
$5.19 |
16% OFF Phone Price : $6.19
In Stock
Qty
#11

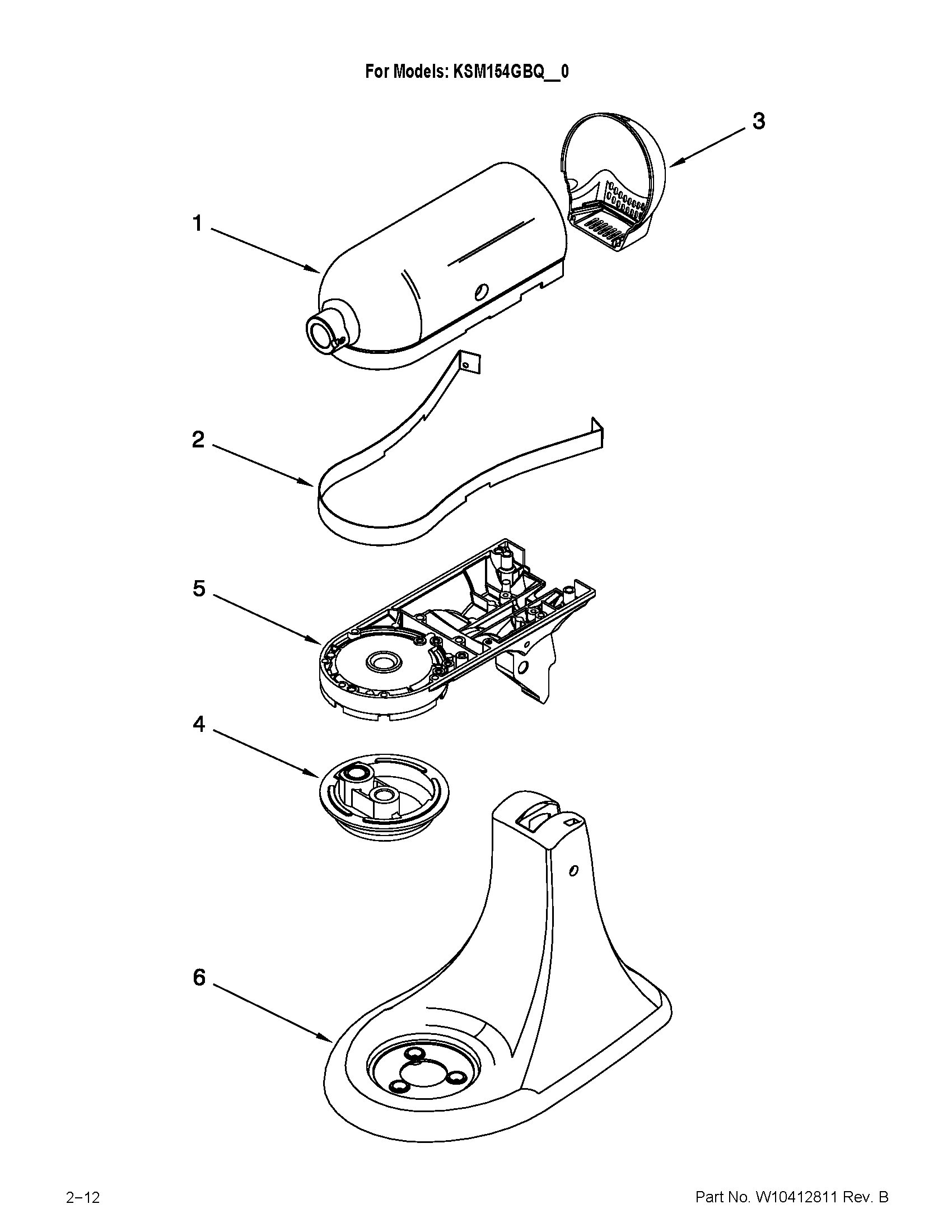

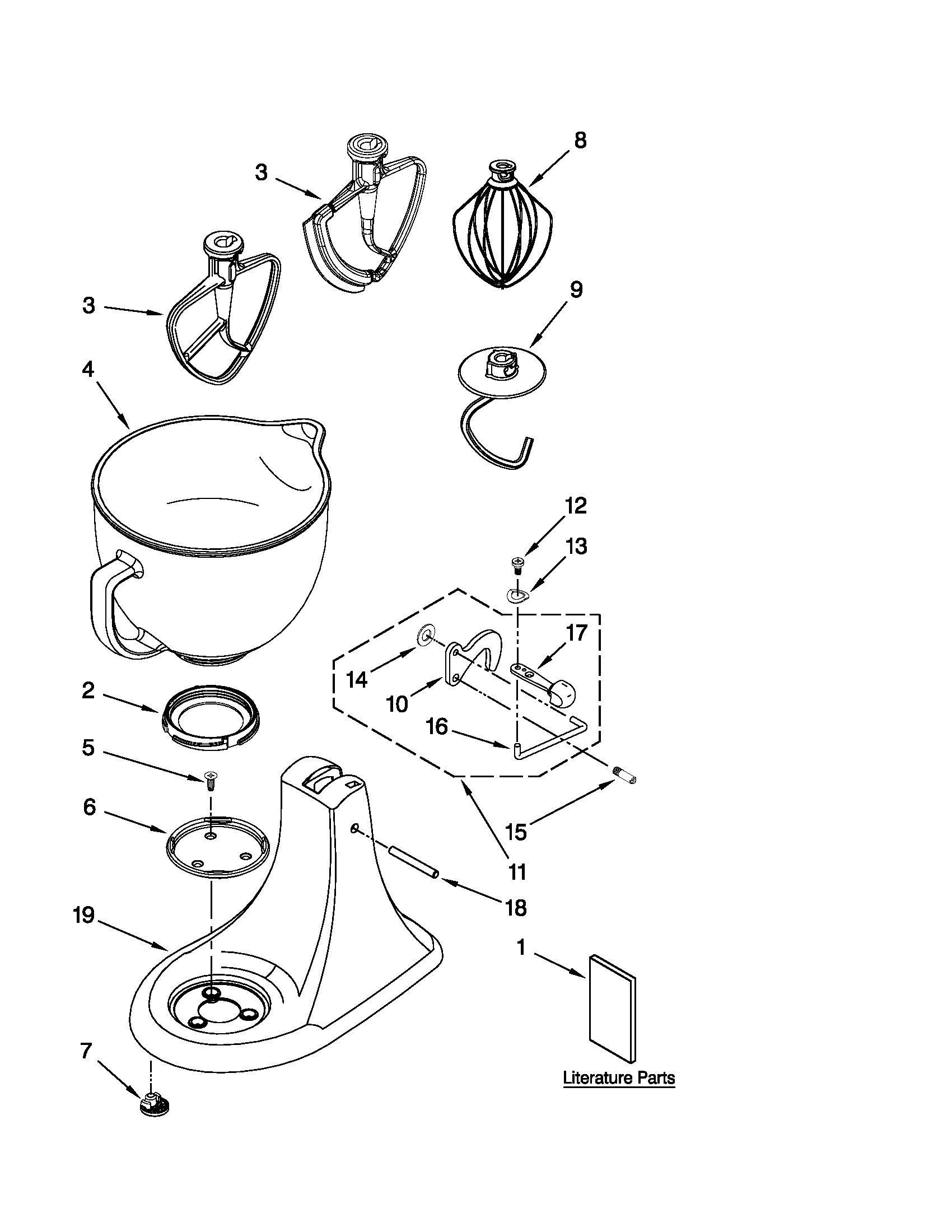

Base and pedestal unit diagram
Latch lever
Part #24452
Replaced by #WP24452
?
Manufacturer substitution
This part replaces 24452. Substitute parts can look different from the original.
5 (1)
This item is not returnable
$8.35 |
11% OFF Phone Price : $9.35
In Stock
Qty
#28
Case, gearing and planetary unit diagram
Center shaft
Part #4160474
$47.25
In Stock
Qty
#NI
Accessory parts diagram
Stand mixer grease
Part #4176597
Replaced by #W11200218
?
Manufacturer substitution
This part replaces 4176597. Substitute parts can look different from the original.
$76.33 |
7% OFF Phone Price : $82.33
In Stock
Qty
