Model # WOD51EC7HB02 Official Whirlpool electric oven

Here are the diagrams and repair parts for Official Whirlpool WOD51EC7HB02 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

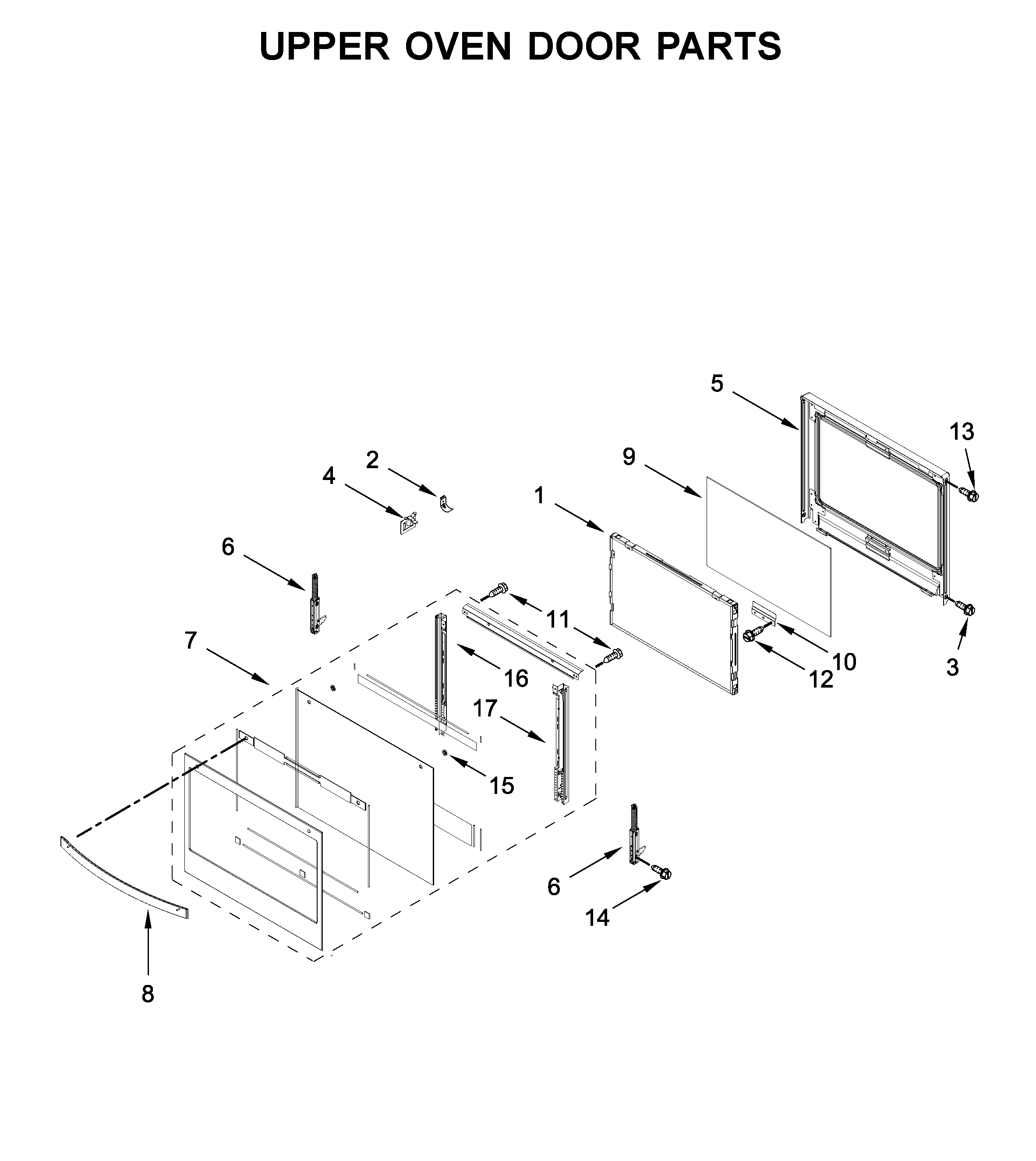

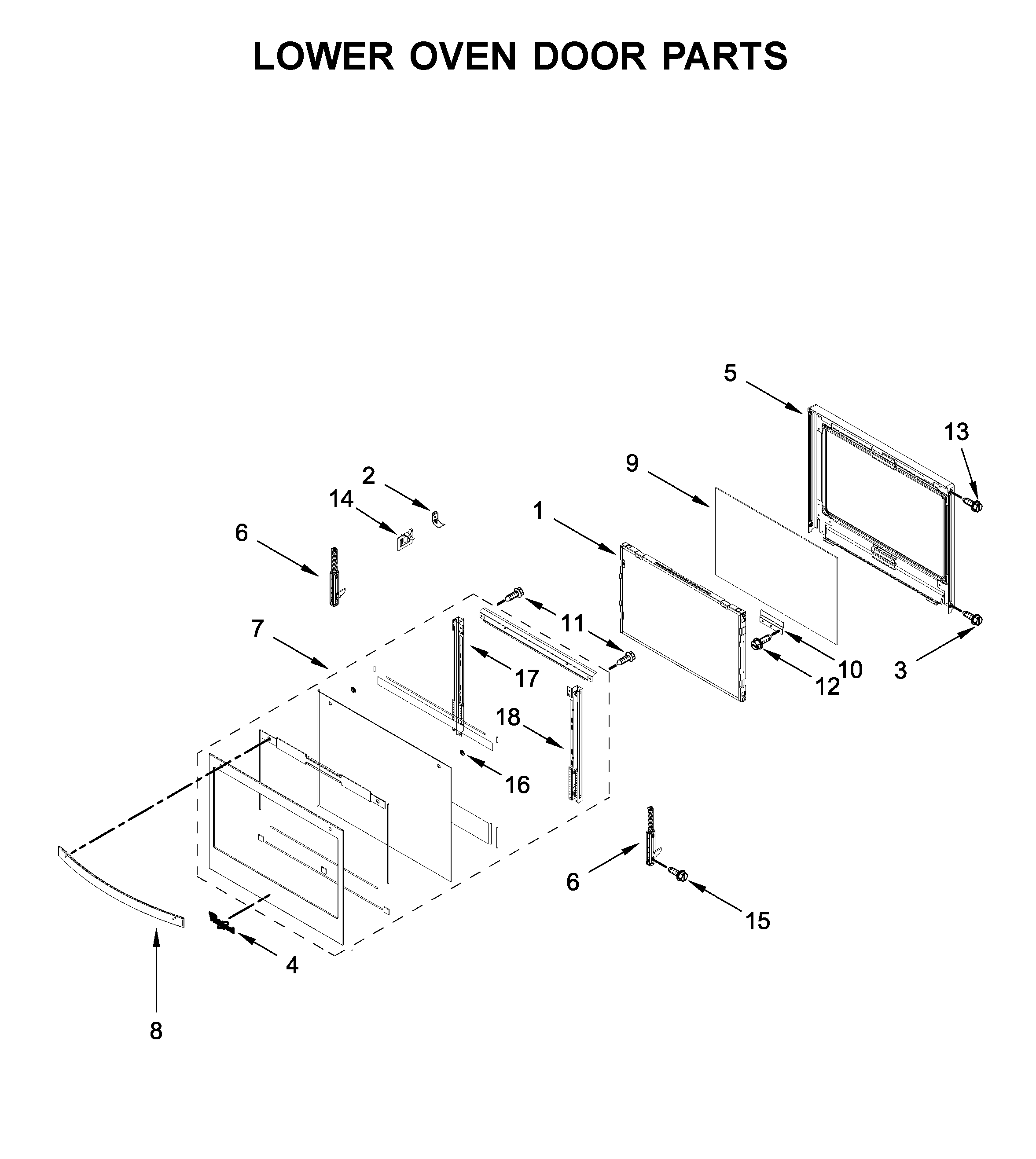

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Range High-limit Thermostat 4449751
#18

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
11% OFF Phone Price : $113.25
In Stock
Copernicus N W11253187
#3

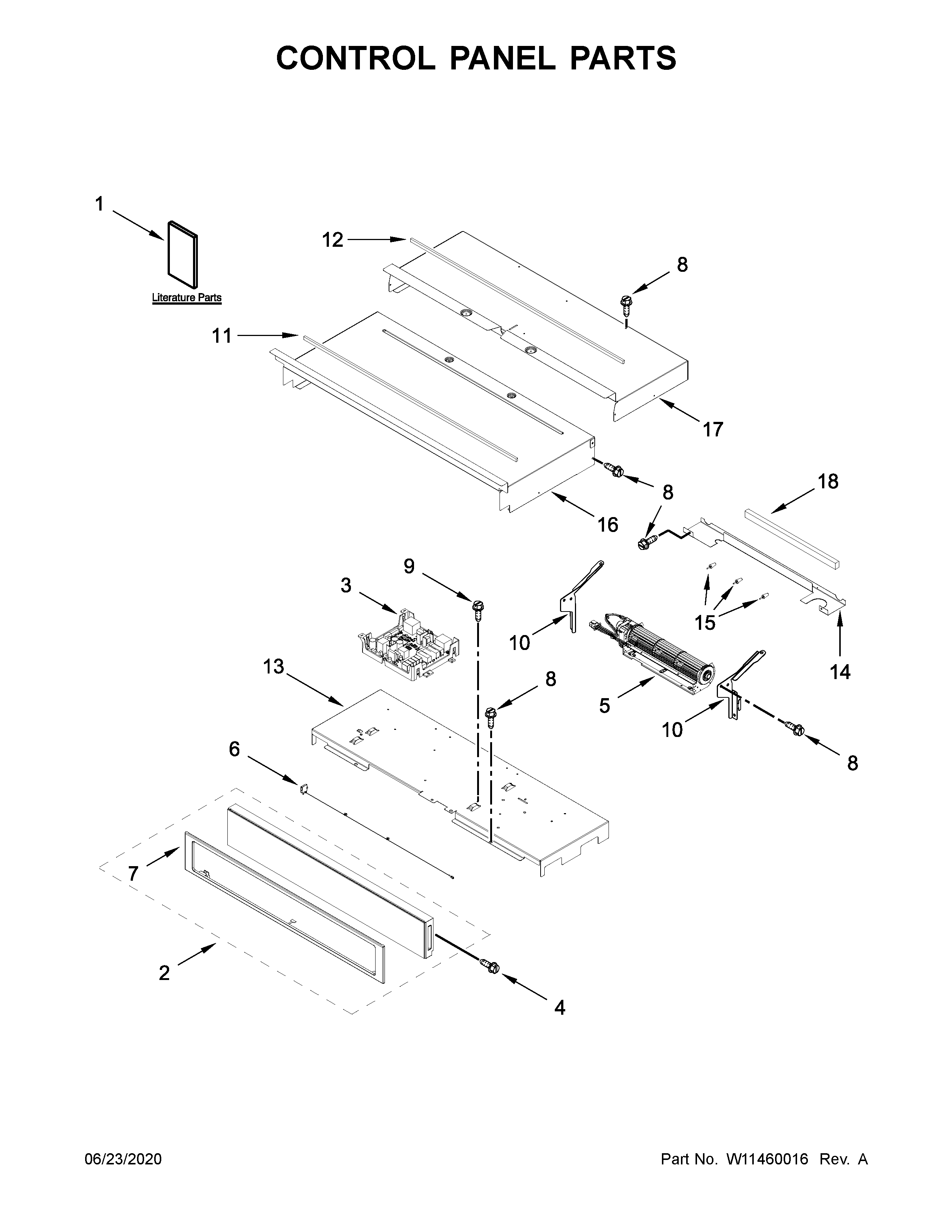

Control panel parts diagram

Copernicus n

Part #W11253187

Replaced by #W11261167

?
Manufacturer substitution
This part replaces W11253187. Substitute parts can look different from the original.
BEST SELLER
$224.93 |
5% OFF Phone Price : $236.93
In Stock
Appliance Touch-up Paint 72017
#NI

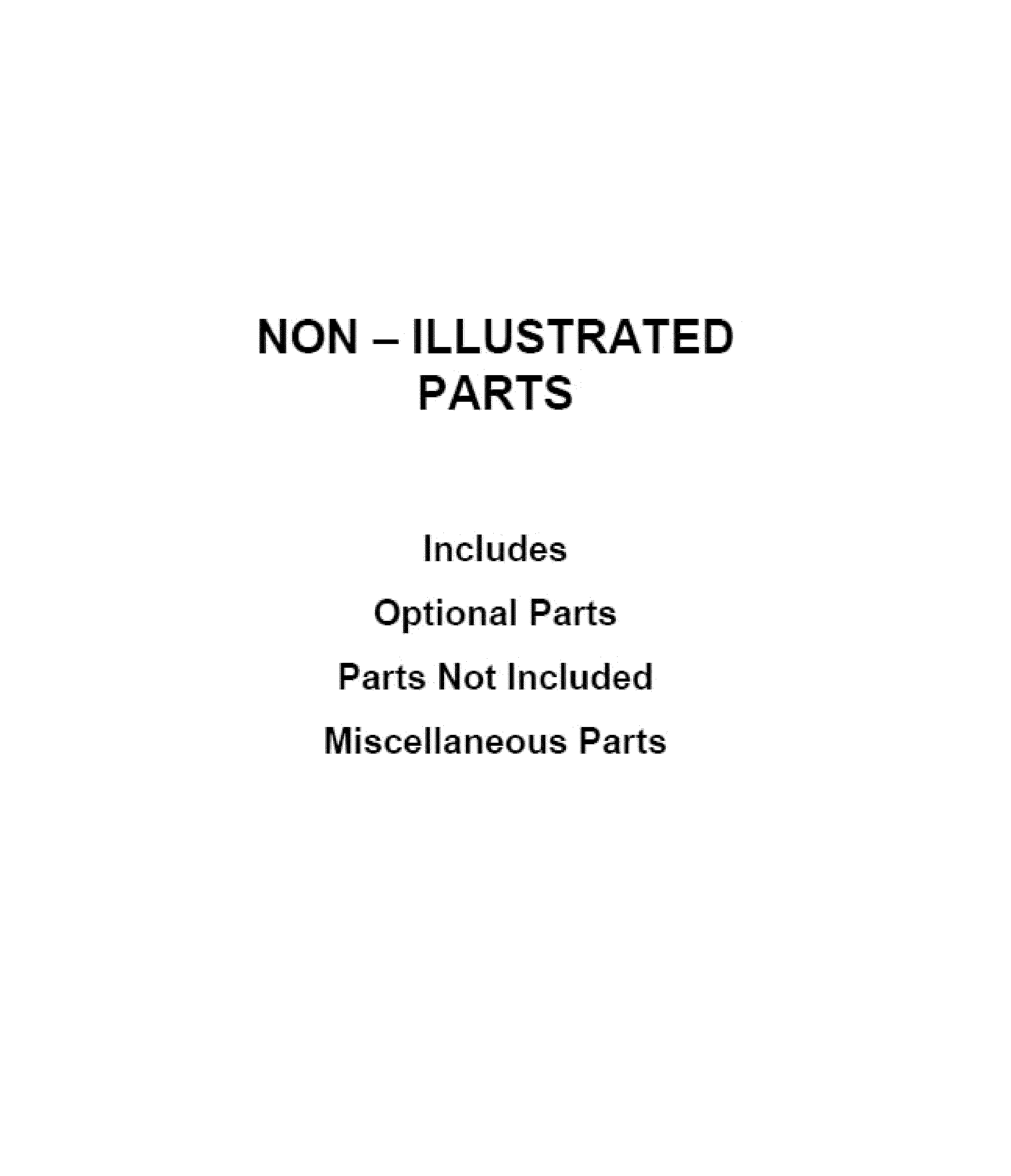

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Wako Minerva W10622170
#16

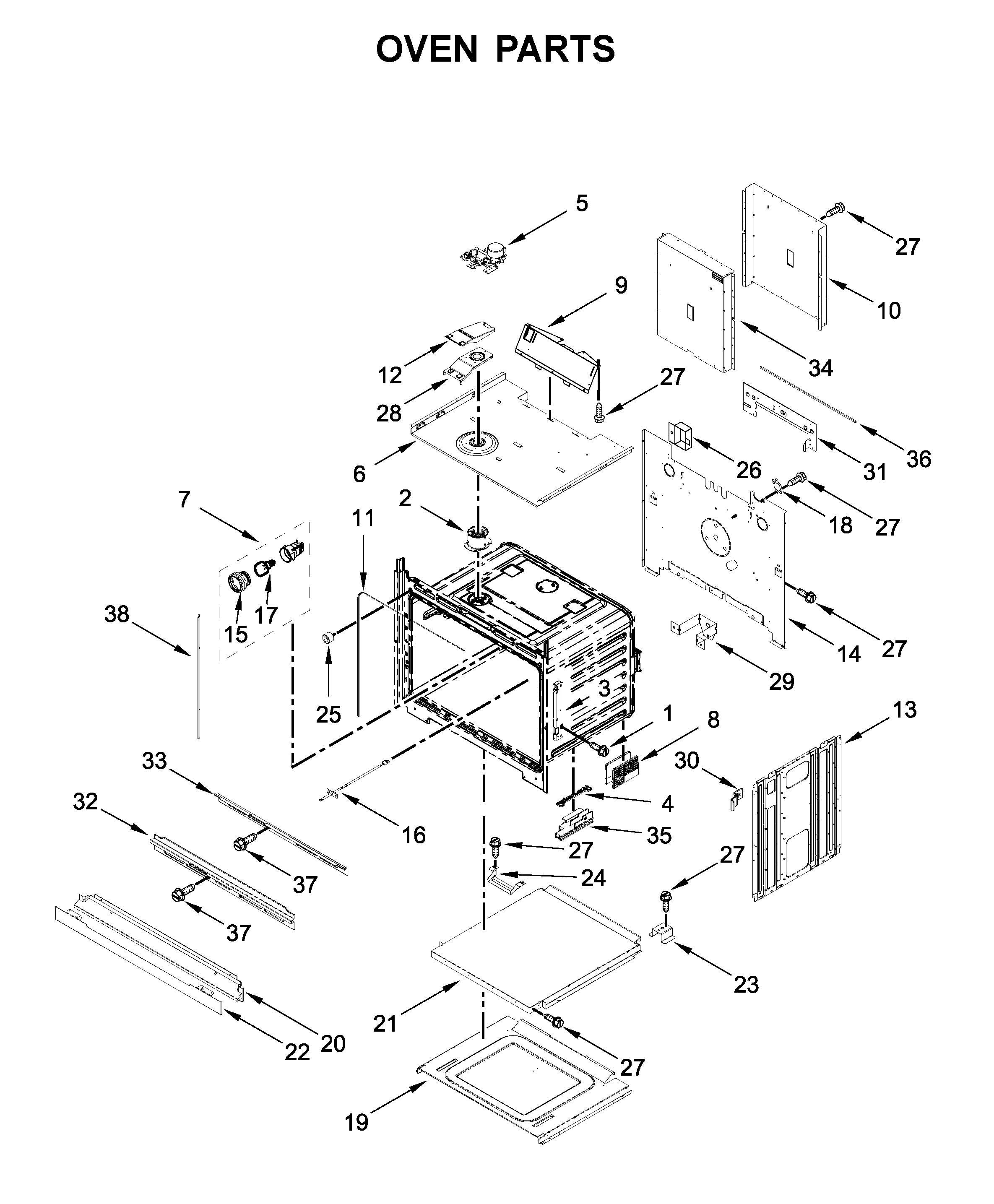

Oven parts diagram

Wako minerva

Part #W10622170

Replaced by #W10859573

?
Manufacturer substitution
This part replaces W10622170. Substitute parts can look different from the original.
BEST SELLER
$100.74 |
11% OFF Phone Price : $112.74
In Stock
Range Bake Element W11292248
#7

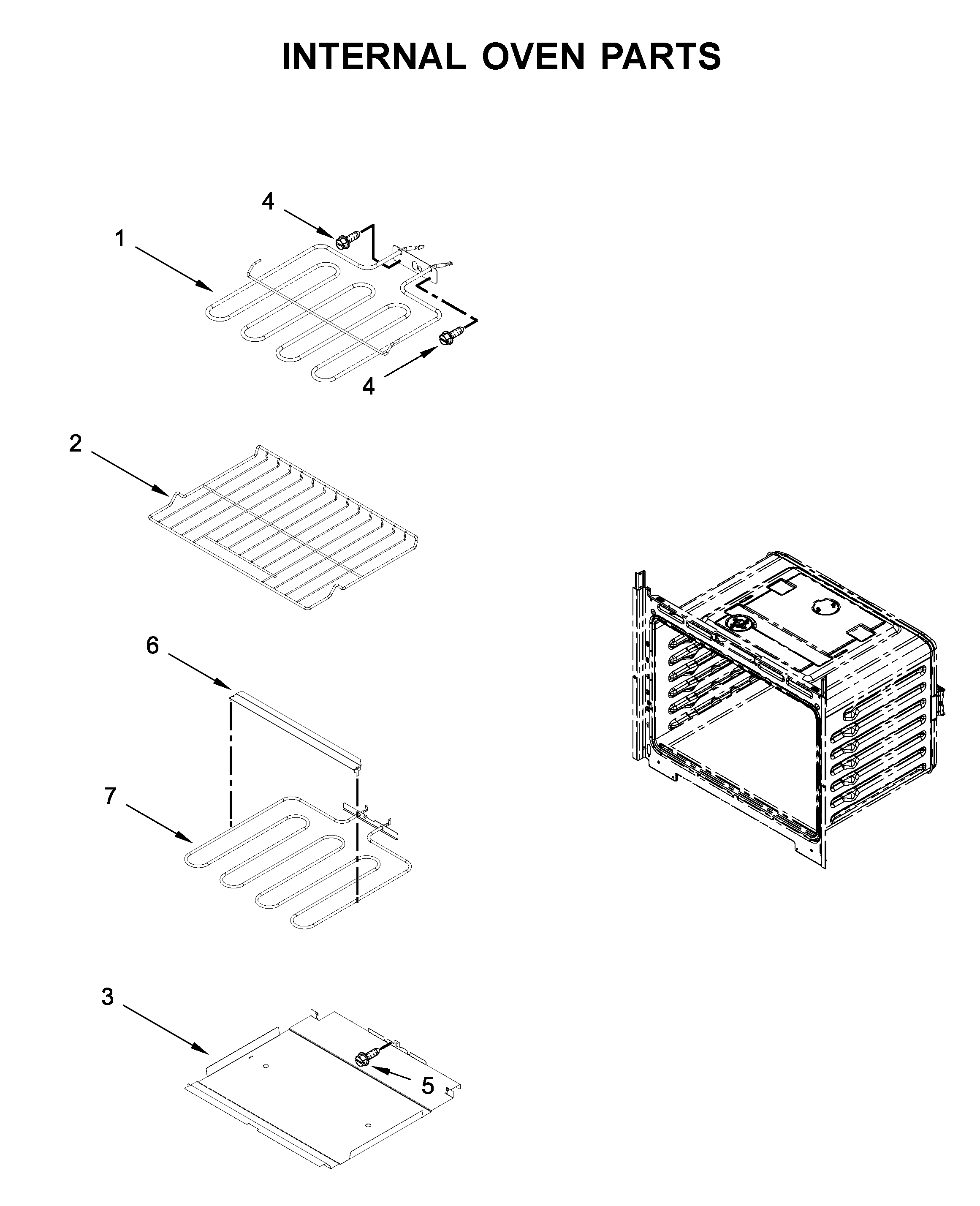

Internal oven parts diagram

Range bake element

Part #W11292248

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W11292248. Substitute parts can look different from the original.
BEST SELLER
$58.25 |
9% OFF Phone Price : $64.25
In Stock
Adhesive 482338
#NI

Optional parts (not included) diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Range Oven Rack W10317431
#2

Internal oven parts diagram

Range oven rack

Part #W10317431

Replaced by #WPW10317431

?
Manufacturer substitution
This part replaces W10317431. Substitute parts can look different from the original.
$59.59 |
9% OFF Phone Price : $65.59
In Stock
Screw 7101P653-60
Screw

Part #7101P653-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P653-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
8-18 X .375 W11249635
8-18 x .375

Part #W11249635

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces W11249635. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
