Model # 217592560 Official Craftsman electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 217592560 electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 66 parts |

#46

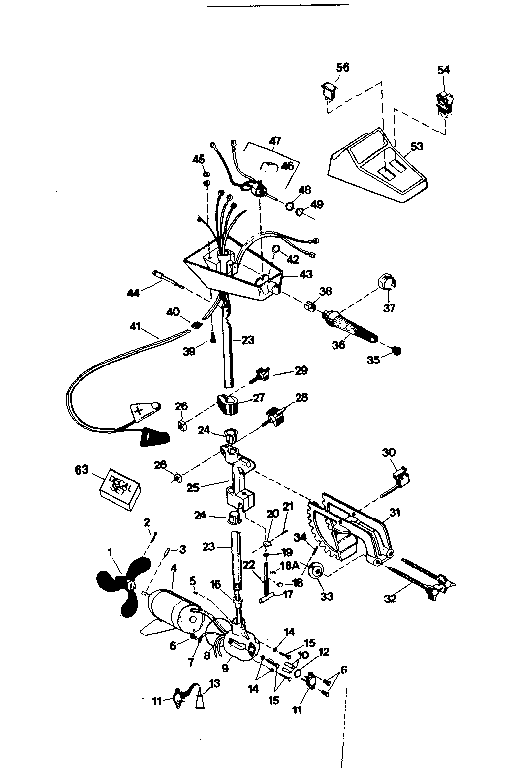

Troller assembly diagram

Resistor

Part #36571

The manufacturer no longer makes this part, and there's no substitute part

#54

Troller assembly diagram

Rocker switch

Part #76341

The manufacturer no longer makes this part, and there's no substitute part

#11

Electrical motor assembly diagram

Bolt

Part #36791

The manufacturer no longer makes this part, and there's no substitute part

#47

Troller assembly diagram

Pot asm

Part #76492

The manufacturer no longer makes this part, and there's no substitute part

Electrical motor assembly diagram

Plate

Part #36786

The manufacturer no longer makes this part, and there's no substitute part

#63

Troller assembly diagram

Decal set

Part #100654

The manufacturer no longer makes this part, and there's no substitute part

#34

Troller assembly diagram

Cotter pin

Part #6429

The manufacturer no longer makes this part, and there's no substitute part

#56

Troller assembly diagram

Meter

Part #76320

The manufacturer no longer makes this part, and there's no substitute part

#18A

Troller assembly diagram

Hitch pin

Part #6434

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Owner's manual

Part #93765

The manufacturer no longer makes this part, and there's no substitute part
