Model # MER5752BAW15 Official Maytag 30" electric range

Here are the diagrams and repair parts for Official Maytag MER5752BAW15 30" electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

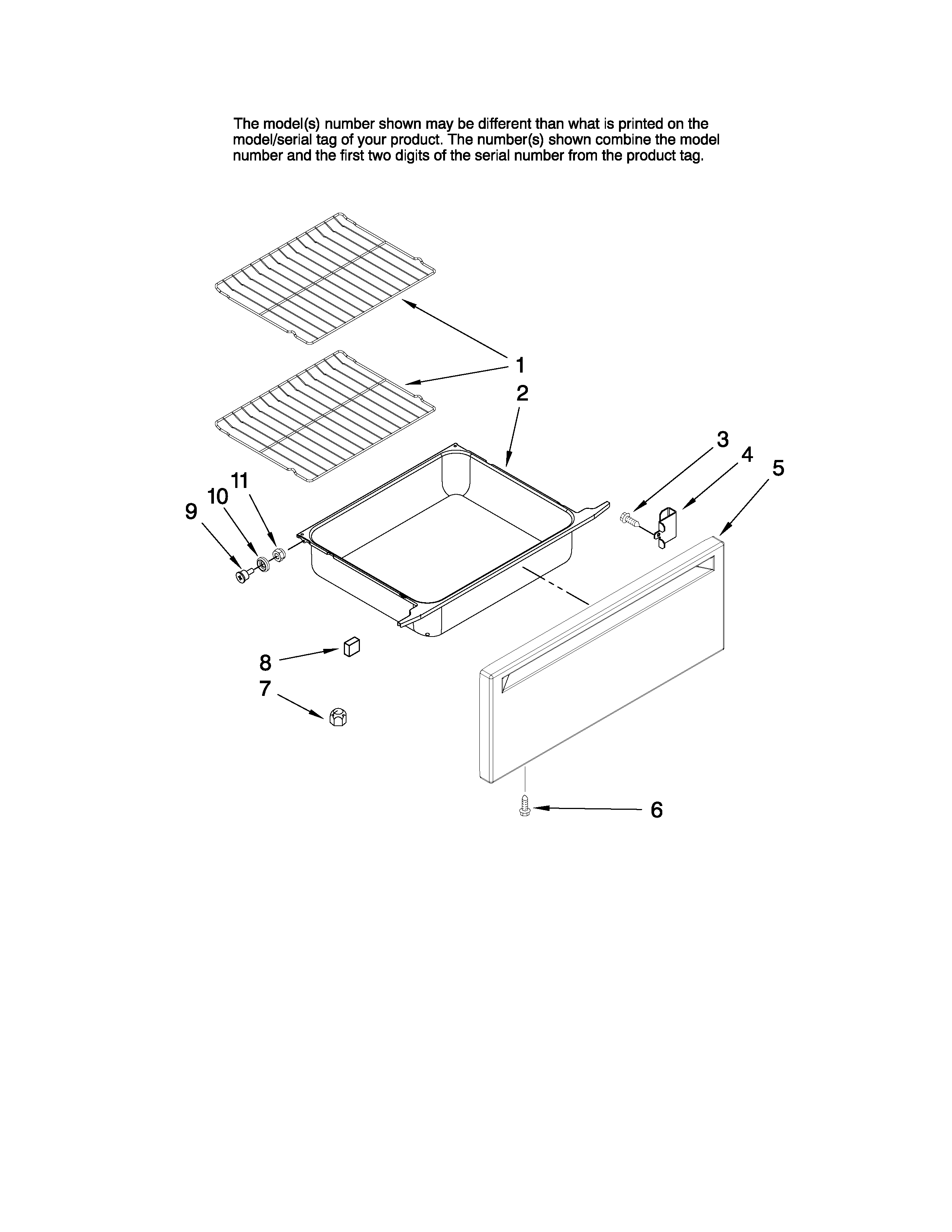

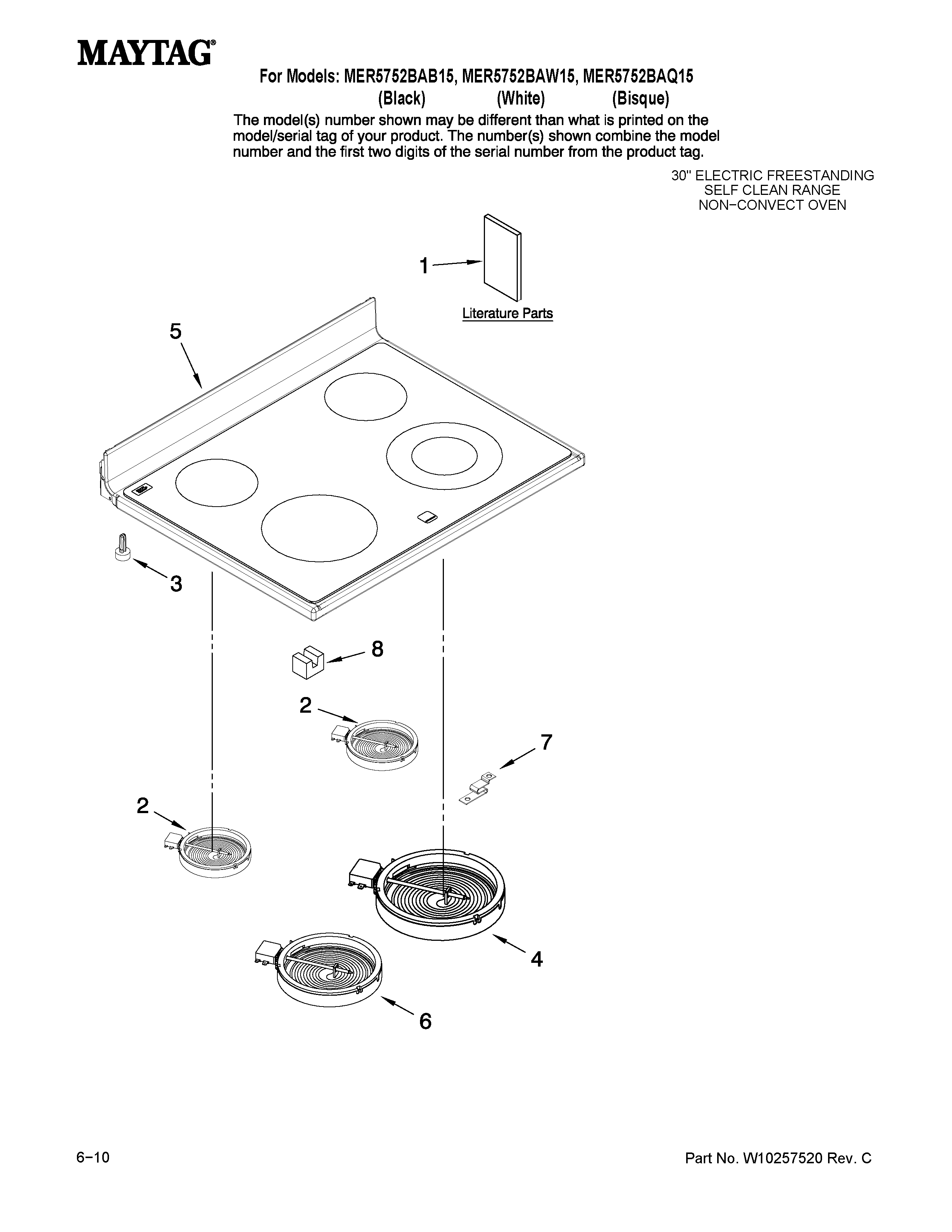

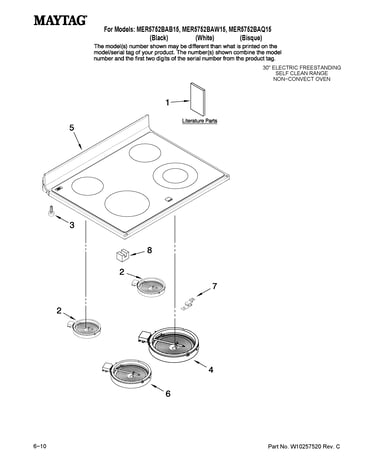

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Light Bulb, A-15, 40-watt STD398091
#20

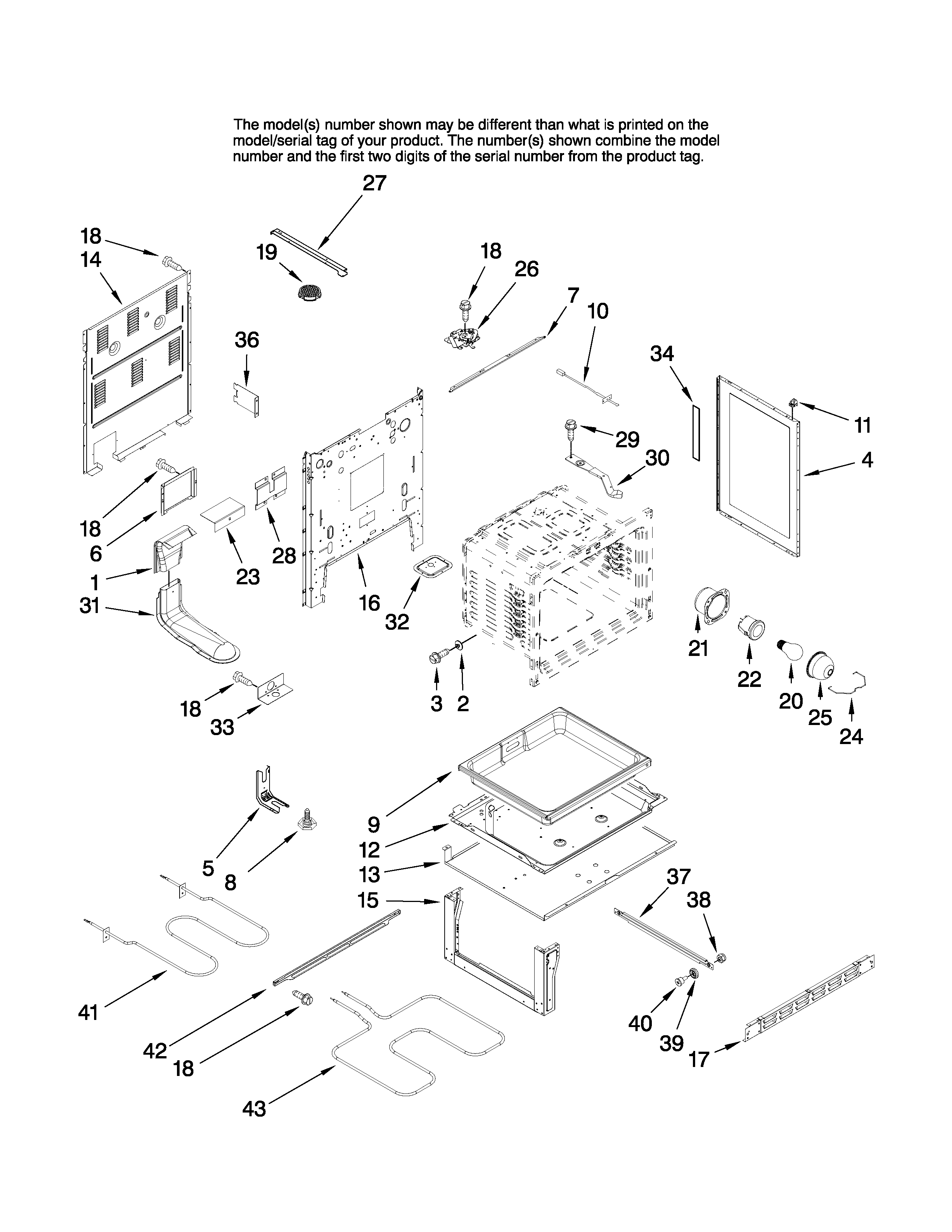

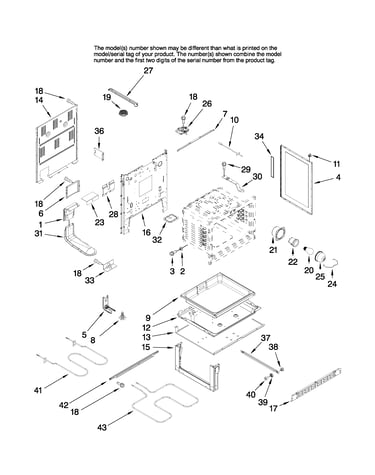

Chassis parts diagram

Light bulb, a-15, 40-watt

Part #STD398091

The manufacturer no longer makes this part, and there's no substitute part

Sensor 7430P042-60
#10

Chassis parts diagram

Sensor

Part #7430P042-60

Replaced by #12001656

?
Manufacturer substitution
This part replaces 7430P042-60. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Switch 7403P373-60
#14A

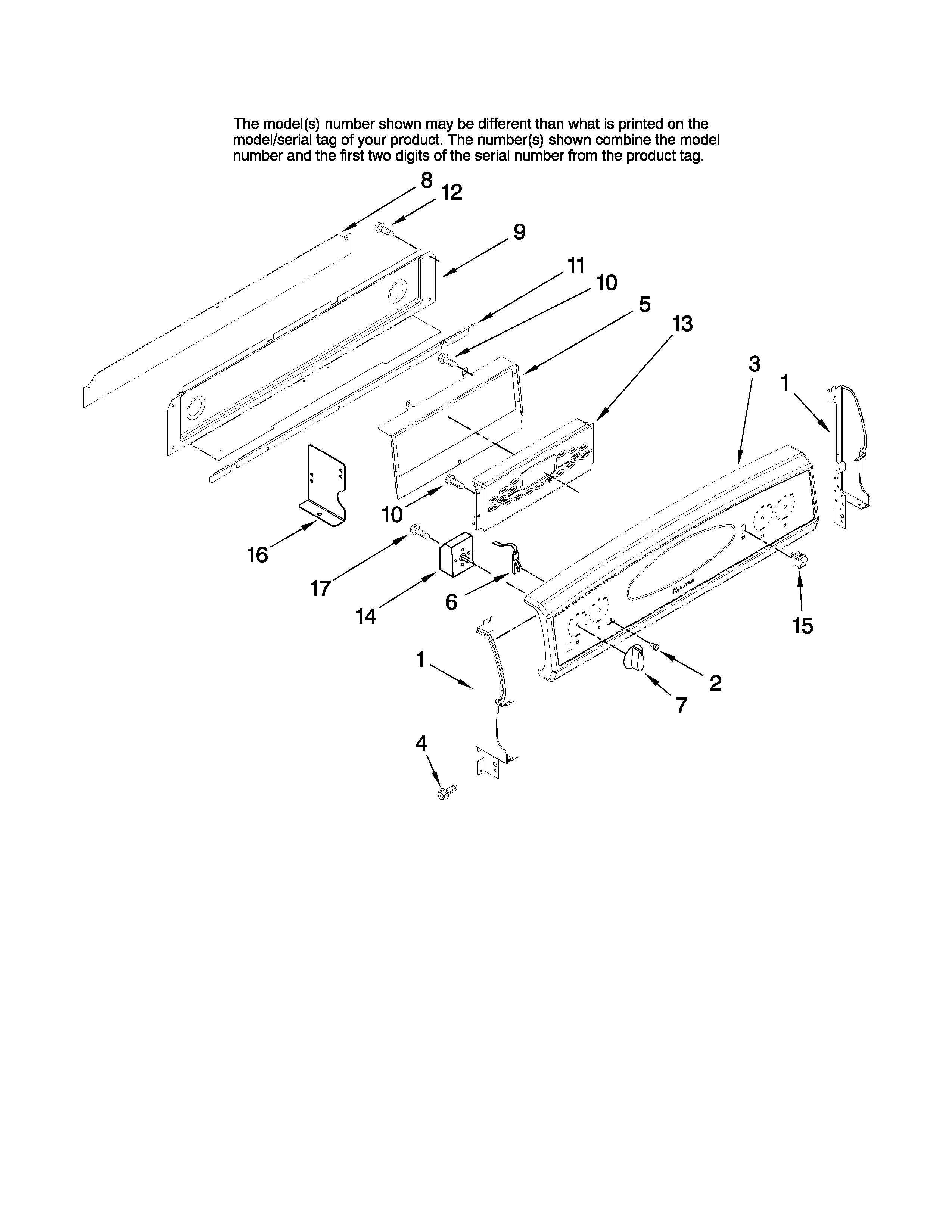

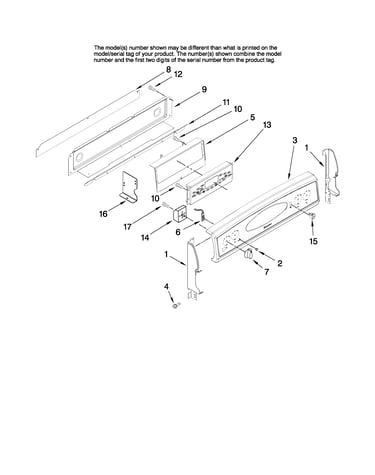

Control panel parts diagram

Switch

Part #7403P373-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P373-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Switch 7403P372-60
#14C

Control panel parts diagram

Switch

Part #7403P372-60

Replaced by #WP7403P239-60

?
Manufacturer substitution
This part replaces 7403P372-60. Substitute parts can look different from the original.
BEST SELLER
$47.96 |
11% OFF Phone Price : $53.96
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Oven Door Gasket W10162384
#9

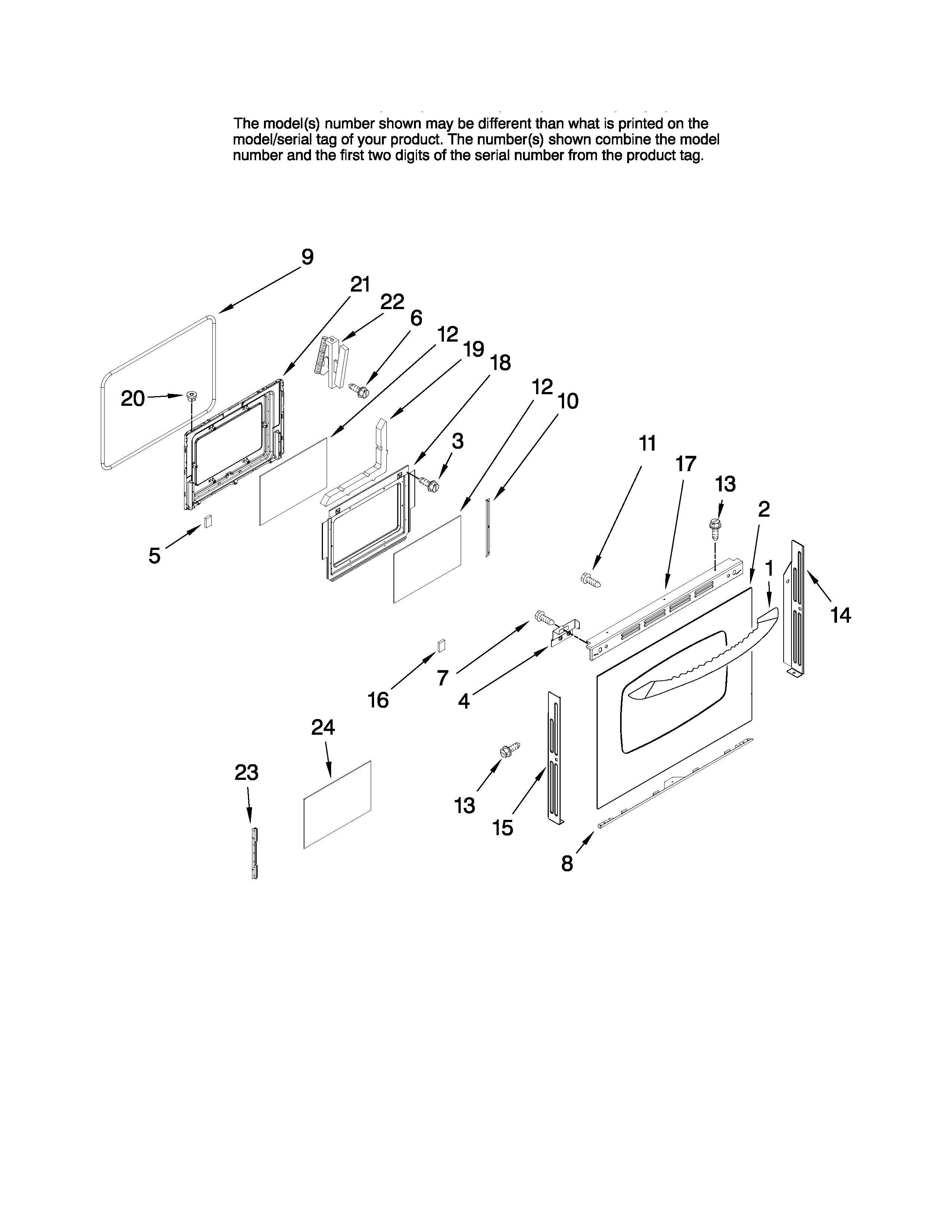

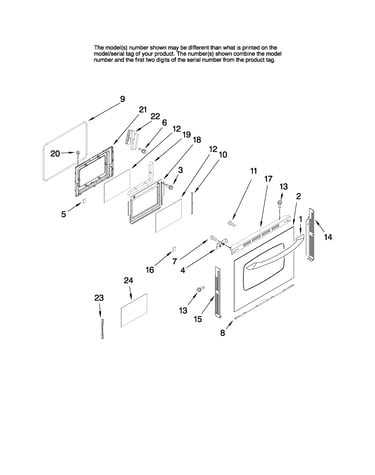

Door parts diagram

Range oven door gasket

Part #W10162384

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces W10162384. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Screw 7101P376-60
Screw

Part #7101P376-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P376-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Broil Element W10310249
#41

Chassis parts diagram

Range broil element

Part #W10310249

Replaced by #WPW10310249

?
Manufacturer substitution
This part replaces W10310249. Substitute parts can look different from the original.
$74.22 |
7% OFF Phone Price : $80.22
In Stock
Screw 4159193
#NI

Optional parts (not included) diagram

Screw

Part #4159193

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 4159193. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
