Model # 14-3800B Official DP air gometer

Here are the diagrams and repair parts for Official DP 14-3800B air gometer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Conn Rod 30382816
#2

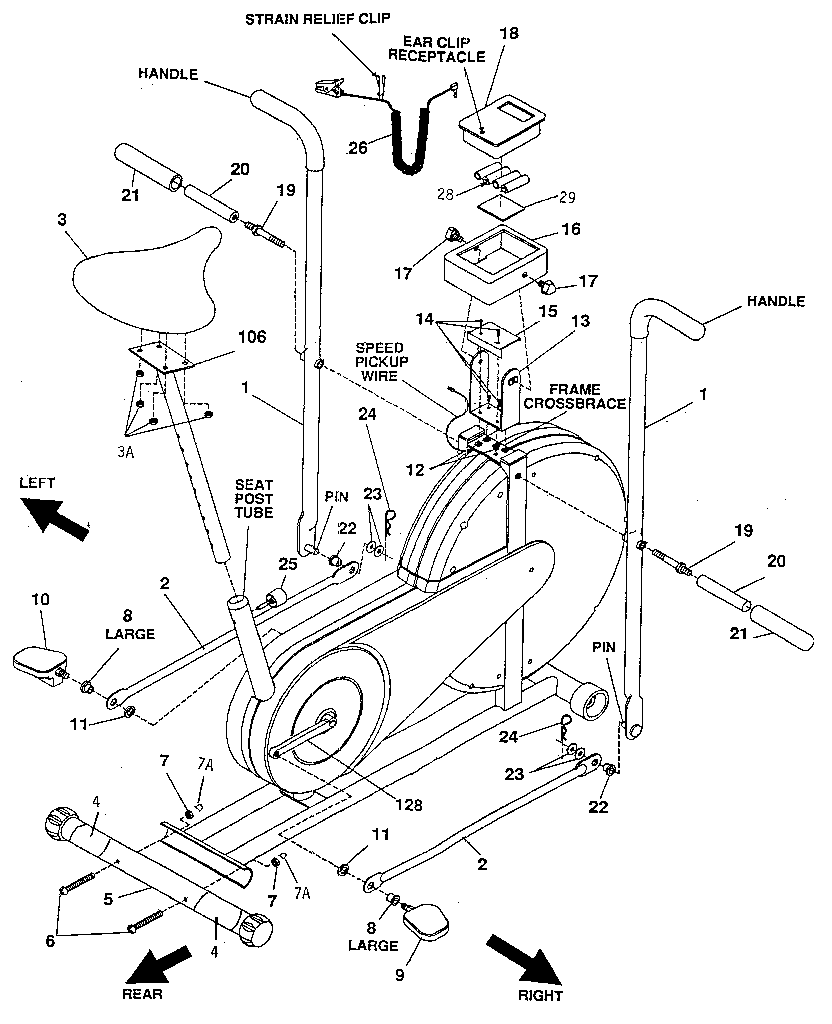

Figure 1 diagram

Conn rod

Part #30382816

The manufacturer no longer makes this part, and there's no substitute part

Large Knob 39189300
#25

Figure 1 diagram

Large knob

Part #39189300

The manufacturer no longer makes this part, and there's no substitute part

Screw 20013300
#14

Figure 1 diagram

Screw

Part #20013300

The manufacturer no longer makes this part, and there's no substitute part

Push Nut 25008900
#132

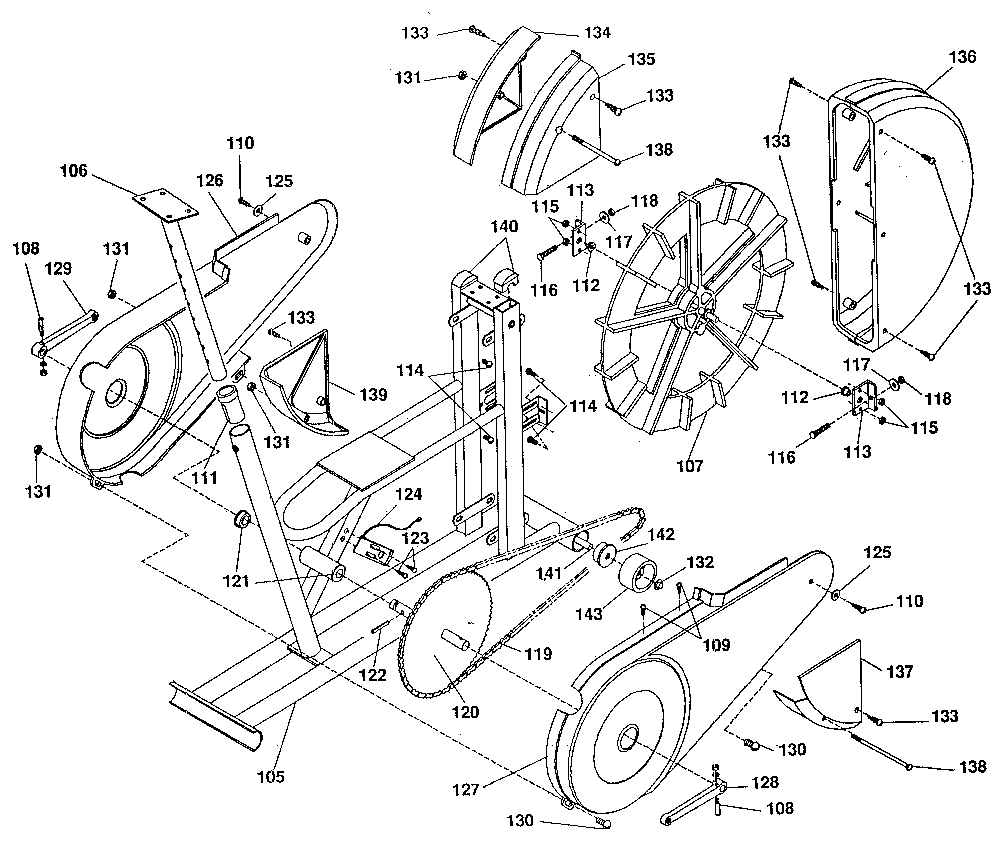

Figure 2 diagram

Push nut

Part #25008900

The manufacturer no longer makes this part, and there's no substitute part

Crank Kit DPS14013
#128

Figure 2 diagram

Crank kit

Part #DPS14013

The manufacturer no longer makes this part, and there's no substitute part

Bushing 29293600
#22

Figure 1 diagram

Bushing

Part #29293600

The manufacturer no longer makes this part, and there's no substitute part

L Hand Crank 31183767
#129

Figure 2 diagram

L hand crank

Part #31183767

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 29058400
#24

Figure 1 diagram

Cotter pin

Part #29058400

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 39222710
Handlebar

Part #39222710

The manufacturer no longer makes this part, and there's no substitute part

Screw 20016900
#109

Figure 2 diagram

Screw

Part #20016900

The manufacturer no longer makes this part, and there's no substitute part
