Model # 11077670400 Official Sears gas dryer

Here are the diagrams and repair parts for Official Sears 11077670400 gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

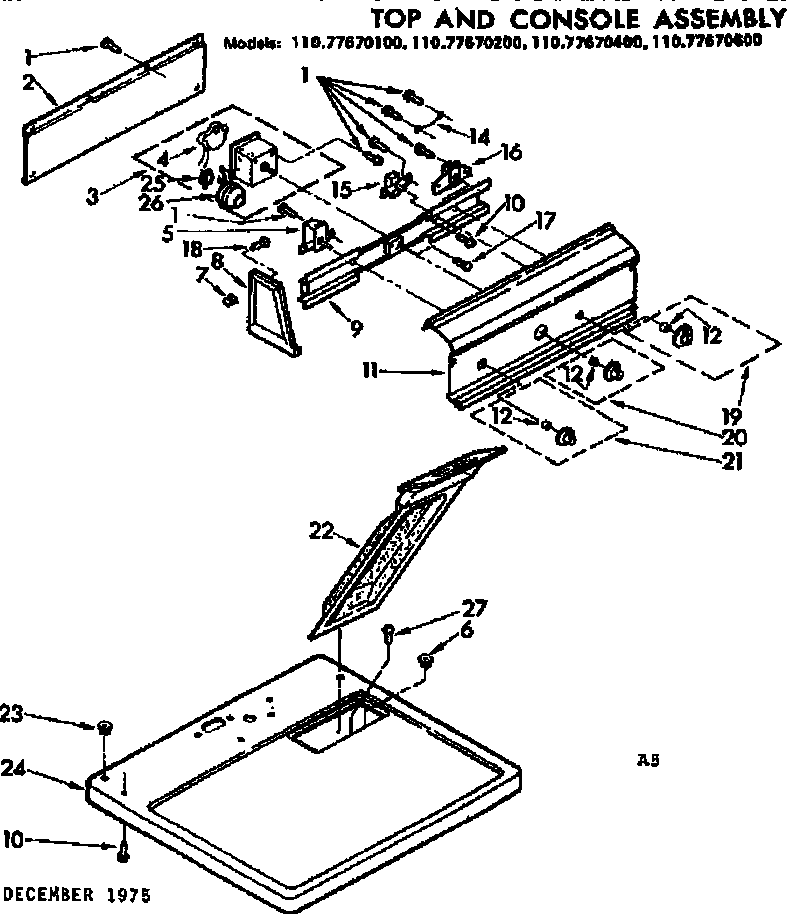

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for11077670400 Gas Dryer

  • Drum Belt 349533
    #30

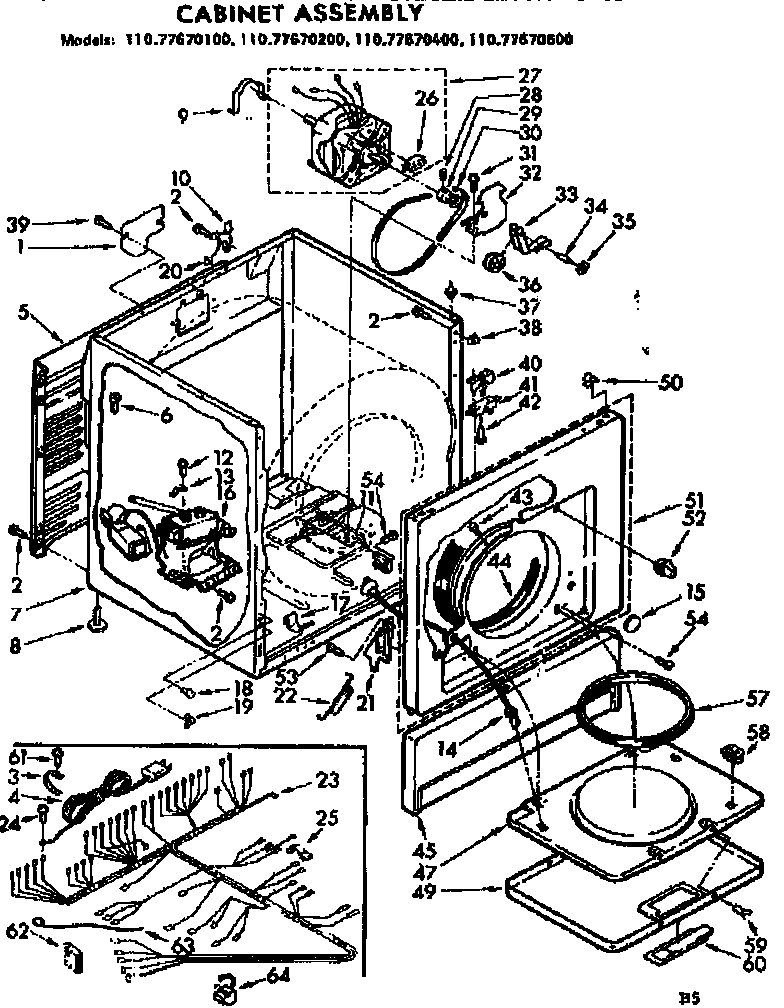

    Cabinet assembly diagram

    Drum belt

    Part #349533

    Replaced by #341241

    ?
    Manufacturer substitution
    This part replaces 349533. Substitute parts can look different from the original.
    BEST SELLER
    $9.89
    9% OFF Phone Price : $10.89
    In Stock
  • Switch 349588
    #26C

    Cabinet assembly diagram

    Switch

    Part #349588

    Replaced by #279827

    ?
    Manufacturer substitution
    This part replaces 349588. Substitute parts can look different from the original.
    BEST SELLER
    $81.17
    7% OFF Phone Price : $87.17
    In Stock
  • Motor 349954
    #27C

    Cabinet assembly diagram

    Motor

    Part #349954

    Replaced by #279827

    ?
    Manufacturer substitution
    This part replaces 349954. Substitute parts can look different from the original.
    BEST SELLER
    $81.17
    7% OFF Phone Price : $87.17
    In Stock
  • Switch 337351
    #26A

    Cabinet assembly diagram

    Switch

    Part #337351

    Replaced by #279827

    ?
    Manufacturer substitution
    This part replaces 337351. Substitute parts can look different from the original.
    BEST SELLER
    $81.17
    7% OFF Phone Price : $87.17
    In Stock
  • Motor 346744
    #27A

    Cabinet assembly diagram

    Motor

    Part #346744

    Replaced by #279827

    ?
    Manufacturer substitution
    This part replaces 346744. Substitute parts can look different from the original.
    BEST SELLER
    $81.17
    7% OFF Phone Price : $87.17
    In Stock
  • Dryer Blower Wheel 343939
    #37

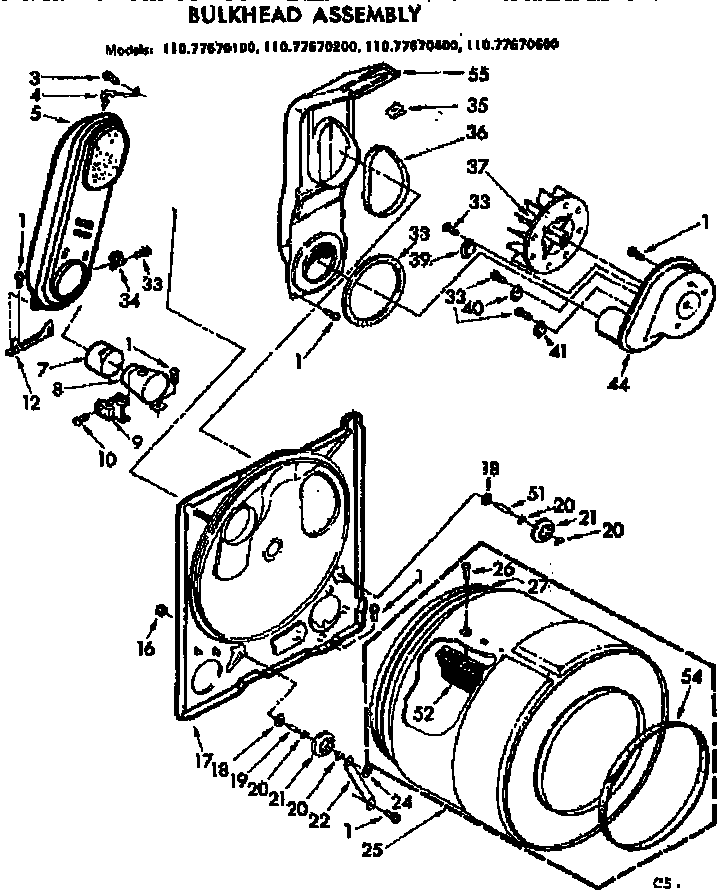

    Bulkhead assembly diagram

    Dryer blower wheel

    Part #343939

    Replaced by #WP694089

    ?
    Manufacturer substitution
    This part replaces 343939. Substitute parts can look different from the original.
    BEST SELLER
    $23.60
    20% OFF Phone Price : $29.60
    In Stock
  • Door Strike 236876
    #52

    Cabinet assembly diagram

    Door strike

    Part #236876

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 236876. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.25
    19% OFF Phone Price : $5.25
    In Stock
  • Door Catch 347813
    #58

    Cabinet assembly diagram

    Door catch

    Part #347813

    Replaced by #279570

    ?
    Manufacturer substitution
    This part replaces 347813. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.25
    19% OFF Phone Price : $5.25
    In Stock
  • Dryer Radiant Sensor 338906
    #9

    Bulkhead assembly diagram

    Dryer radiant sensor

    Part #338906

    Replaced by #WP338906

    ?
    Manufacturer substitution
    This part replaces 338906. Substitute parts can look different from the original.
    BEST SELLER
    $25.83
    19% OFF Phone Price : $31.83
    In Stock
  • Dryer Lint Screen Housing Foam Seal 339956
    #36

    Bulkhead assembly diagram

    Dryer lint screen housing foam seal

    Part #339956

    Replaced by #WP339956

    ?
    Manufacturer substitution
    This part replaces 339956. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $6.57
    13% OFF Phone Price : $7.57
    In Stock
