Model # GEH50DEEDSCB Official GE water heater

Here are the diagrams and repair parts for Official GE GEH50DEEDSCB water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Clips & Holders

ALL PARTS

Showing 10 of 91 parts |

#335

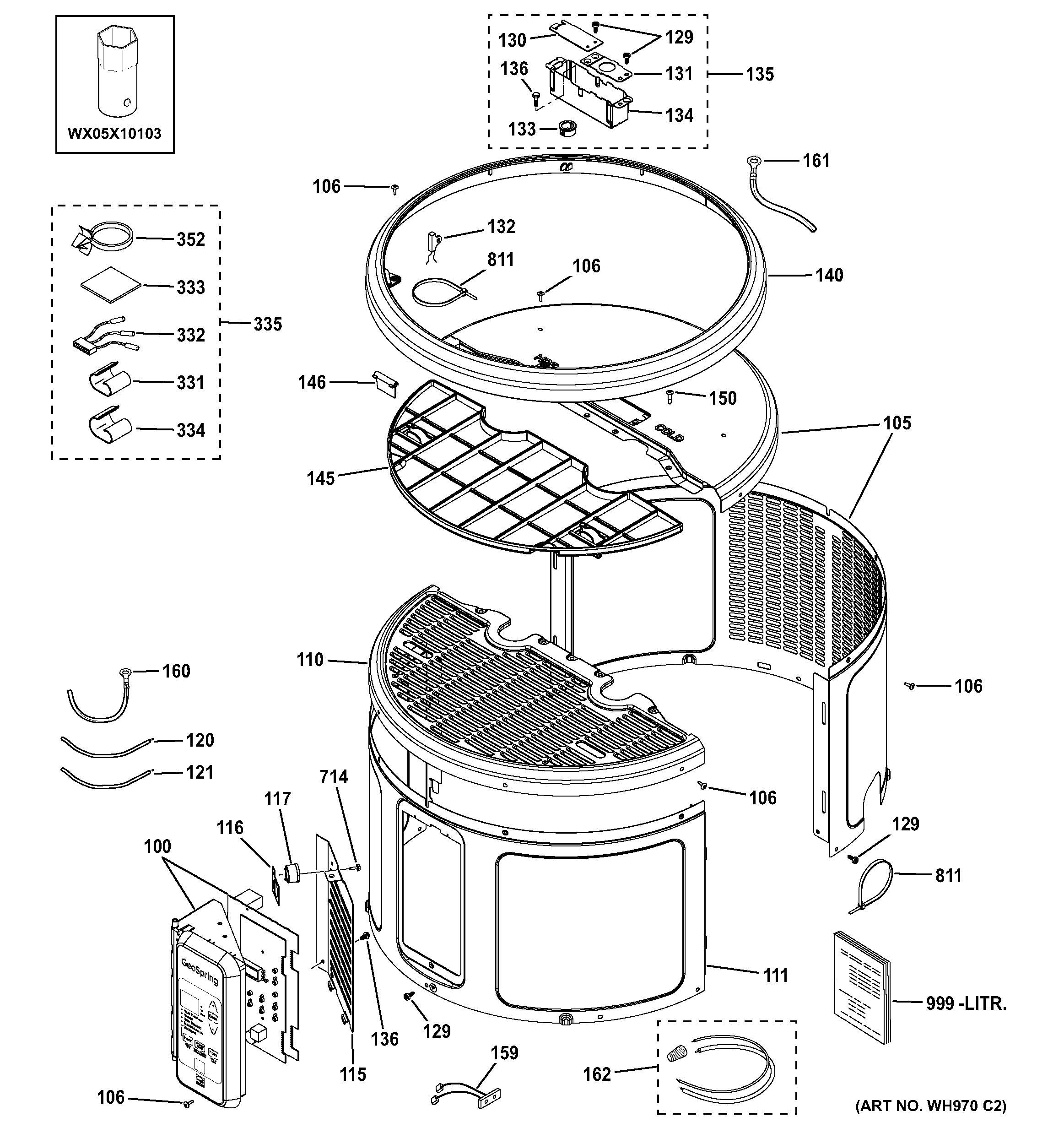

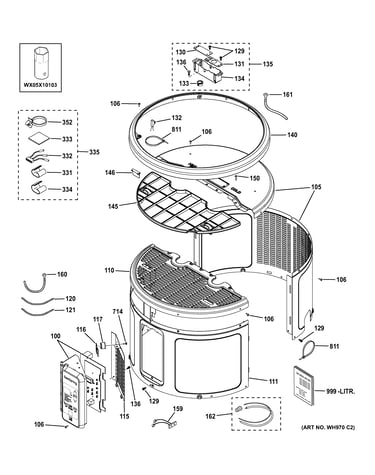

Control panel diagram

Sensor assembly

Part #WS17X10011

$24.64

In Stock

Qty

#332

Control panel diagram

Sensor (t3a/t3b/t4)

Part #WS17X10007

Replaced by #WS17X10011

$24.64

In Stock

Qty

#373

Unit parts diagram

Nut (fan bla

Part #WS02X10082

$8.91

In Stock

Qty

#371

Unit parts diagram

Spring washer

Part #WS02X10080

$8.26

In Stock

Qty

#133

Control panel diagram

Grommet

Part #WS02X10072

This item is not returnable

$4.35

In Stock

Qty

#206

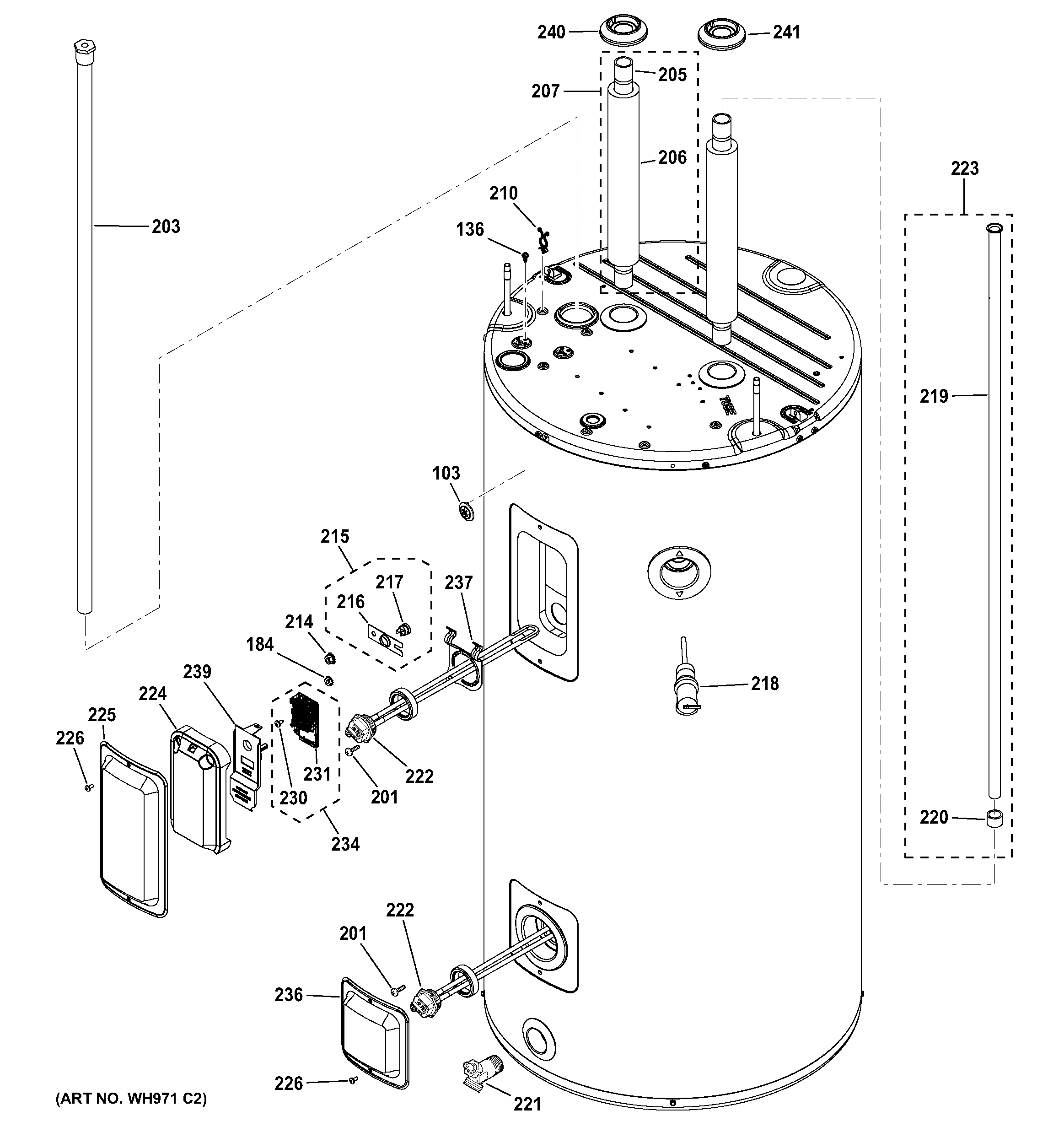

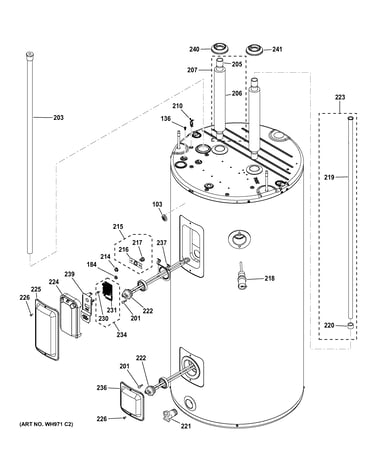

Body parts diagram

Insulation tube

Part #WS07X10031

$8.91

In Stock

Qty

#140

Control panel diagram

Trim ring

Part #WS31X10061

$15.99

In Stock

Qty

#105

Control panel diagram

Shroud

Part #WS31X10064

$50.99

In Stock

Qty

#120

Control panel diagram

Wire (e-d)

Part #WS19X10033

$7.86

In Stock

Qty

#367

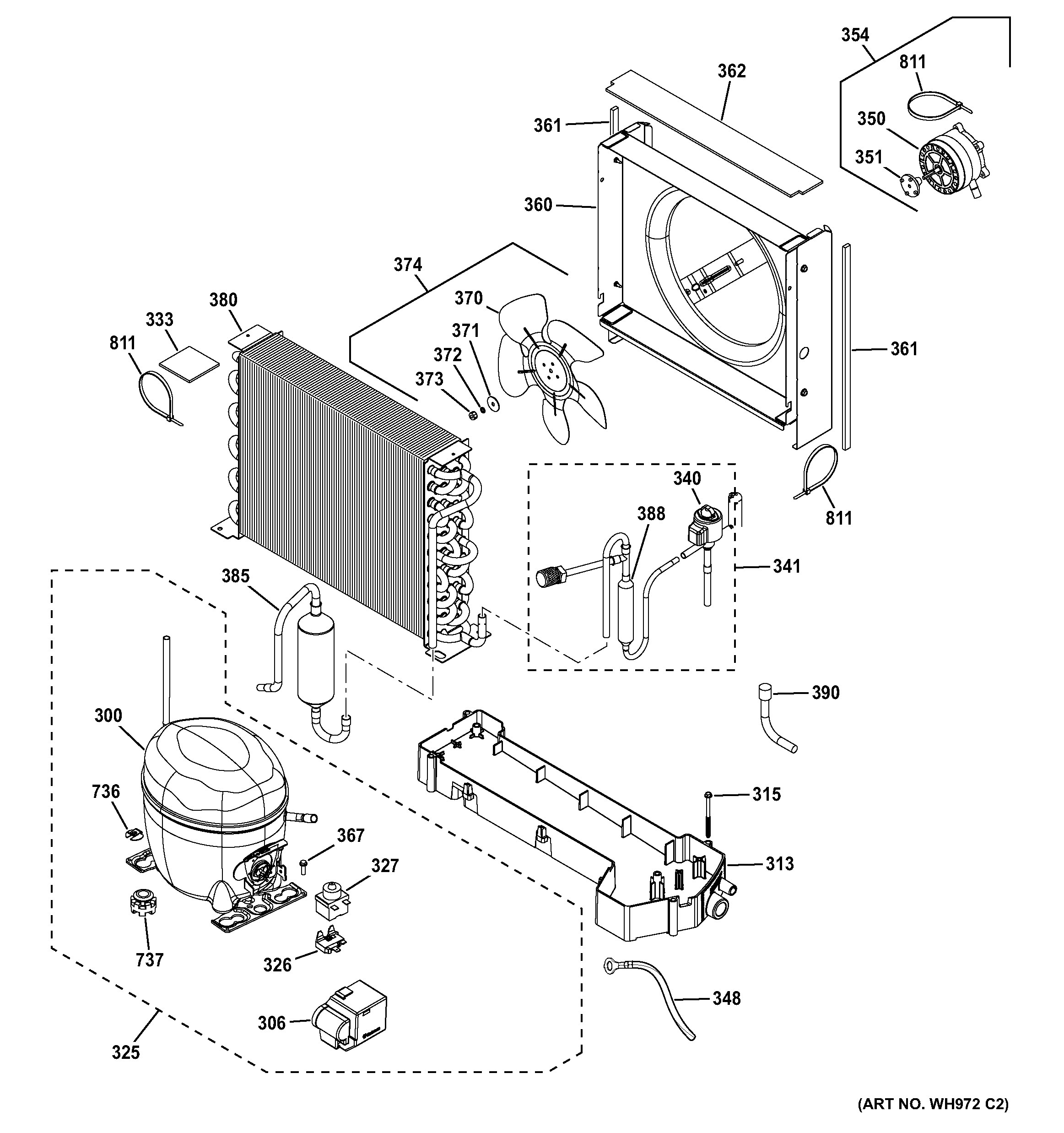

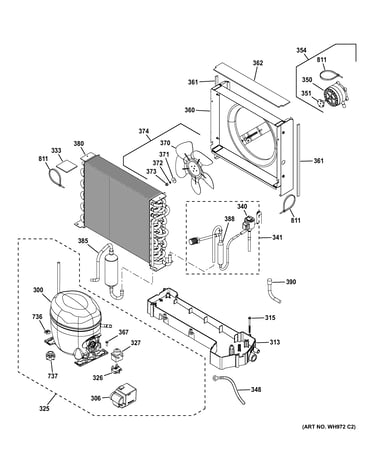

Unit parts diagram

Scr 8-32 gx

Part #WR01X10757

This item is not returnable

$4.35

In Stock

Qty
