Kenmore
Upright Freezer

Model # 5649215010 Official Kenmore compact freezer

Here are the diagrams and repair parts for Official Kenmore 5649215010 compact freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Refrigerator Leveling Leg 300885
#4

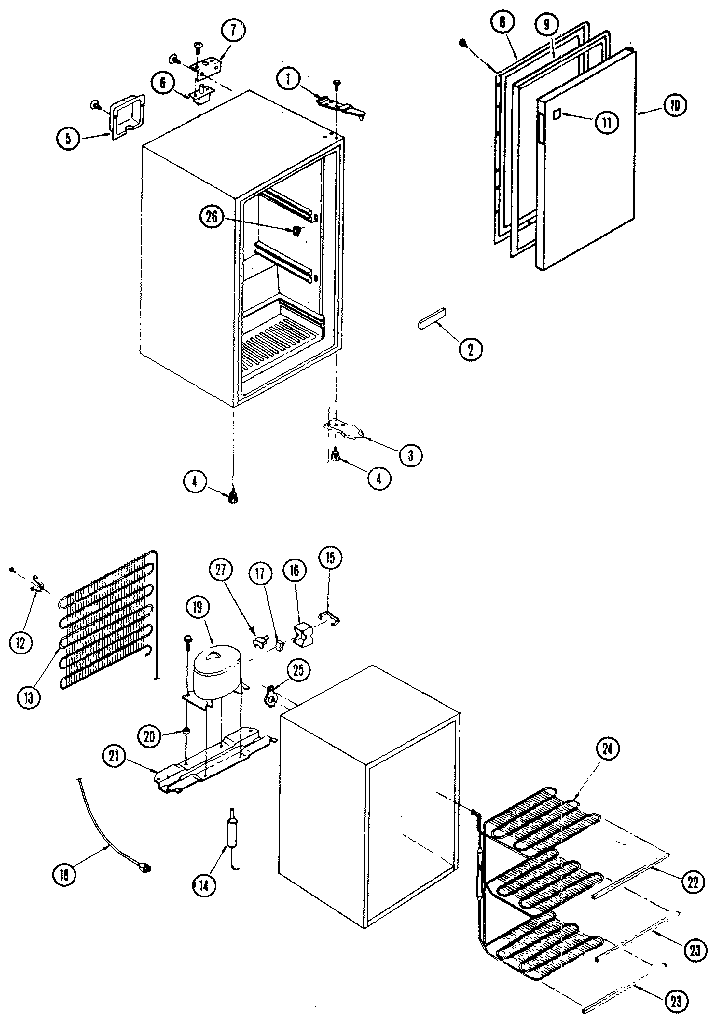

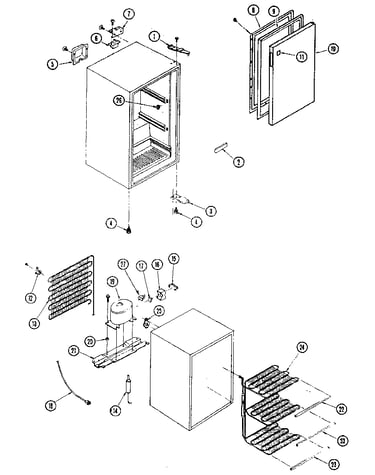

Complete unit diagram

Refrigerator leveling leg

Part #300885

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 300158
#18

Complete unit diagram

Power cord

Part #300158

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 301860
#6

Complete unit diagram

Thermostat

Part #301860

The manufacturer no longer makes this part, and there's no substitute part

Tag 300195

#NI

All parts diagram

Tag

Part #300195

The manufacturer no longer makes this part, and there's no substitute part

Hinge 300031
#1

Complete unit diagram

Hinge

Part #300031

The manufacturer no longer makes this part, and there's no substitute part

Drier 300517
#14

Complete unit diagram

Drier

Part #300517

The manufacturer no longer makes this part, and there's no substitute part

Bracket 301708
#7

Complete unit diagram

Bracket

Part #301708

The manufacturer no longer makes this part, and there's no substitute part

Door Liner 301861
#8

Complete unit diagram

Door liner

Part #301861

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 301751
#24

Complete unit diagram

Evaporator

Part #301751

The manufacturer no longer makes this part, and there's no substitute part

Grommet 300430
#20

Complete unit diagram

Grommet

Part #300430

The manufacturer no longer makes this part, and there's no substitute part
