Model # WAS24460UC/01 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WAS24460UC-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Electronic Lock 611090
#211

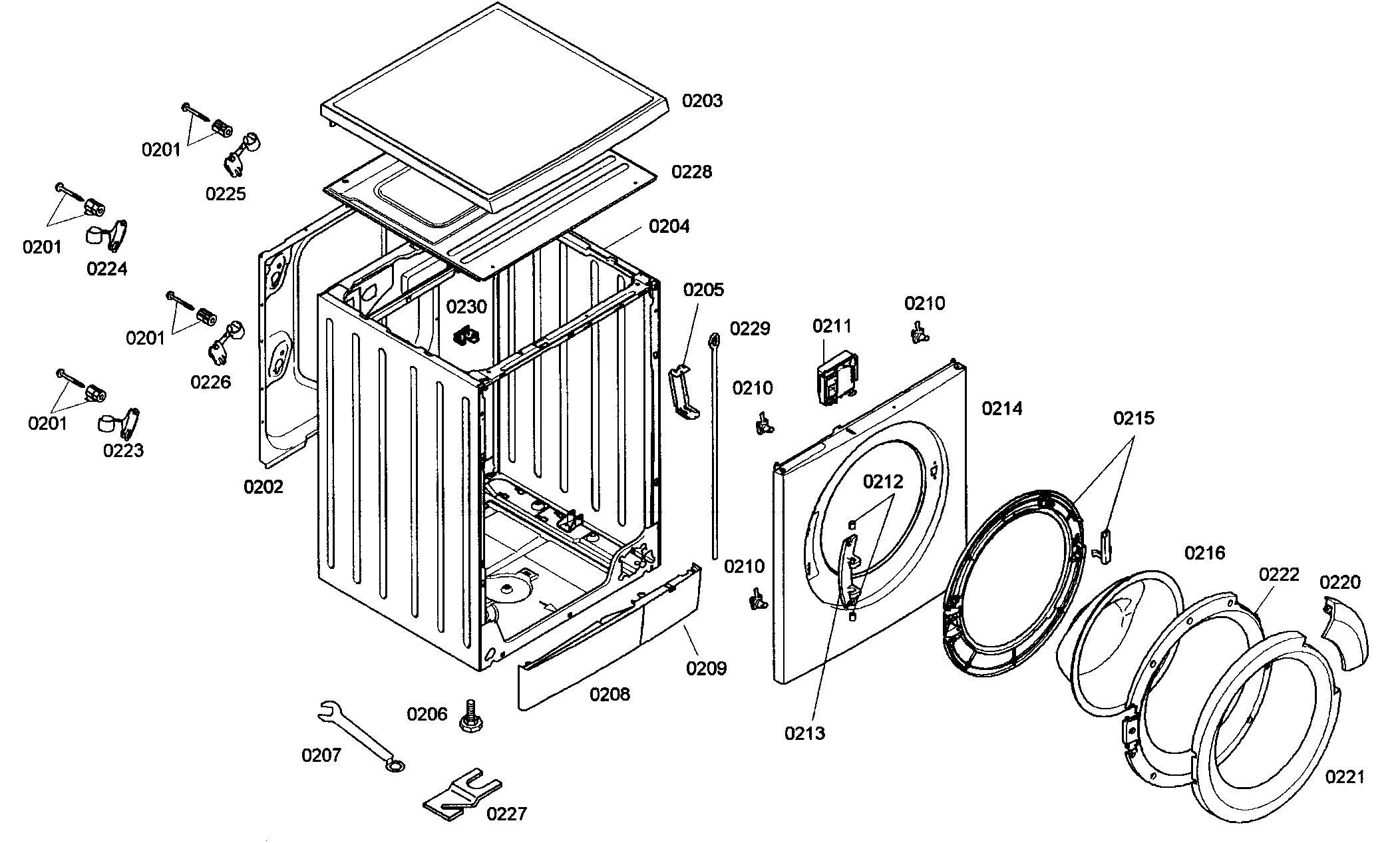

Cabinet parts diagram

Electronic lock

Part #611090

Replaced by #00612148

?
Manufacturer substitution
This part replaces 611090. Substitute parts can look different from the original.
$98.69 |
11% OFF Phone Price : $110.69
In Stock
Electronic Lock 612148
#211A

Cabinet parts diagram

Electronic lock

Part #612148

Replaced by #00612148

?
Manufacturer substitution
This part replaces 612148. Substitute parts can look different from the original.
$98.69 |
11% OFF Phone Price : $110.69
In Stock
Window 660713
#216

Cabinet parts diagram

Window

Part #660713

Replaced by #00742712

?
Manufacturer substitution
This part replaces 660713. Substitute parts can look different from the original.
$75.19 |
7% OFF Phone Price : $81.19
In Stock
Ring 660866
#326

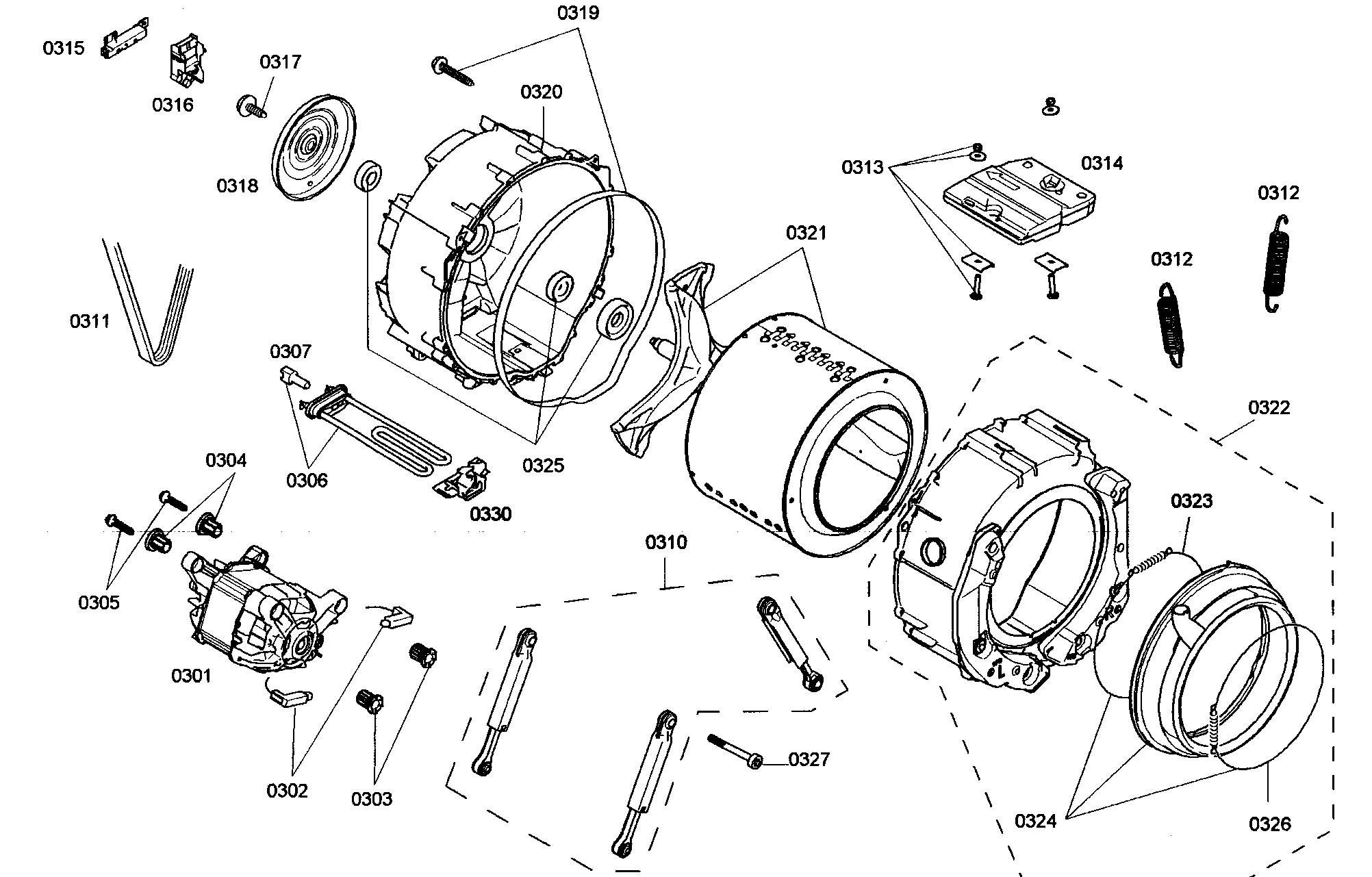

Drum assy diagram

Ring

Part #660866

Replaced by #00670743

?
Manufacturer substitution
This part replaces 660866. Substitute parts can look different from the original.
$16.63
In Stock
Spring 605140
#312

Drum assy diagram

Spring

Part #605140

Replaced by #00605140

?
Manufacturer substitution
This part replaces 605140. Substitute parts can look different from the original.
This item is not returnable
$94.27
In Stock
Frame 660770
#221

Cabinet parts diagram

Frame

Part #660770

Replaced by #00704287

?
Manufacturer substitution
This part replaces 660770. Substitute parts can look different from the original.
$347.49 |
$12.00 OFF Phone Price : $359.49
In Stock
Hose 605215
#415

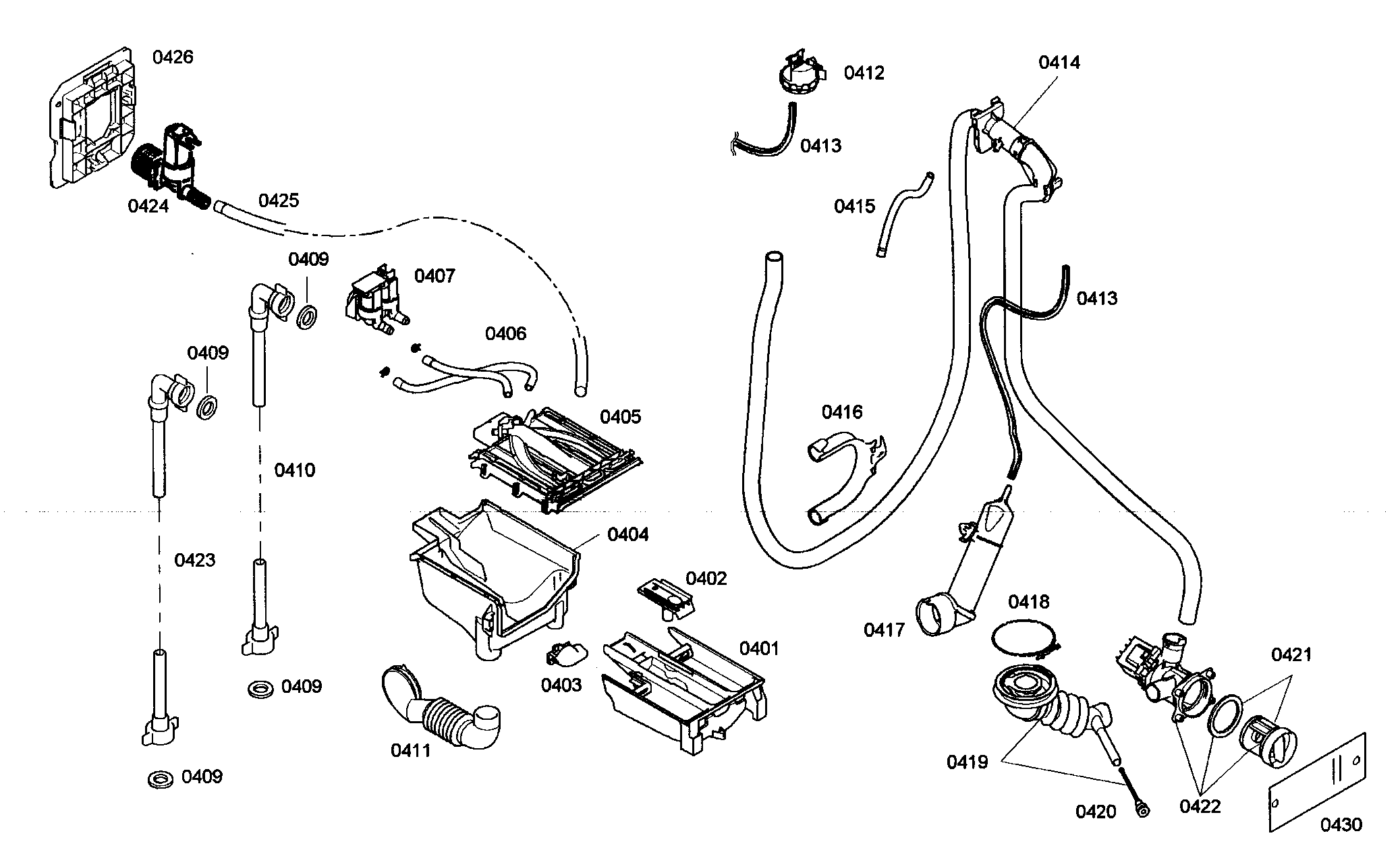

Water supply diagram

Hose

Part #605215

Replaced by #00605215

?
Manufacturer substitution
This part replaces 605215. Substitute parts can look different from the original.
$13.37
In Stock
Foot 610643
#206

Cabinet parts diagram

Foot

Part #610643

Replaced by #00610643

?
Manufacturer substitution
This part replaces 610643. Substitute parts can look different from the original.
This item is not returnable
$19.89
In Stock
Drain Hose 660927
#414

Water supply diagram

Drain hose

Part #660927

Replaced by #00672233

?
Manufacturer substitution
This part replaces 660927. Substitute parts can look different from the original.
$176.02
In Stock
Ac Cord 482048
#135

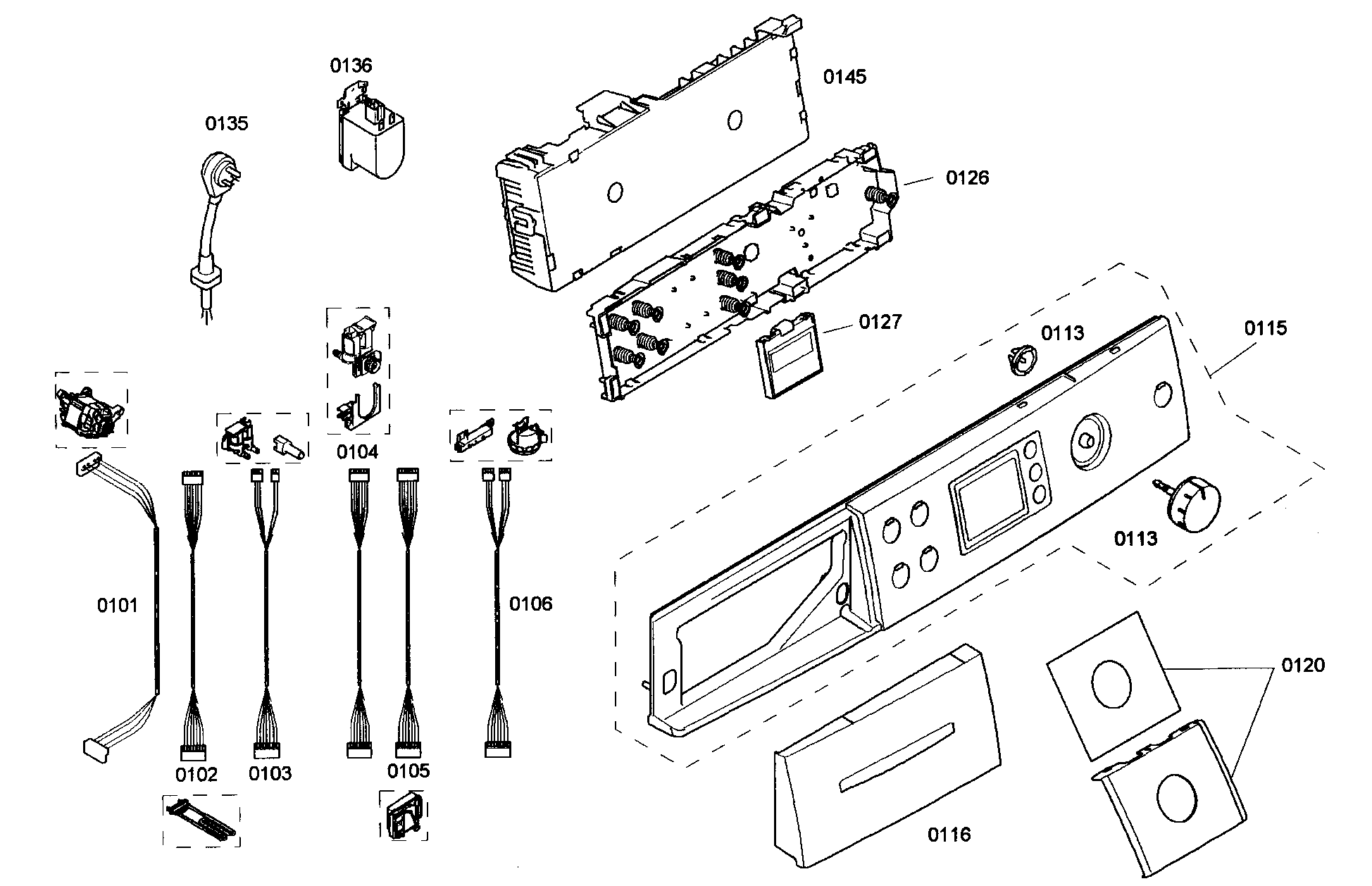

Control panel diagram

Ac cord

Part #482048

Replaced by #00648023

?
Manufacturer substitution
This part replaces 482048. Substitute parts can look different from the original.
$101.22 |
11% OFF Phone Price : $113.22
In Stock
