Countertop Microwave

Model # QMD-810A Official Modern Maid self-cleaning manor house microwave

Here are the diagrams and repair parts for Official Modern Maid QMD-810A self-cleaning manor house microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

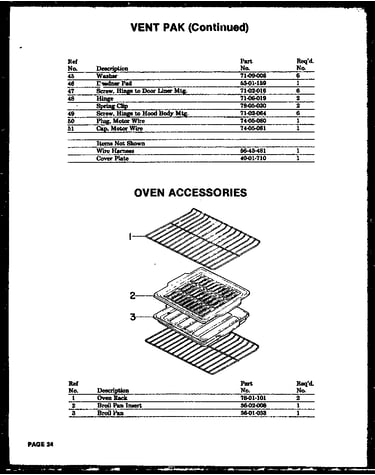

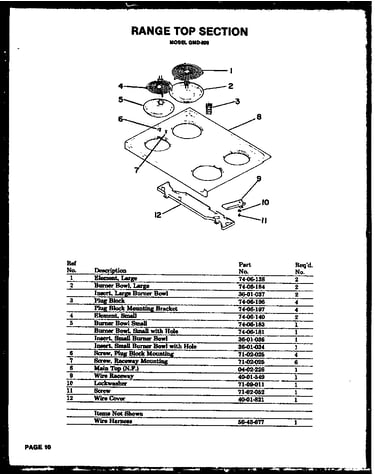

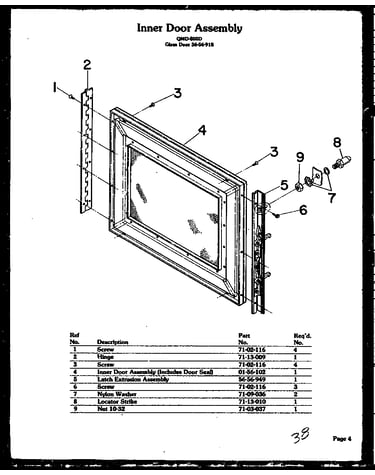

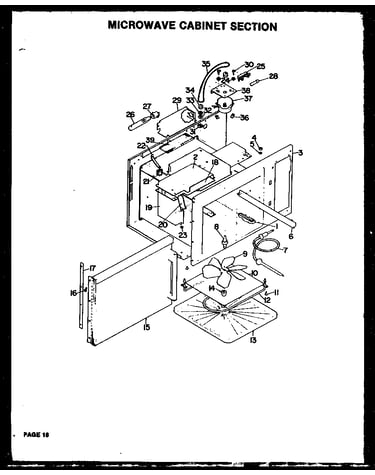

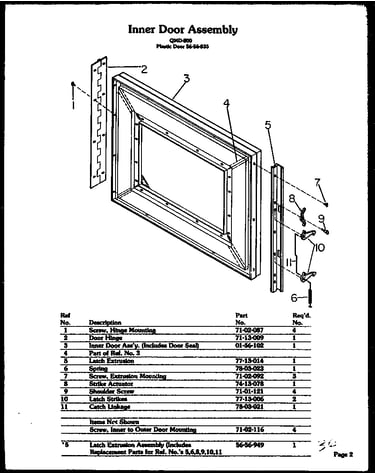

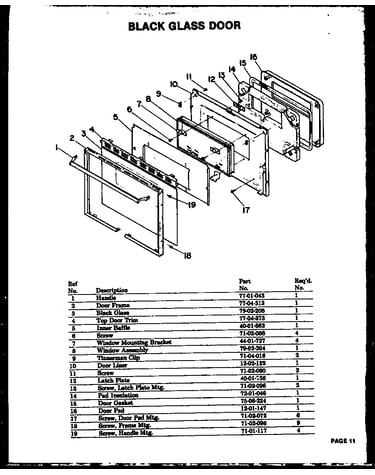

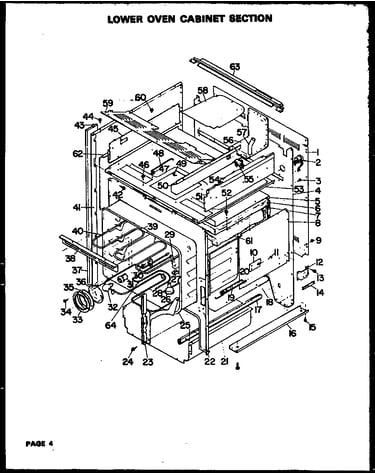

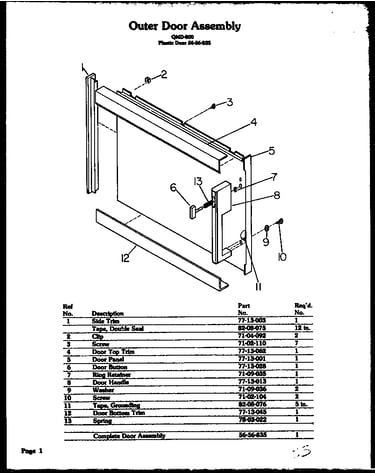

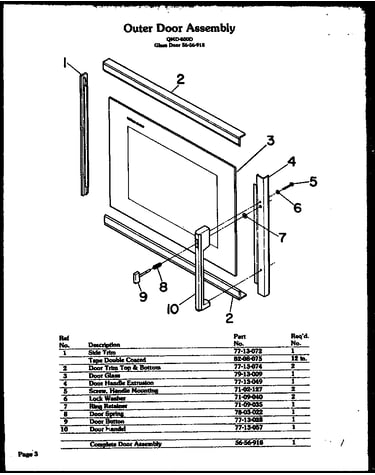

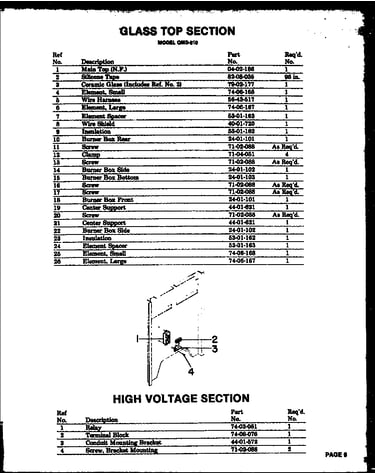

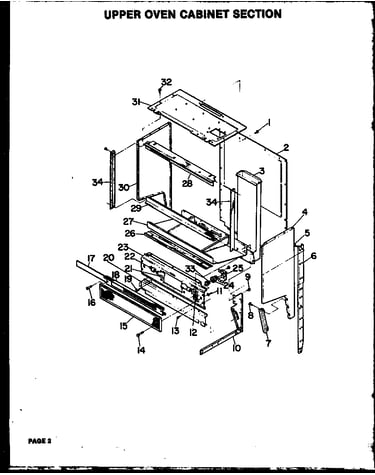

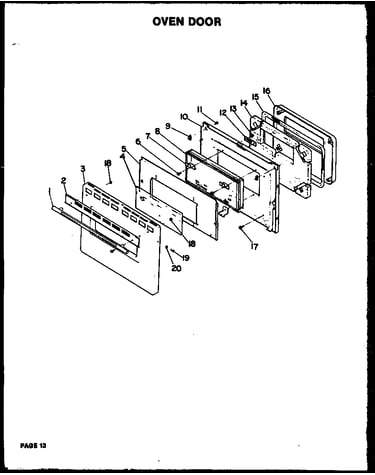

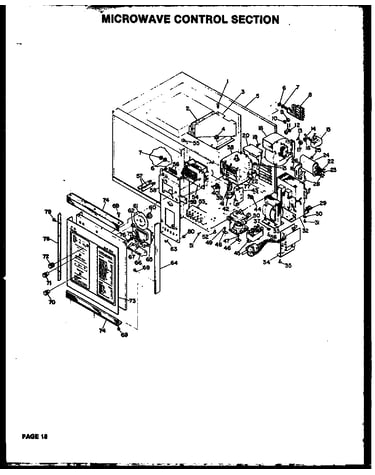

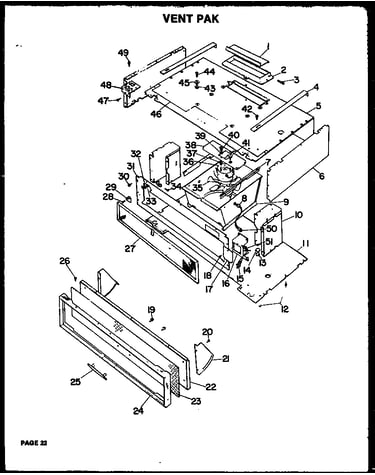

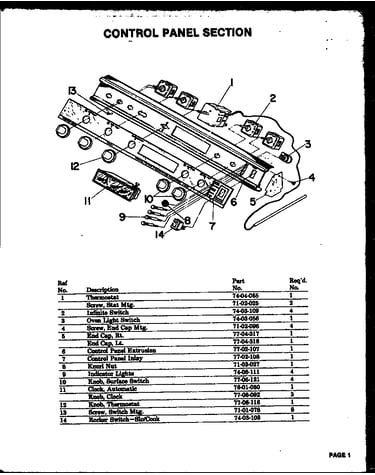

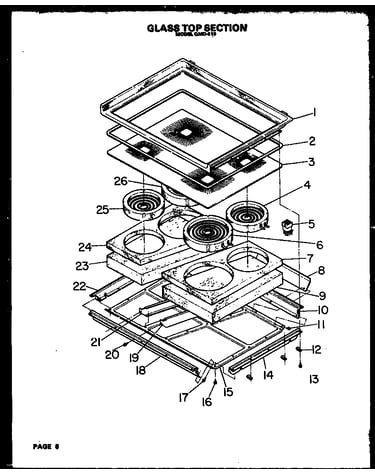

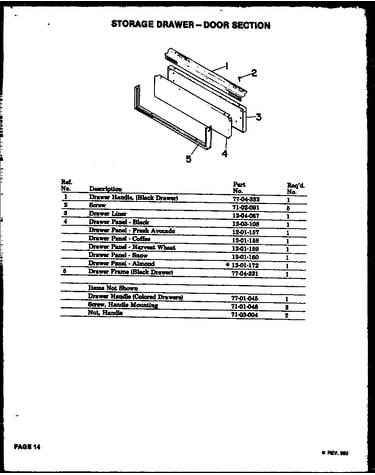

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 4 of 4 parts  |
Screw - Switch Mtg. 71-02-108
#9B

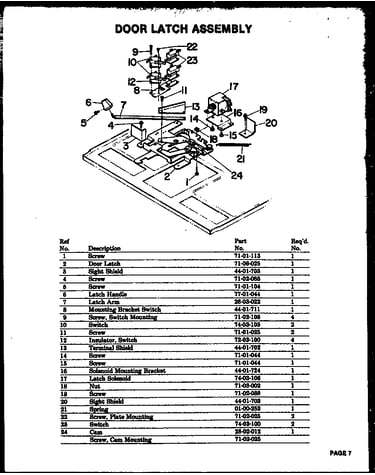

Door latch assembly (qmd-810) (qmd-800) diagram

Screw - switch mtg.

Part #71-02-108

The manufacturer no longer makes this part, and there's no substitute part

Screw - Switch Mtg. 71-02-114
#9C

Door latch assembly (qmd-810) (qmd-800) diagram

Screw - switch mtg.

Part #71-02-114

The manufacturer no longer makes this part, and there's no substitute part

Fan Switch N/o (kgt-593,kgt693) 74-03-114
#10B

Door latch assembly (qmd-810) (qmd-800) diagram

Fan switch n/o (kgt-593,kgt693)

Part #74-03-114

The manufacturer no longer makes this part, and there's no substitute part

Switch - Roller 74-03-113
#10A

Door latch assembly (qmd-810) (qmd-800) diagram

Switch - roller

Part #74-03-113

The manufacturer no longer makes this part, and there's no substitute part
