Model # H8DNL100F14A1 Official ICP 80+ single-stage gas furnace
Here are the diagrams and repair parts for Official ICP H8DNL100F14A1 80+ single-stage gas furnace, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
H8DNL100F14A1 80+ Single-Stage Gas Furnace
#8

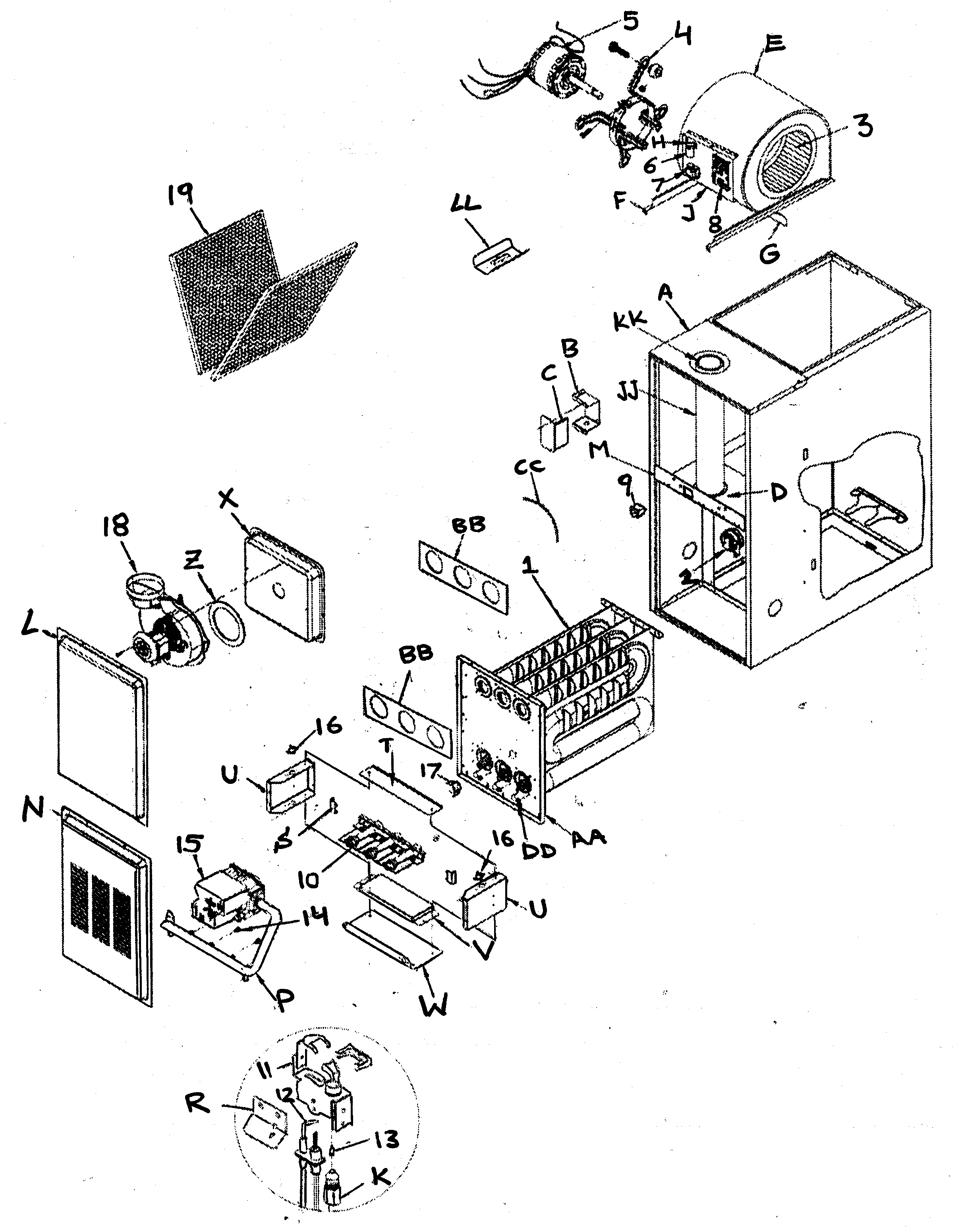

Furnace diagram
Control timer
Part #1014460
Replaced by #ST9120U1011
?
Manufacturer substitution
This part replaces 1014460. Substitute parts can look different from the original.
$278.27 |
$12.00 OFF Phone Price : $290.27
In Stock
#16
Furnace diagram
Furnace temperature limit switch
Part #1013102
$15.62 |
11% OFF Phone Price : $17.62
In Stock
#3
Furnace diagram
Furnace blower fan wheel (replaces 1009147)
Part #1011420
$160.43 |
7% OFF Phone Price : $172.43
In Stock
#5
Furnace diagram
Furnace blower fan motor, 1/2-hp (replaces 1012513, 1172487)
Part #1013341
$463.79 |
$12.00 OFF Phone Price : $475.79
In Stock
#10
Furnace diagram
Furnace burner (replaces 1012384)
Part #1008725
$129.04
In Stock
#17
Furnace diagram
Furnace temperature limit switch
Part #1008417
$38.90 |
13% OFF Phone Price : $44.90
In Stock
#2
Furnace diagram
Switch
Part #1013529
Replaced by #1174276
?
Manufacturer substitution
This part replaces 1013529. Substitute parts can look different from the original.
$62.55 |
9% OFF Phone Price : $68.55
In Stock
#JJ
Furnace diagram
Shield
Part #1013975
$56.11
In Stock
#V
Furnace diagram
Baffle
Part #1012339
$335.40
In Stock
#G
Furnace diagram
Panel cutoff
Part #721020008
$252.09
In Stock
