Model # 536963700 Official Craftsman 36" riding rotary mower

Here are the diagrams and repair parts for Official Craftsman 536963700 36" riding rotary mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

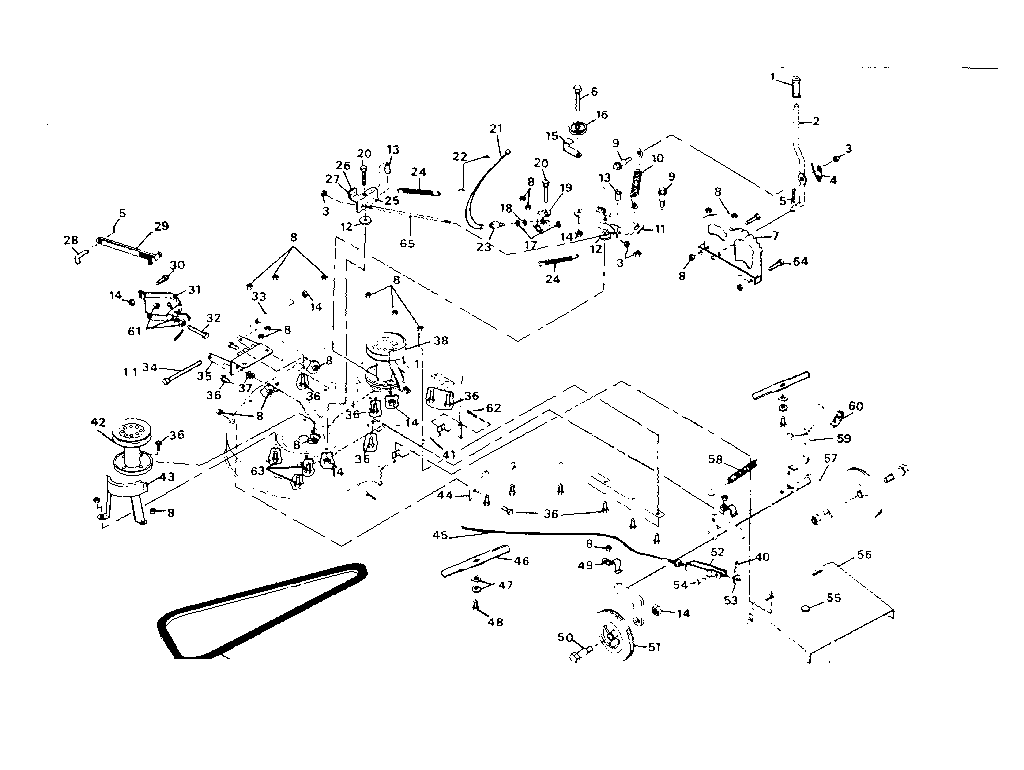

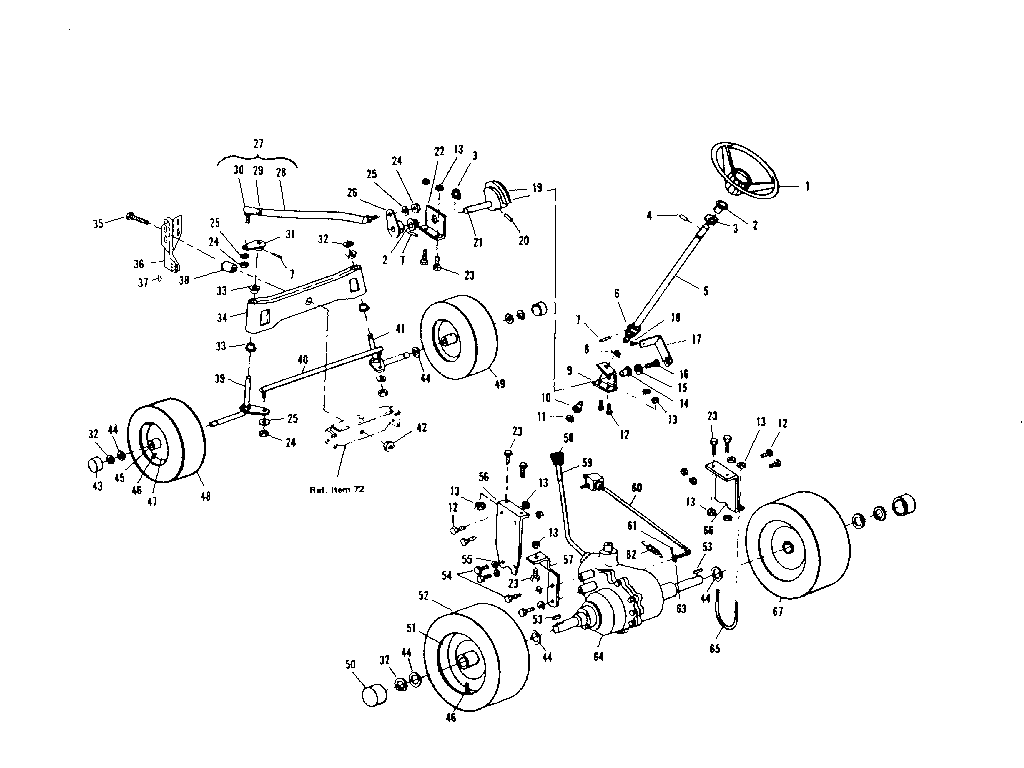

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 356 parts  |
Solenoid 44429
#10

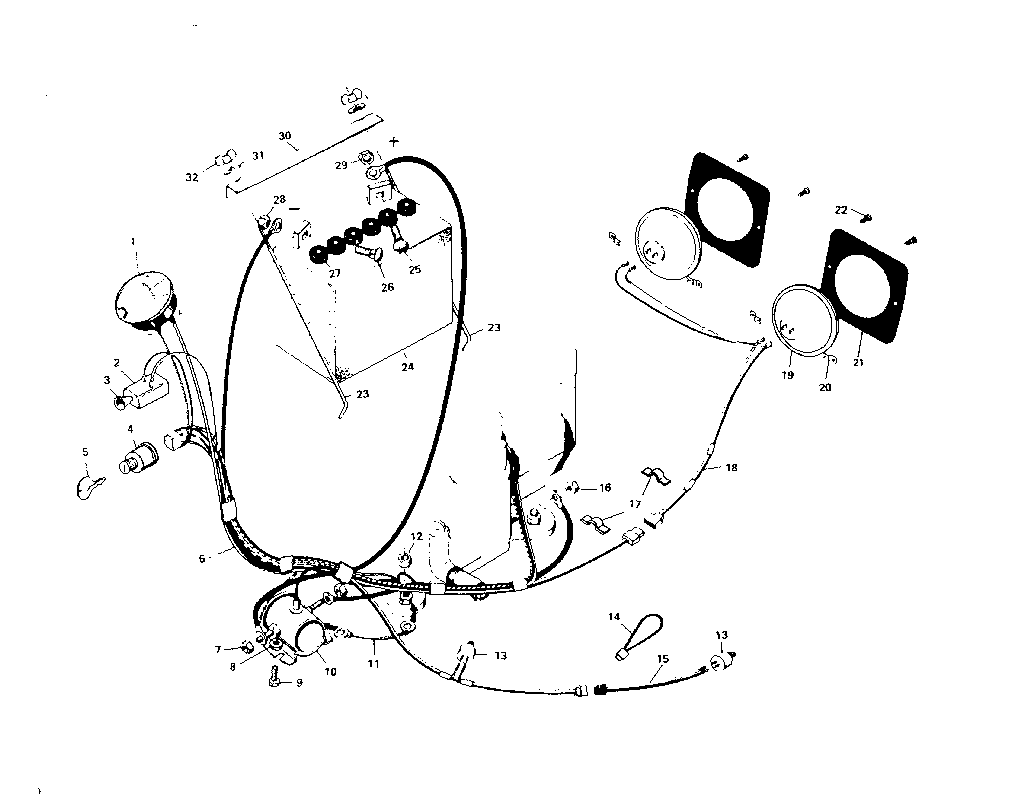

Wiring diagram

Solenoid

Part #44429

Replaced by #532146154

?
Manufacturer substitution
This part replaces 44429. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Holder 790005
#81

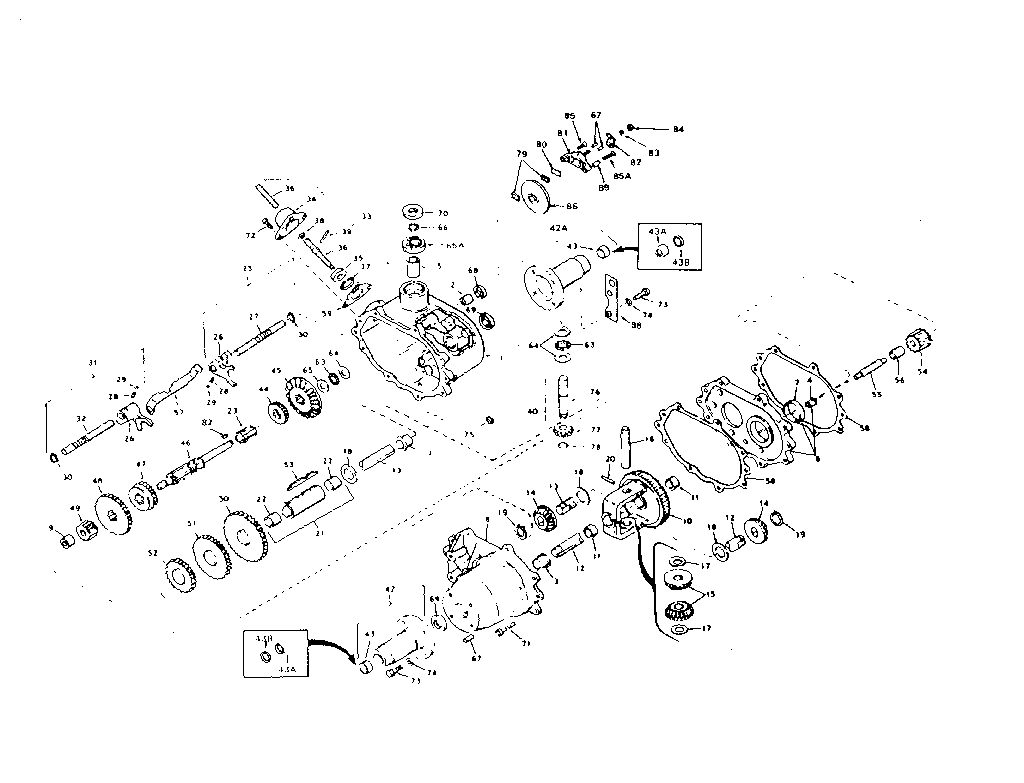

Transaxle diagram

Holder

Part #790005

Replaced by #790025

?
Manufacturer substitution
This part replaces 790005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.30 |
10% OFF Phone Price : $20.30
In Stock
Dowel Pin 786026
#67

Transaxle diagram

Dowel pin

Part #786026

Replaced by #786026B

?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Screw 792085
#85A

Transaxle diagram

Screw

Part #792085

Replaced by #792085A

?
Manufacturer substitution
This part replaces 792085. Substitute parts can look different from the original.
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Spacer 786066
#89

Transaxle diagram

Spacer

Part #786066

Replaced by #786066

?
Manufacturer substitution
This part replaces 786066. Substitute parts can look different from the original.
This item is not returnable
$4.60
In Stock
Quad Ring 792001
#38

Transaxle diagram

Quad ring

Part #792001

Replaced by #792001

?
Manufacturer substitution
This part replaces 792001. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
Bearing 780071
#63

Transaxle diagram

Bearing

Part #780071

Replaced by #780071

?
Manufacturer substitution
This part replaces 780071. Substitute parts can look different from the original.
$11.34
In Stock
Chute Cable 780059
#3

Transaxle diagram

Chute cable

Part #780059

Replaced by #780059MA

?
Manufacturer substitution
This part replaces 780059. Substitute parts can look different from the original.
$39.21 |
13% OFF Phone Price : $45.21
In Stock
Washer 8728
#92

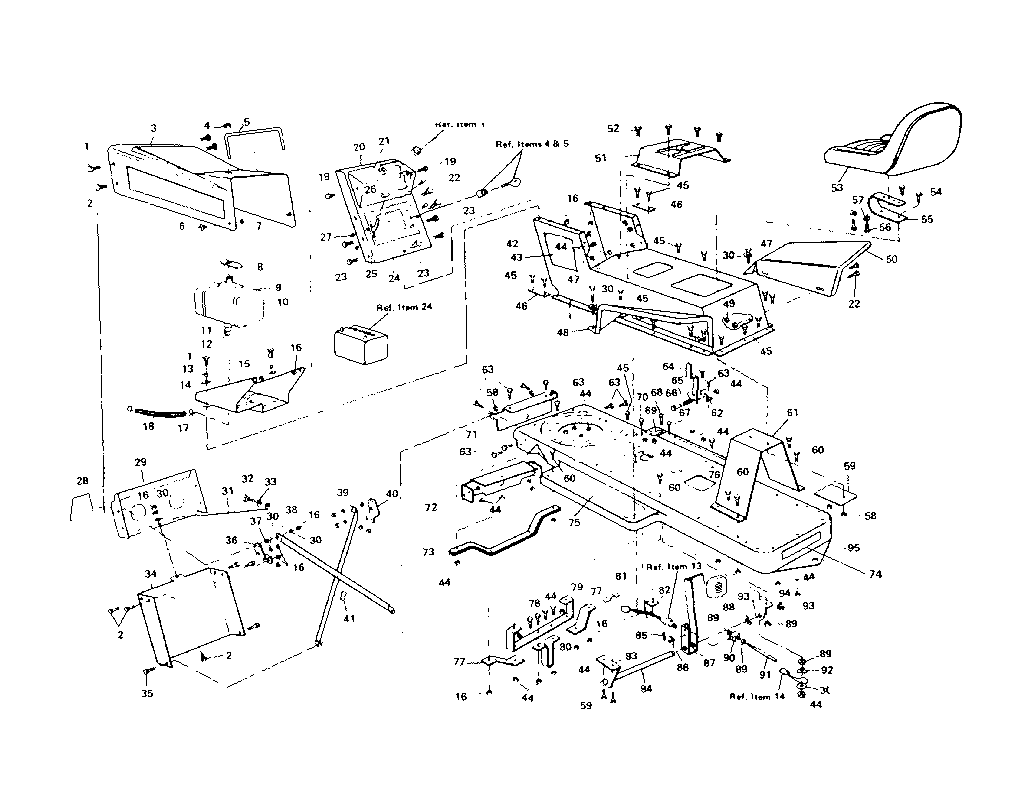

Top half diagram

Washer

Part #8728

Replaced by #783000MA

?
Manufacturer substitution
This part replaces 8728. Substitute parts can look different from the original.
This item is not returnable
$9.34
In Stock
Switch With Key 44745
#4

Wiring diagram

Switch with key

Part #44745

Replaced by #421064MA

?
Manufacturer substitution
This part replaces 44745. Substitute parts can look different from the original.
$43.79 |
12% OFF Phone Price : $49.79
In Stock
