Electric Range

Model # A3889VRA Official Admiral electric freestanding range

Here are the diagrams and repair parts for Official Admiral A3889VRA electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Terminal Block 7401P039-60
#16

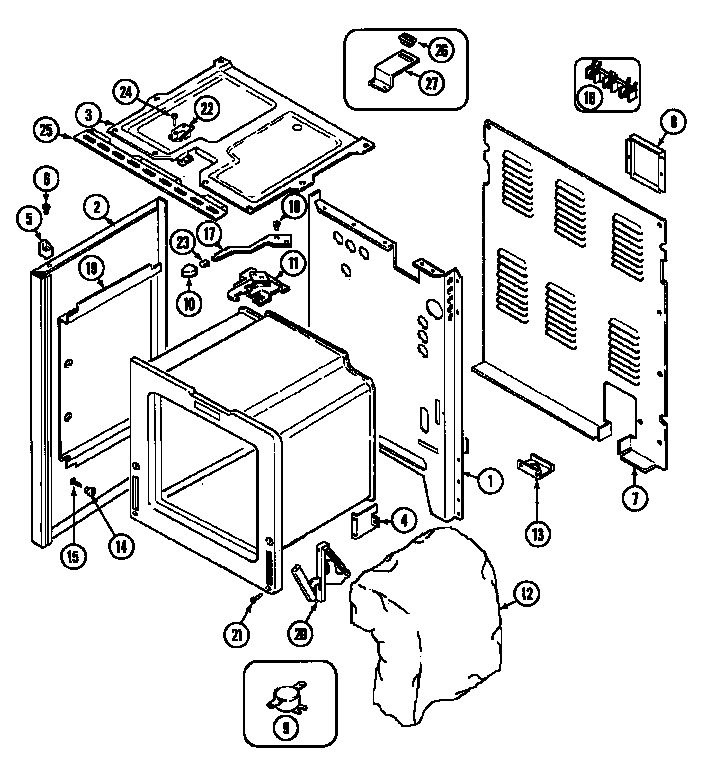

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
"cleaner, Elc" 8308P002-60
#8B

Top assembly diagram

"cleaner, elc"

Part #8308P002-60

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 8308P002-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Screw, #10 X 7101P274-60
#3

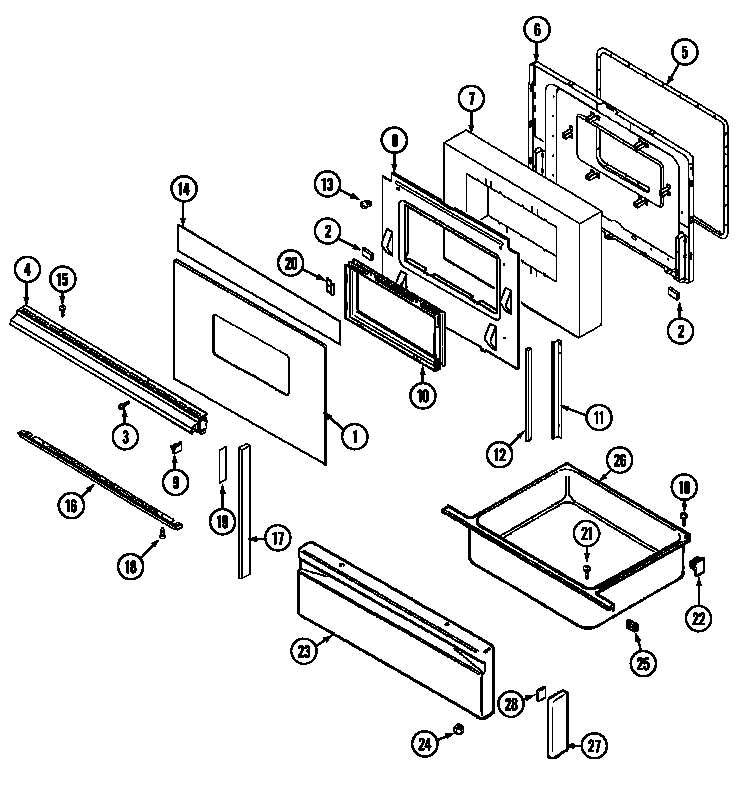

Door/drawer diagram

Screw, #10 x

Part #7101P274-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P274-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Probe 7430P009-60
#11

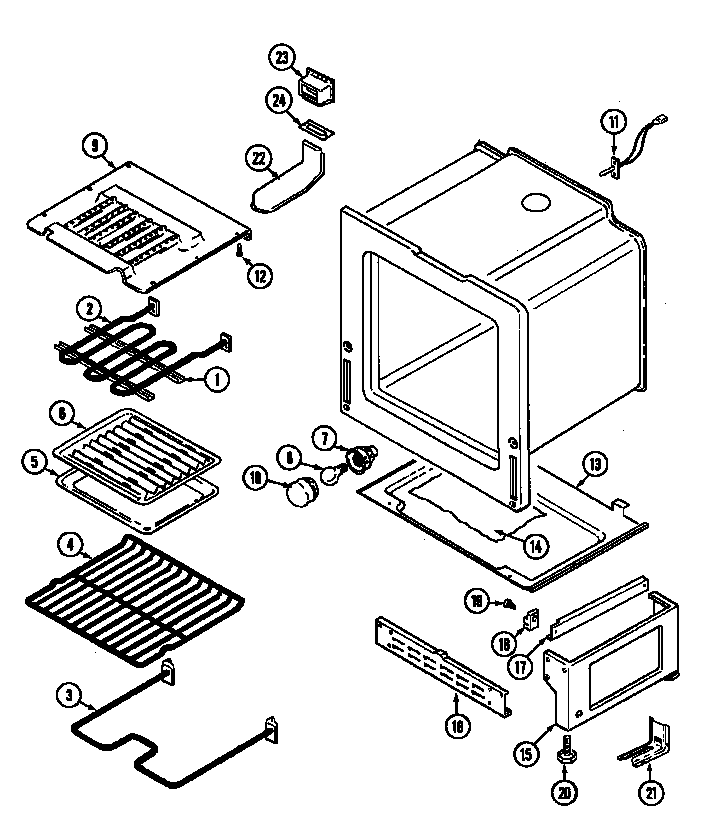

Oven/base diagram

Oven probe

Part #7430P009-60

Replaced by #12001655

?
Manufacturer substitution
This part replaces 7430P009-60. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Element W/re 7406P074-60
#3

Top assembly diagram

Element w/re

Part #7406P074-60

Replaced by #W10823704

?
Manufacturer substitution
This part replaces 7406P074-60. Substitute parts can look different from the original.
BEST SELLER
$153.12 |
7% OFF Phone Price : $165.12
In Stock
Door Gasket 7201P046-60
#5

Door/drawer diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Bake Element 04000058
#3

Oven/base diagram

Bake element

Part #04000058

Replaced by #WP74003019

?
Manufacturer substitution
This part replaces 04000058. Substitute parts can look different from the original.
$46.94 |
18% OFF Phone Price : $57.02
In Stock
Screw 7101P338-60
Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P331-60
#6B

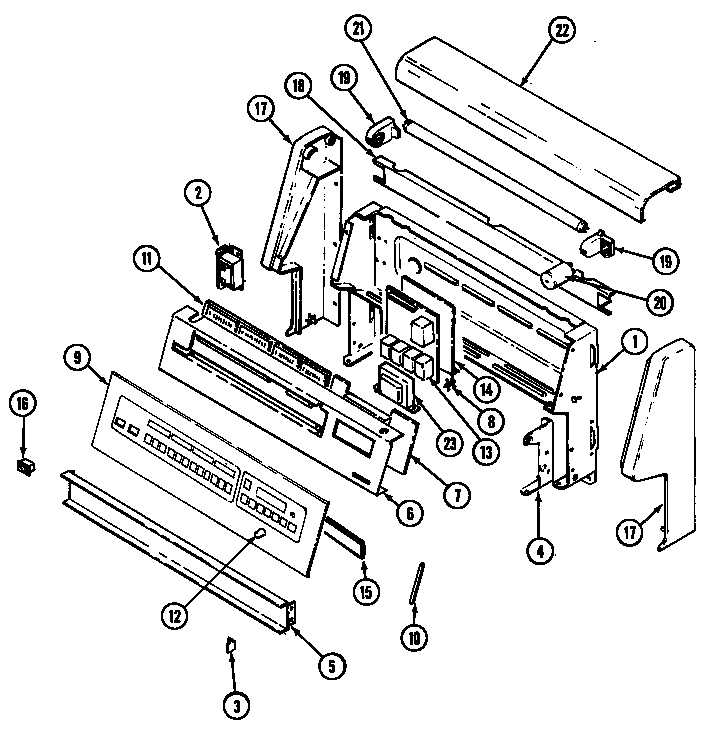

Control panel diagram

Screw

Part #7101P331-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P331-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P313-60
#6

Body diagram

Screw

Part #7101P313-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P313-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
