Model # CDE06RP2NBS1 Official GE refrigerator drawer
Here are the diagrams and repair parts for Official GE CDE06RP2NBS1 refrigerator drawer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
CDE06RP2NBS1 Refrigerators
#21

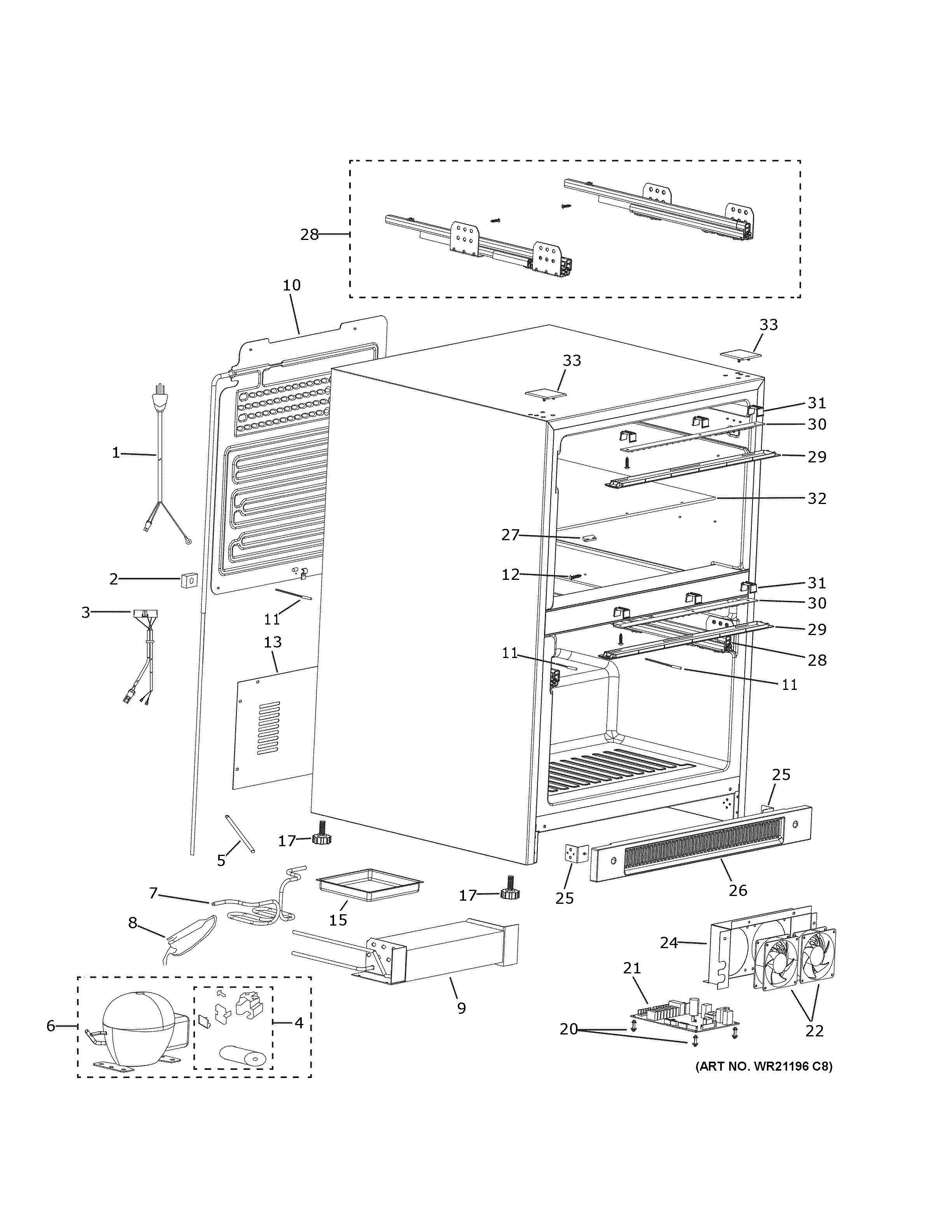

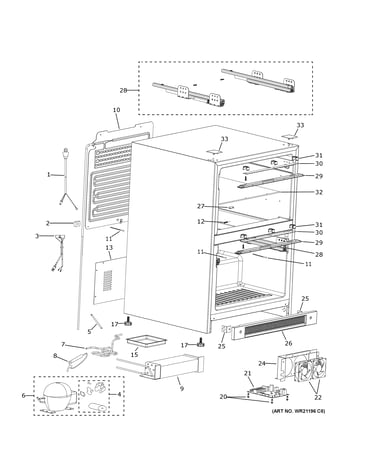

Cabinet diagram
Main control board
Part #WR55X30057
$154.95 |
7% OFF Phone Price : $166.95
In Stock
#50

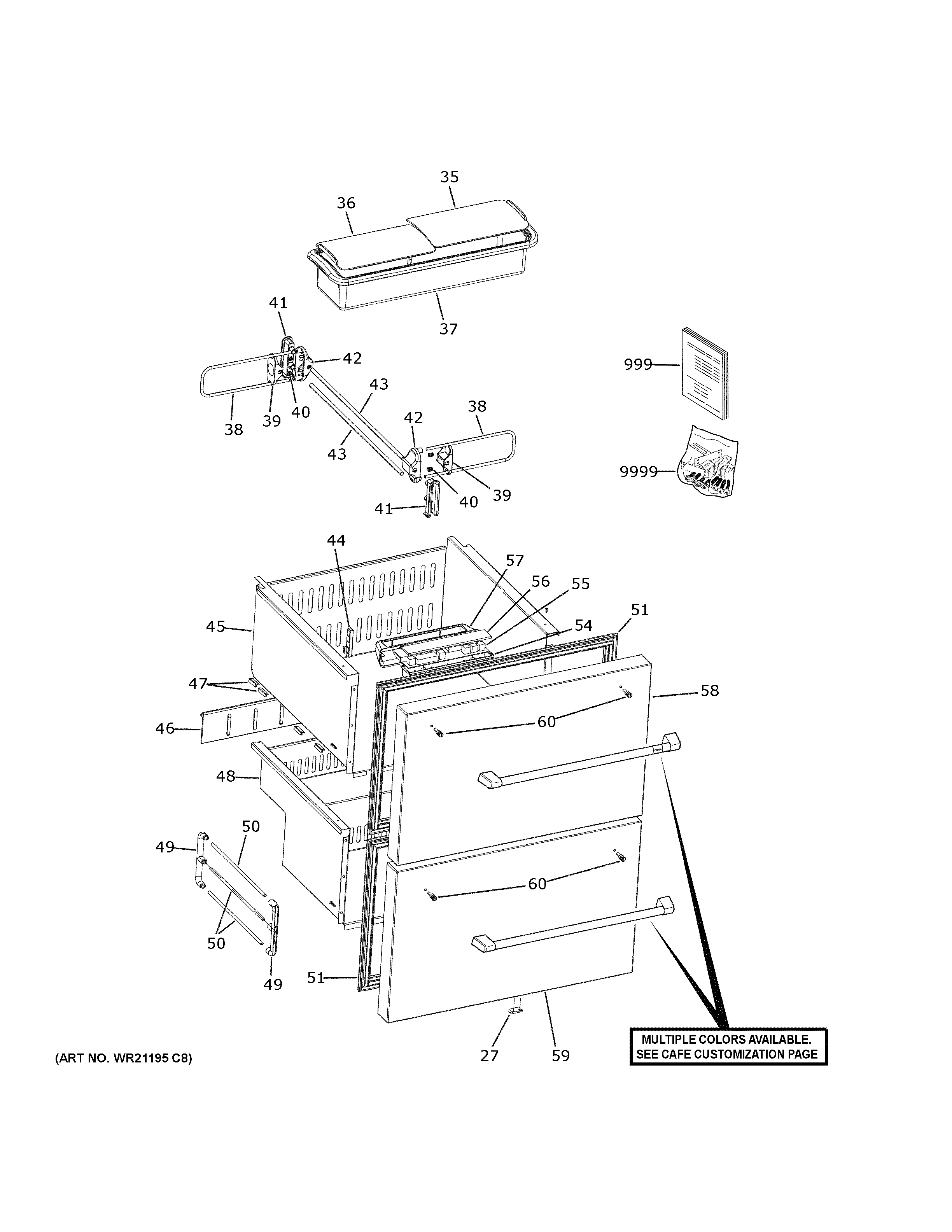

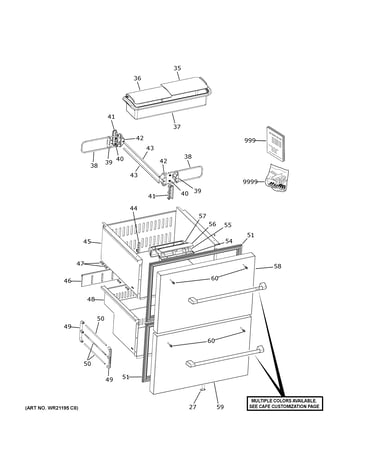

Doors & drawers diagram
Partition st
Part #WR01X28278
$24.25
In Stock
#46
Doors & drawers diagram
Lower partit
Part #WR01X28254
$17.18
In Stock
#45
Doors & drawers diagram
Upper drawer
Part #WR71X28249
$523.51
In Stock
#2001

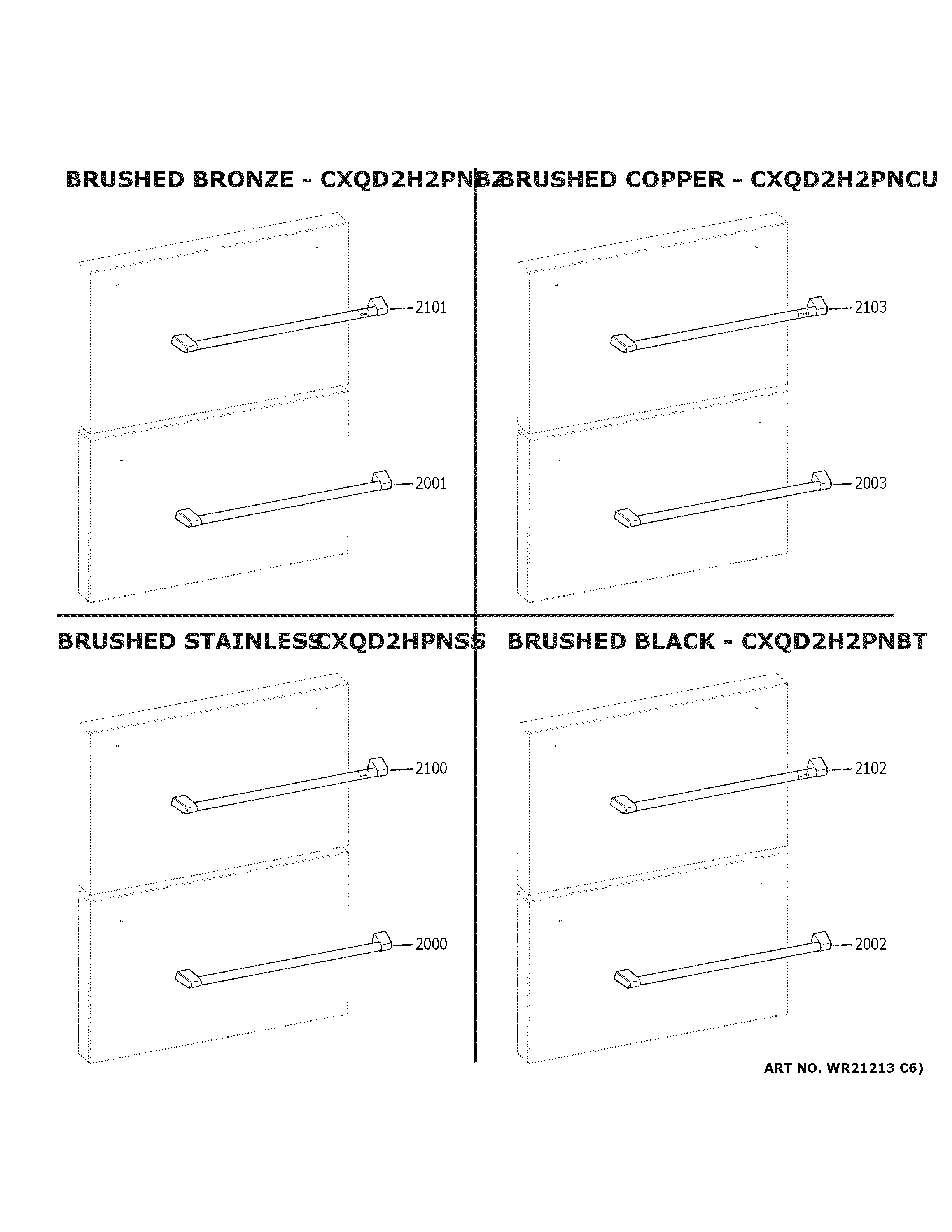

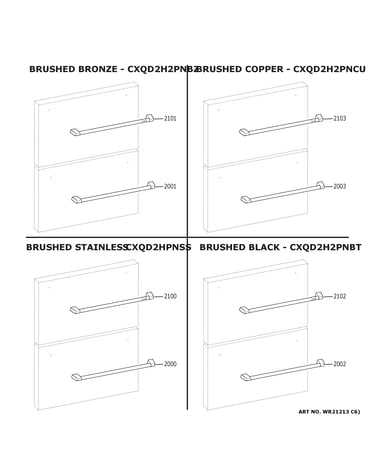

Cafe customization diagram
Bronze refrigerator handle
Part #WR12X31631
$235.20
In Stock
#42
Doors & drawers diagram
Upper pariti
Part #WR13X28264
This item is not returnable
$5.00
In Stock
#48
Doors & drawers diagram
Lower drawer
Part #WR71X28282
$445.00
In Stock
#40
Doors & drawers diagram
Upper partit
Part #WR01X28255
This item is not returnable
$5.00
In Stock
#29
Cabinet diagram
Led light
Part #WR13X28262
$20.11
In Stock
#41
Doors & drawers diagram
Upper partit
Part #WR01X28273
This item is not returnable
$5.00
In Stock
