Kenmore
Top-Mount Refrigerator

Model # 25331672104 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 25331672104 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

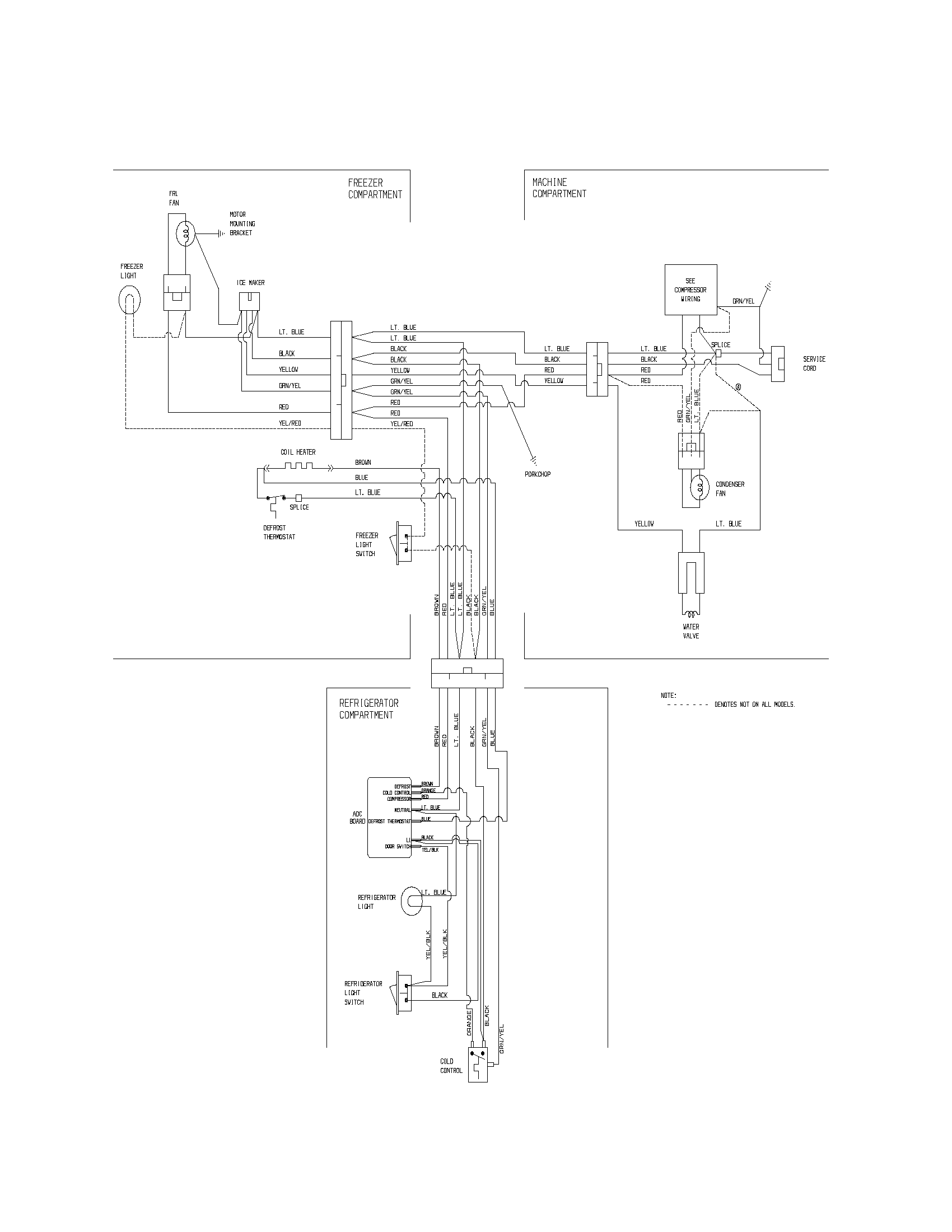

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 183 parts  |
Ice Maker Mold 5303320545
#17

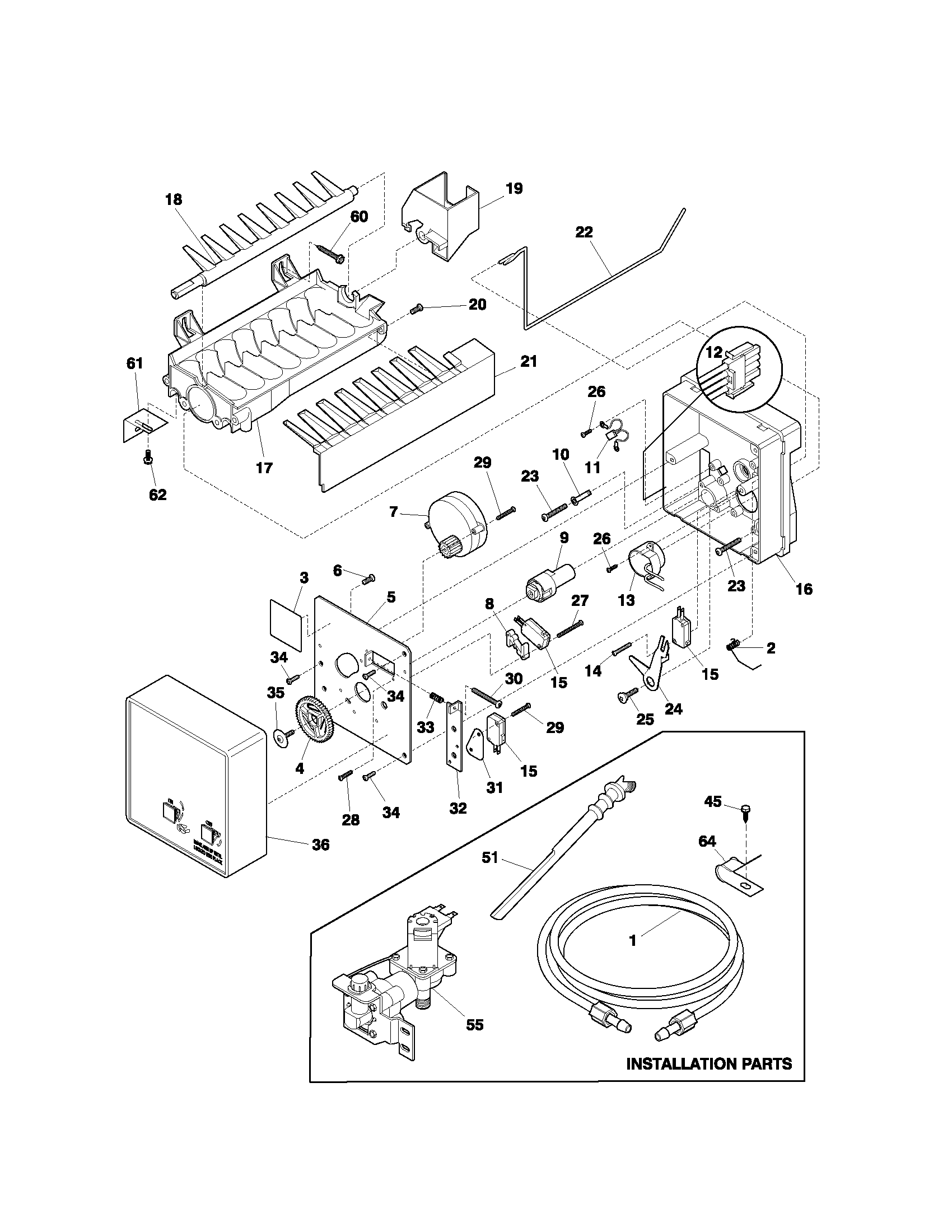

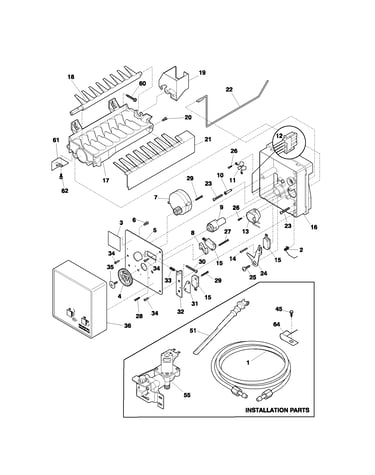

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

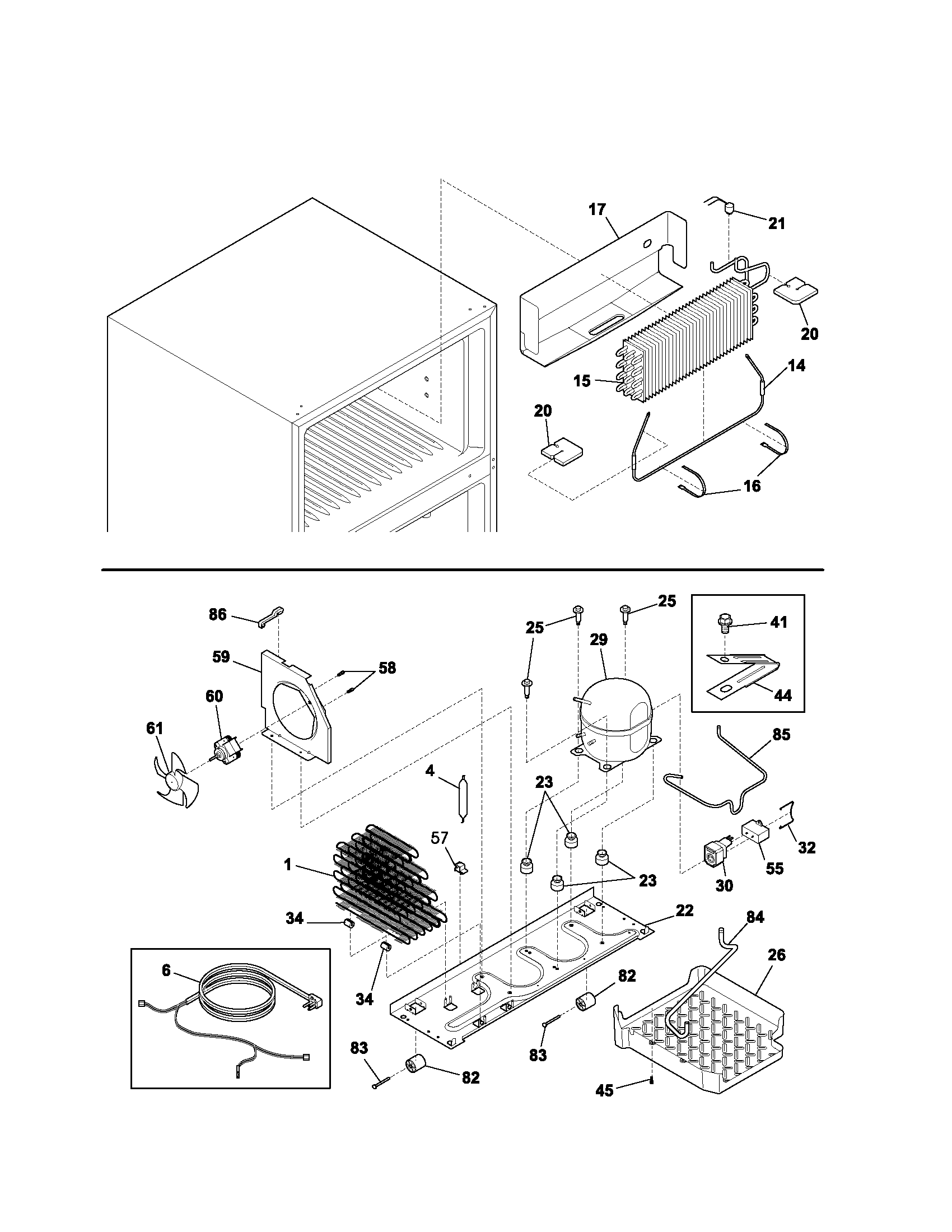

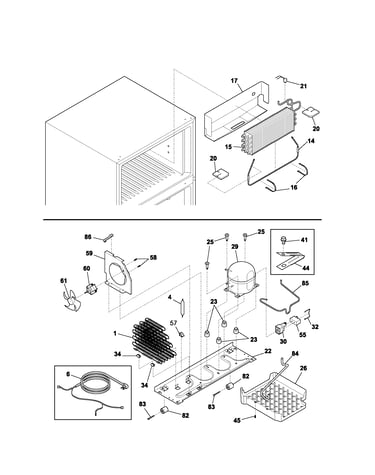

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Door Shelf Rail 240535101
#4

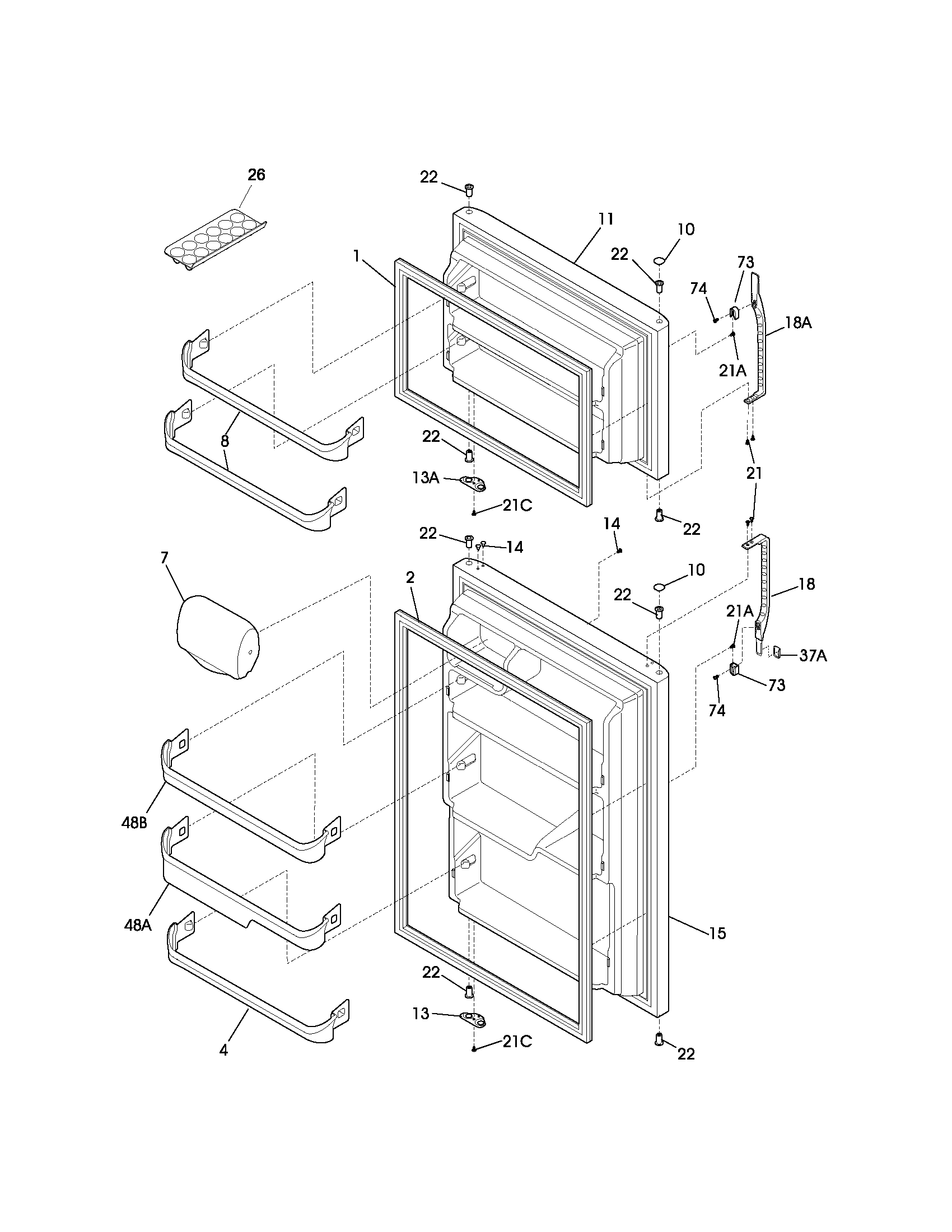

Door diagram

Refrigerator door shelf rail

Part #240535101

BEST SELLER
$31.06 |
16% OFF Phone Price : $37.06
In Stock
Washer 240311301
#34

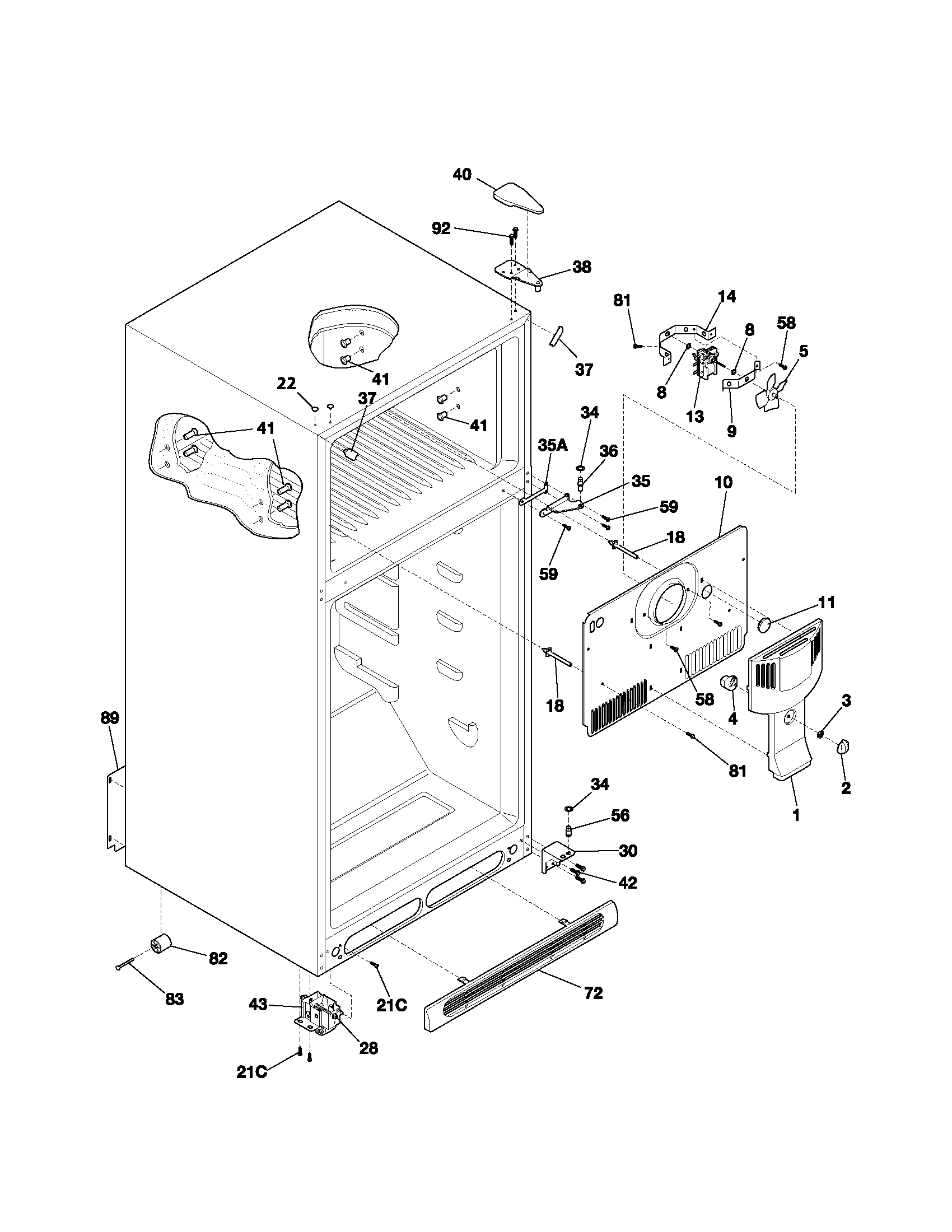

Cabinet diagram

Washer

Part #240311301

Replaced by #240311303

?
Manufacturer substitution
This part replaces 240311301. Substitute parts can look different from the original.
BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Water Inlet Valve 240519601
#55

Ice maker diagram

Water inlet valve

Part #240519601

Replaced by #242252603

?
Manufacturer substitution
This part replaces 240519601. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 241619705) 5303918202
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 241619705)

Part #5303918202

BEST SELLER
$27.56 |
18% OFF Phone Price : $33.56
In Stock
Ice Maker 240352409
#NI

Ice maker diagram

Ice maker

Part #240352409

Replaced by #5304458371

?
Manufacturer substitution
This part replaces 240352409. Substitute parts can look different from the original.
BEST SELLER
$118.47 |
9% OFF Phone Price : $130.47
In Stock
Condenser Motor 240525401
#60

System diagram

Condenser motor

Part #240525401

Replaced by #5303918774

?
Manufacturer substitution
This part replaces 240525401. Substitute parts can look different from the original.
BEST SELLER
$118.55 |
9% OFF Phone Price : $130.55
In Stock
Tappan Refrigerator Crisper Drawer (replaces 240364507, 240364508) 240364503
#26

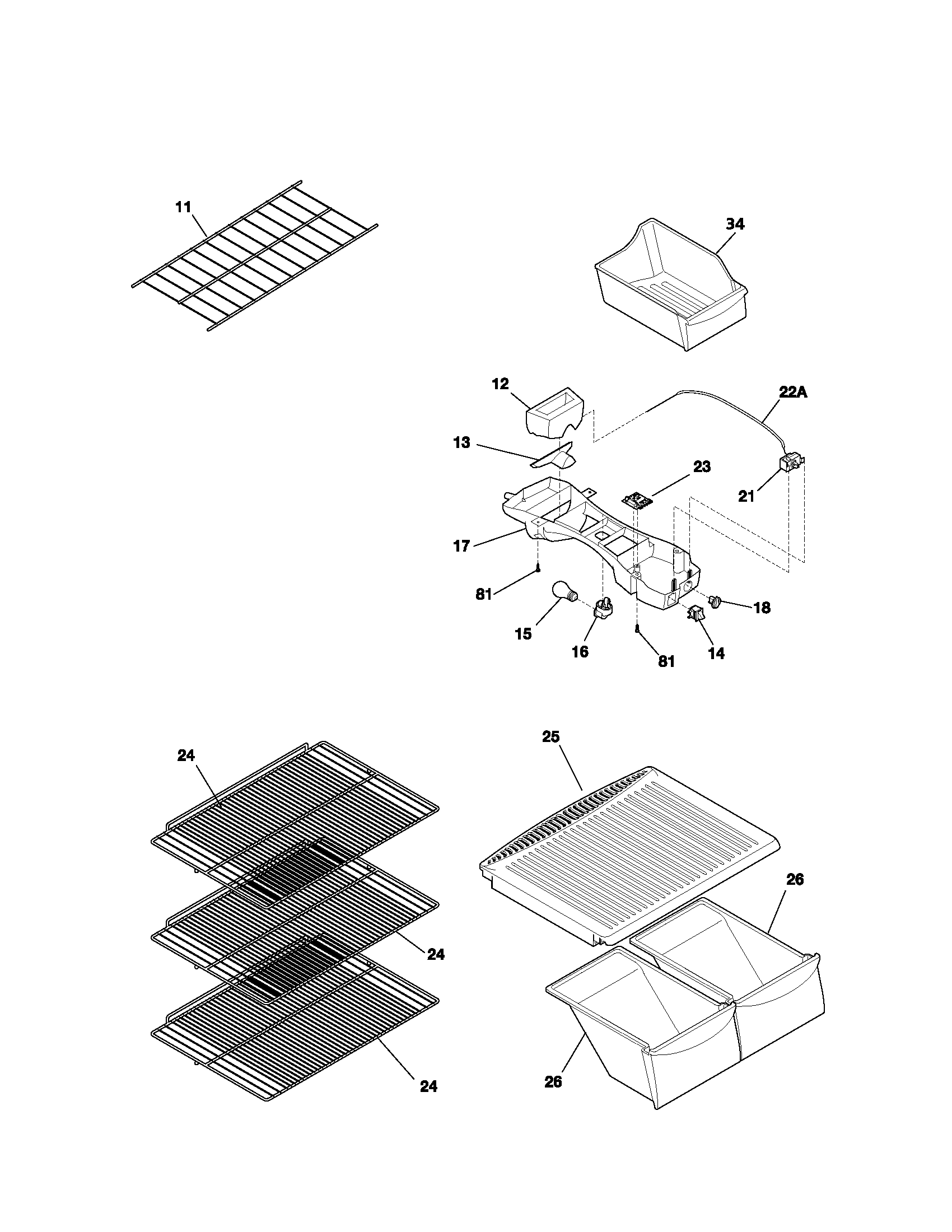

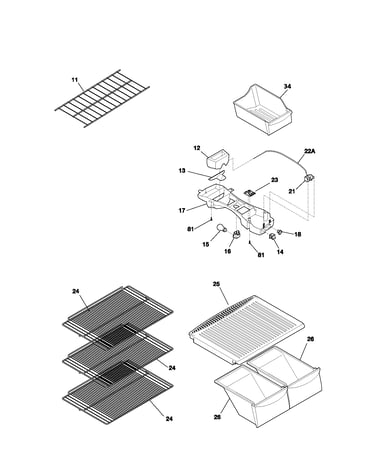

Shelves diagram
