Model # 91655352 Official Kenmore motorized barbecue grill

Here are the diagrams and repair parts for Official Kenmore 91655352 motorized barbecue grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Spit Side 40-37238
#7

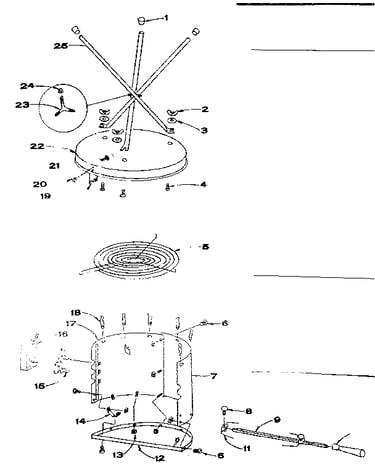

Replacement parts diagram

Spit side

Part #40-37238

The manufacturer no longer makes this part, and there's no substitute part

Grid Bracket 40-38041
#19

Replacement parts diagram

Grid bracket

Part #40-38041

The manufacturer no longer makes this part, and there's no substitute part

Spit Rod 41-37839
#9

Replacement parts diagram

Spit rod

Part #41-37839

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut STD541410
#24

Replacement parts diagram

Lock nut

Part #STD541410

The manufacturer no longer makes this part, and there's no substitute part

Motor Asem 60-18021-179
#16

Replacement parts diagram

Motor asem

Part #60-18021-179

The manufacturer no longer makes this part, and there's no substitute part

Tube Cap 10-12100
#1

Replacement parts diagram

Tube cap

Part #10-12100

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 11-10144
#2

Replacement parts diagram

Wing nut

Part #11-10144

The manufacturer no longer makes this part, and there's no substitute part

Hood Top 40-36710
#12

Replacement parts diagram

Hood top

Part #40-36710

The manufacturer no longer makes this part, and there's no substitute part

Square Nut STD541006
#13

Replacement parts diagram

Square nut

Part #STD541006

The manufacturer no longer makes this part, and there's no substitute part

Screw STD522507
#4

Replacement parts diagram

Screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part
