Model # MVWB766FW1 Official Maytag washer
Here are the diagrams and repair parts for Official Maytag MVWB766FW1 washer, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

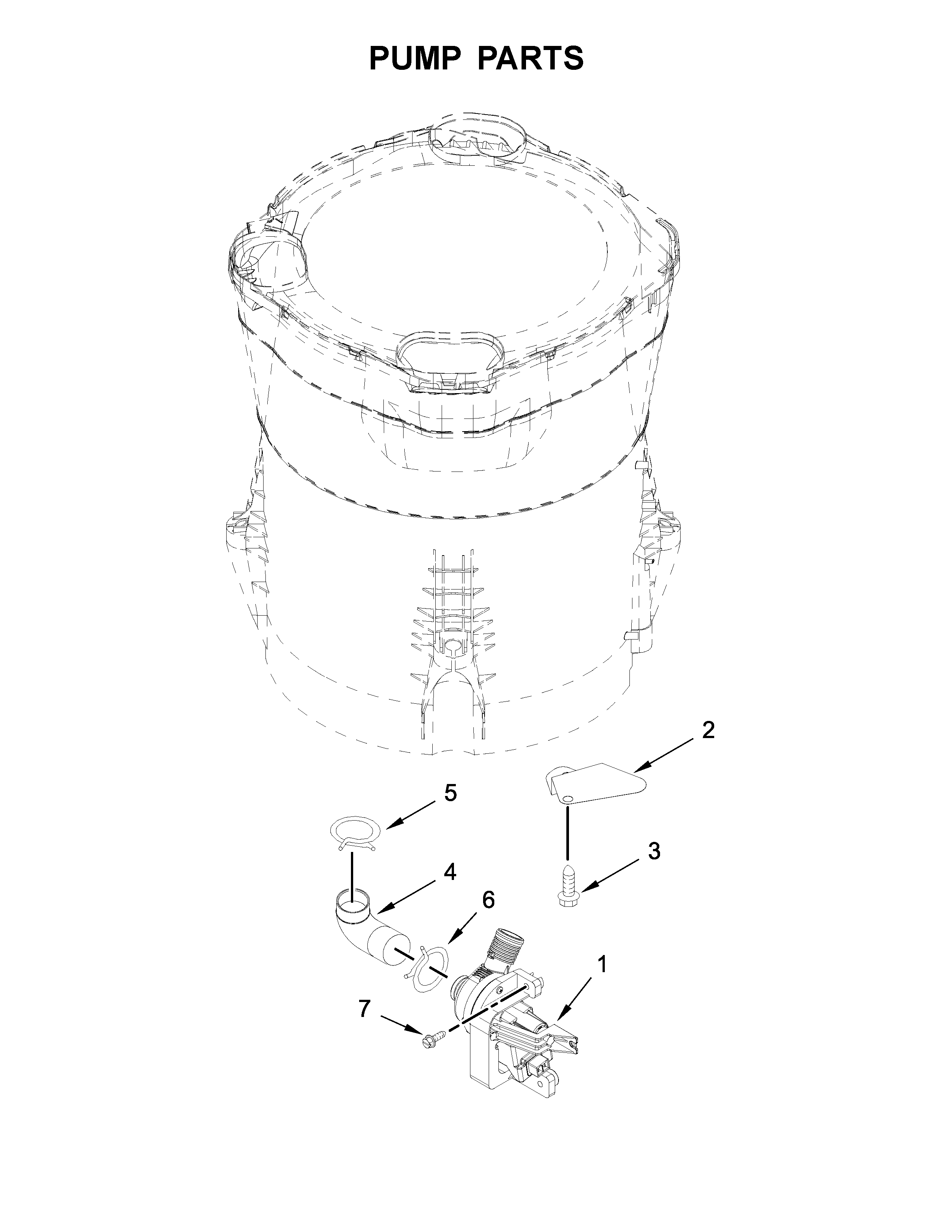

SELECT DIAGRAM
Browse Parts forMVWB766FW1 Washer
- #17

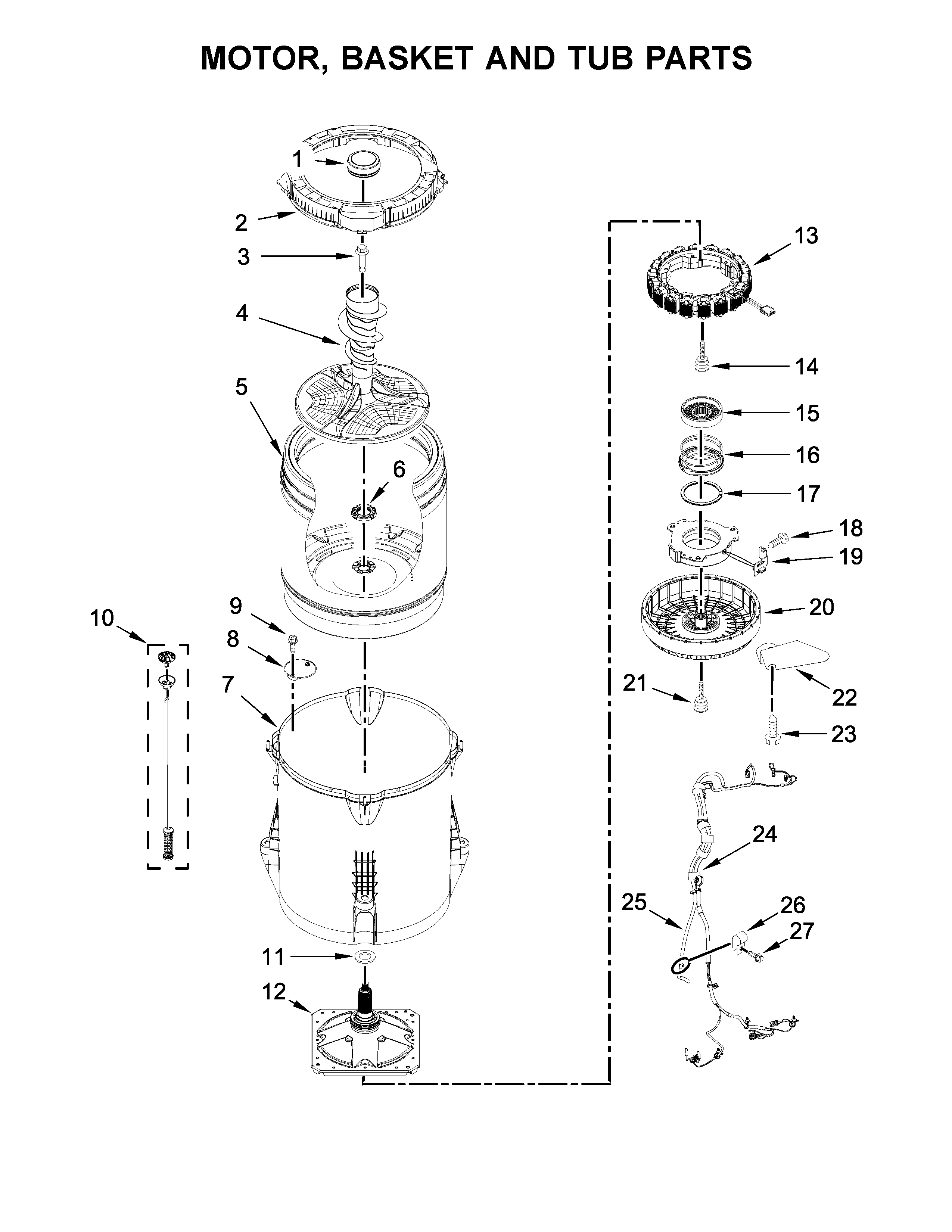

Motor, basket and tub parts diagram
30mm spiralPart #W10275082
Replaced by #W10734521
?Manufacturer substitutionThis part replaces W10275082. Substitute parts can look different from the original.$38.49 |13% OFF Phone Price : $44.49In Stock - #16
Motor, basket and tub parts diagram
Spring supportPart #W10006494
Replaced by #W10734521
?Manufacturer substitutionThis part replaces W10006494. Substitute parts can look different from the original.$38.49 |13% OFF Phone Price : $44.49In Stock - #15
Motor, basket and tub parts diagram
SliderPart #W10447975
Replaced by #W10734521
?Manufacturer substitutionThis part replaces W10447975. Substitute parts can look different from the original.$38.49 |13% OFF Phone Price : $44.49In Stock - #14

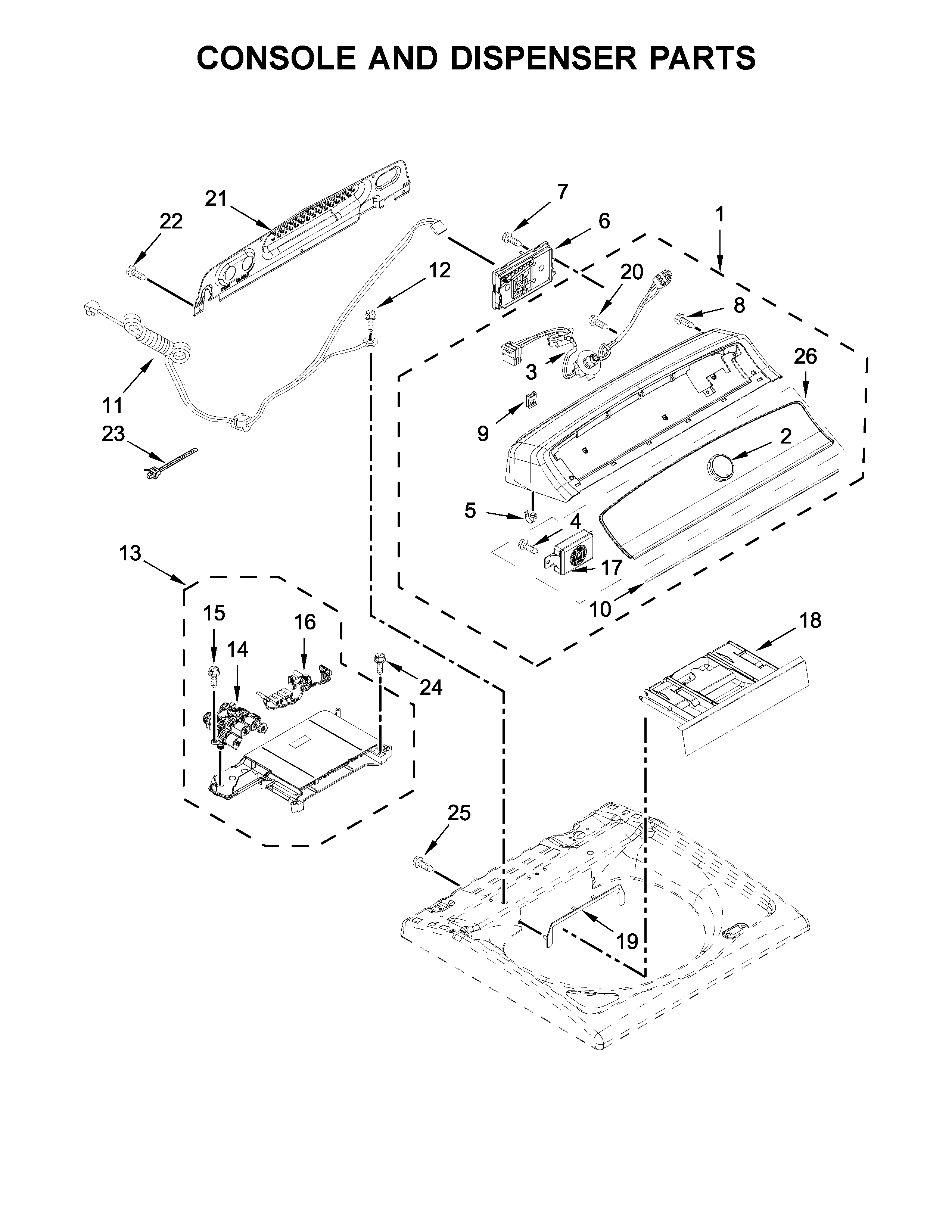

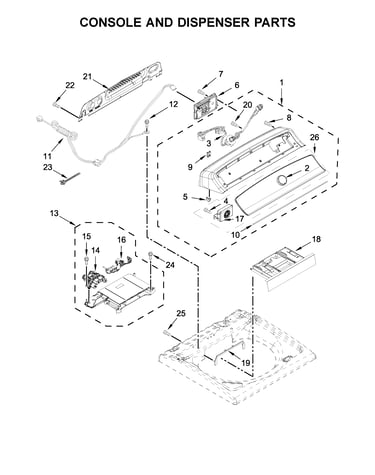

Console and dispenser parts diagram
Washer water inlet valvePart #W10758828
Replaced by #W11165546
?Manufacturer substitutionThis part replaces W10758828. Substitute parts can look different from the original.$54.65 |10% OFF Phone Price : $60.65In Stock - #19
Motor, basket and tub parts diagram
Clutch assemblyPart #W10817398
Replaced by #W10754448
?Manufacturer substitutionThis part replaces W10817398. Substitute parts can look different from the original.$87.77 |6% OFF Phone Price : $93.77In Stock - #12
Motor, basket and tub parts diagram
Drive assemblyPart #W10868473
Replaced by #W11393685
?Manufacturer substitutionThis part replaces W10868473. Substitute parts can look different from the original.$176.74 |6% OFF Phone Price : $188.74In Stock - #14

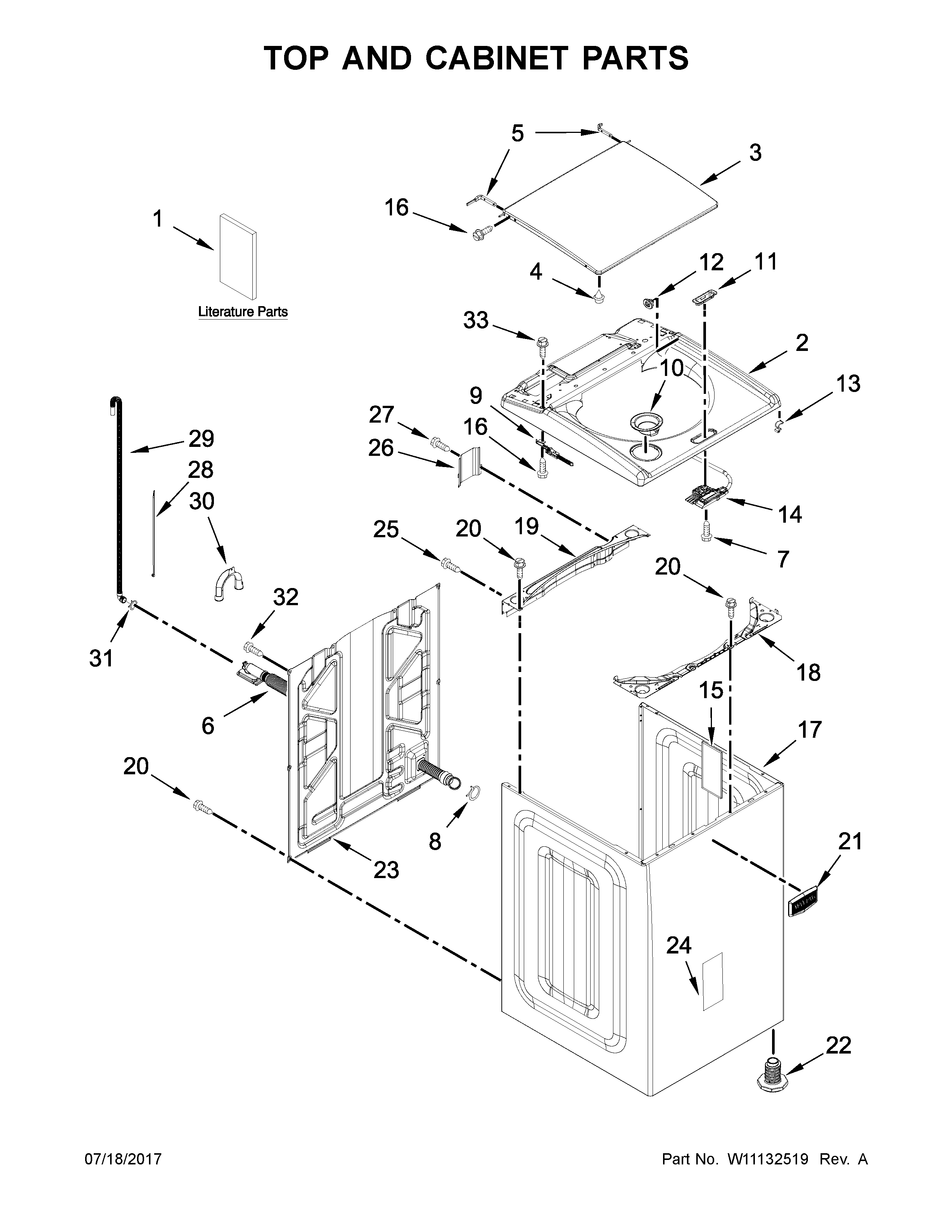

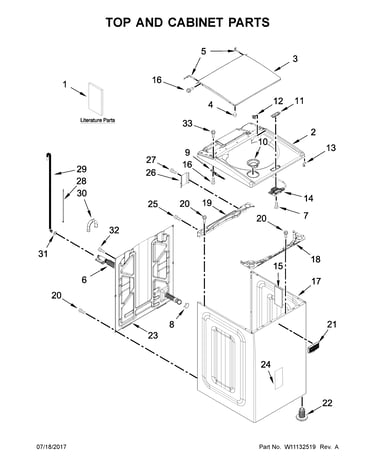

Top and cabinet parts diagram
Washer lid lock assemblyPart #W10787878
Replaced by #W10810403
?Manufacturer substitutionThis part replaces W10787878. Substitute parts can look different from the original.$68.48 |8% OFF Phone Price : $74.48In Stock - #4
Motor, basket and tub parts diagram
Agitator - 1Part #W10882734
Replaced by #W11550891
?Manufacturer substitutionThis part replaces W10882734. Substitute parts can look different from the original.$64.18 |9% OFF Phone Price : $70.18In Stock - #10
Motor, basket and tub parts diagram
Damper assemblyPart #W11033536
Replaced by #W11130359
?Manufacturer substitutionThis part replaces W11033536. Substitute parts can look different from the original.$81.03 |7% OFF Phone Price : $87.03In Stock - #NI
Optional parts (not included) diagram
Affresh washer cleaner, 3-packPart #W10135699
Get free shipping with Automatic Reorder
$11.56 |15% OFF Phone Price : $13.56In Stock
