GE
Gas Range

Model # LGB356GER1 Official GE range

Here are the diagrams and repair parts for Official GE LGB356GER1 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

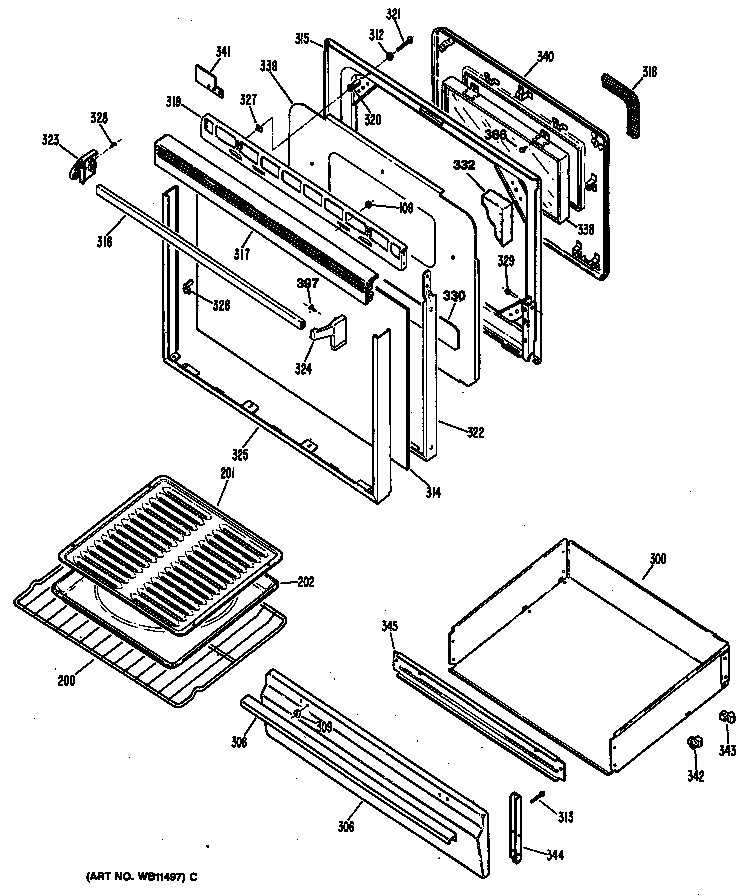

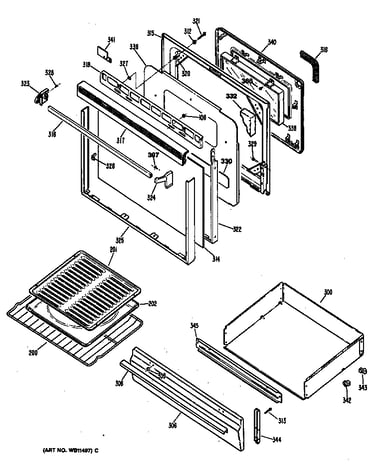

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
40a15bulb STD372401
#235

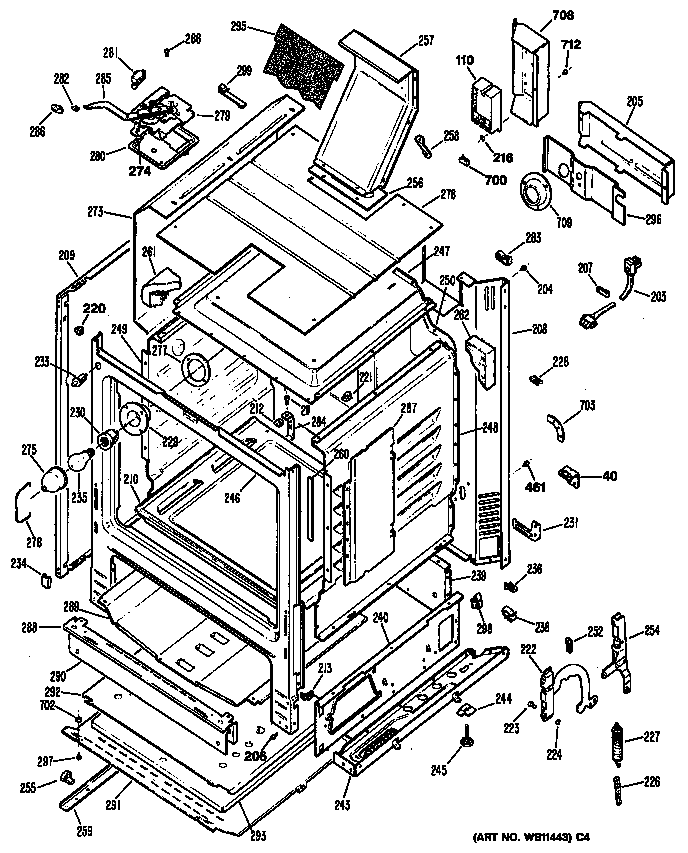

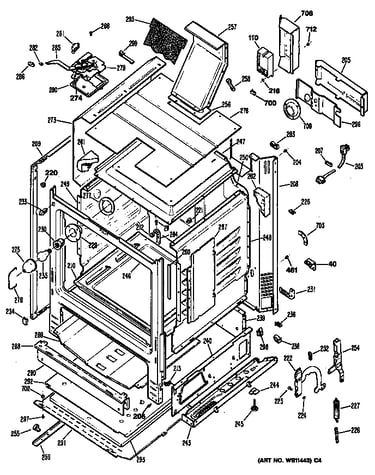

Oven diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw WB1X593
#461

Oven diagram

Screw

Part #WB1X593

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1X593. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Gas Valve (replaces Wb19k0014, Wb19k9) WB19K14

#NI

All parts diagram

Range oven gas valve (replaces wb19k0014, wb19k9)

Part #WB19K14

$270.87 |
$12.00 OFF Phone Price : $282.87
In Stock
Range Screw WB1K42
#204A

Oven diagram

Range screw

Part #WB1K42

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K42. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB1K23
#297

Oven diagram

Screw

Part #WB1K23

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K23. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Valve Guard WB2K24

#NI

All parts diagram

Range surface burner valve guard

Part #WB2K24

This item is not returnable
$27.25 |
18% OFF Phone Price : $33.25
In Stock
Range Screw (replaces Wb01k10018, Wb01x5364) WB1X5364
#108A

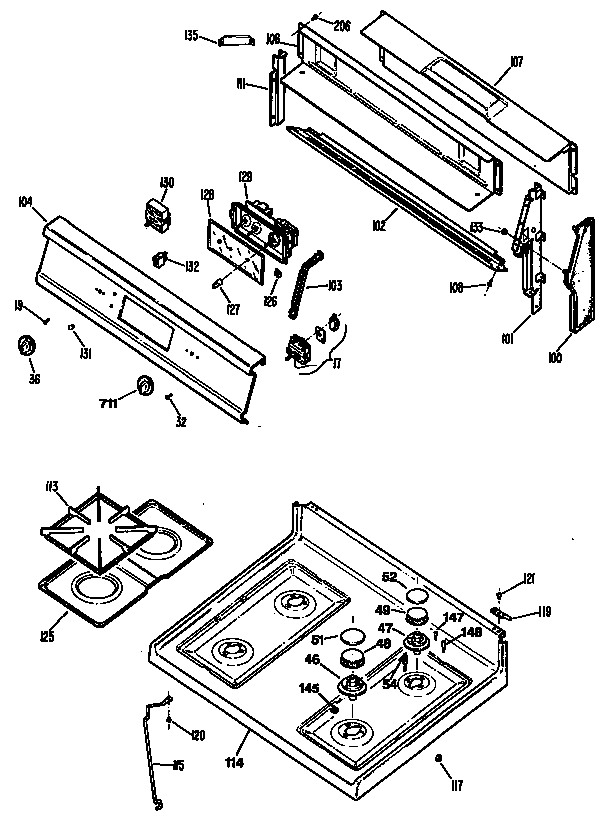

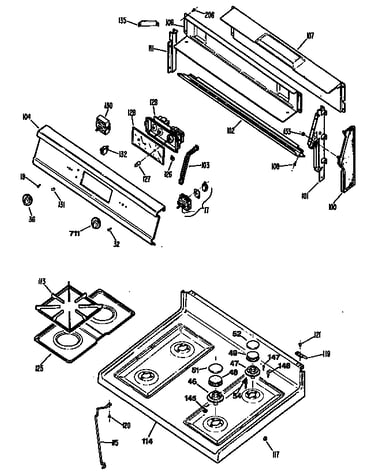

Cooktop diagram

Range screw (replaces wb01k10018, wb01x5364)

Part #WB1X5364

$7.90 |
11% OFF Phone Price : $8.90
In Stock
Range Drawer Mounting Bracket WB39K20
#344

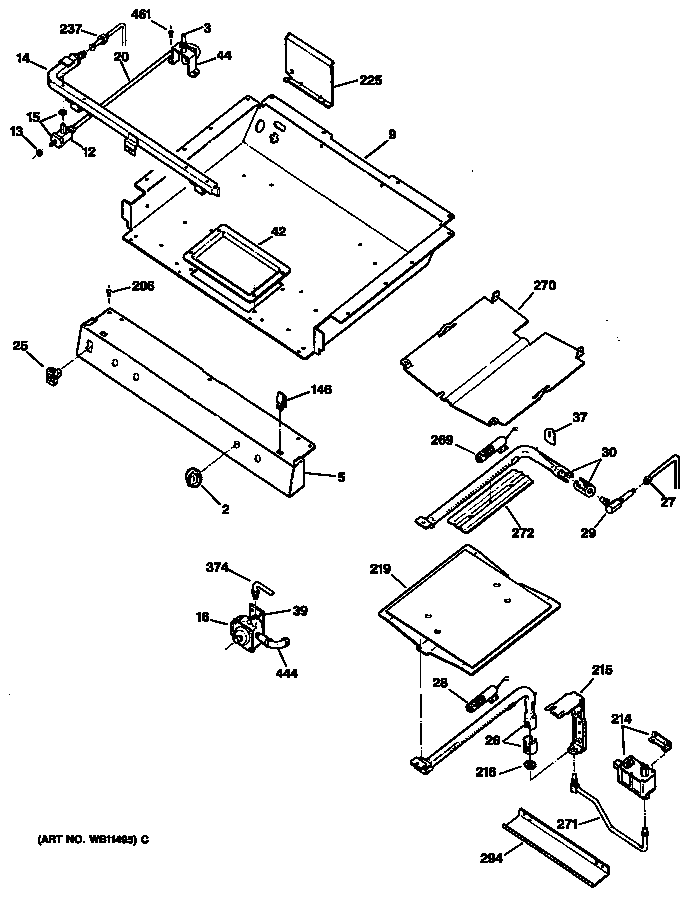

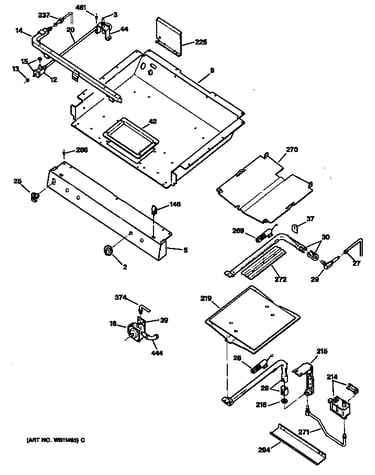

Gas lines diagram

Range drawer mounting bracket

Part #WB39K20

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Capillary Clip WB2K10
#221

Oven diagram

Capillary clip

Part #WB2K10

Replaced by #WB02K10073

?
Manufacturer substitution
This part replaces WB2K10. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Igniter Cover WB34K14

#NI

All parts diagram

Range oven igniter cover

Part #WB34K14

This item is not returnable
$13.99 |
13% OFF Phone Price : $15.99
In Stock
