Model # ES-112 Official Fimco high-pressure sprayer

Here are the diagrams and repair parts for Official Fimco ES-112 high-pressure sprayer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Pump 5270766
Pump

Part #5270766

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer, 5/16-in, 8-pack STD551131
#2

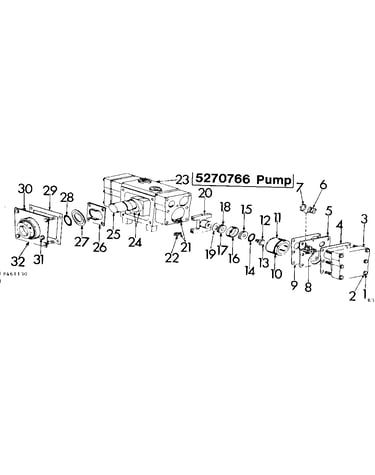

Pump diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Spring 5019027
#6

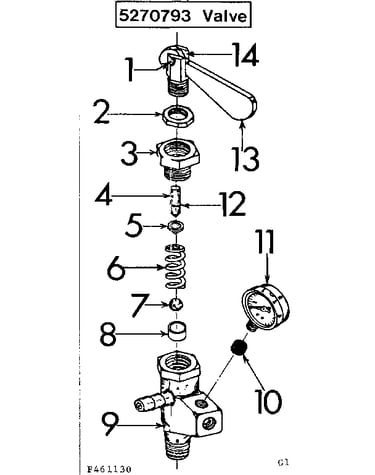

Valve diagram

Spring

Part #5019027

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5270761
#11

Pump diagram

Sleeve

Part #5270761

The manufacturer no longer makes this part, and there's no substitute part

Key 5089003
#4

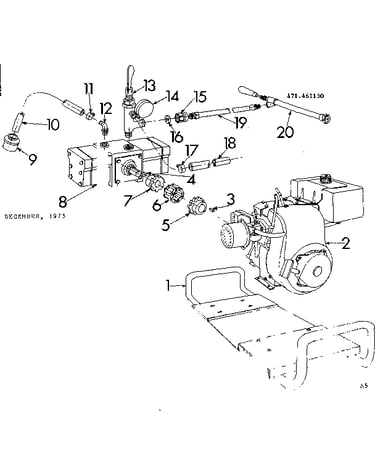

Engine diagram

Key

Part #5089003

The manufacturer no longer makes this part, and there's no substitute part

Gun 5270321
#20

Engine diagram

Gun

Part #5270321

The manufacturer no longer makes this part, and there's no substitute part

Regulator 5077005
#14

Valve diagram

Regulator

Part #5077005

The manufacturer no longer makes this part, and there's no substitute part

Barrel 5166006
#1

Spray gun diagram

Barrel

Part #5166006

The manufacturer no longer makes this part, and there's no substitute part

Poppet 5063007
#7

Pump diagram

Poppet

Part #5063007

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#30

Pump diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part
