Fisher & Paykel
Side-By-Side Refrigerator

Model # RX256ET2W1-22618A Official Fisher & Paykel refrigerator

Here are the diagrams and repair parts for Official Fisher & Paykel RX256ET2W1-22618A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

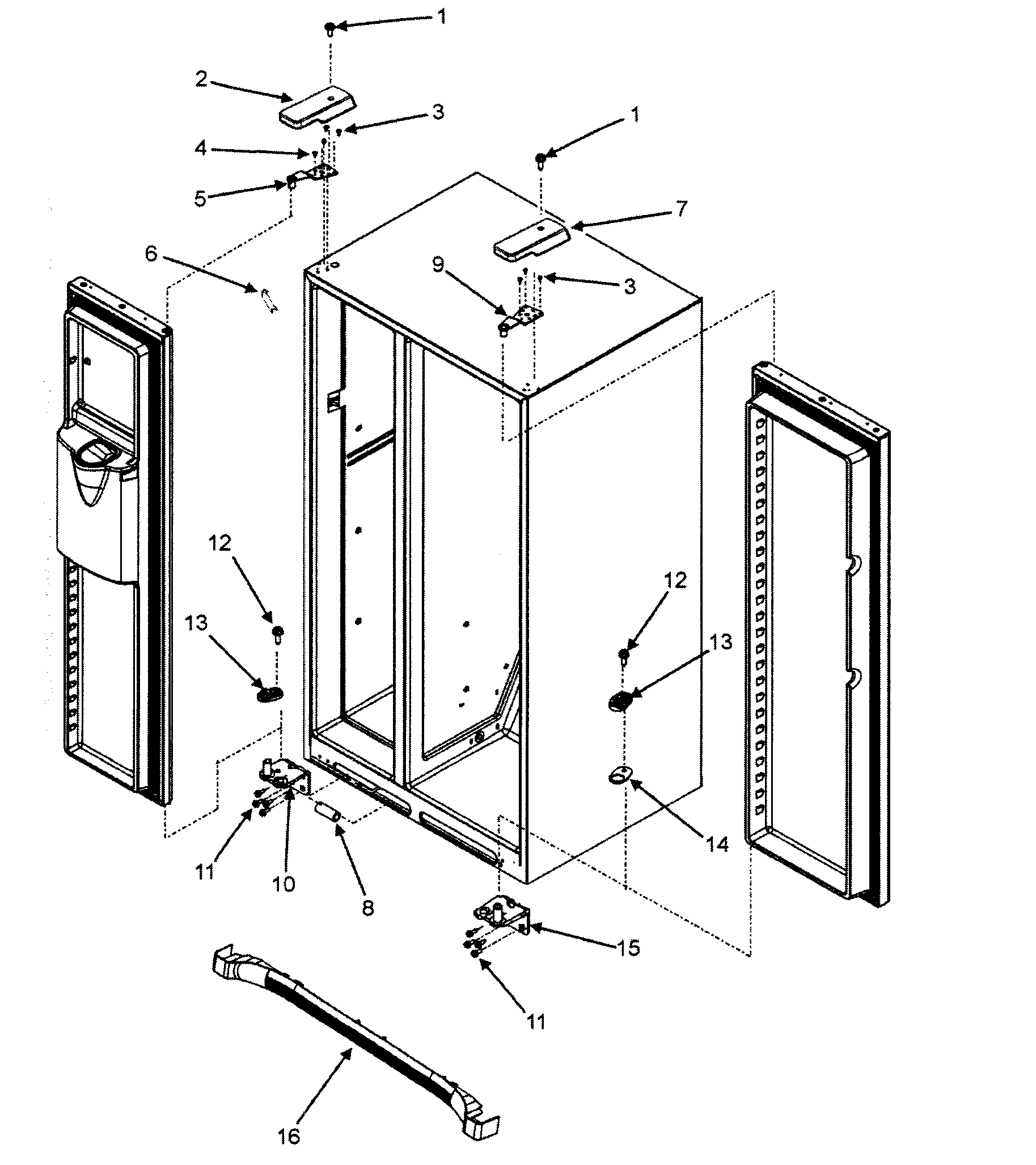

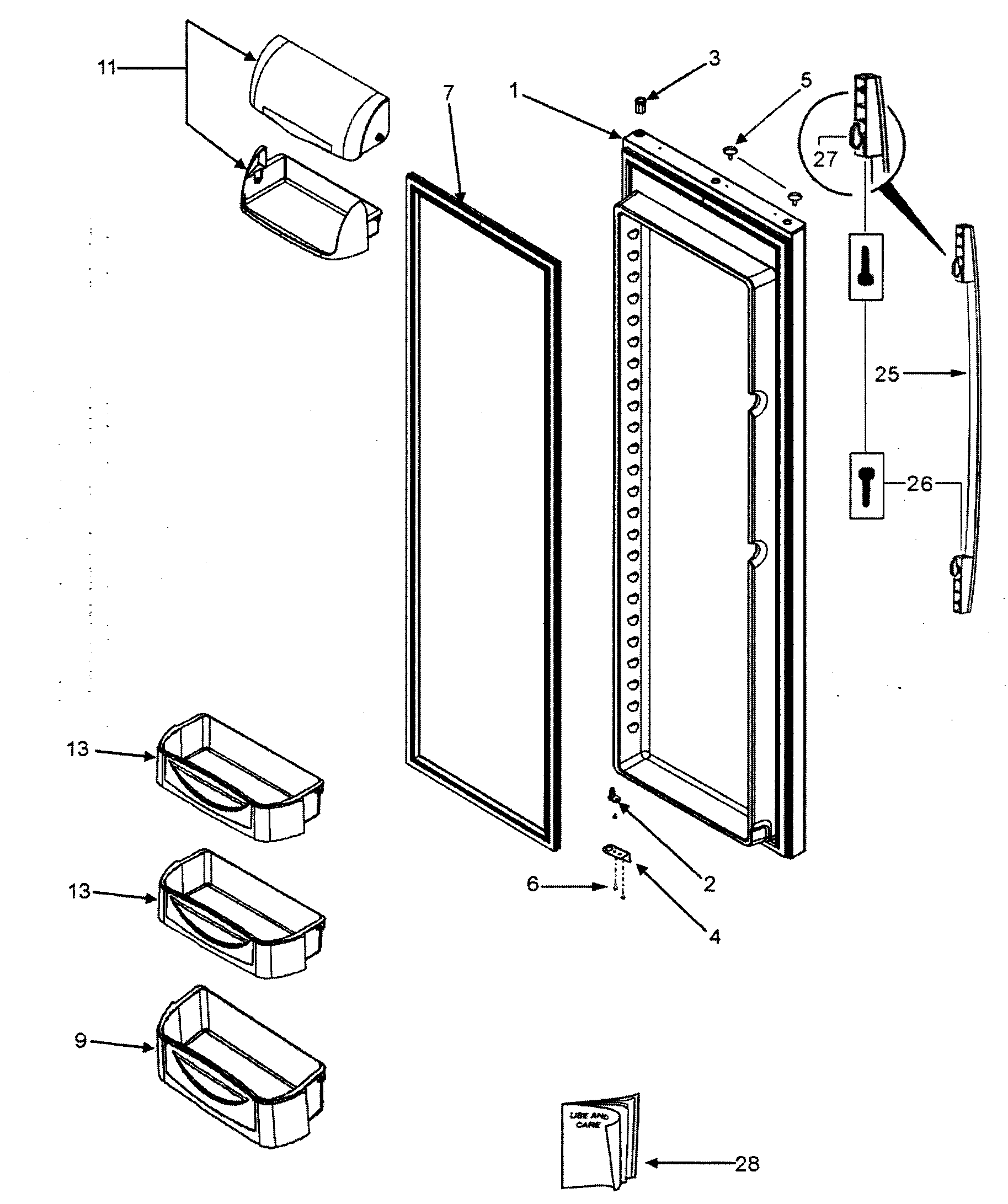

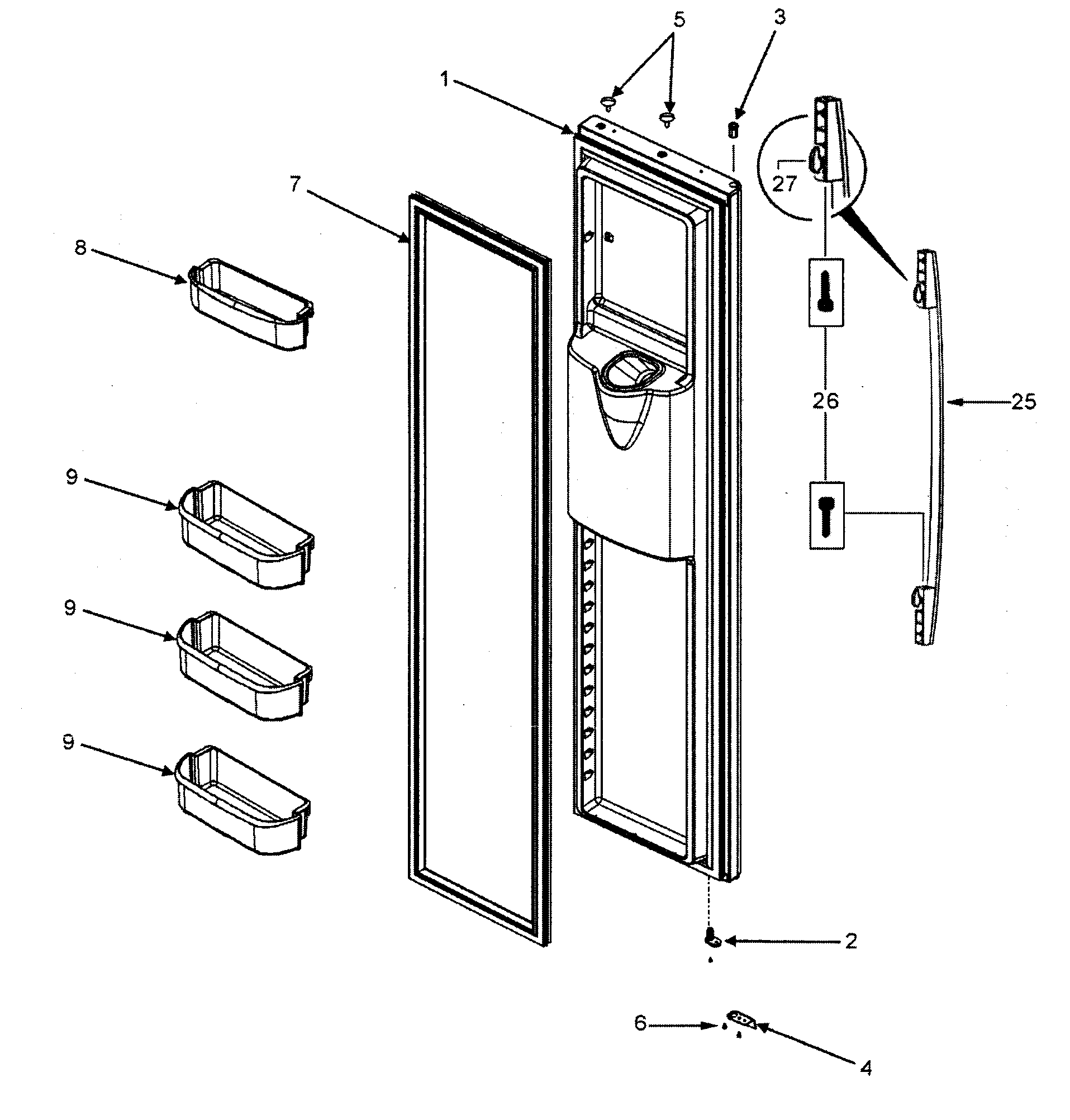

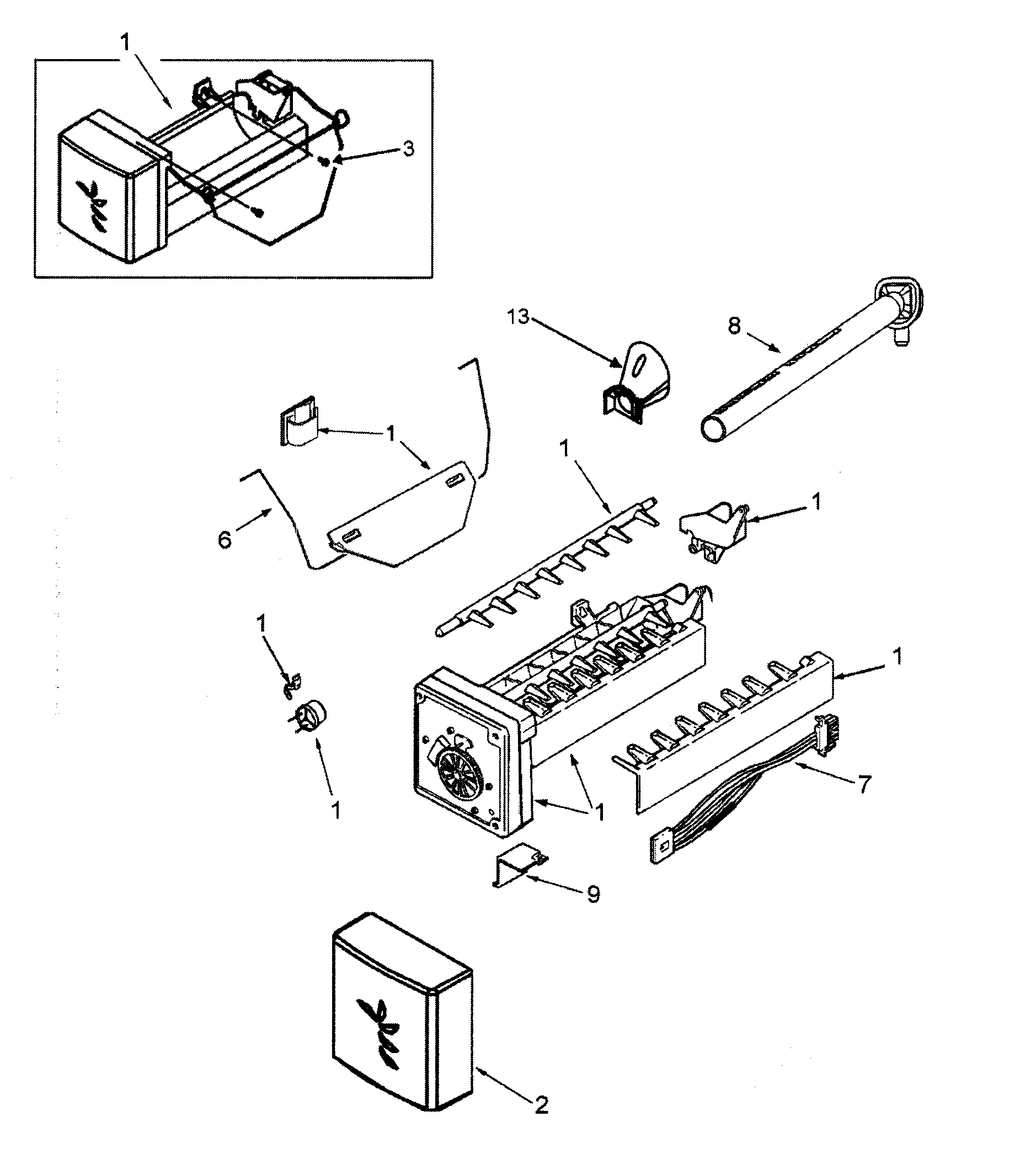

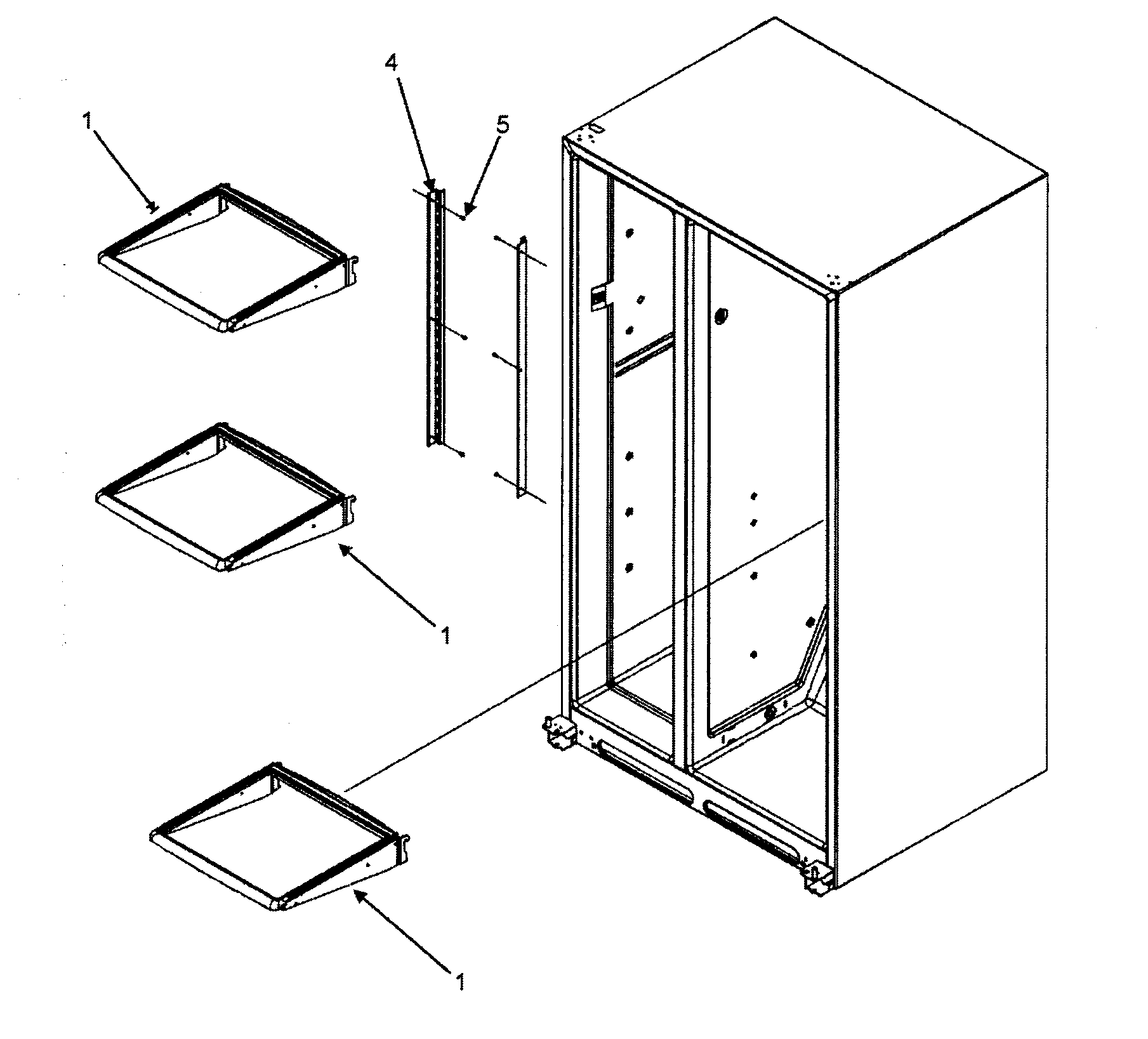

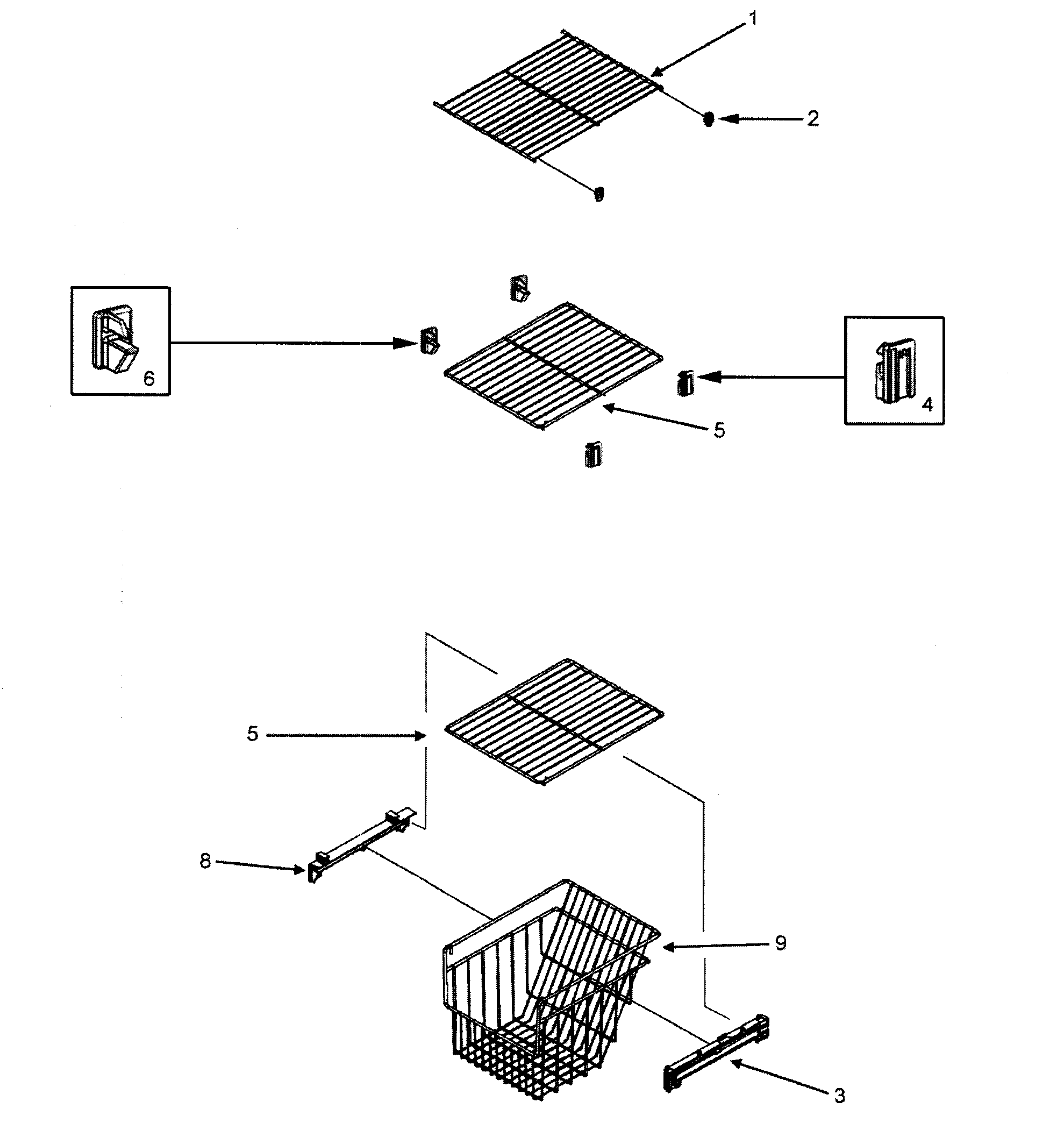

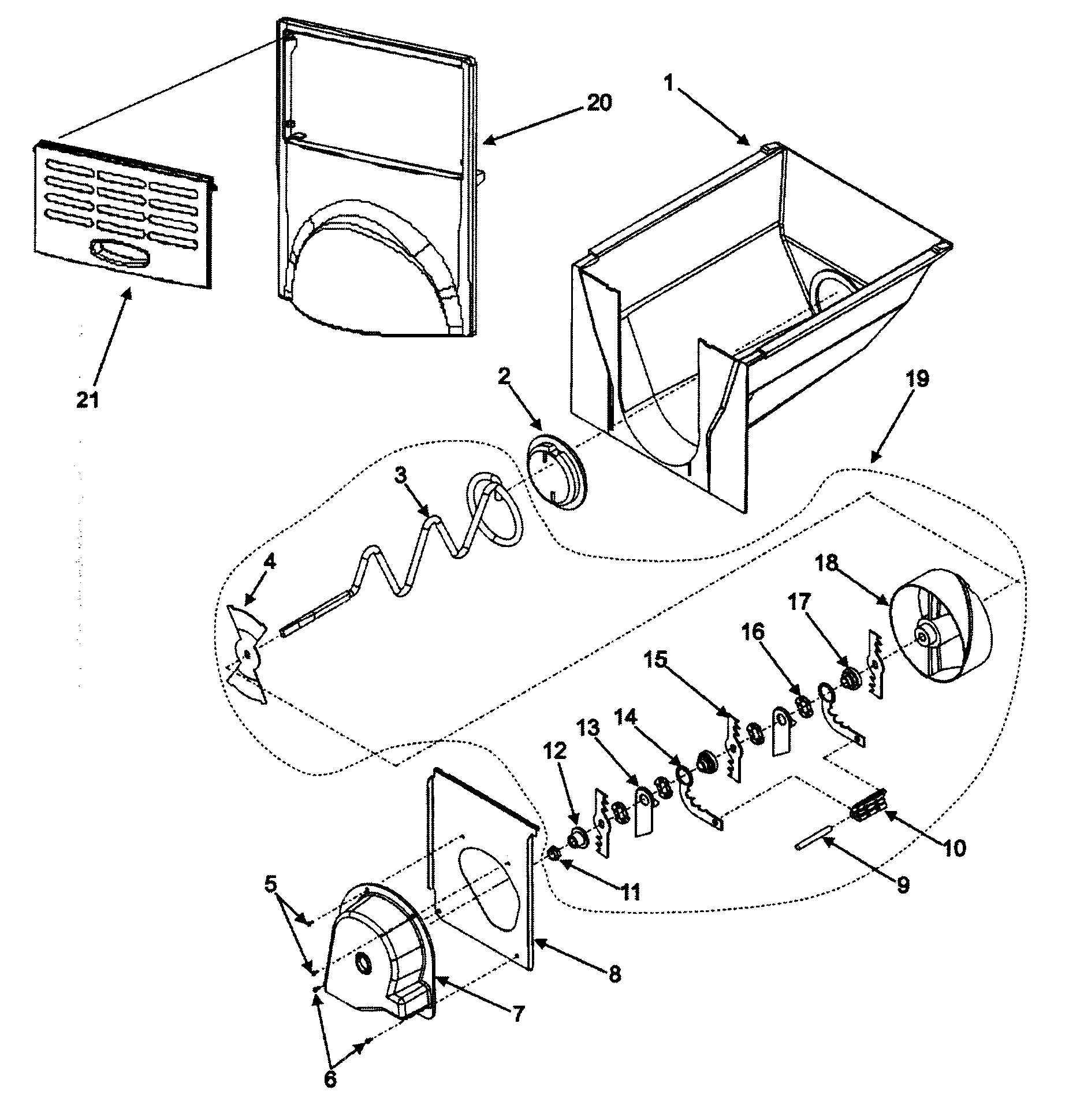

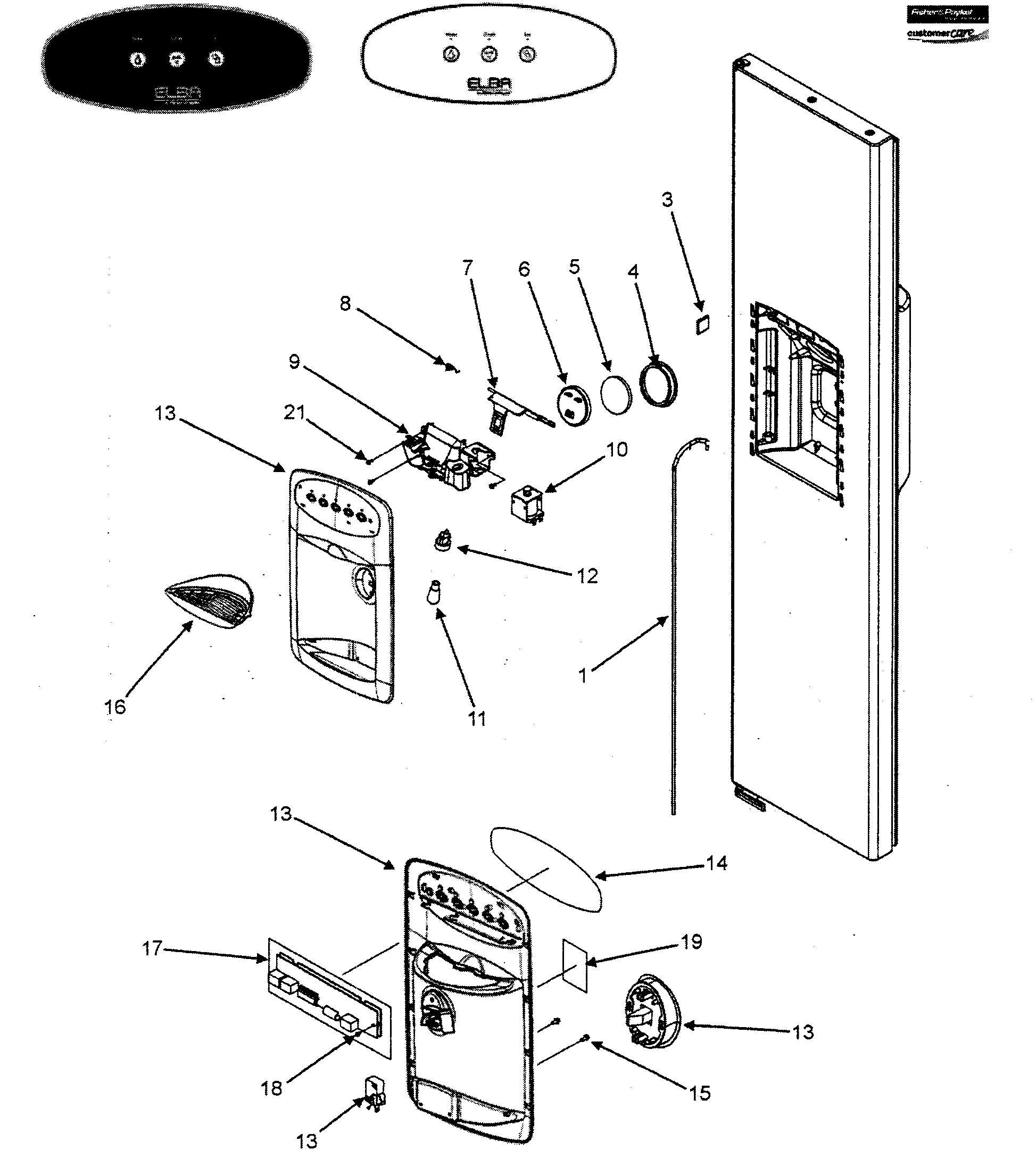

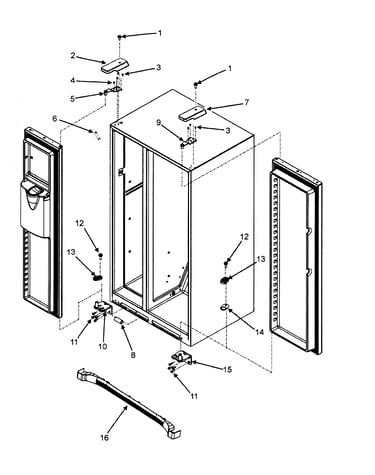

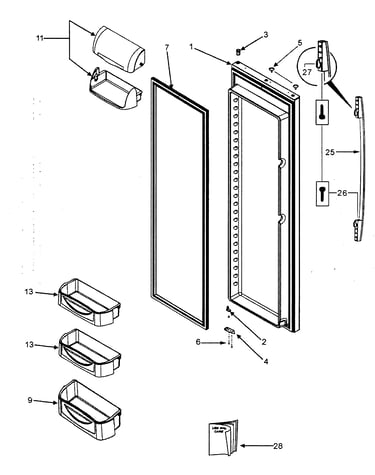

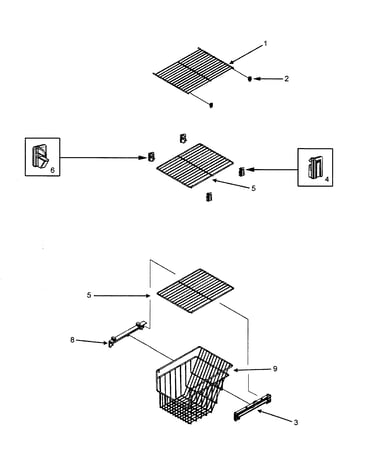

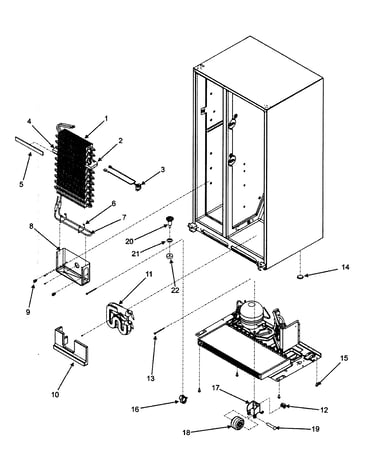

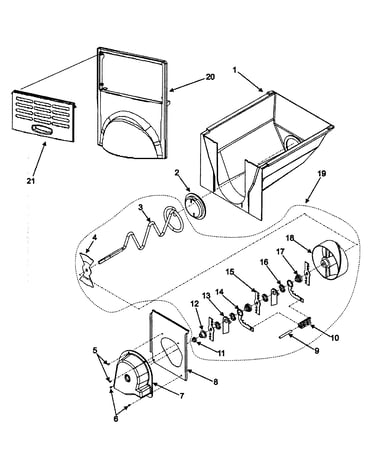

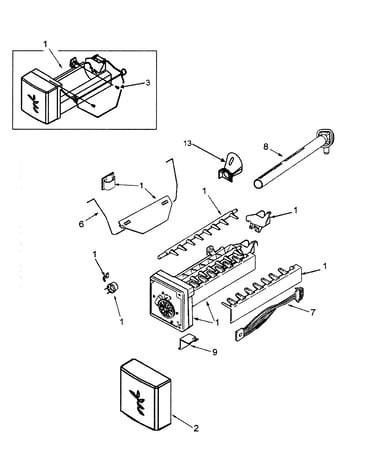

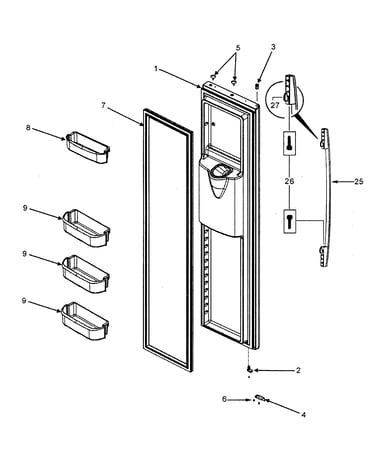

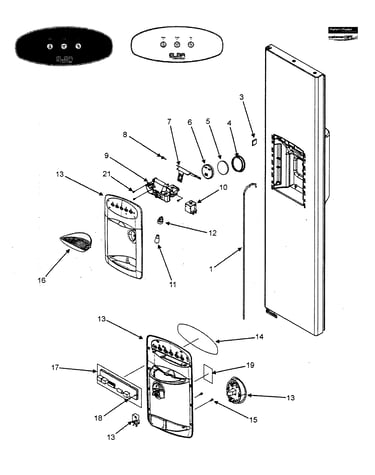

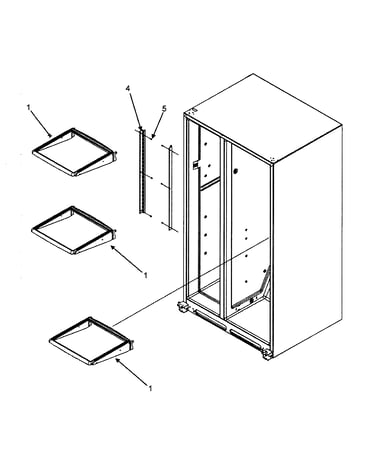

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Refrigerator Electronic Control Board 12784415
#13

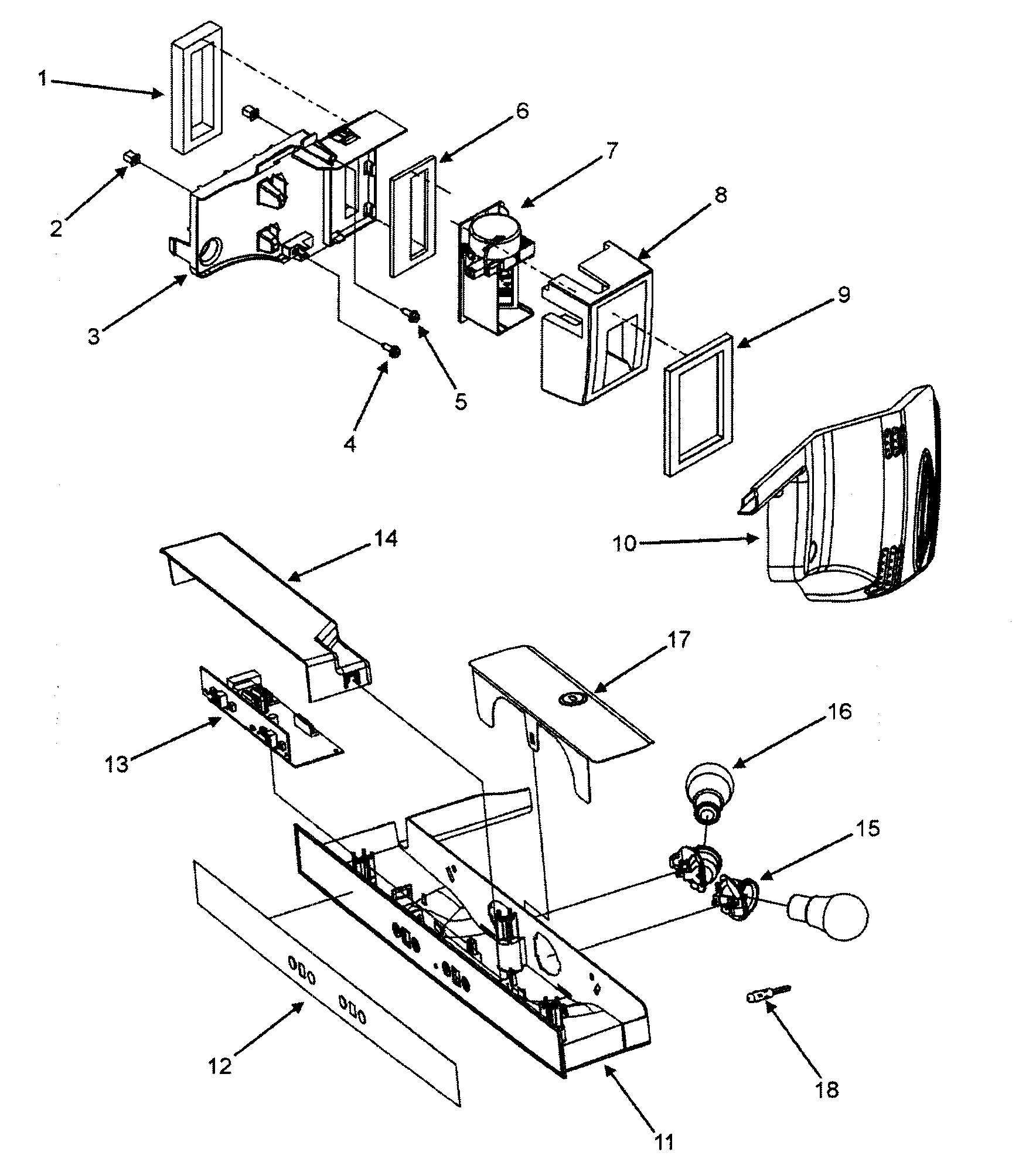

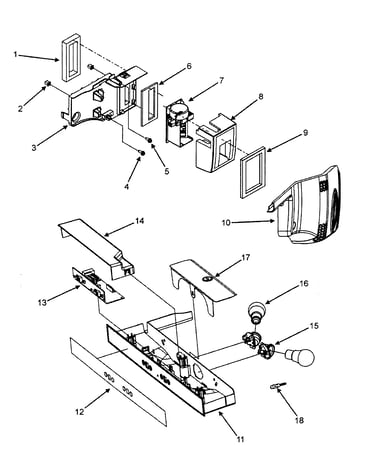

Controls assy diagram

Refrigerator electronic control board

Part #12784415

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 12784415. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Fan Blade 12825802
#17

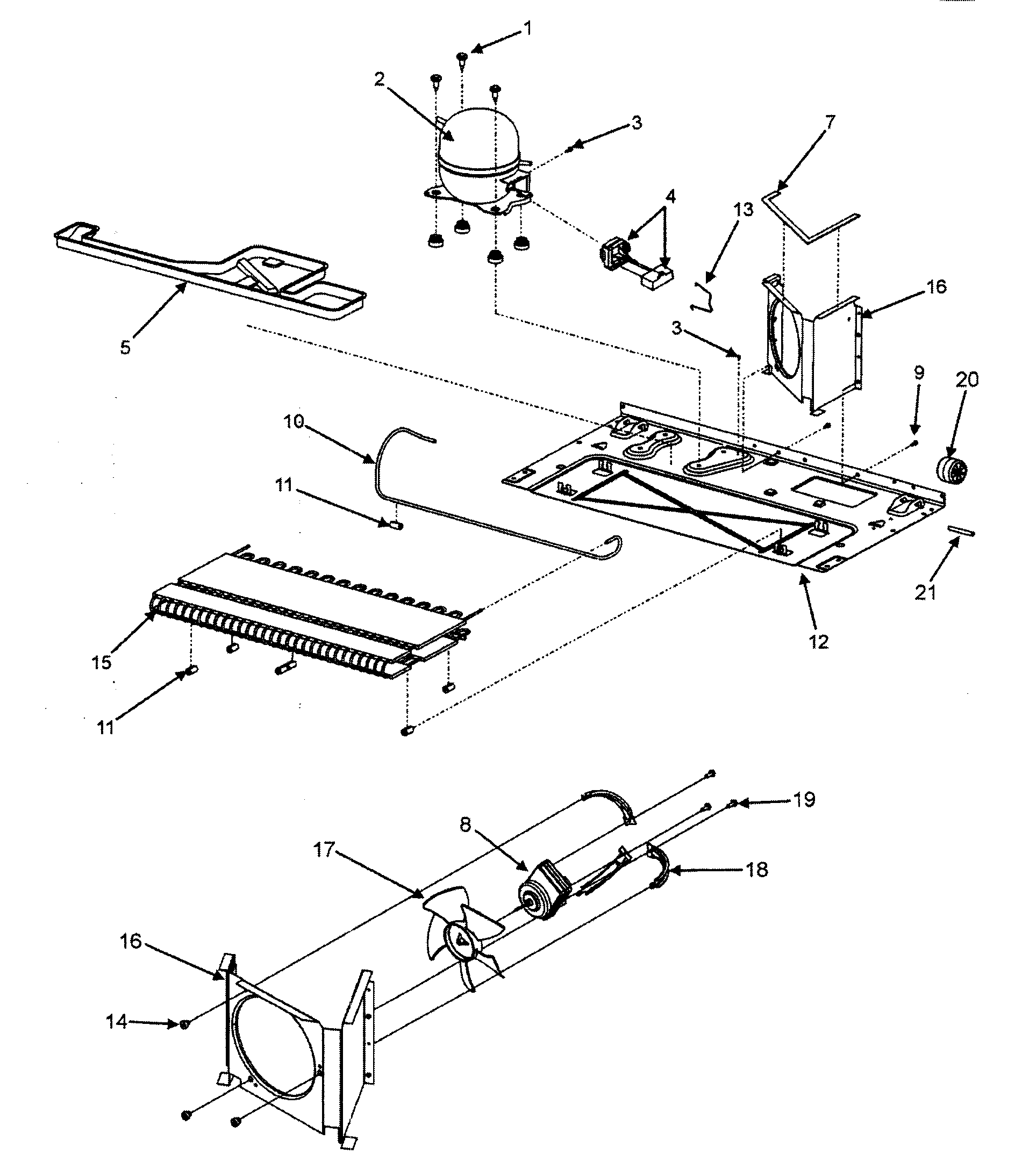

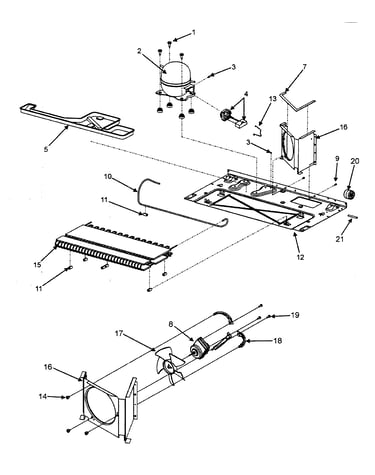

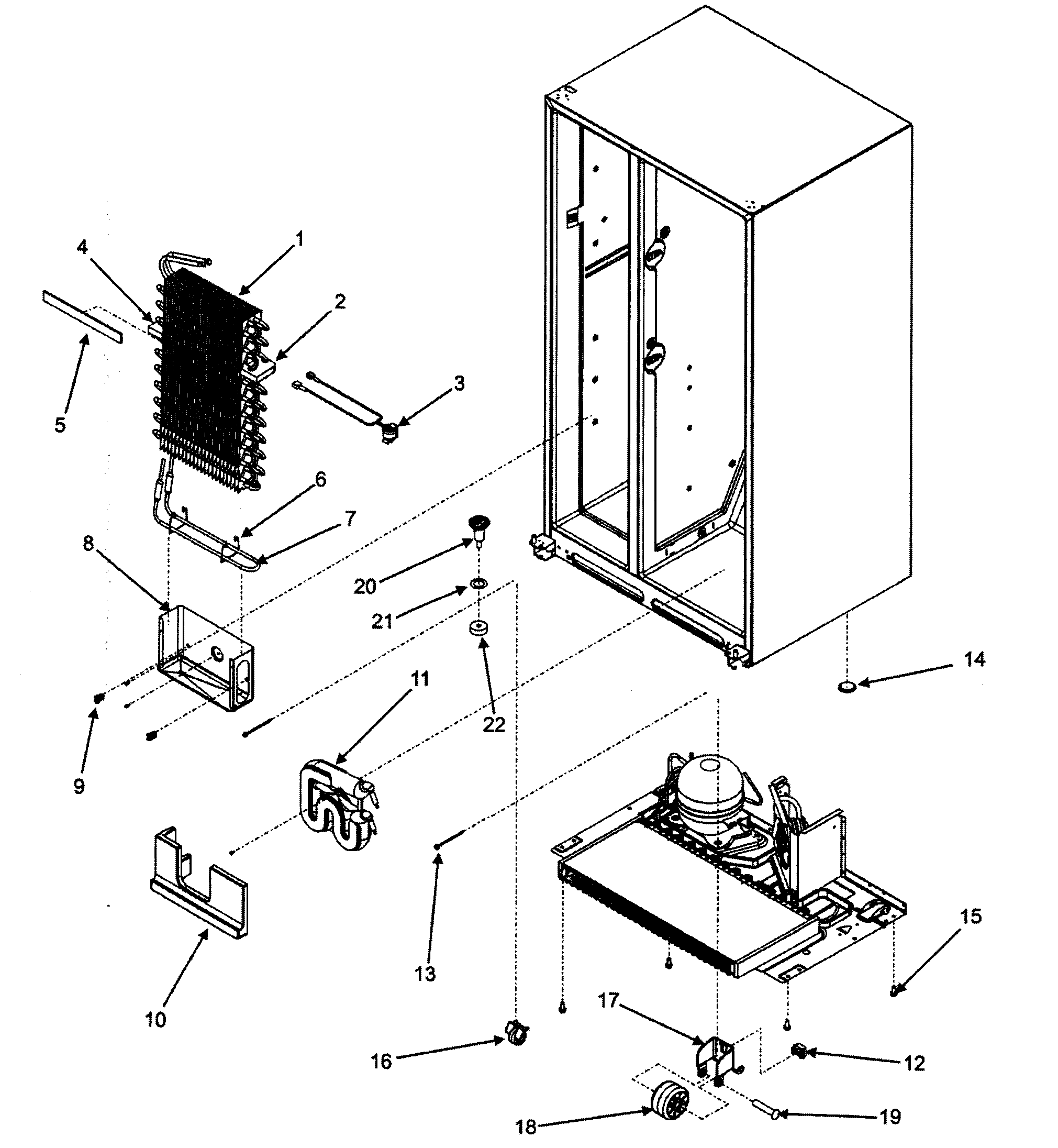

Compressor diagram

Refrigerator fan blade

Part #12825802

Replaced by #W10156818

?
Manufacturer substitution
This part replaces 12825802. Substitute parts can look different from the original.
BEST SELLER
$41.43 |
13% OFF Phone Price : $47.43
In Stock
Refrigerator Water Filter Housing 12568001
#16

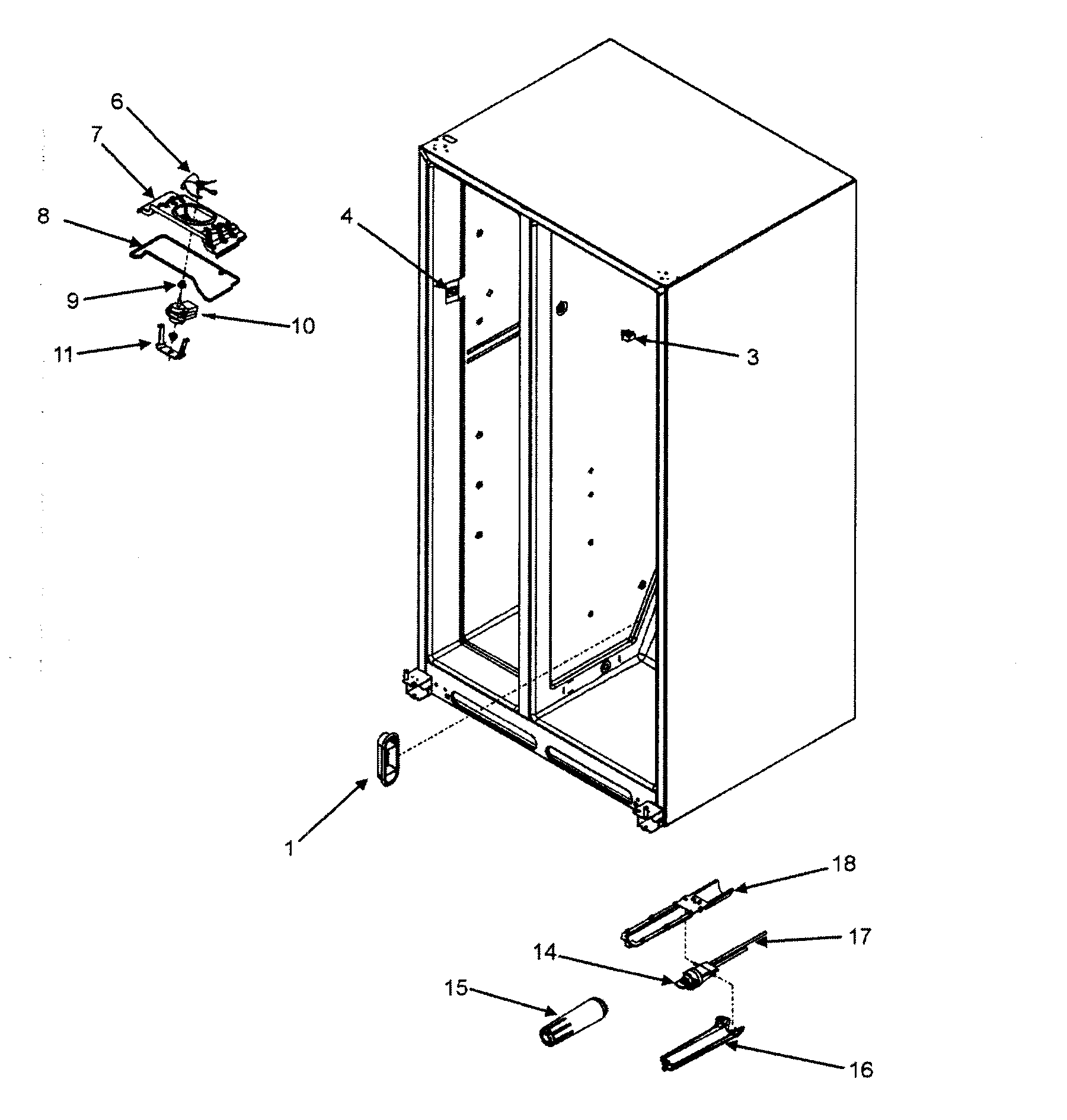

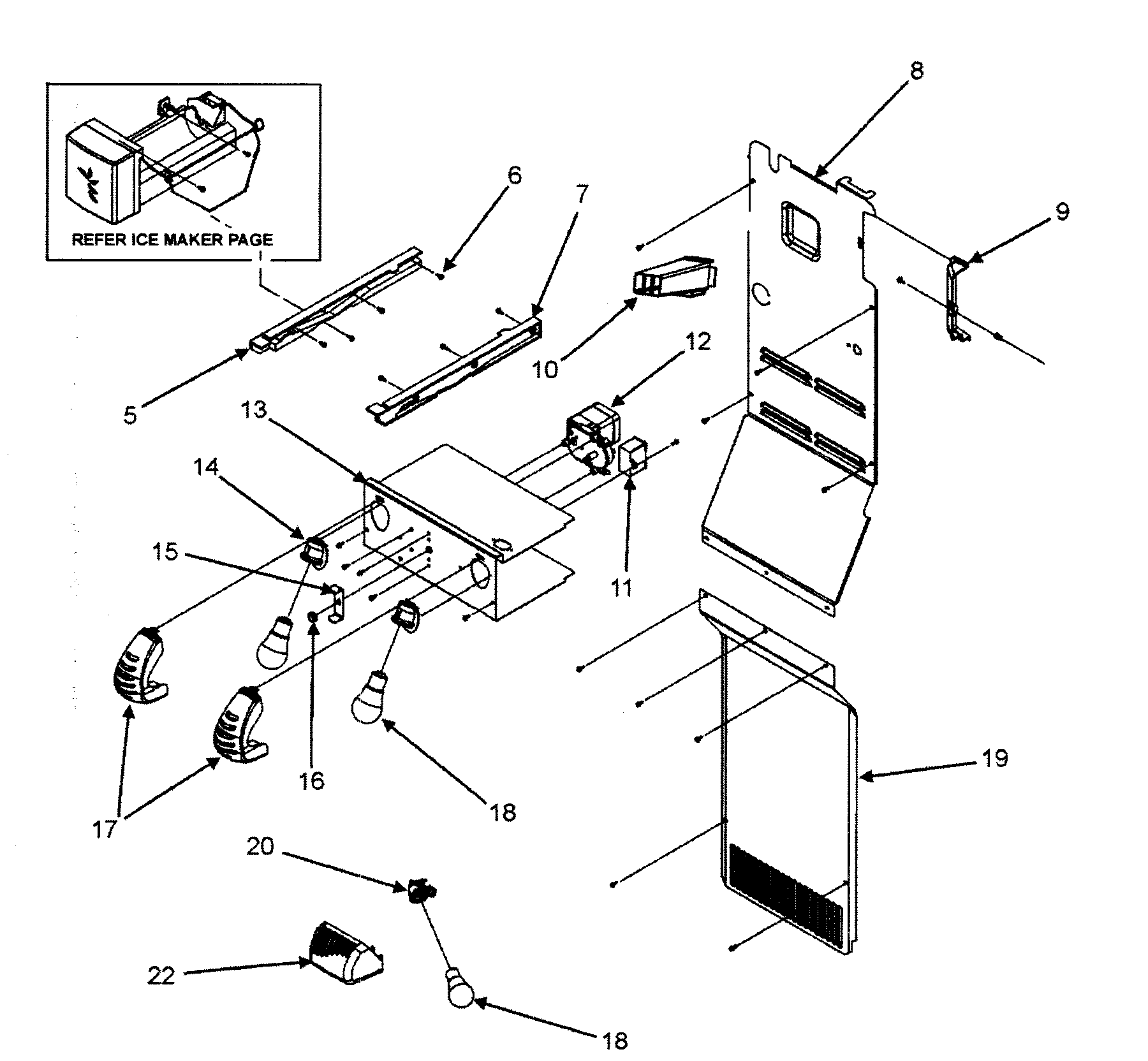

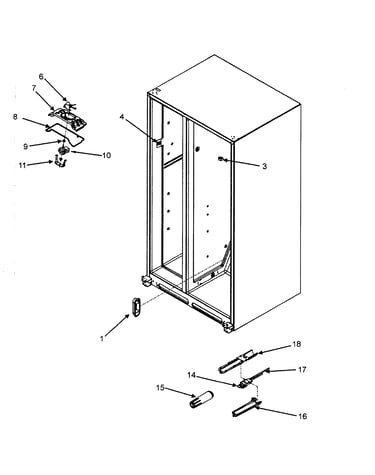

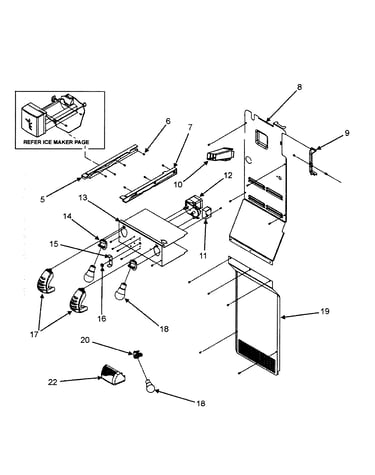

Fan/light/filter diagram

Refrigerator water filter housing

Part #12568001

Replaced by #WP12568001

?
Manufacturer substitution
This part replaces 12568001. Substitute parts can look different from the original.
BEST SELLER
$50.76 |
11% OFF Phone Price : $56.76
In Stock
Refrigerator Light Socket 12570701
Refrigerator light socket

Part #12570701

Replaced by #W11447232

?
Manufacturer substitution
This part replaces 12570701. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Refrigerator Switch 12466104
#3

Fan/light/filter diagram

Refrigerator switch

Part #12466104

Replaced by #W11291138

?
Manufacturer substitution
This part replaces 12466104. Substitute parts can look different from the original.
$24.79 |
19% OFF Phone Price : $30.79
In Stock
Refrigerator Screw 12990511
Refrigerator screw

Part #12990511

Replaced by #67006425

?
Manufacturer substitution
This part replaces 12990511. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Tube Clamp 12831101
#21

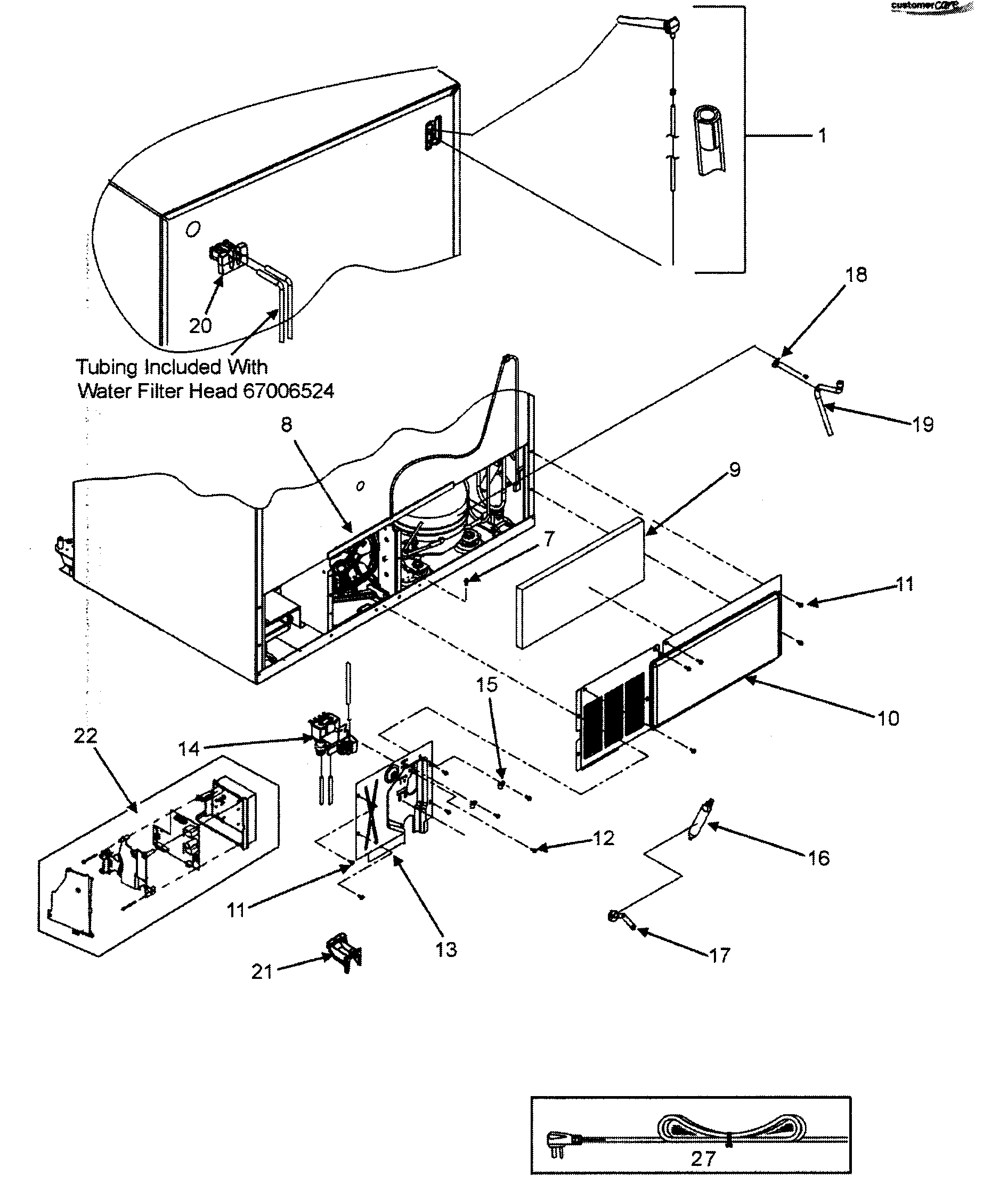

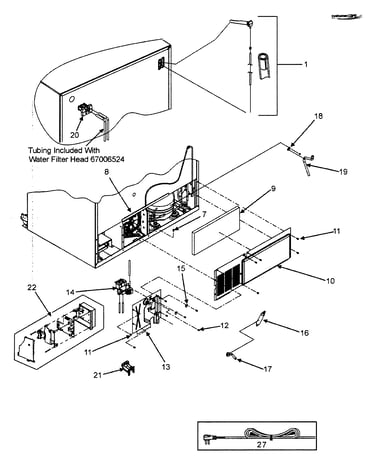

Cabinet back diagram

Refrigerator tube clamp

Part #12831101

$13.49 |
13% OFF Phone Price : $15.49
In Stock
Fisher & Paykel Refrigerator Water Filter 13040210
#15

Fan/light/filter diagram

Fisher & paykel refrigerator water filter

Part #13040210

Get free shipping with Automatic Reorder

$134.99
In Stock
Refrigerator Crisper Drawer Cover Support Post 12603701
#10

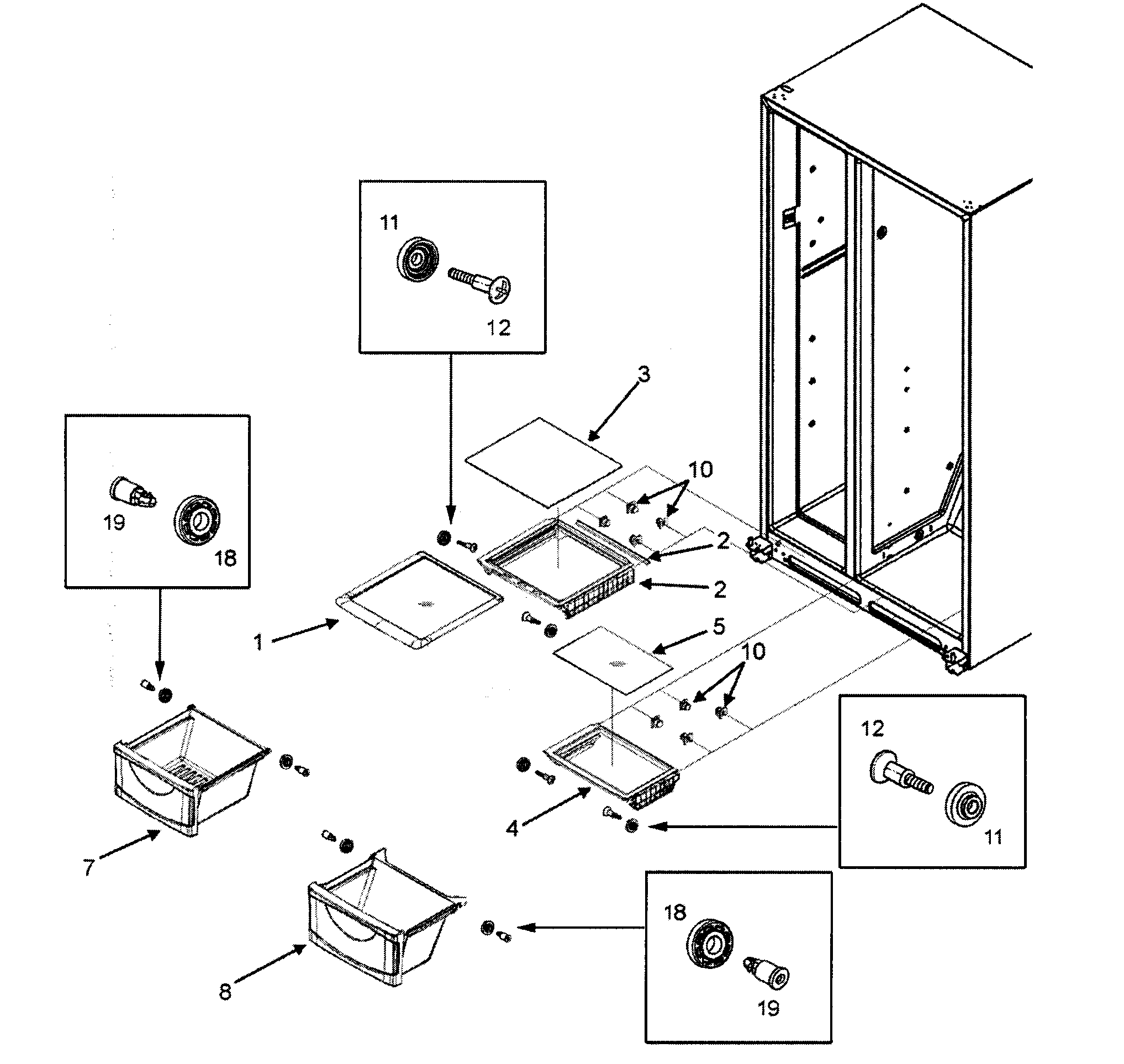

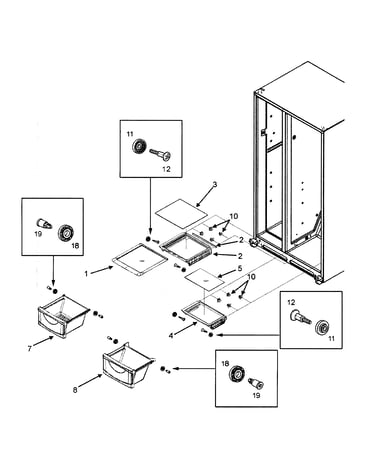

Crisper diagram

Refrigerator crisper drawer cover support post

Part #12603701

This item is not returnable
$5.99
In Stock
Maytag Fisher & Paykel Refrigerator Water Filter Head 12590611
#17

Fan/light/filter diagram

Maytag fisher & paykel refrigerator water filter head

Part #12590611

$304.10
In Stock
