Model # MGRL752BDW14 Official Maytag gas freestanding range

Here are the diagrams and repair parts for Official Maytag MGRL752BDW14 gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

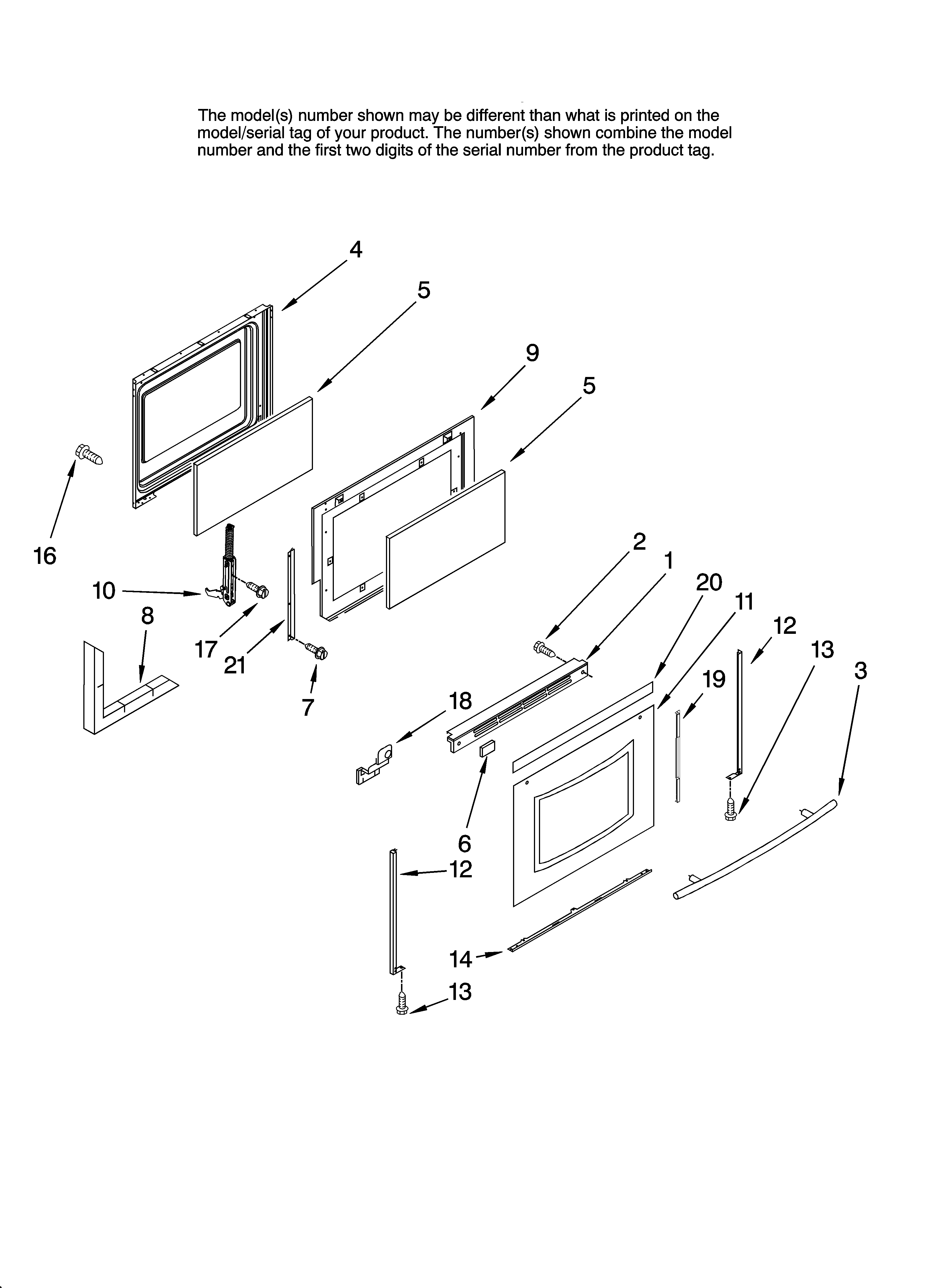

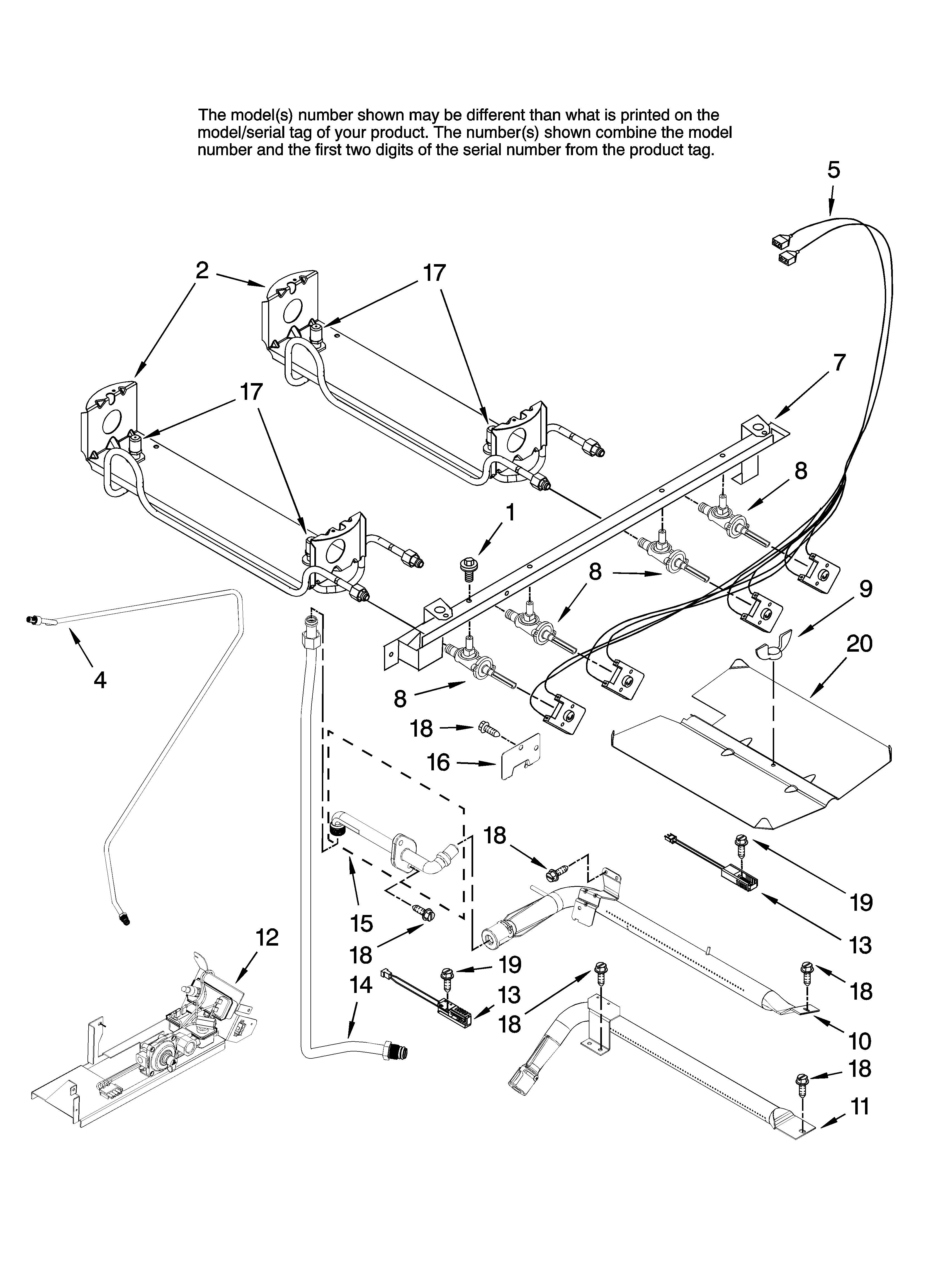

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Oven Bulb 7407P103-60
#29

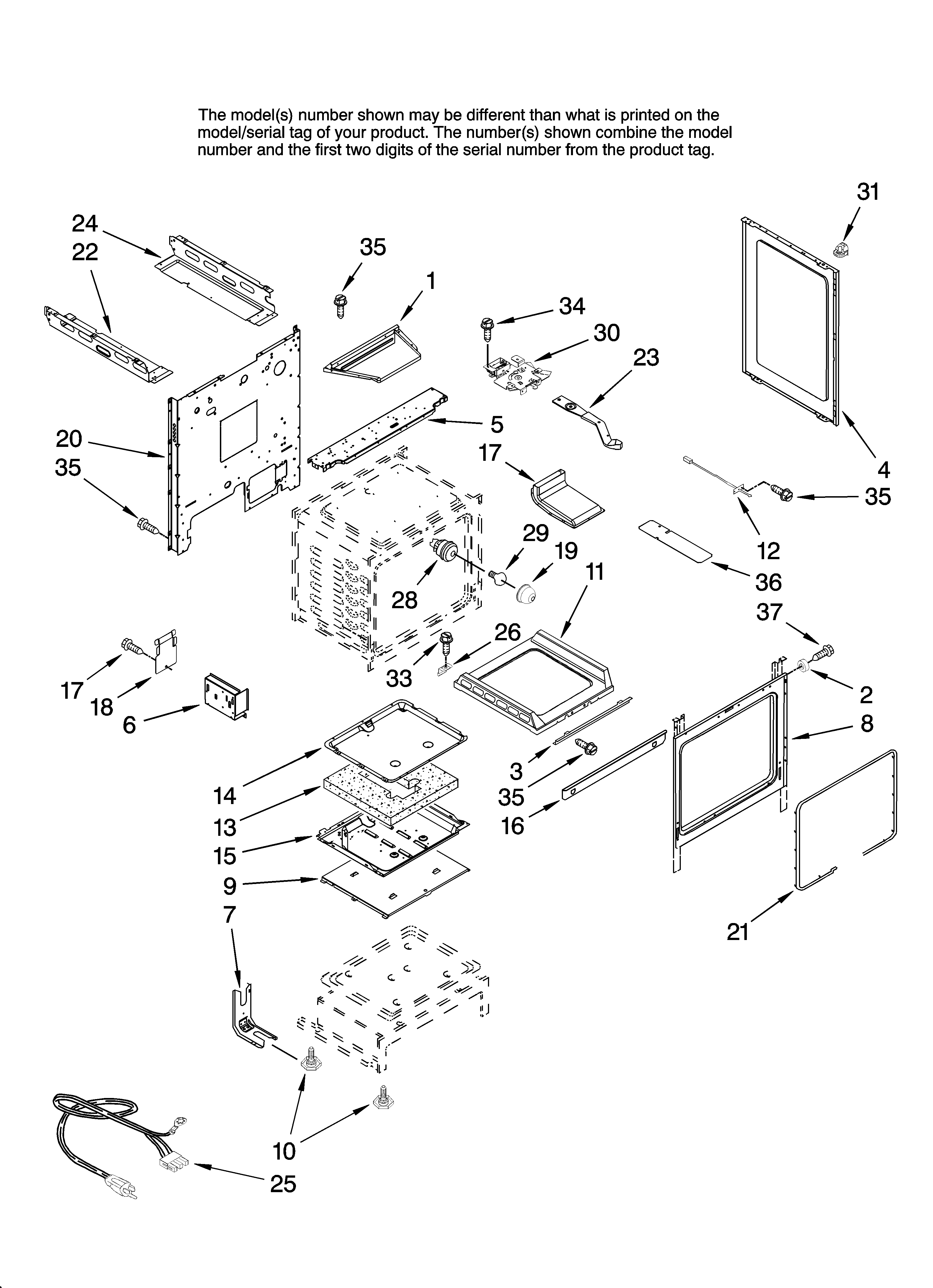

Chassis parts diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Ikea Range Oven Burner Igniter (replaces 7432p075-60, 7432p106-60) 74007498
Ikea range oven burner igniter (replaces 7432p075-60, 7432p106-60)

Part #74007498

BEST SELLER
$62.76 |
9% OFF Phone Price : $68.76
In Stock
Range Surface Burner Igniter (replaces 7432p100-60) 74004053
#4A

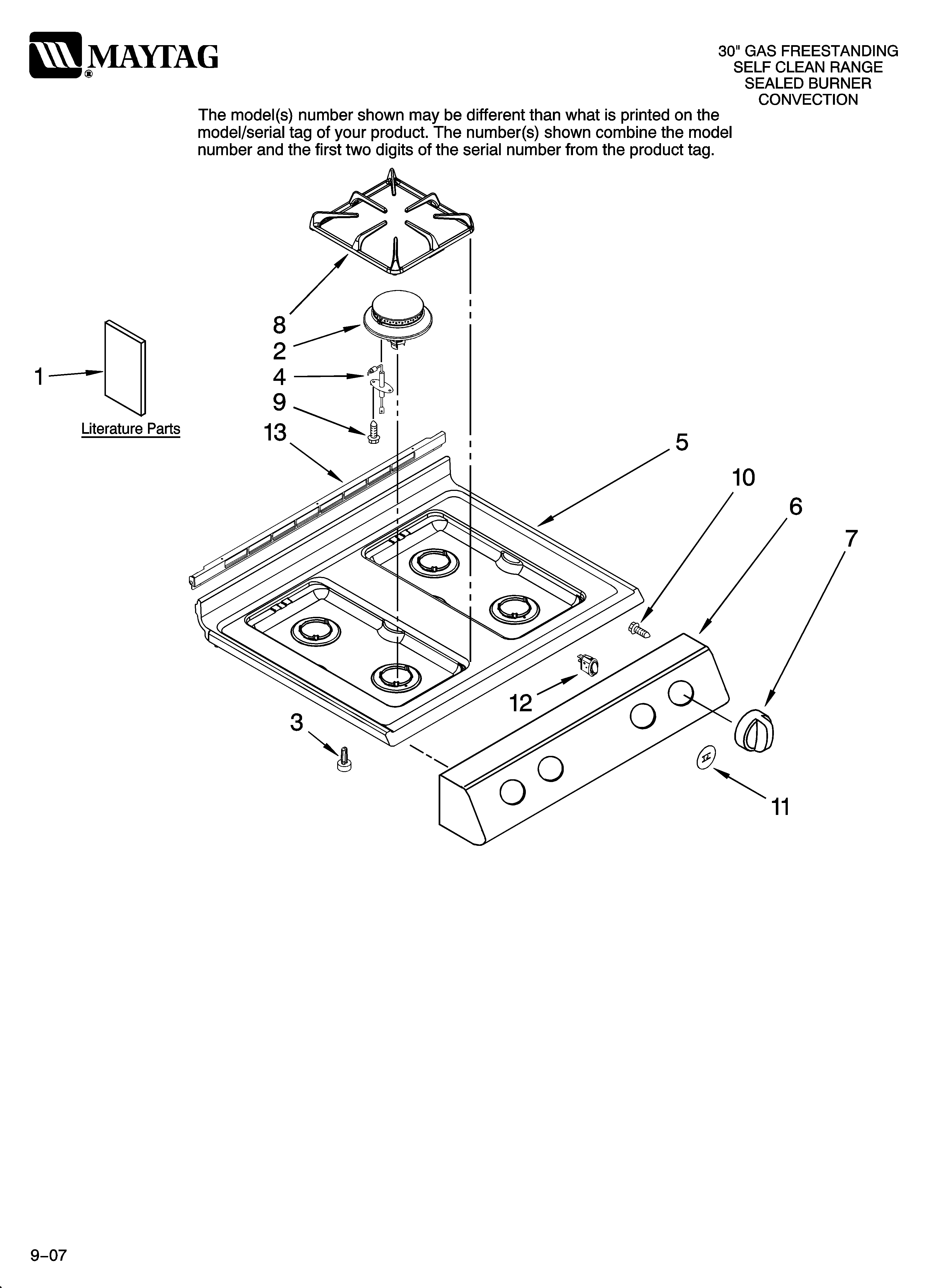

Cooktop parts diagram

Range surface burner igniter (replaces 7432p100-60)

Part #74004053

BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Oven Sensor 74004944
#12

Chassis parts diagram

Oven sensor

Part #74004944

Replaced by #12001655

?
Manufacturer substitution
This part replaces 74004944. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032
#NI

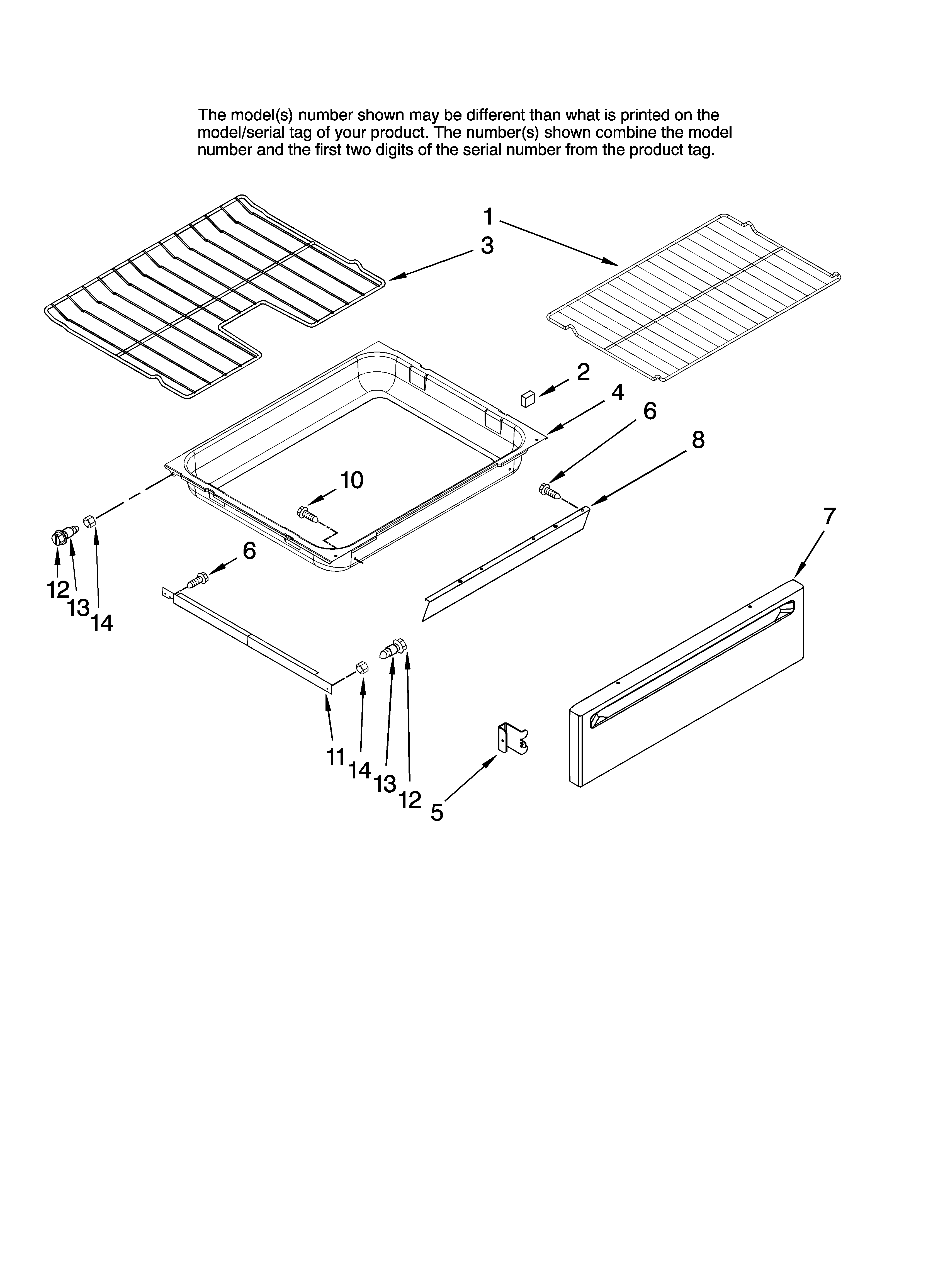

Drawer and rack parts, optional parts (not included) diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Sealed Burner (black) 74003963
#2C

Cooktop parts diagram

Sealed burner (black)

Part #74003963

Replaced by #WP3412D024-09

?
Manufacturer substitution
This part replaces 74003963. Substitute parts can look different from the original.
$58.10 |
9% OFF Phone Price : $64.10
In Stock
Clock W/over 74009777
#7B

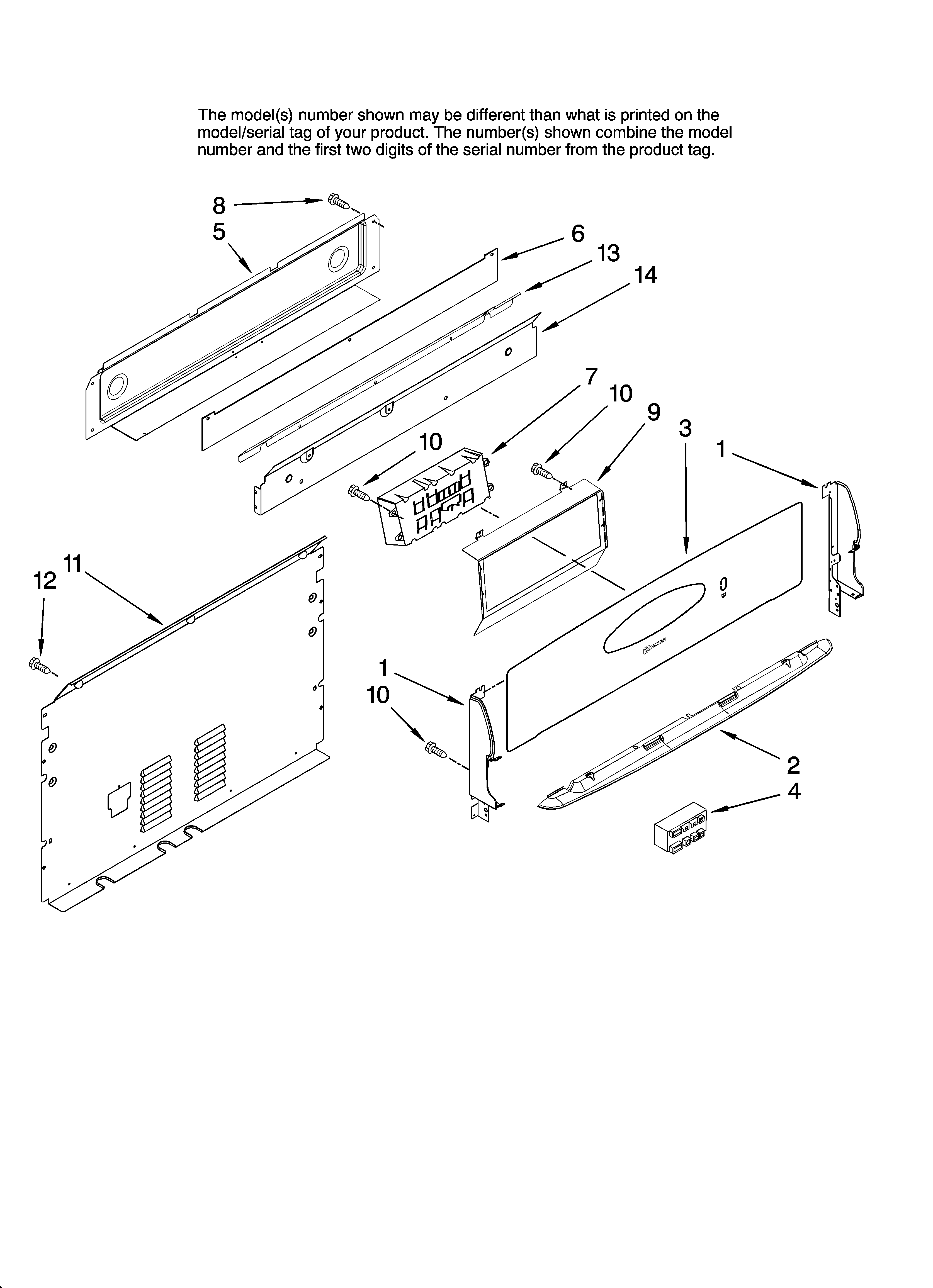

Control panel parts diagram

Clock w/over

Part #74009777

Replaced by #5701M754-60

?
Manufacturer substitution
This part replaces 74009777. Substitute parts can look different from the original.
$212.36 |
5% OFF Phone Price : $224.36
In Stock
Clock W/over 74009778
#7

Control panel parts diagram

Clock w/over

Part #74009778

Replaced by #5701M754-60

?
Manufacturer substitution
This part replaces 74009778. Substitute parts can look different from the original.
$212.36 |
5% OFF Phone Price : $224.36
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P282-60
Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
