Model # T9MPT075F12A1 Official ICP 90+ 2-stage & multispeed blower gas furnace

Here are the diagrams and repair parts for Official ICP T9MPT075F12A1 90+ 2-stage & multispeed blower gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Cap Rnrd 1094239
#7

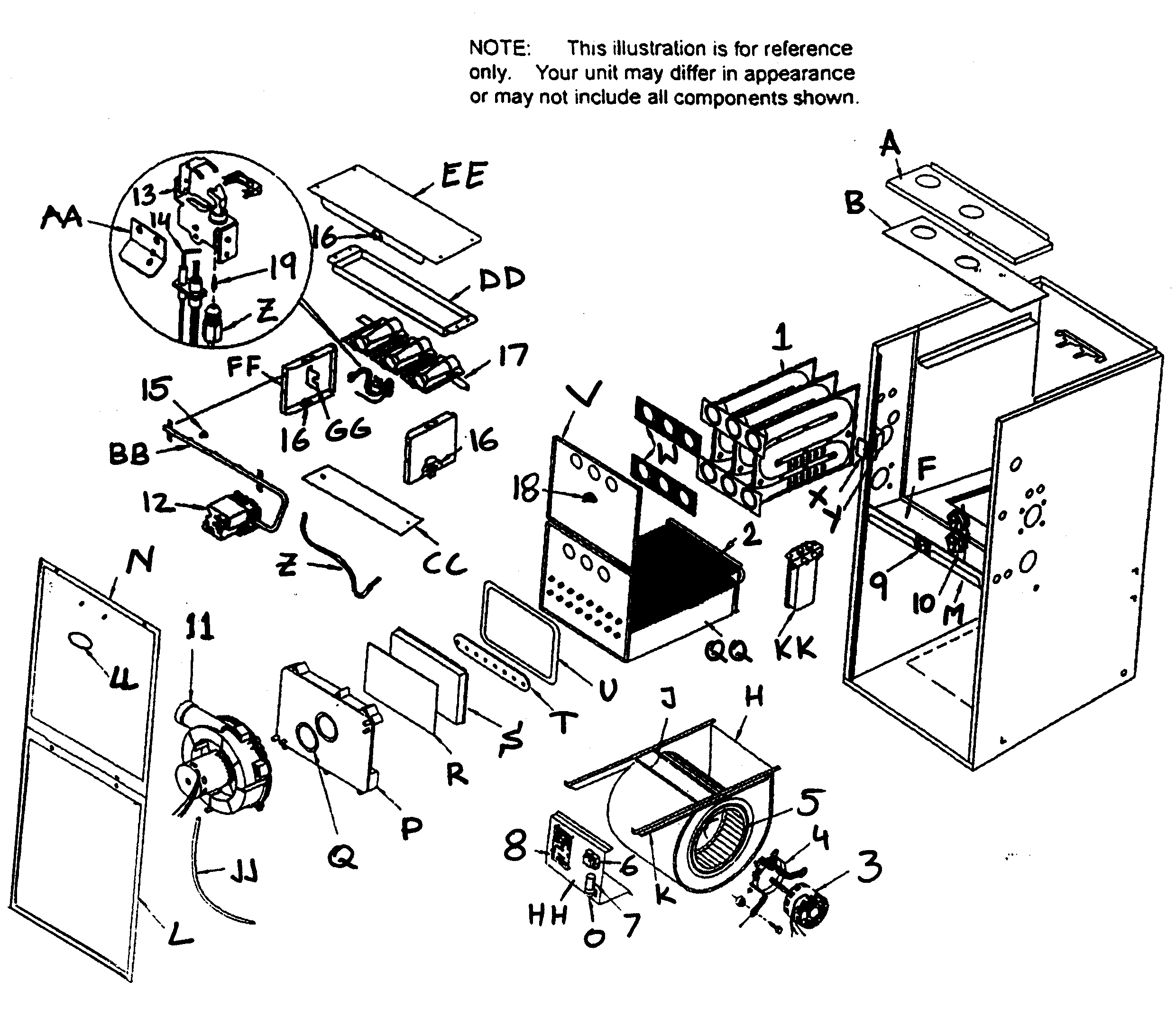

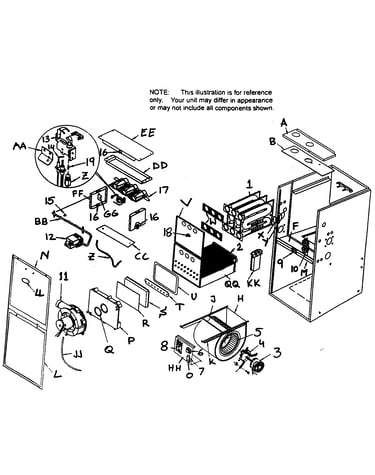

Cabinet assy diagram

Cap rnrd

Part #1094239

Replaced by #12907

?
Manufacturer substitution
This part replaces 1094239. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#5

Cabinet assy diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Furnace Temperature Limit Switch 1013102
#16

Cabinet assy diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Blower Fan Motor, 1/2-hp (replaces 1012513, 1172487) 1013341
#3

Cabinet assy diagram

Furnace blower fan motor, 1/2-hp (replaces 1012513, 1172487)

Part #1013341

$463.79 |
$12.00 OFF Phone Price : $475.79
In Stock
Furnace Burner (replaces 1012383, 1149463) 1008724
#17

Cabinet assy diagram

Furnace burner (replaces 1012383, 1149463)

Part #1008724

$84.88 |
7% OFF Phone Price : $90.88
In Stock
Transition 1012281
#P

Cabinet assy diagram

Transition

Part #1012281

Replaced by #1172228

?
Manufacturer substitution
This part replaces 1012281. Substitute parts can look different from the original.
$79.83 |
7% OFF Phone Price : $85.83
In Stock
Coupling 1012284
#NI

Cabinet assy diagram

Coupling

Part #1012284

$10.31
In Stock
Plate 1012543
#W

Cabinet assy diagram

Plate

Part #1012543

$27.67
In Stock
Furnace Blower Fan Housing Hanger Bracket 1012328
#K

Cabinet assy diagram

Furnace blower fan housing hanger bracket

Part #1012328

$301.63 |
$12.00 OFF Phone Price : $313.63
In Stock
Insulating Board 1012418
#R

Cabinet assy diagram

Insulating board

Part #1012418

$101.34 |
11% OFF Phone Price : $113.34
In Stock
