Top-Mount Refrigerator

Model # GT19B4N3EV Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GT19B4N3EV refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

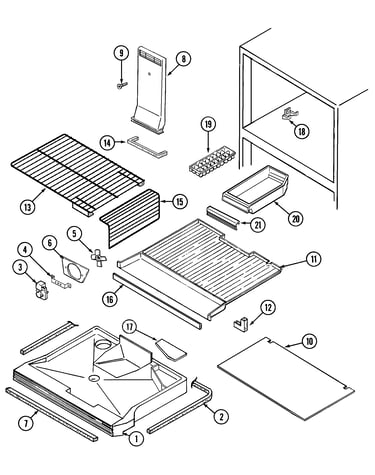

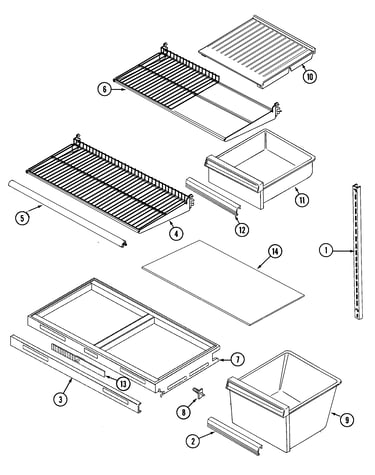

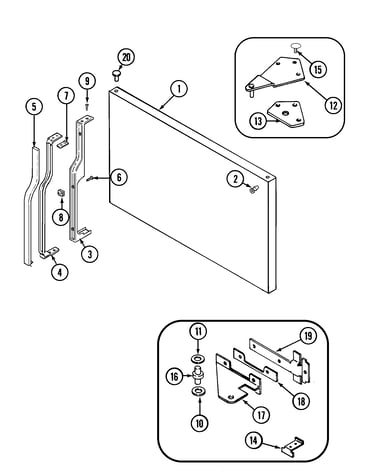

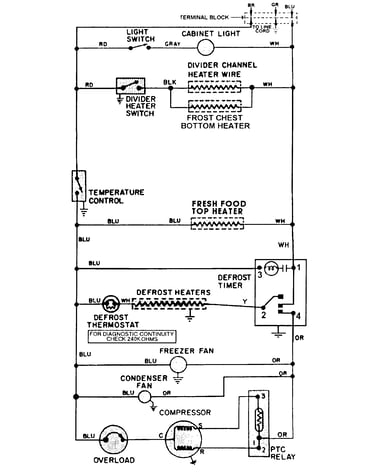

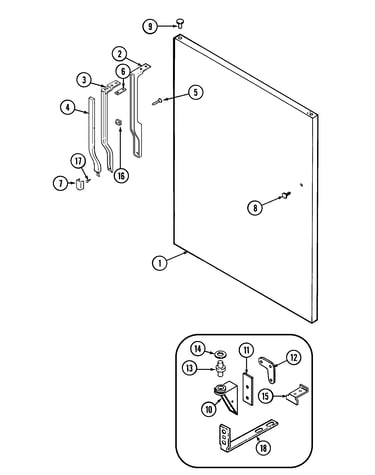

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

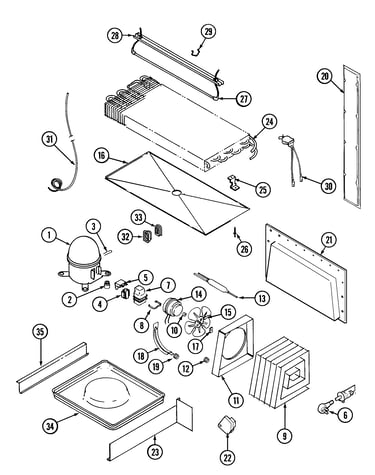

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 66987-1
#14

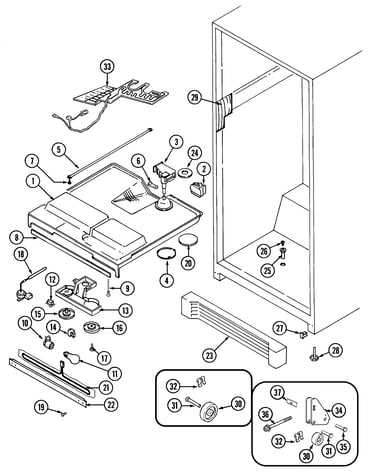

Fresh food compartment diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Screw, 5-20 61001588
#7

Fresh food compartment diagram

Screw, 5-20

Part #61001588

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 61001588. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Condenser Fan 69958-1
#15

Unit compartment & system diagram

Refrigerator condenser fan

Part #69958-1

Replaced by #WP12587601

?
Manufacturer substitution
This part replaces 69958-1. Substitute parts can look different from the original.
$62.33 |
9% OFF Phone Price : $68.33
In Stock
Refrigerator Defrost Thermostat 52085-28
#30

Unit compartment & system diagram

Refrigerator defrost thermostat

Part #52085-28

Replaced by #WP52085-28

?
Manufacturer substitution
This part replaces 52085-28. Substitute parts can look different from the original.
$60.29 |
9% OFF Phone Price : $66.29
In Stock
Egg Tray 60066-1
#3

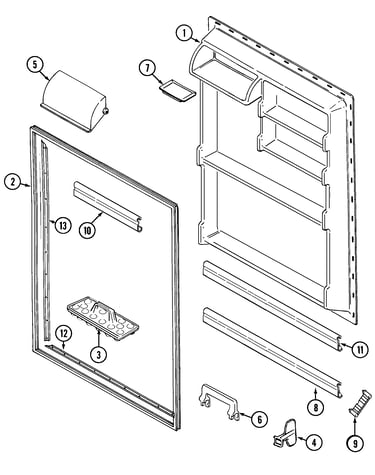

Fresh food inner door diagram

Egg tray

Part #60066-1

Replaced by #WP67004411

?
Manufacturer substitution
This part replaces 60066-1. Substitute parts can look different from the original.
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
Knob, Frz. C 61001115
#16

Fresh food compartment diagram

Knob, frz. c

Part #61001115

Replaced by #WP61006073

?
Manufacturer substitution
This part replaces 61001115. Substitute parts can look different from the original.
This item is not returnable
$23.71 |
20% OFF Phone Price : $29.71
In Stock
Refrigerator Door Shelf Retainer Clip 70197-1
Refrigerator door shelf retainer clip

Part #70197-1

This item is not returnable
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Refrigerator Shelf Trim 70111-49
#4

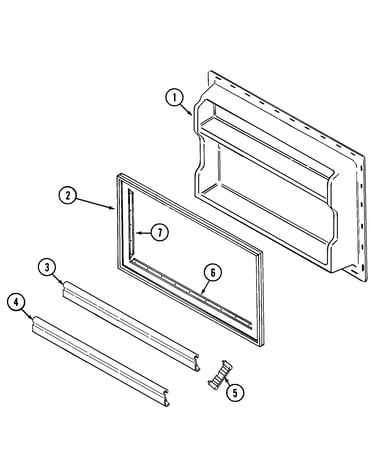

Freezer inner door diagram

Refrigerator shelf trim

Part #70111-49

Replaced by #WP70111-108

?
Manufacturer substitution
This part replaces 70111-49. Substitute parts can look different from the original.
$60.15 |
9% OFF Phone Price : $66.15
In Stock
Refrigerator Shelf Trim 70111-38
#10

Fresh food inner door diagram

Refrigerator shelf trim

Part #70111-38

Replaced by #WP70111-108

?
Manufacturer substitution
This part replaces 70111-38. Substitute parts can look different from the original.
$60.15 |
9% OFF Phone Price : $66.15
In Stock
