Model # RJCT6076A Official Jade cooktop

Here are the diagrams and repair parts for Official Jade RJCT6076A cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Cleaner 20000008
#46

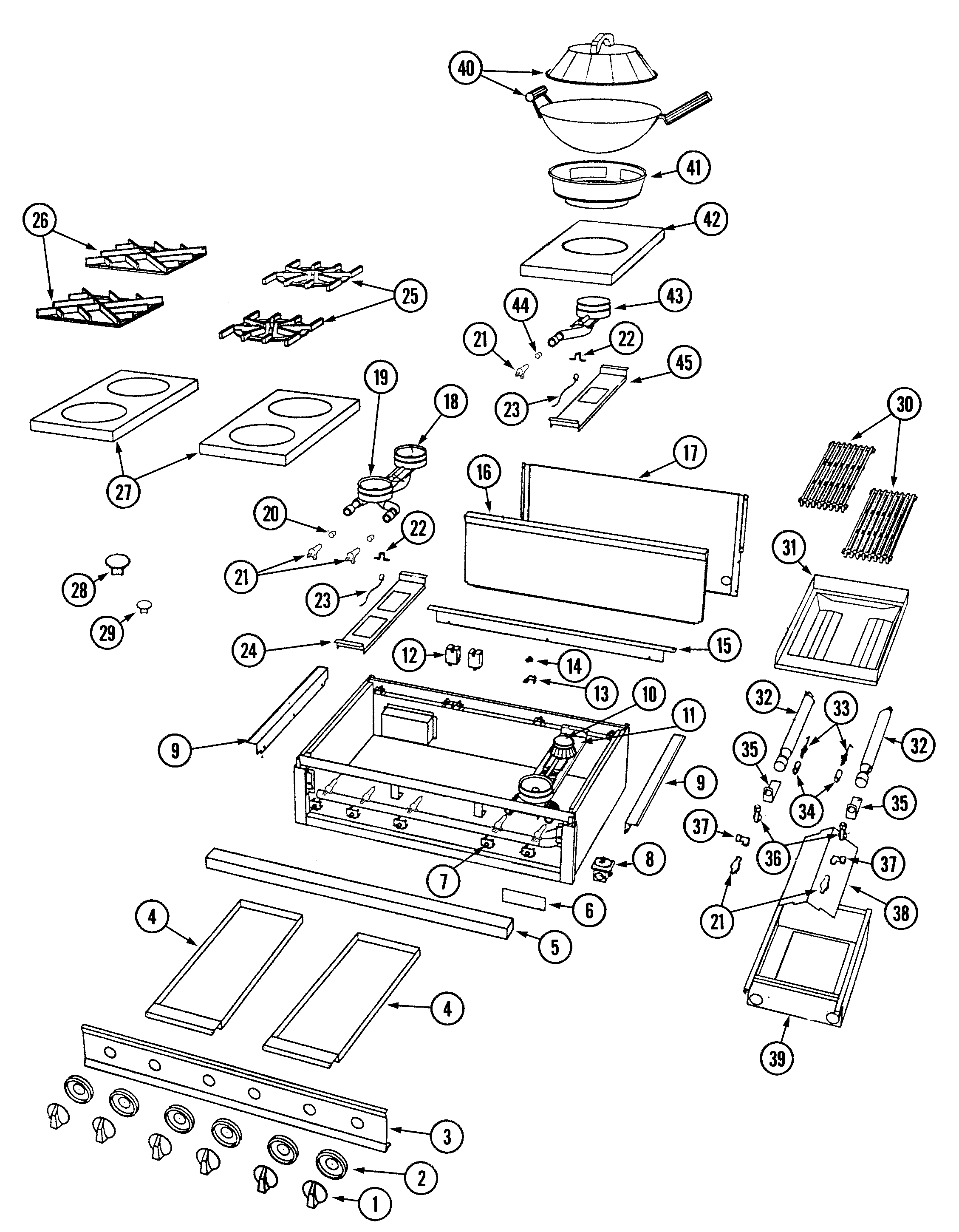

Top assembly/gas controls diagram

Cleaner

Part #20000008

The manufacturer no longer makes this part, and there's no substitute part

Orifice (cha 70001151
#36A

Top assembly/gas controls diagram

Orifice (cha

Part #70001151

The manufacturer no longer makes this part, and there's no substitute part

Hanger (simm 70001055
#11

Top assembly/gas controls diagram

Hanger (simm

Part #70001055

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Burner 70001386
#18

Top assembly/gas controls diagram

Cooktop burner

Part #70001386

The manufacturer no longer makes this part, and there's no substitute part

Grate 70001638
#25

Top assembly/gas controls diagram

Grate

Part #70001638

The manufacturer no longer makes this part, and there's no substitute part

Hanger Burner 70001054
#24

Top assembly/gas controls diagram

Hanger burner

Part #70001054

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Burner 70001012
#10

Top assembly/gas controls diagram

Cooktop burner

Part #70001012

The manufacturer no longer makes this part, and there's no substitute part

Spacer 70001230
#14

Top assembly/gas controls diagram

Spacer

Part #70001230

The manufacturer no longer makes this part, and there's no substitute part

Igniter Hood 70001037
#22

Top assembly/gas controls diagram

Igniter hood

Part #70001037

The manufacturer no longer makes this part, and there's no substitute part

Clip 70001229
#13

Top assembly/gas controls diagram

Clip

Part #70001229

The manufacturer no longer makes this part, and there's no substitute part
