KitchenAid
Microwave/Hood Combo

Model # KMHC319LSS00 Official KitchenAid microwave

Here are the diagrams and repair parts for Official KitchenAid KMHC319LSS00 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

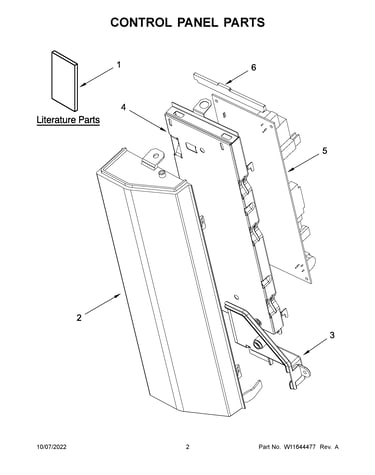

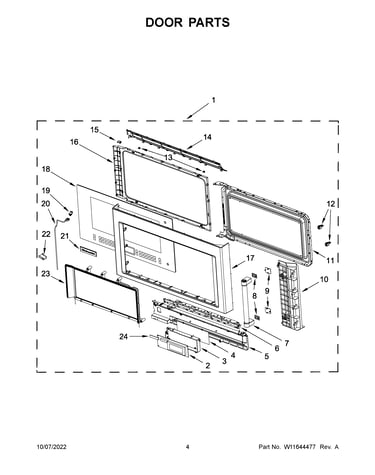

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Gaoxin-hvd C W11222648
#26

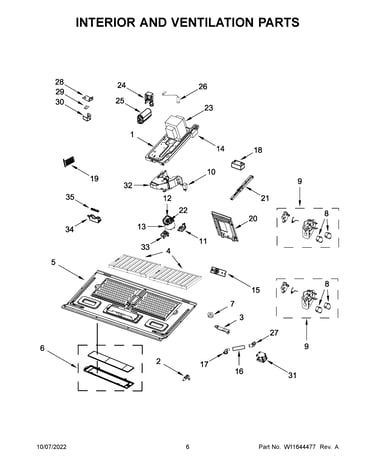

Interior and ventilation parts diagram

Gaoxin-hvd c

Part #W11222648

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W11222648. Substitute parts can look different from the original.
BEST SELLER
$24.65 |
20% OFF Phone Price : $30.65
In Stock
Microwave Fuse (replaces W10422951) W10138793
Microwave fuse (replaces w10422951)

Part #W10138793

Replaced by #W11707984

?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
BEST SELLER
$23.80
In Stock
Assembly, Interlock (includes Switches) W11187757
#9

Interior and ventilation parts diagram

Assembly, interlock (includes switches)

Part #W11187757

Replaced by #W11197766

?
Manufacturer substitution
This part replaces W11187757. Substitute parts can look different from the original.
BEST SELLER
$19.97 |
9% OFF Phone Price : $21.97
In Stock
Filter 8206230
#8

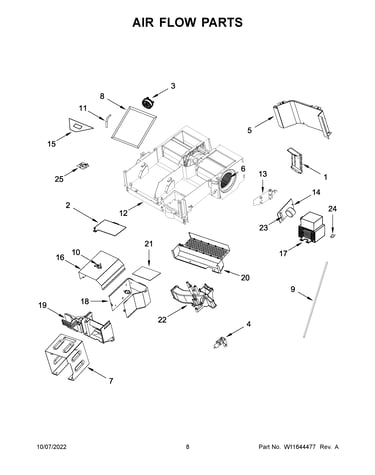

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14 |
15% OFF Phone Price : $13.14
In Stock
Microwave Mounting Plate (replaces W10440498) W11025649
#1

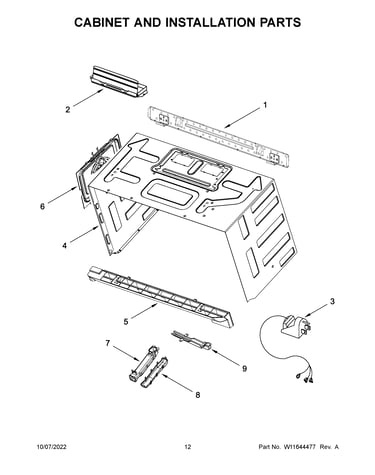

Cabinet and installation parts diagram

Microwave mounting plate (replaces w10440498)

Part #W11025649

$12.77 |
14% OFF Phone Price : $14.77
In Stock
Microwave Turntable Motor Coupler W10337248
#6

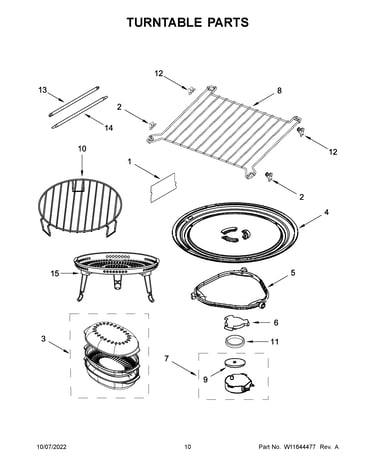

Turntable parts diagram

Microwave turntable motor coupler

Part #W10337248

This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Turntable W11358813
#4

Turntable parts diagram

Turntable

Part #W11358813

Replaced by #W11402532

?
Manufacturer substitution
This part replaces W11358813. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
In Stock
Microwave Vent Grille (replaces W10533490) W10701701
#5A

Cabinet and installation parts diagram

Microwave vent grille (replaces w10533490)

Part #W10701701

$44.69 |
12% OFF Phone Price : $50.69
In Stock
Microwave Installation Template W10190018
#NI

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Microwave Vent Damper W10748710
#2

Cabinet and installation parts diagram

Microwave vent damper

Part #W10748710

Replaced by #W10843943

?
Manufacturer substitution
This part replaces W10748710. Substitute parts can look different from the original.
$57.22 |
9% OFF Phone Price : $63.22
In Stock
