Electric Range

Model # HES446U/01 Official Bosch range

Here are the diagrams and repair parts for Official Bosch HES446U-01 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

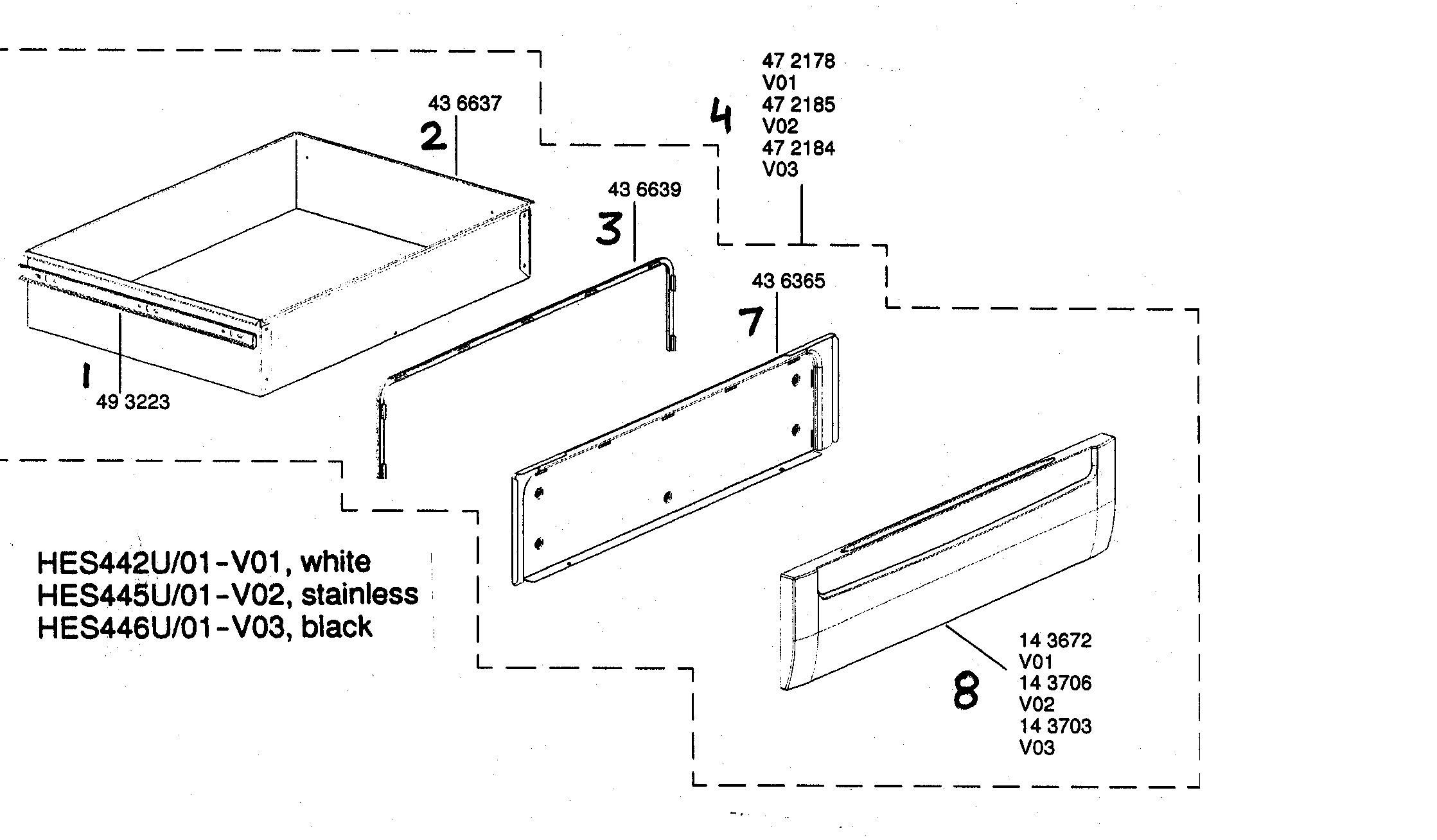

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Heater Element 436632
#8

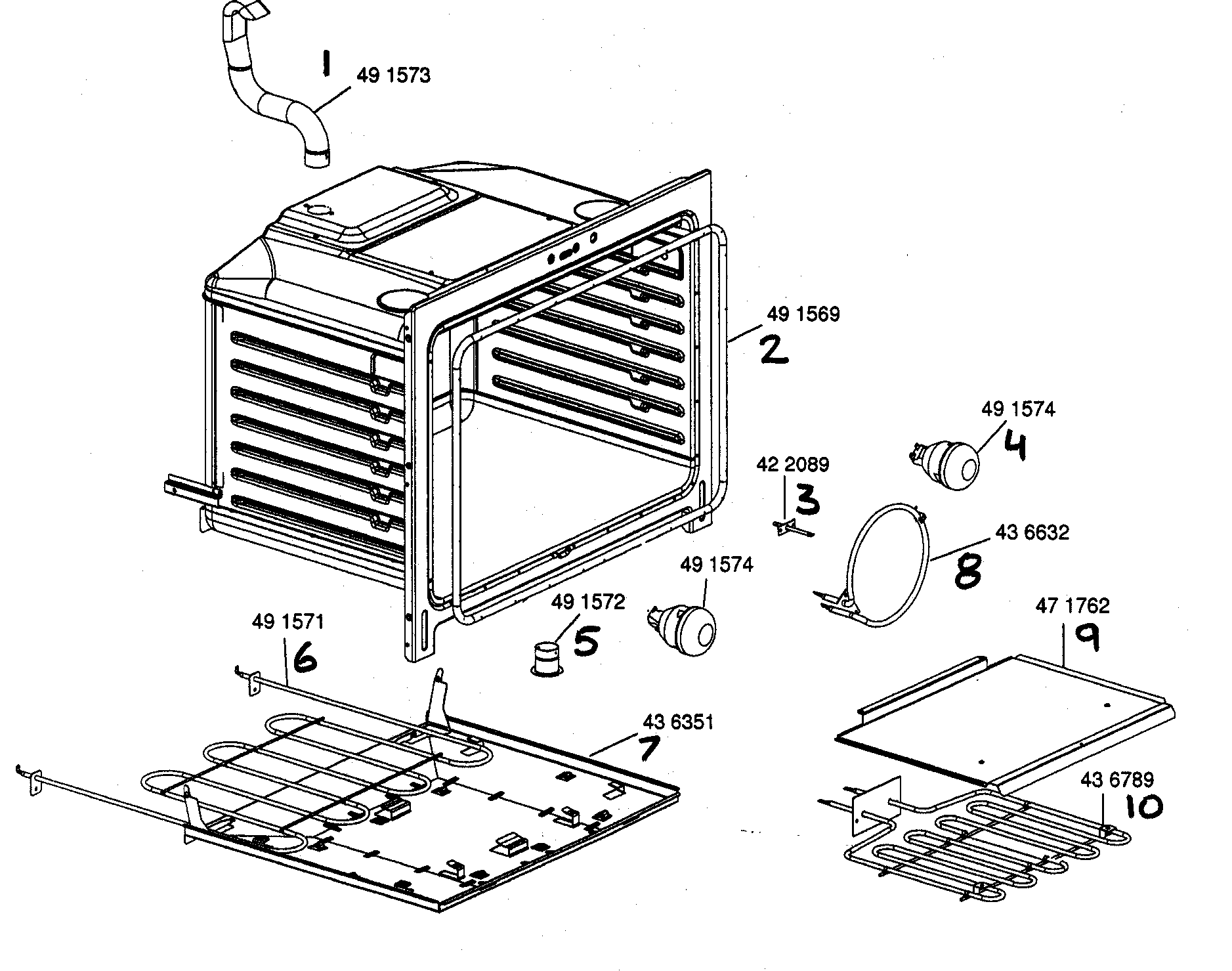

Oven cavity assy diagram

Heater element

Part #436632

Replaced by #00436632

?
Manufacturer substitution
This part replaces 436632. Substitute parts can look different from the original.
$157.21 |
7% OFF Phone Price : $169.21
In Stock
Control Knob (black) 422367
#2A

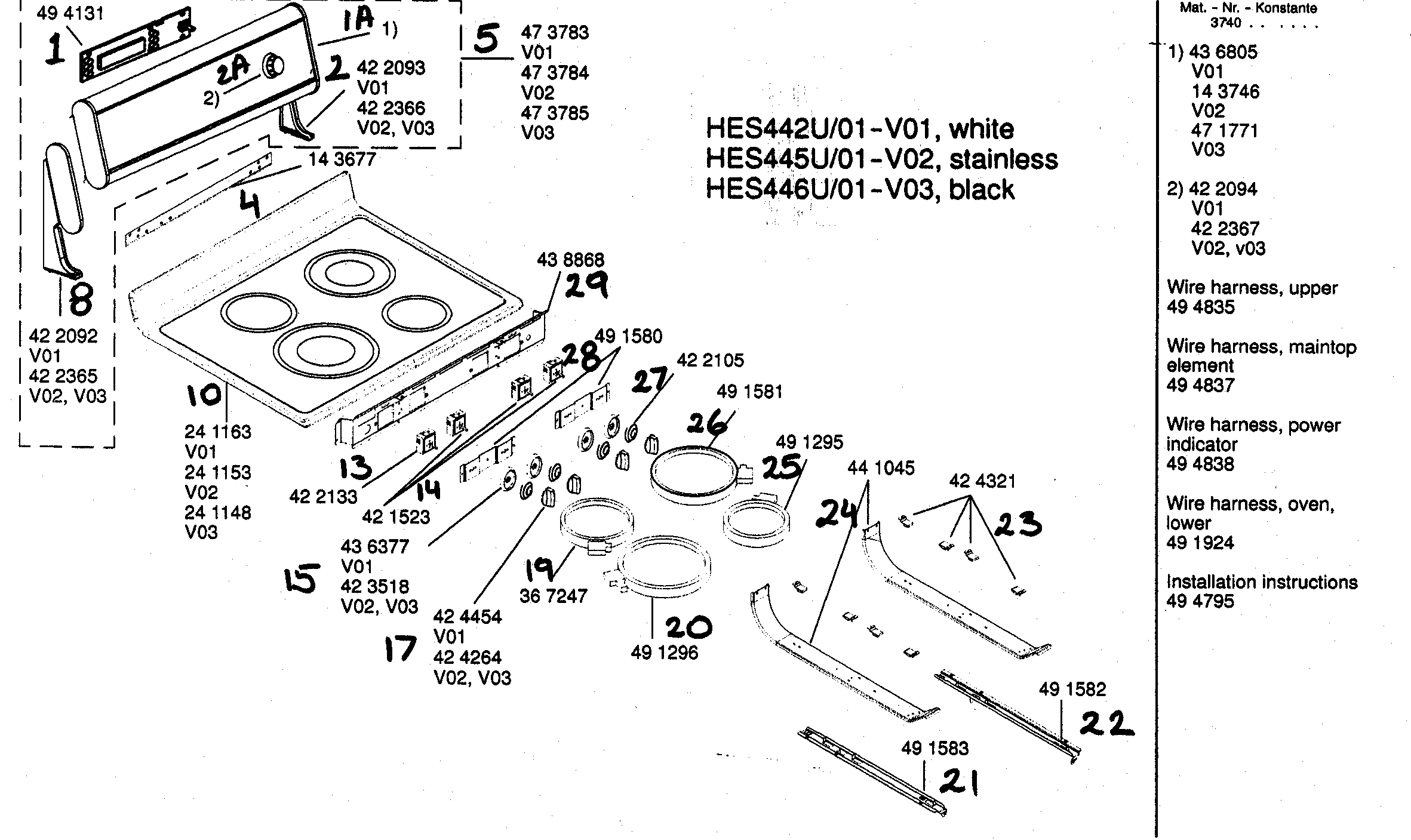

Maintop assy diagram

Control knob (black)

Part #422367

Replaced by #00422367

?
Manufacturer substitution
This part replaces 422367. Substitute parts can look different from the original.
$15.89
In Stock
Oven Glass 436379
#3

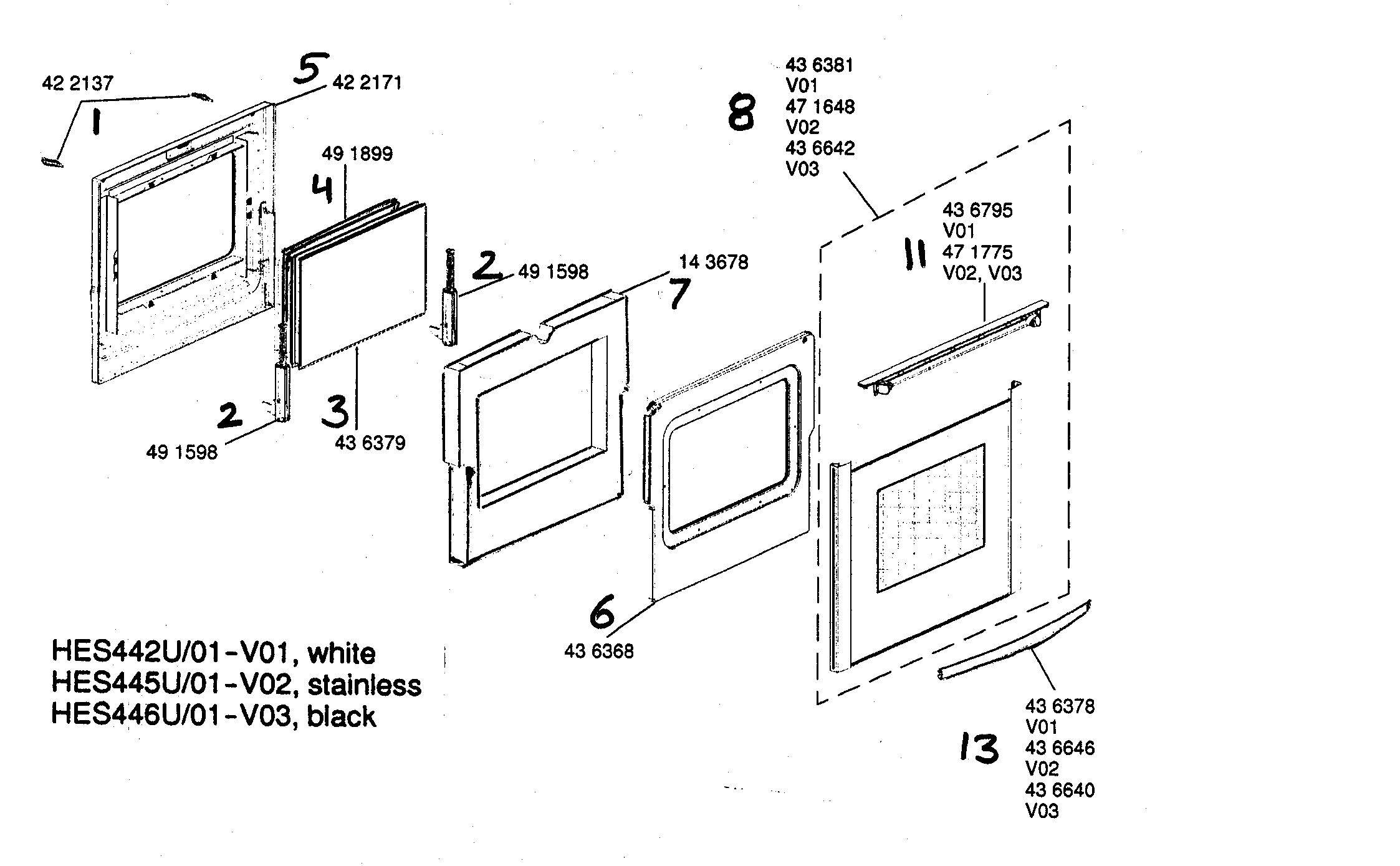

Door assy diagram

Oven glass

Part #436379

Replaced by #00436379

?
Manufacturer substitution
This part replaces 436379. Substitute parts can look different from the original.
$174.99 |
6% OFF Phone Price : $186.99
In Stock
Hinge 491539
#5

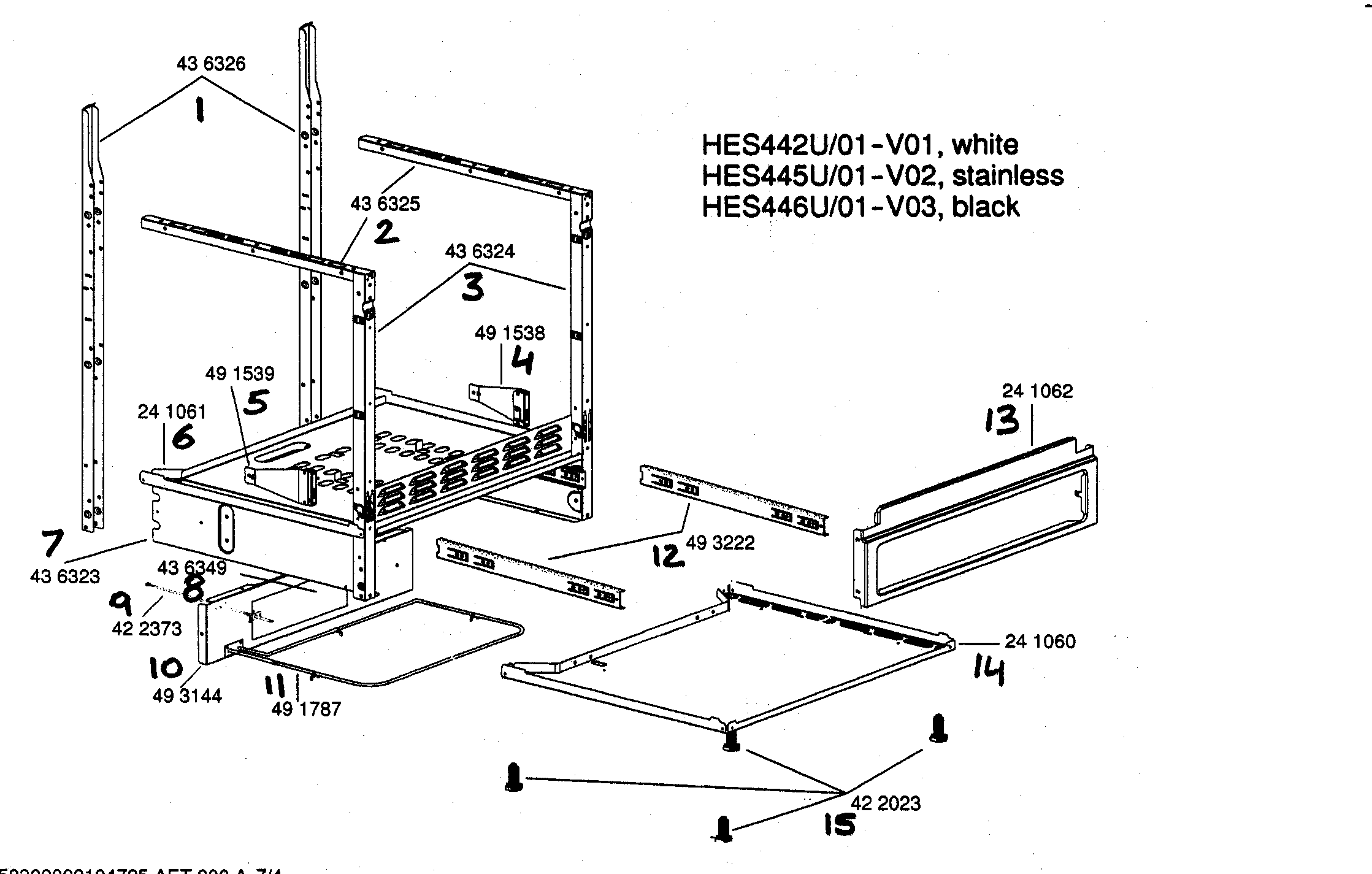

Support assy diagram

Hinge

Part #491539

Replaced by #00491539

?
Manufacturer substitution
This part replaces 491539. Substitute parts can look different from the original.
$43.62
In Stock
Lamp Assembly 491574
#4

Oven cavity assy diagram

Lamp assembly

Part #491574

Replaced by #00415045

?
Manufacturer substitution
This part replaces 491574. Substitute parts can look different from the original.
$79.29 |
7% OFF Phone Price : $85.29
In Stock
Range Oven Door Lock Assembly 493095
#7

Range paneling shelving diagram

Range oven door lock assembly

Part #493095

$189.58
In Stock
Catalyzer 491572
#5

Oven cavity assy diagram

Catalyzer

Part #491572

Replaced by #00491572

?
Manufacturer substitution
This part replaces 491572. Substitute parts can look different from the original.
$59.36
In Stock
End Cap 422365
#8

Maintop assy diagram

End cap

Part #422365

Replaced by #00422365

?
Manufacturer substitution
This part replaces 422365. Substitute parts can look different from the original.
$32.39 |
16% OFF Phone Price : $38.39
In Stock

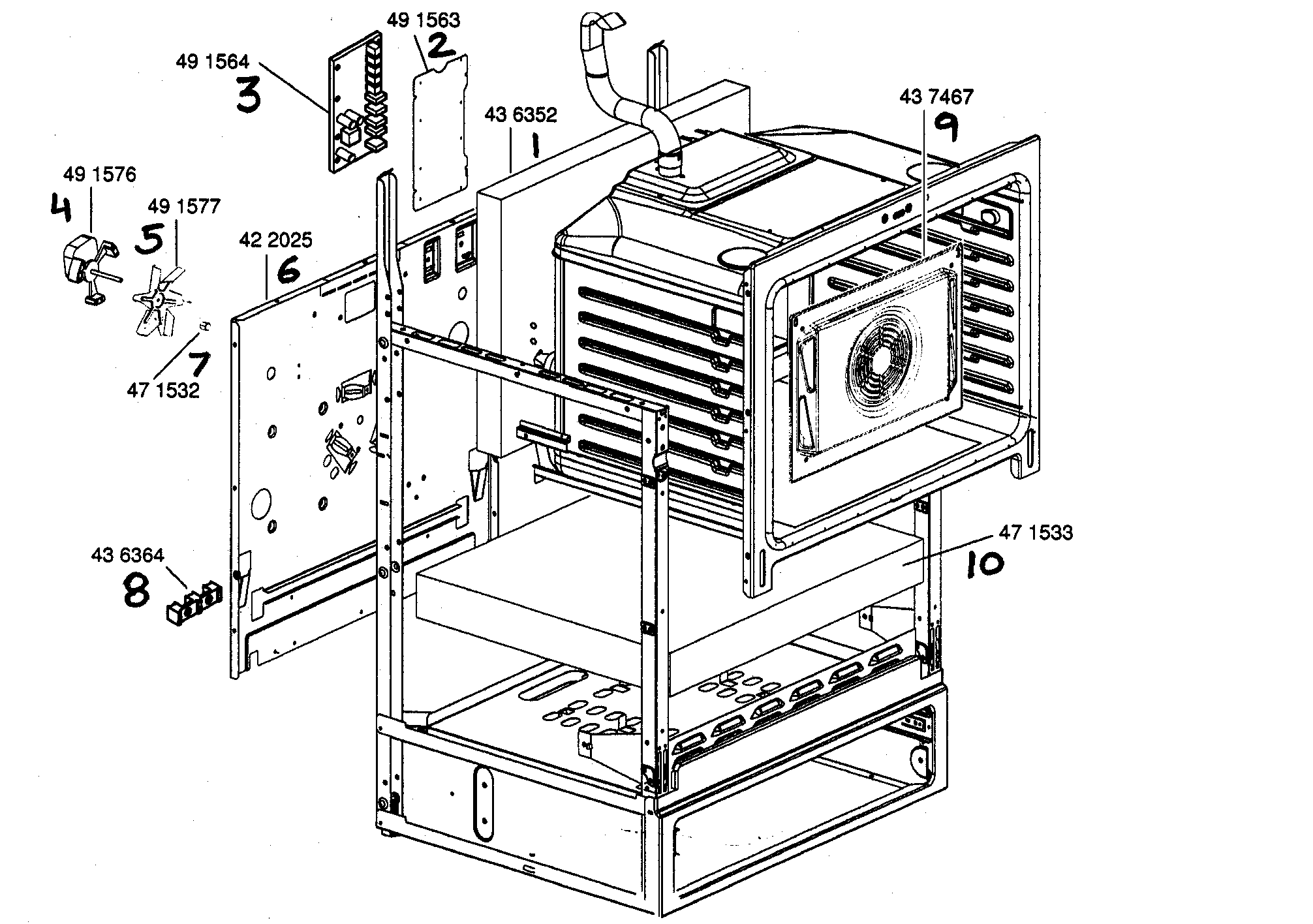

Fan Blade 491577
#5

Frame assy diagram

Fan blade

Part #491577

Replaced by #00491577

?
Manufacturer substitution
This part replaces 491577. Substitute parts can look different from the original.
$15.20
In Stock
Reflector 471762
#9

Oven cavity assy diagram

Reflector

Part #471762

Replaced by #00496839

?
Manufacturer substitution
This part replaces 471762. Substitute parts can look different from the original.
$104.08
In Stock
