Model # WFW8300SW04 Official Whirlpool washer

Here are the diagrams and repair parts for Official Whirlpool WFW8300SW04 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

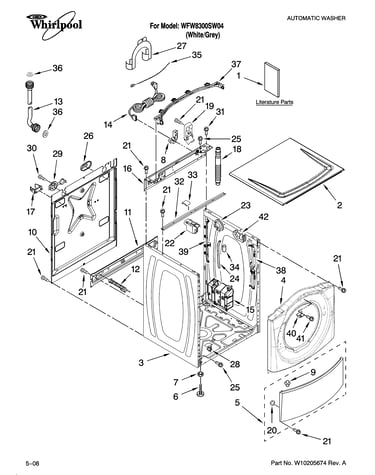

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Affresh Washer Cleaner, 3-pack (replaces 18001080, 77109, W10135699a) W10135699
#NI

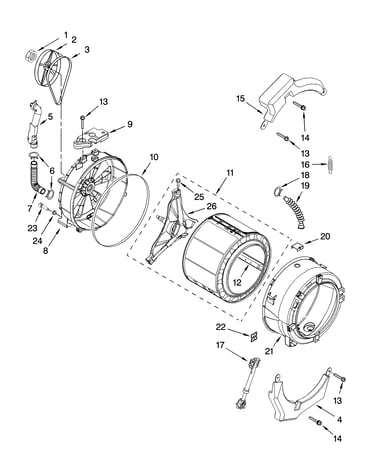

Tub and basket parts, optional parts (not included) diagram

Affresh washer cleaner, 3-pack (replaces 18001080, 77109, w10135699a)

Part #W10135699

BEST SELLER

Get free shipping with Automatic Reorder

$11.91 |
14% OFF Phone Price : $13.91
In Stock
Filter 8540996
#14

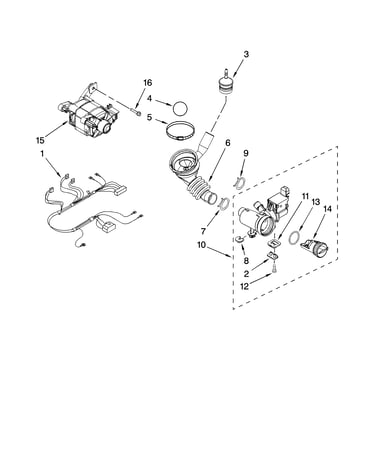

Pump and motor parts diagram

Filter

Part #8540996

Replaced by #WPW10730972

?
Manufacturer substitution
This part replaces 8540996. Substitute parts can look different from the original.
BEST SELLER
$112.47 |
10% OFF Phone Price : $124.47
In Stock
Washer Drain Pump Assembly W10130913
#10

Pump and motor parts diagram

Washer drain pump assembly

Part #W10130913

Replaced by #WPW10730972

?
Manufacturer substitution
This part replaces W10130913. Substitute parts can look different from the original.
BEST SELLER
$112.47 |
10% OFF Phone Price : $124.47
In Stock
Seal 8540025
#13

Pump and motor parts diagram

Seal

Part #8540025

Replaced by #WPW10730972

?
Manufacturer substitution
This part replaces 8540025. Substitute parts can look different from the original.
BEST SELLER
$112.47 |
10% OFF Phone Price : $124.47
In Stock
Washer Door Boot 8540952
#2

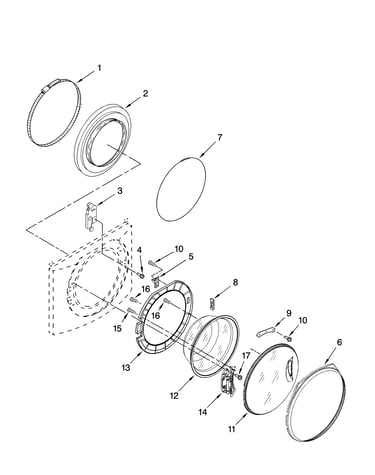

Door and latch parts diagram

Washer door boot

Part #8540952

Replaced by #WPW10111435

?
Manufacturer substitution
This part replaces 8540952. Substitute parts can look different from the original.
BEST SELLER
$129.64 |
8% OFF Phone Price : $141.64
In Stock
Clamp 370450
#3

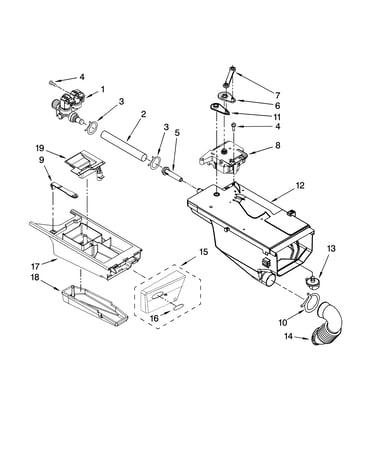

Dispenser parts diagram

Clamp

Part #370450

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 370450. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Tub and basket parts, optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Sensor-ntc 8540226
#23

Tub and basket parts, optional parts (not included) diagram

Sensor-ntc

Part #8540226

Replaced by #WPW10467289

?
Manufacturer substitution
This part replaces 8540226. Substitute parts can look different from the original.
BEST SELLER
$28.62 |
17% OFF Phone Price : $34.62
In Stock
Screw 3390647
#7

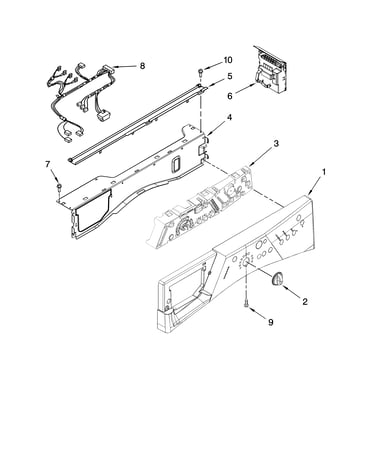

Control panel parts diagram

Screw

Part #3390647

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3390647. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer Outer Tub Gasket 8540090
#10

Tub and basket parts, optional parts (not included) diagram

Washer outer tub gasket

Part #8540090

Replaced by #WPW10111158

?
Manufacturer substitution
This part replaces 8540090. Substitute parts can look different from the original.
BEST SELLER
$30.83 |
16% OFF Phone Price : $36.83
In Stock
