Craftsman
Garage Door Opener

Model # 139653100 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139653100 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Screw 171A15
Screw

Part #171A15

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A183
#1

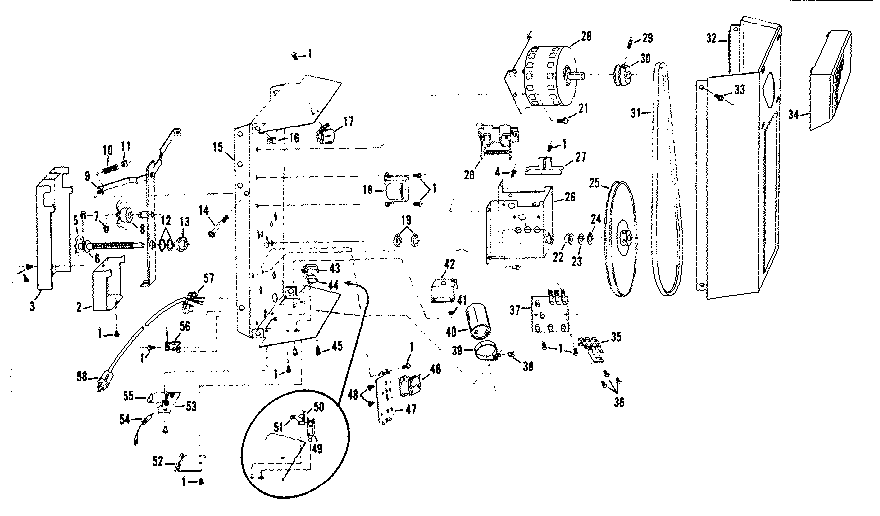

Chassis assembly diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

Trans Brd 1A1138Y
#5A

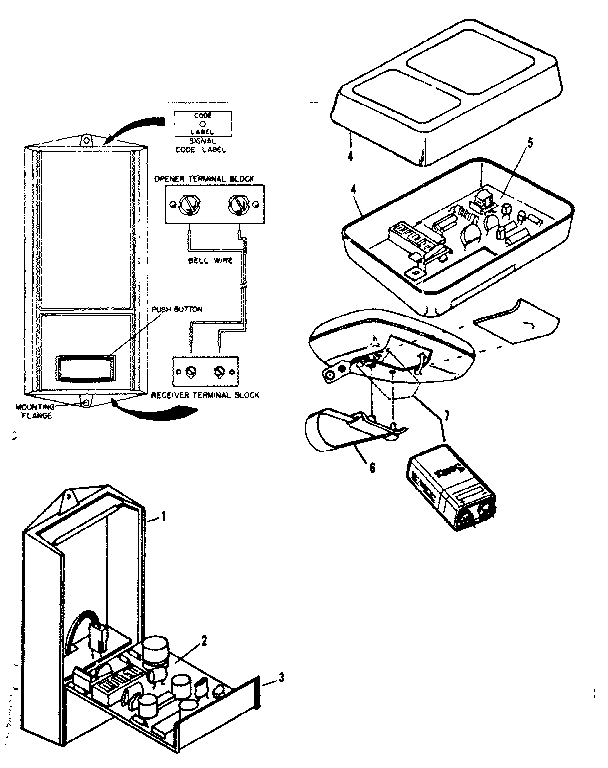

Radio controls diagram

Trans brd

Part #1A1138Y

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A184
#21

Chassis assembly diagram

Screw

Part #171A184

The manufacturer no longer makes this part, and there's no substitute part

Trans Brd 1A1138S
#5

Radio controls diagram

Trans brd

Part #1A1138S

The manufacturer no longer makes this part, and there's no substitute part

T-rail End 183B36
#20

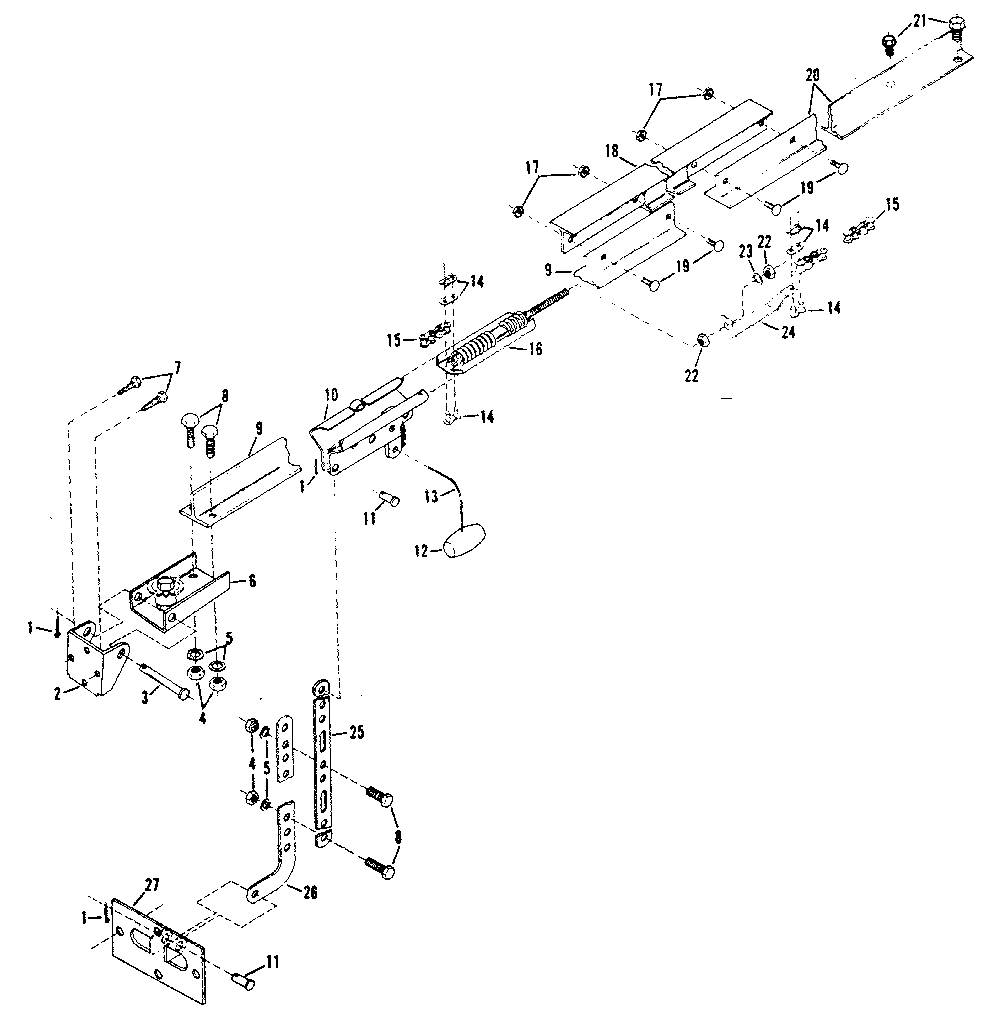

Rail assembly diagram

T-rail end

Part #183B36

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 26A42
#58

Chassis assembly diagram

Line cord

Part #26A42

The manufacturer no longer makes this part, and there's no substitute part

Cover 31F103
#52

Chassis assembly diagram

Cover

Part #31F103

The manufacturer no longer makes this part, and there's no substitute part

Pulley 144B6
#30

Chassis assembly diagram

Pulley

Part #144B6

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Chain Retainer 12AU97
#24

Rail assembly diagram

Bracket, chain retainer

Part #12AU97

The manufacturer no longer makes this part, and there's no substitute part
