Hoover
Carpet Cleaner

Model # F5411 Official Hoover steam vac jr.

Here are the diagrams and repair parts for Official Hoover F5411 steam vac jr., as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Wire Connector 27618508
#7

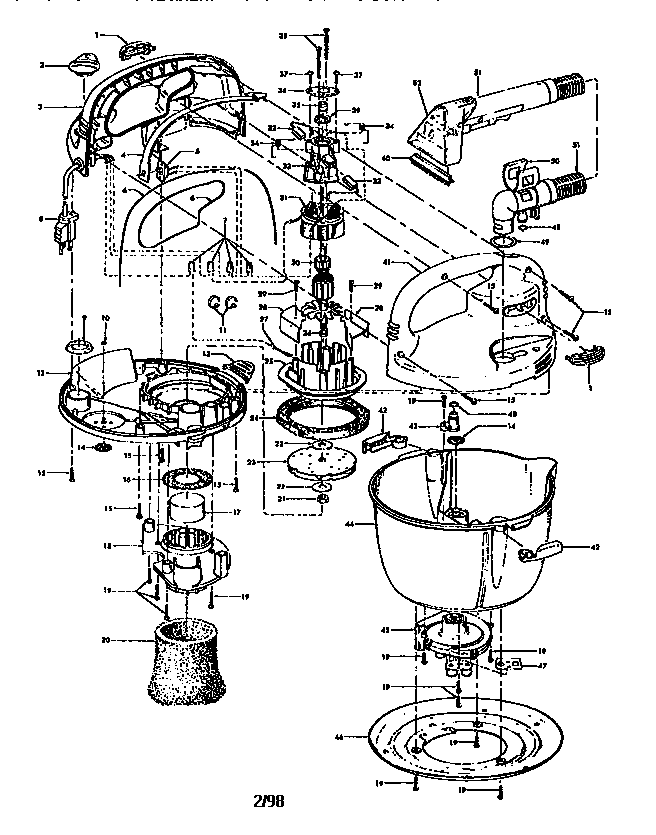

Steamvac jr diagram

Wire connector

Part #27618508

The manufacturer no longer makes this part, and there's no substitute part

Nut 21642021
#21

Steamvac jr diagram

Nut

Part #21642021

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 214793DA
#37

Steamvac jr diagram

Vacuum screw

Part #214793DA

The manufacturer no longer makes this part, and there's no substitute part

Washer 21312818
#22

Steamvac jr diagram

Washer

Part #21312818

The manufacturer no longer makes this part, and there's no substitute part

Valve 38643016
#43

Steamvac jr diagram

Valve

Part #38643016

The manufacturer no longer makes this part, and there's no substitute part

Motor Brush 47313010
#32

Steamvac jr diagram

Motor brush

Part #47313010

The manufacturer no longer makes this part, and there's no substitute part

Housing 37193026
#33

Steamvac jr diagram

Housing

Part #37193026

The manufacturer no longer makes this part, and there's no substitute part

Housing 43588023
#13

Steamvac jr diagram

Housing

Part #43588023

The manufacturer no longer makes this part, and there's no substitute part

Retainer 36134006
#36

Steamvac jr diagram

Retainer

Part #36134006

The manufacturer no longer makes this part, and there's no substitute part

Spacer 31148011
#26

Steamvac jr diagram

Spacer

Part #31148011

The manufacturer no longer makes this part, and there's no substitute part
