Kenmore
Gas Grill

Model # 415156920 Official Kenmore outdoor grill

Here are the diagrams and repair parts for Official Kenmore 415156920 outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

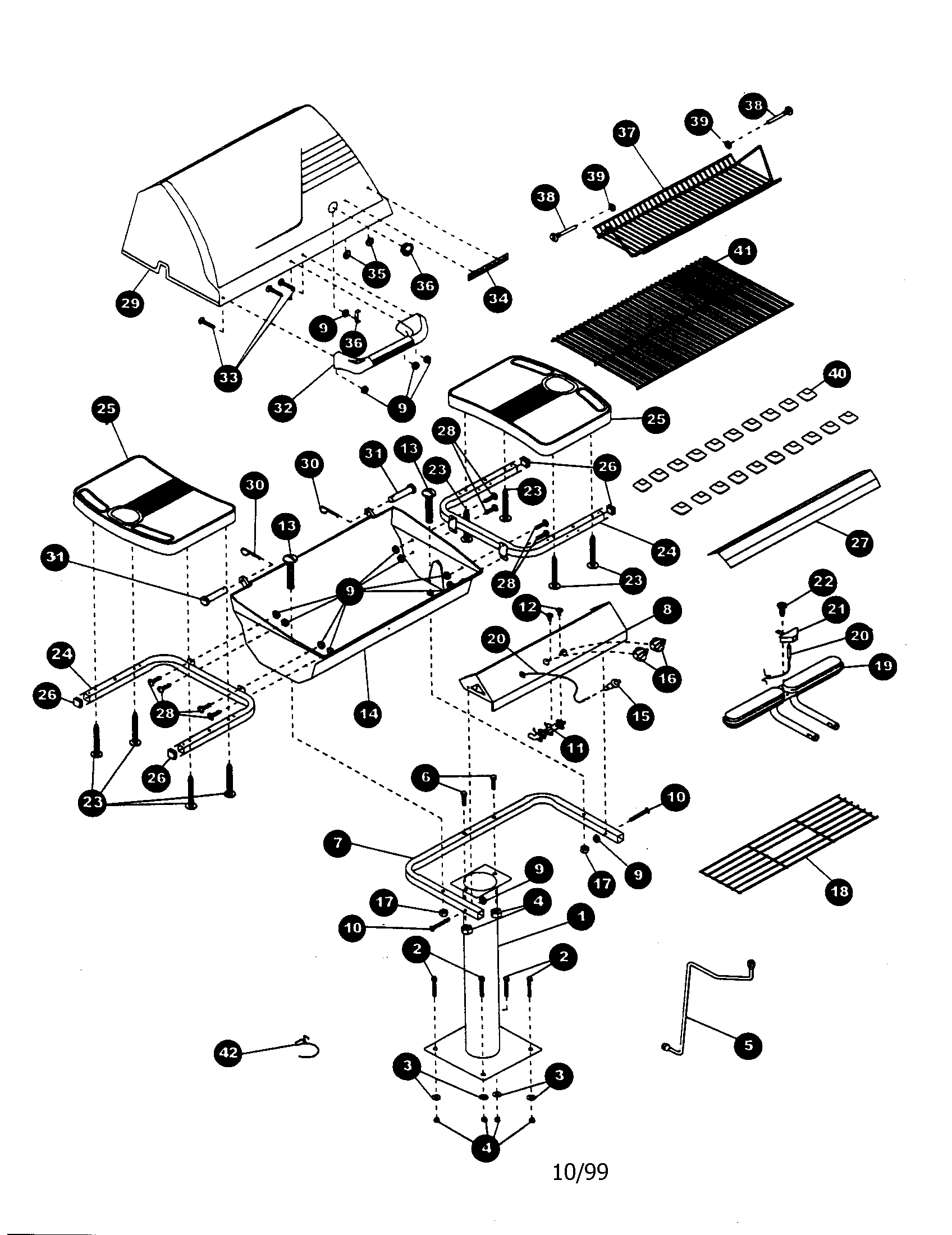

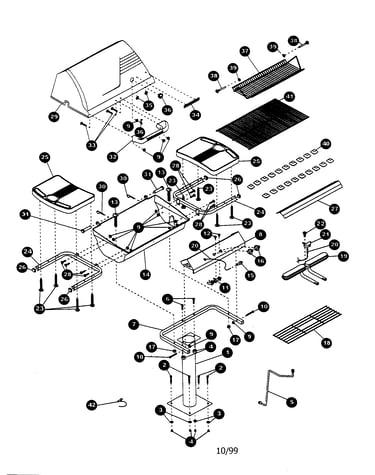

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Ken-ran Gas Grill Lid Hinge Pin 4156513

#31

All parts diagram

Ken-ran gas grill lid hinge pin

Part #4156513

This item is not returnable
$2.16
In Stock
Thermos Gas Grill Igniter 4153713

#15

All parts diagram

Thermos gas grill igniter

Part #4153713

This item is not returnable
$5.69 |
15% OFF Phone Price : $6.69
In Stock
Craftsman Gas Grill Flame Tamer 4156418

#27

All parts diagram

Craftsman gas grill flame tamer

Part #4156418

The manufacturer no longer makes this part, and there's no substitute part

Clip 5156607

#42

All parts diagram

Clip

Part #5156607

Replaced by #80011874

?
Manufacturer substitution
This part replaces 5156607. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Bolt 4080663

#38

All parts diagram

Bolt

Part #4080663

The manufacturer no longer makes this part, and there's no substitute part

Screw 4080303

#10

All parts diagram

Screw

Part #4080303

The manufacturer no longer makes this part, and there's no substitute part

Console 4525020

#8

All parts diagram

Console

Part #4525020

The manufacturer no longer makes this part, and there's no substitute part

Post Assembly 4504606

#1

All parts diagram

Post assembly

Part #4504606

The manufacturer no longer makes this part, and there's no substitute part

Questionai 4163732

#NI

All parts diagram

Questionai

Part #4163732

The manufacturer no longer makes this part, and there's no substitute part

Grate 4156409

#18

All parts diagram

Grate

Part #4156409

The manufacturer no longer makes this part, and there's no substitute part
