Modern Maid
Electric Wall Oven

Model # FDO162 Official Modern Maid electric microwave/wall oven combo with self-cleaning oven

Here are the diagrams and repair parts for Official Modern Maid FDO162 electric microwave/wall oven combo with self-cleaning oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

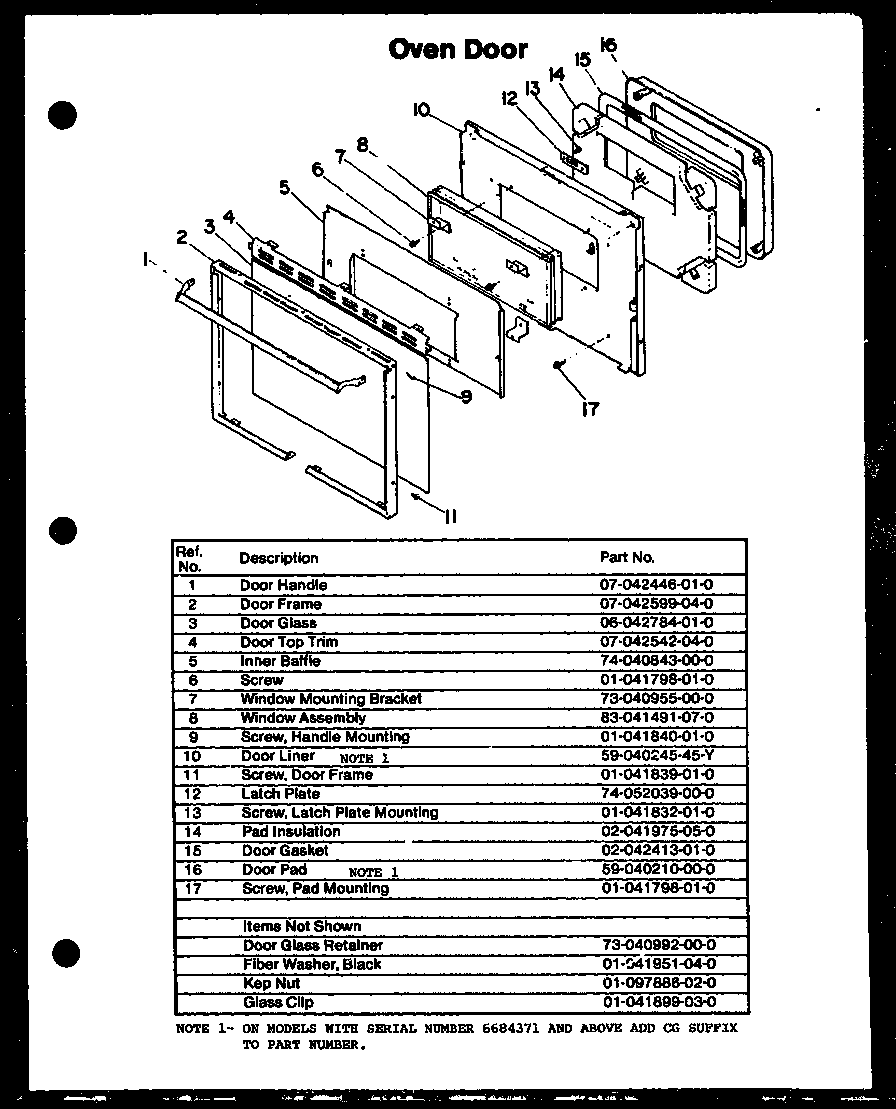

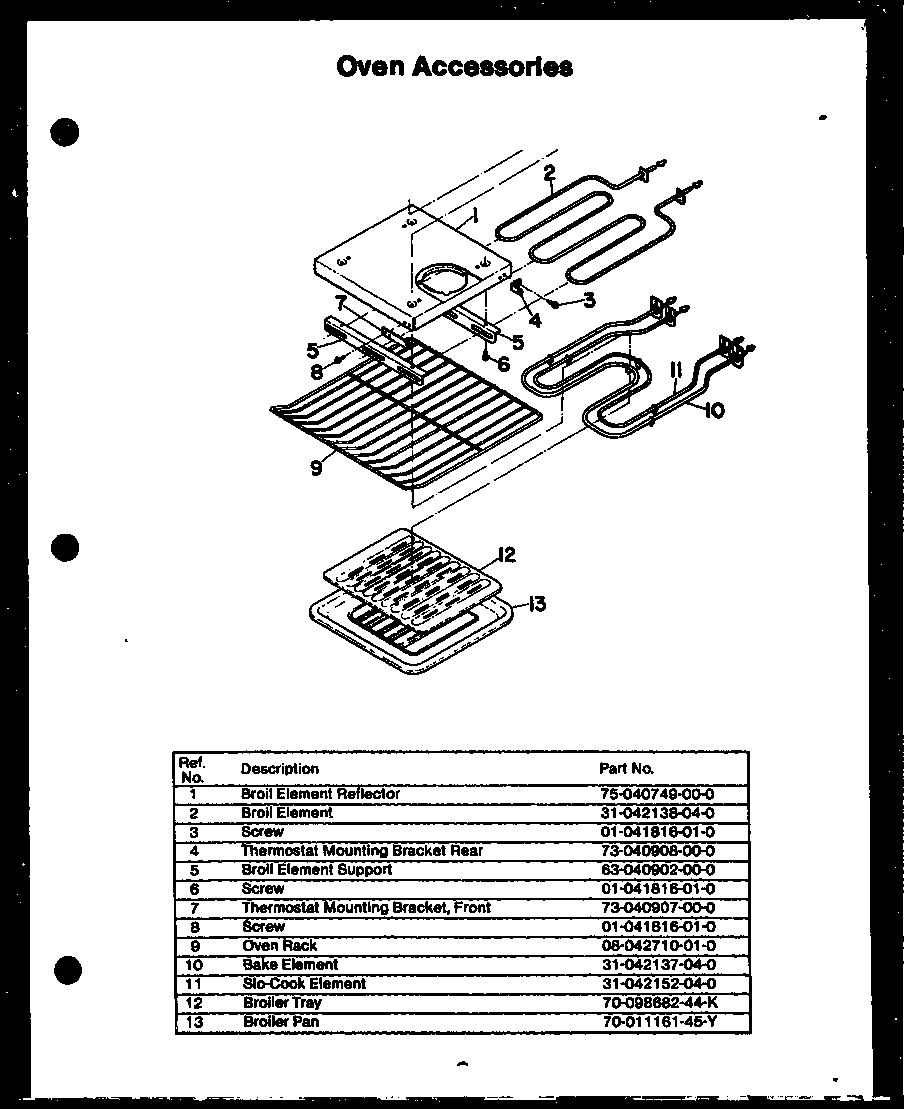

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Oven Top 55-052849-00-0
#28

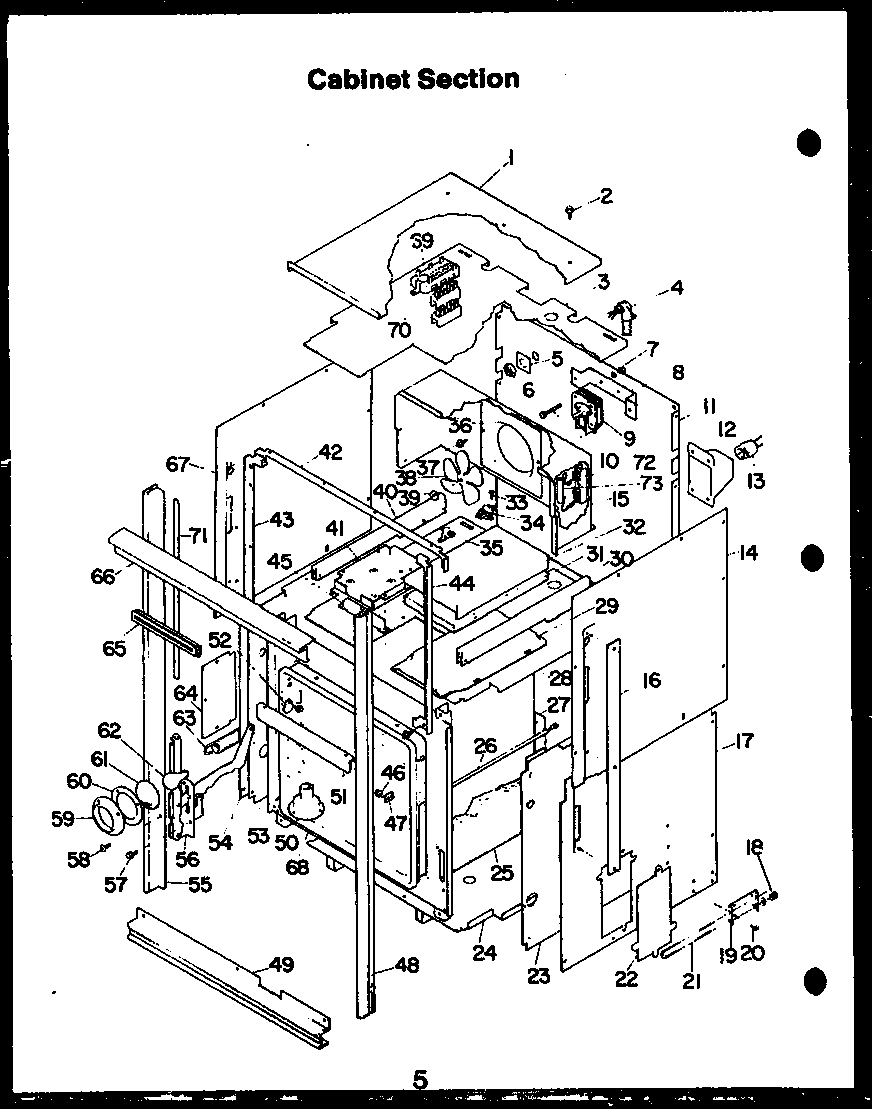

Cabinet section diagram

Oven top

Part #55-052849-00-0

The manufacturer no longer makes this part, and there's no substitute part

Hole Plug 87219

#NI

All parts diagram

Hole plug

Part #87219

The manufacturer no longer makes this part, and there's no substitute part

Spring 44513
#12

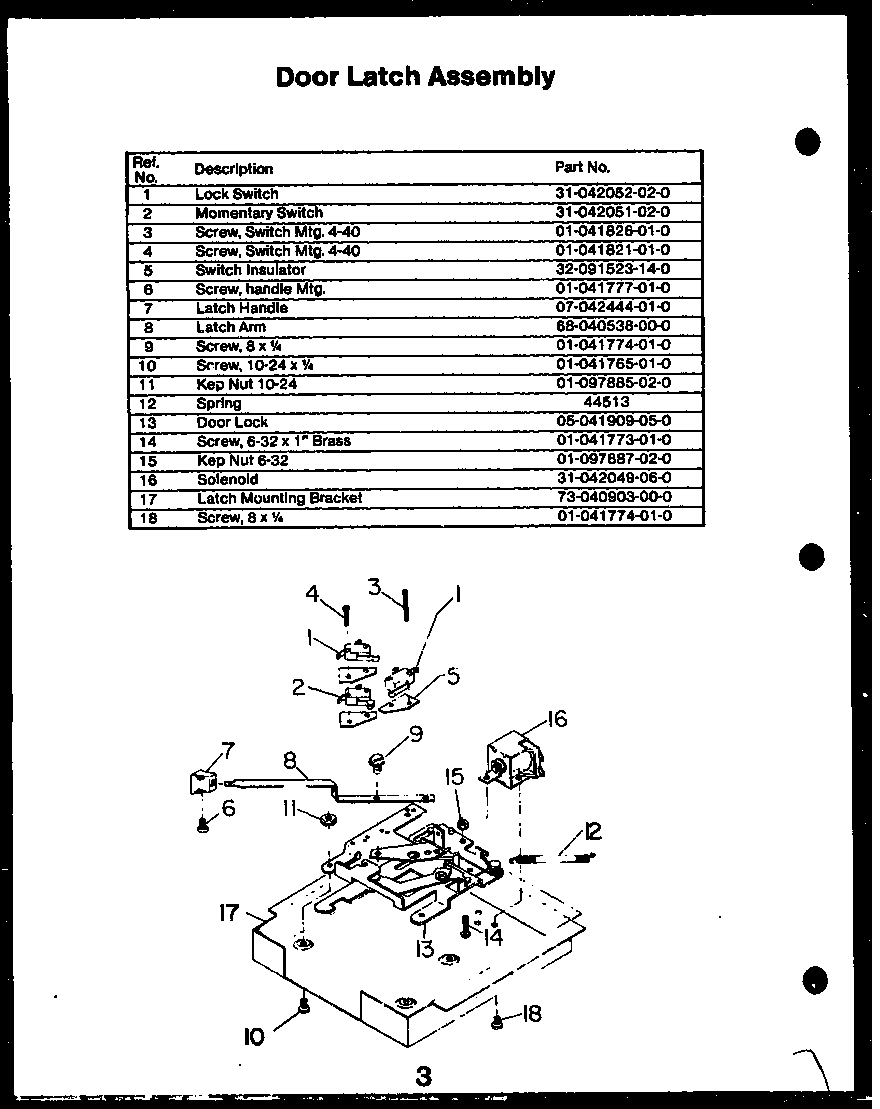

Door latch assembly diagram

Spring

Part #44513

The manufacturer no longer makes this part, and there's no substitute part

Clock Timer (on Models With Serial Number 6077413 And Ab 09-042425-01-0
#19

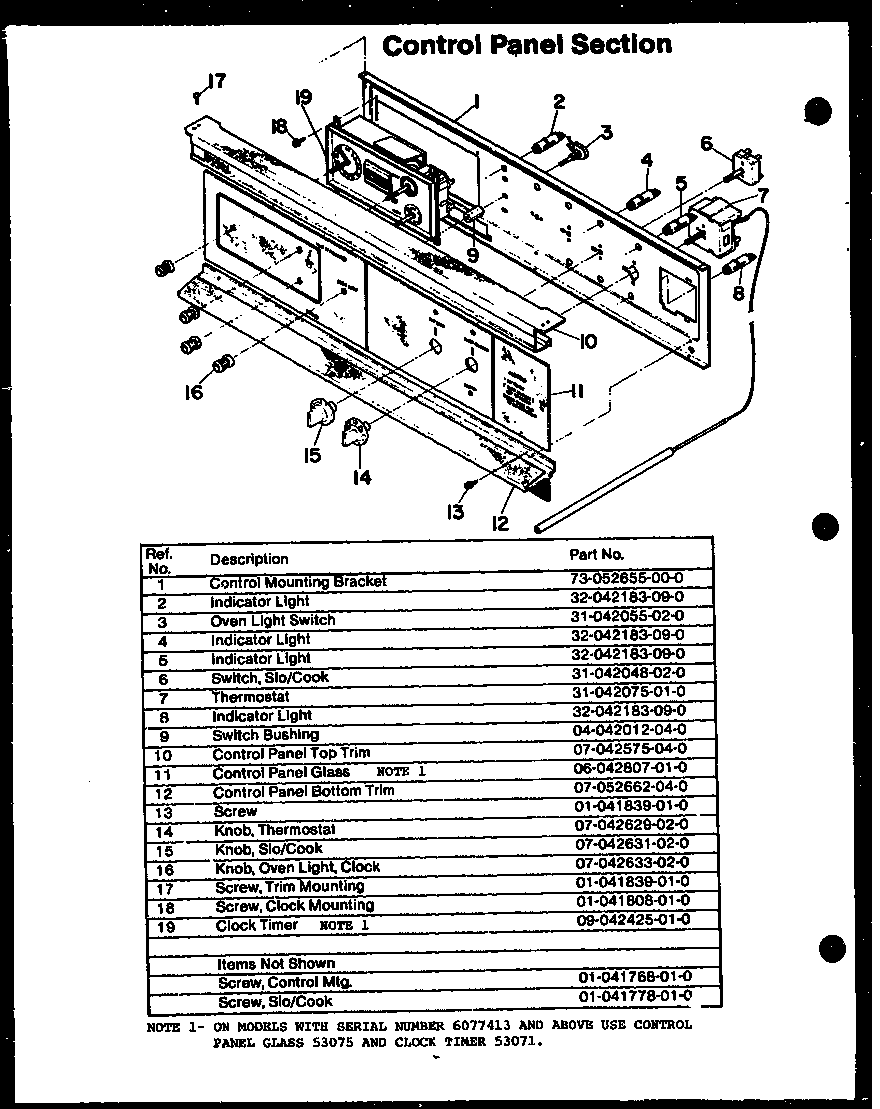

Control panel section diagram

Clock timer (on models with serial number 6077413 and ab

Part #09-042425-01-0

The manufacturer no longer makes this part, and there's no substitute part

Conduit Assembly 32-052947-04-0
#4

Cabinet section diagram

Conduit assembly

Part #32-052947-04-0

The manufacturer no longer makes this part, and there's no substitute part

Antenna Assembly 87131
#1419

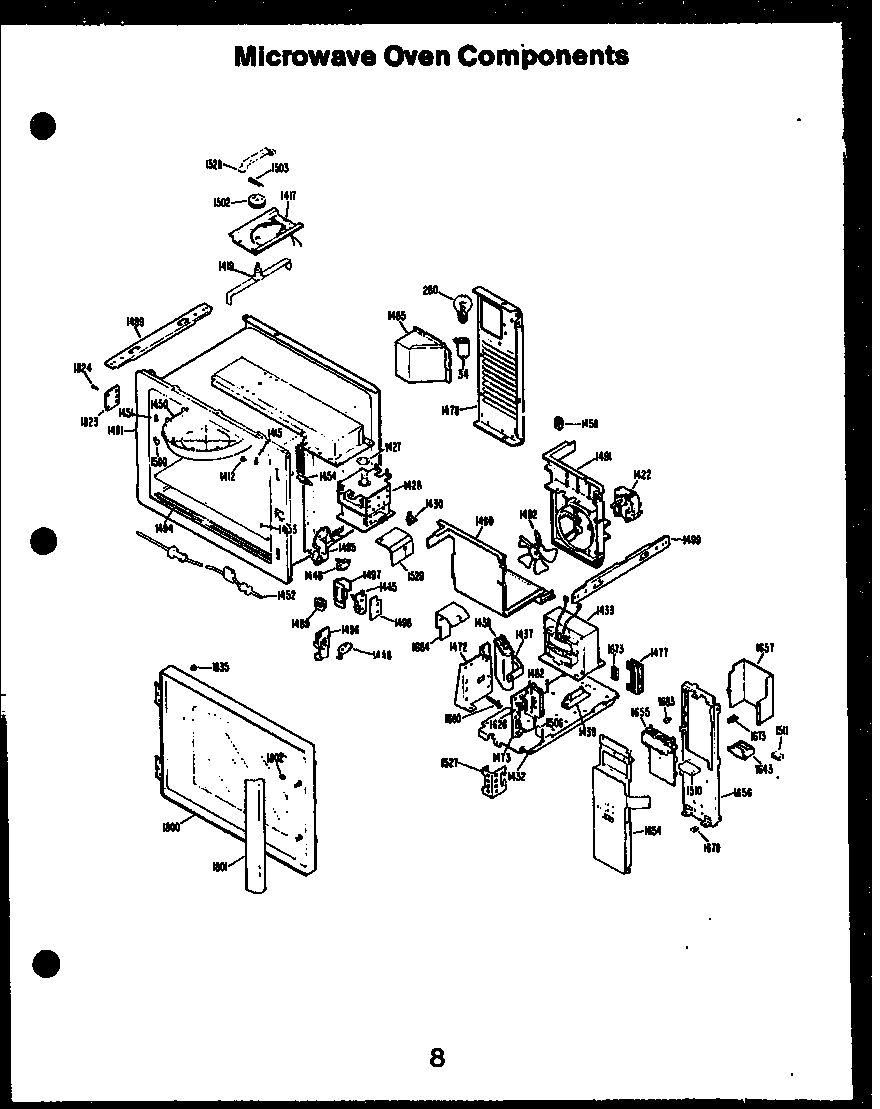

Microwave oven components diagram

Antenna assembly

Part #87131

The manufacturer no longer makes this part, and there's no substitute part

Oven Cavity 53-040166-00-0
#68

Cabinet section diagram

Oven cavity

Part #53-040166-00-0

The manufacturer no longer makes this part, and there's no substitute part

Lamp Cup 75-040740-00-0
#12

Cabinet section diagram

Lamp cup

Part #75-040740-00-0

The manufacturer no longer makes this part, and there's no substitute part

Capillary Hole Cover 75-063351-00-0
#47

Cabinet section diagram

Capillary hole cover

Part #75-063351-00-0

The manufacturer no longer makes this part, and there's no substitute part

Switch Monitor 87068
#1445

Microwave oven components diagram

Switch monitor

Part #87068

The manufacturer no longer makes this part, and there's no substitute part
