Amana
Top-Mount Refrigerator

Model # CICS3-P8735803W Official Amana energy saving refrigerator

Here are the diagrams and repair parts for Official Amana CICS3-P8735803W energy saving refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

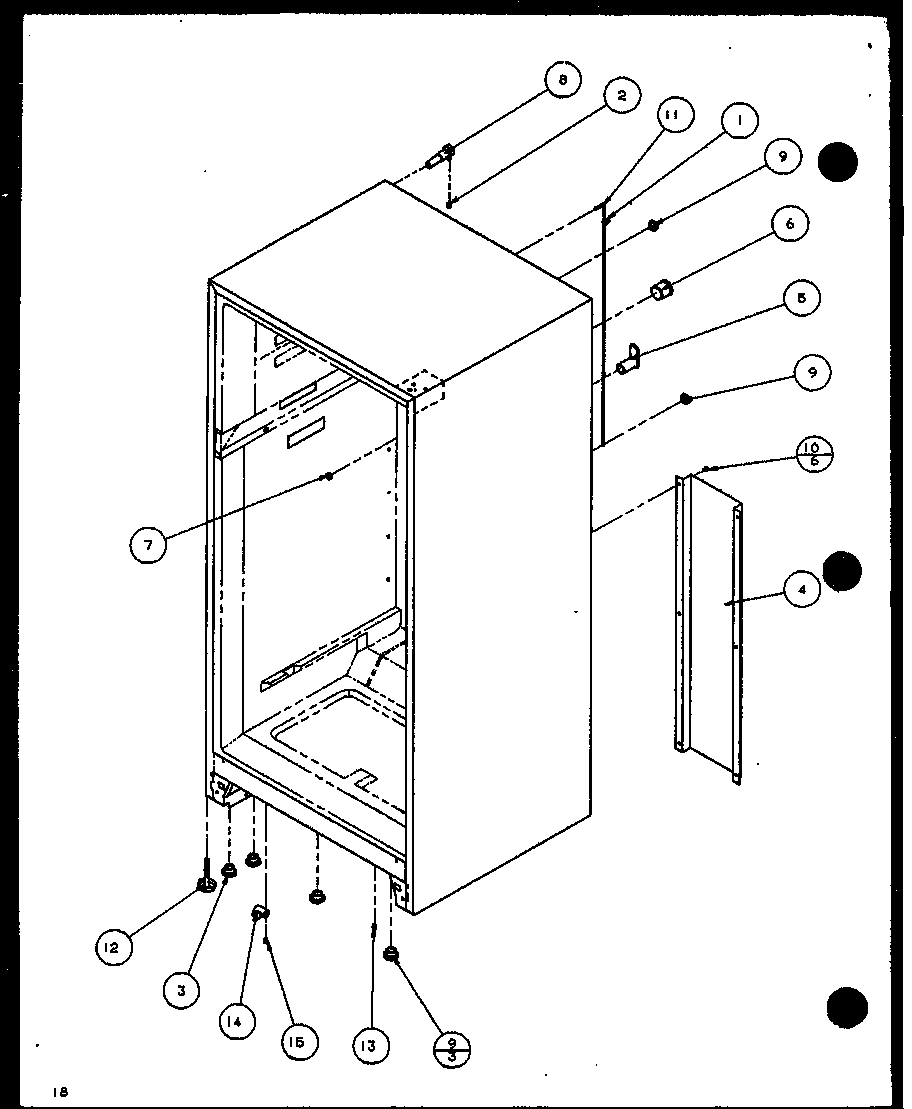

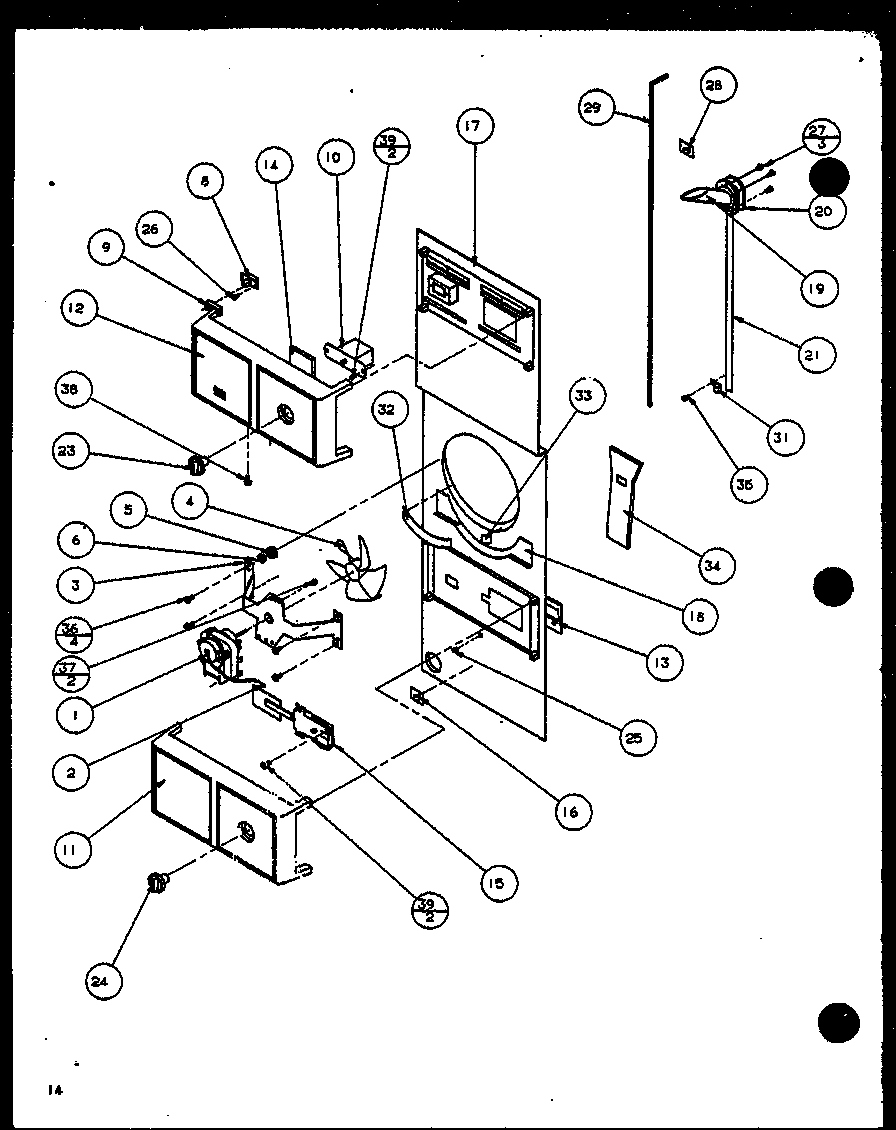

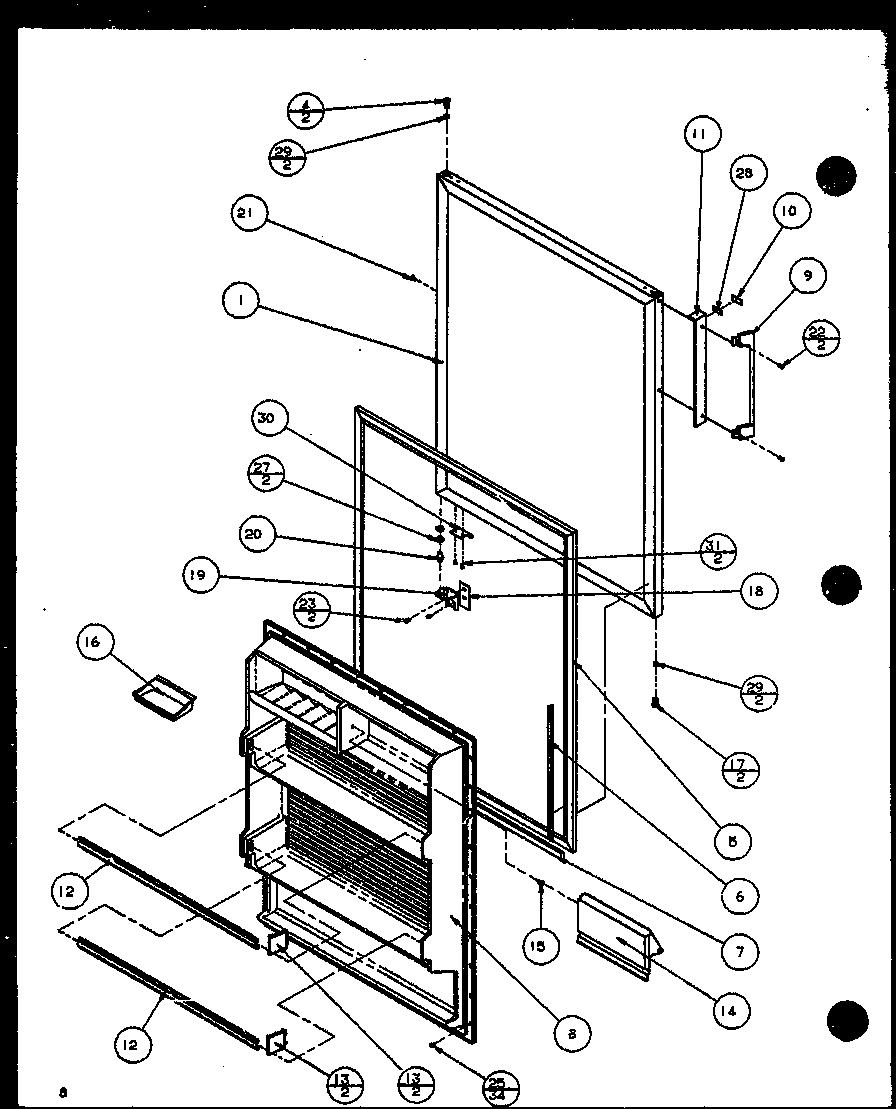

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 239 parts  |

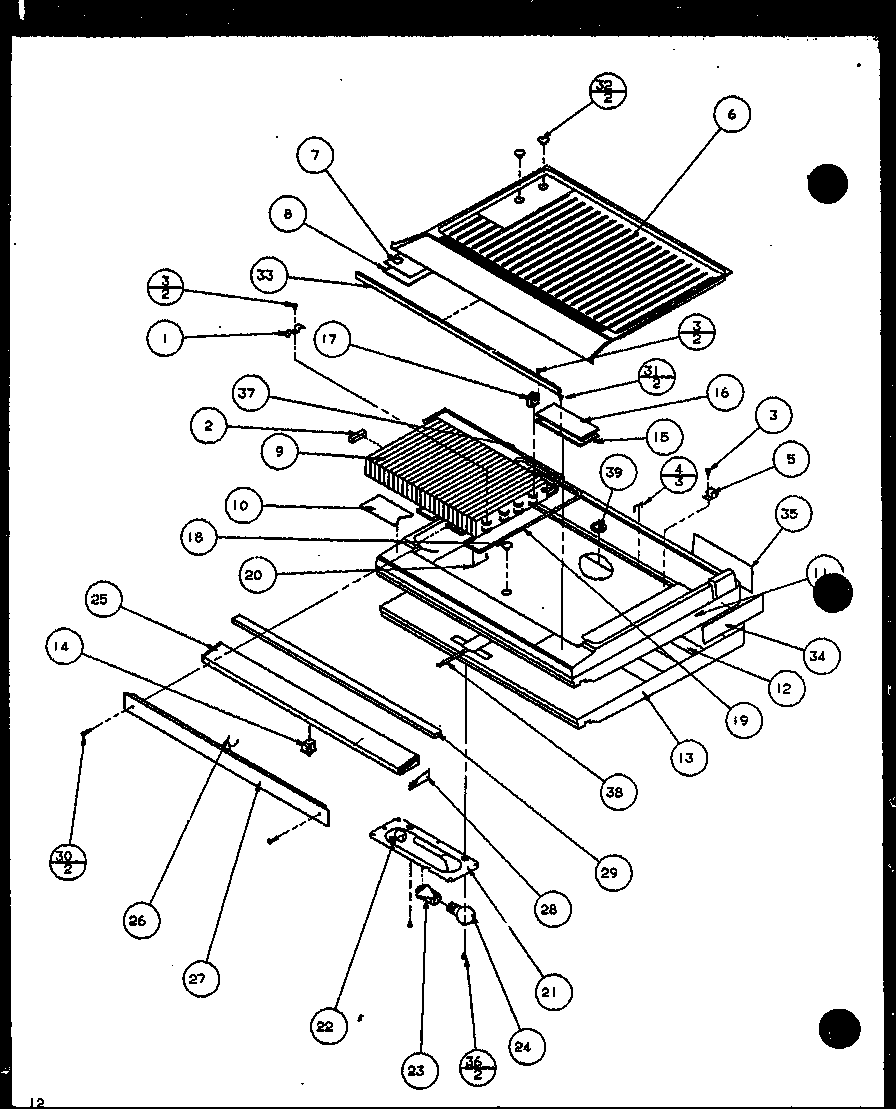

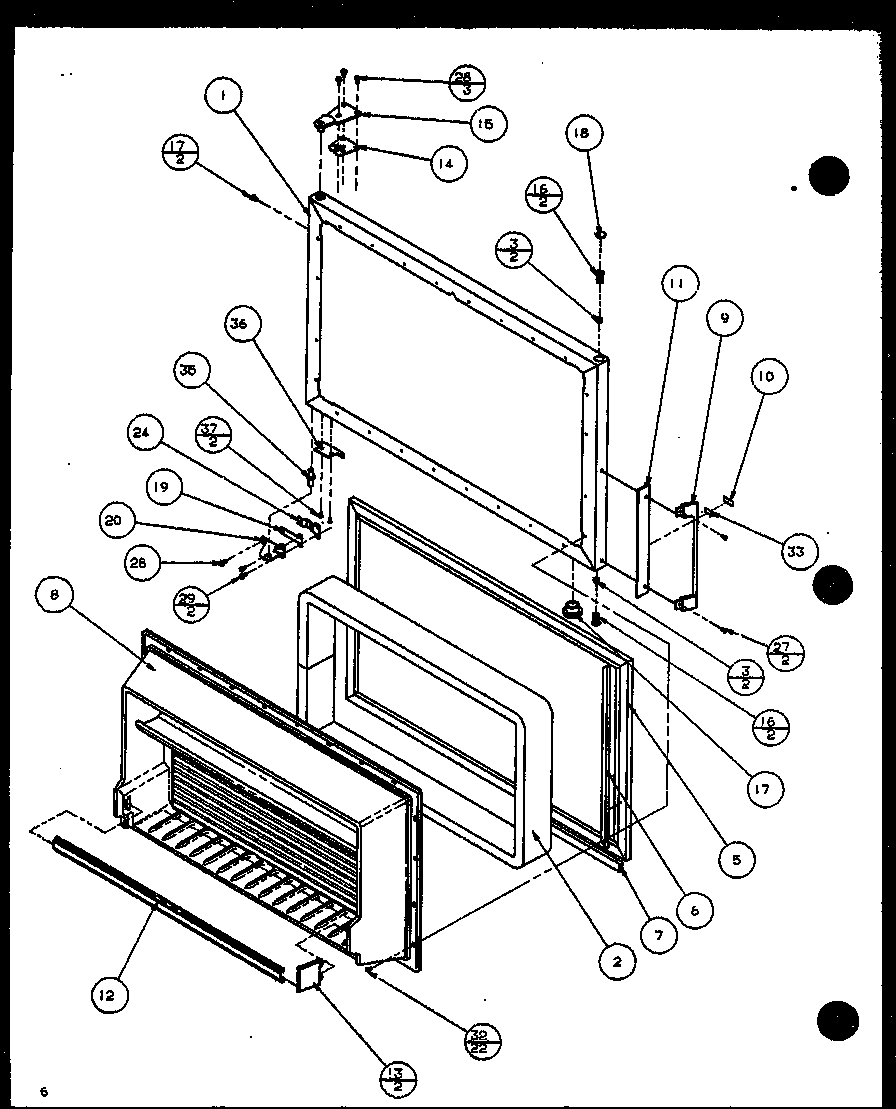

Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#24

(tm14qbw/p1111101ww) (tm14qbg/p1111101wg) (tm14qbl/p1111101wl) (tm14qb1g/p1111102wg) (tm14qb1l/p1111102wl) (tm14qb1w/p1111102ww) diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Switch C3680304
#14

(tm14qbw/p1111101ww) (tm14qbg/p1111101wg) (tm14qbl/p1111101wl) (tm14qb1g/p1111102wg) (tm14qb1l/p1111102wl) (tm14qb1w/p1111102ww) diagram

Switch

Part #C3680304

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680304. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock

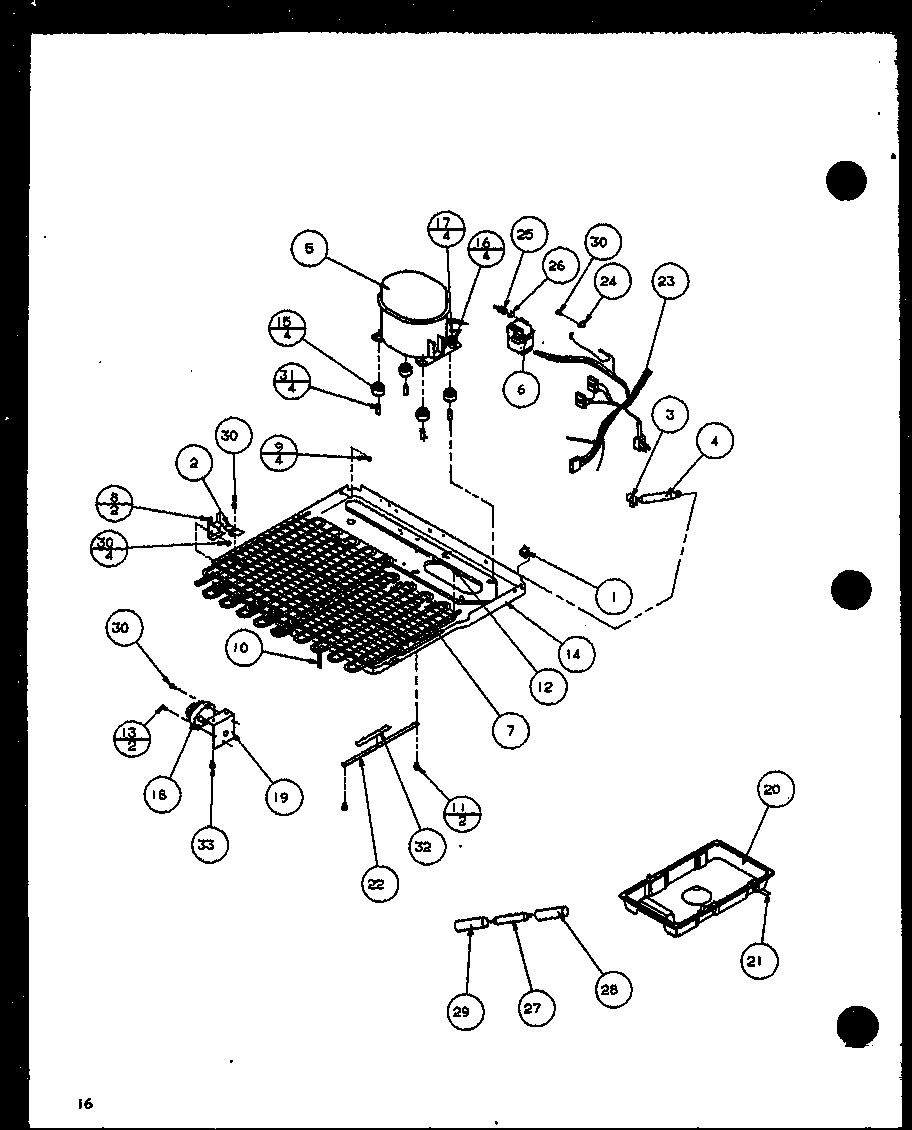

Drier B2150502
#4

(tm14qbw/p1111101ww) (tm14qbg/p1111101wg) (tm14qbl/p1111101wl) (tm14qb1g/p1111102wg) (tm14qb1l/p1111102wl) (tm14qb1w/p1111102ww) diagram

Drier

Part #B2150502

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150502. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Screw M0221716
Refrigerator screw

Part #M0221716

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0221716. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock

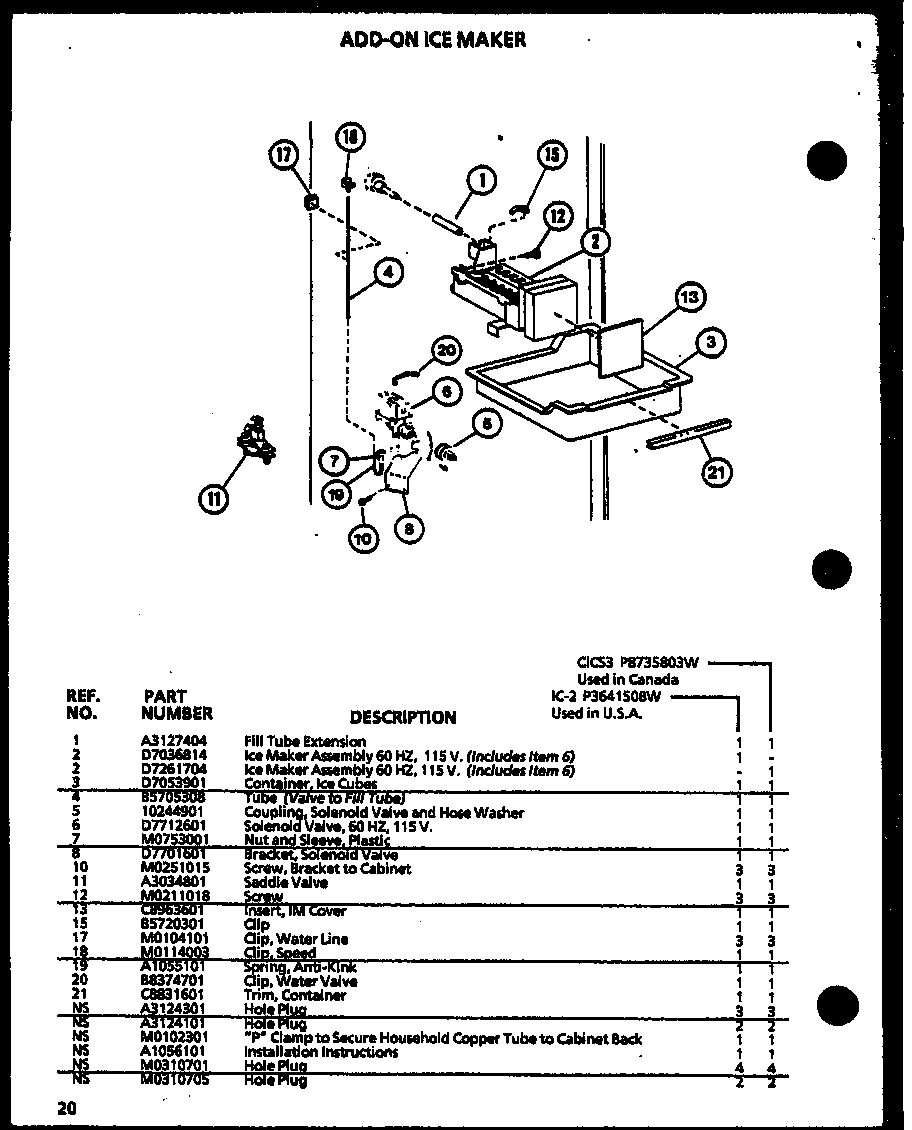

Water Valve D7712601
#6

(ic-2/p3641508w) (cics3/p8735803w) diagram

Water valve

Part #D7712601

Replaced by #4318047

?
Manufacturer substitution
This part replaces D7712601. Substitute parts can look different from the original.
$28.19 |
18% OFF Phone Price : $34.19
In Stock
Fitting M0753001
#7

(ic-2/p3641508w) (cics3/p8735803w) diagram

Fitting

Part #M0753001

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Dispenser Water Tube B5705308
#4

(ic-2/p3641508w) (cics3/p8735803w) diagram

Refrigerator dispenser water tube

Part #B5705308

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705308. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
Screw M0232903
#33

(tm14qbw/p1111101ww) (tm14qbg/p1111101wg) (tm14qbl/p1111101wl) (tm14qb1g/p1111102wg) (tm14qb1l/p1111102wl) (tm14qb1w/p1111102ww) diagram

Screw

Part #M0232903

Replaced by #WP489399

?
Manufacturer substitution
This part replaces M0232903. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211217
Screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock

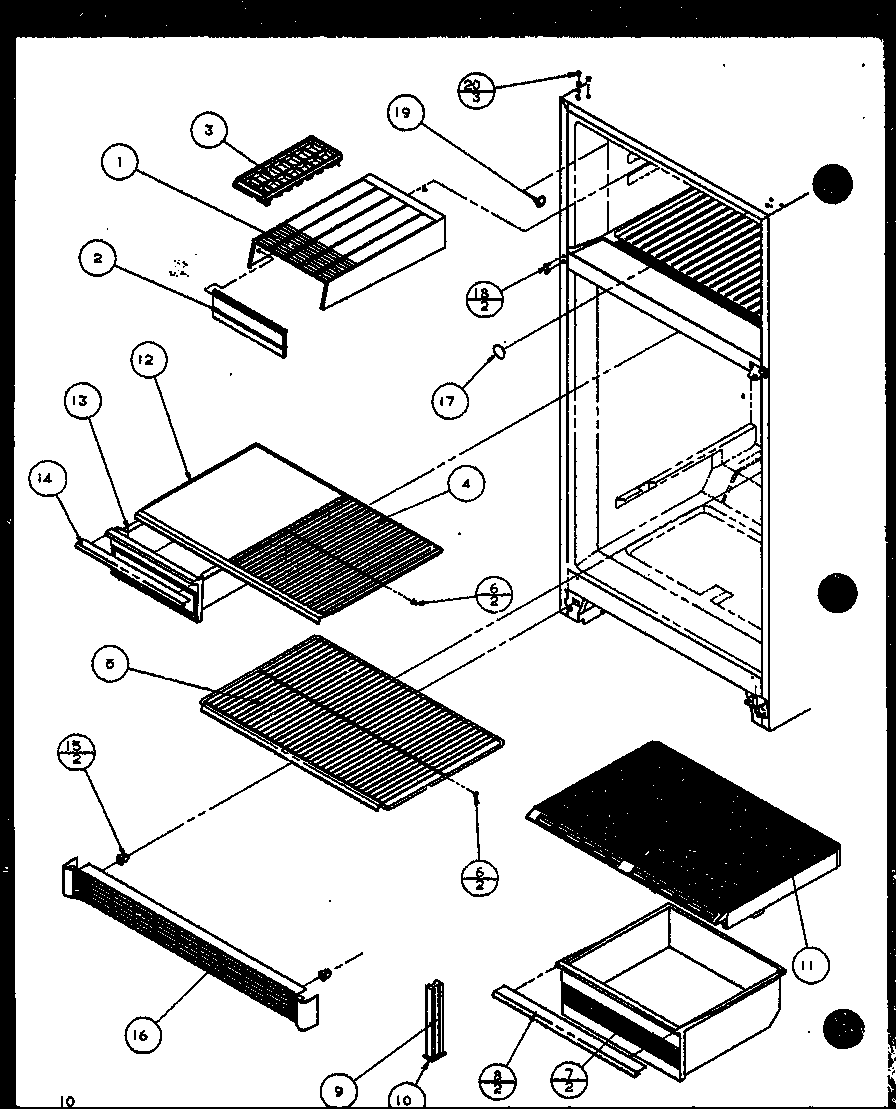

Refrigerator Ice Tray D7725401
#3

(tm14qbw/p1111101ww) (tm14qbg/p1111101wg) (tm14qbl/p1111101wl) (tm14qb1g/p1111102wg) (tm14qb1l/p1111102wl) (tm14qb1w/p1111102ww) diagram

Refrigerator ice tray

Part #D7725401

Replaced by #WP841180A

?
Manufacturer substitution
This part replaces D7725401. Substitute parts can look different from the original.
This item is not returnable
$7.19 |
12% OFF Phone Price : $8.19
In Stock
