Model # HDR-CX350V Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX350V camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

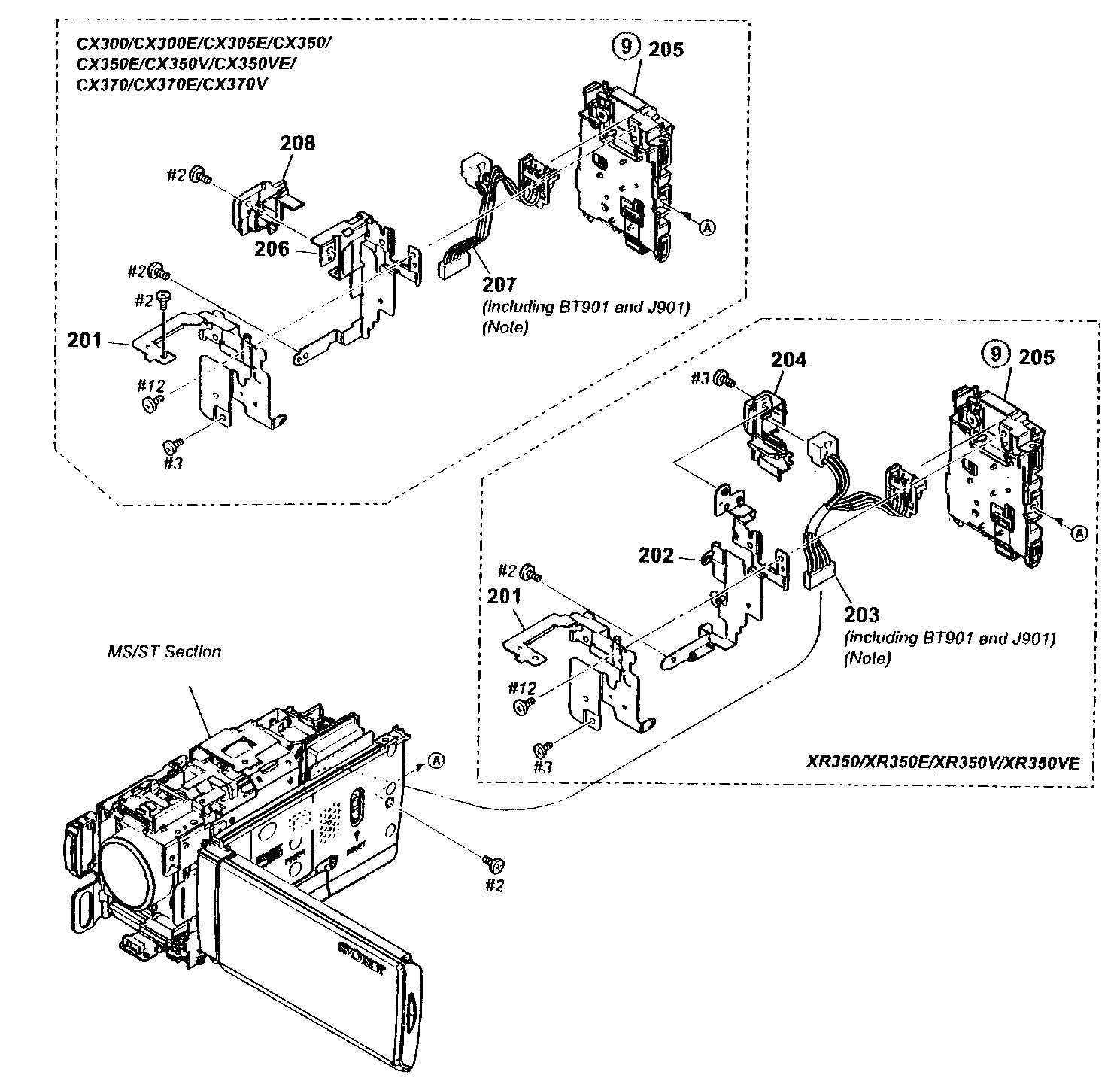

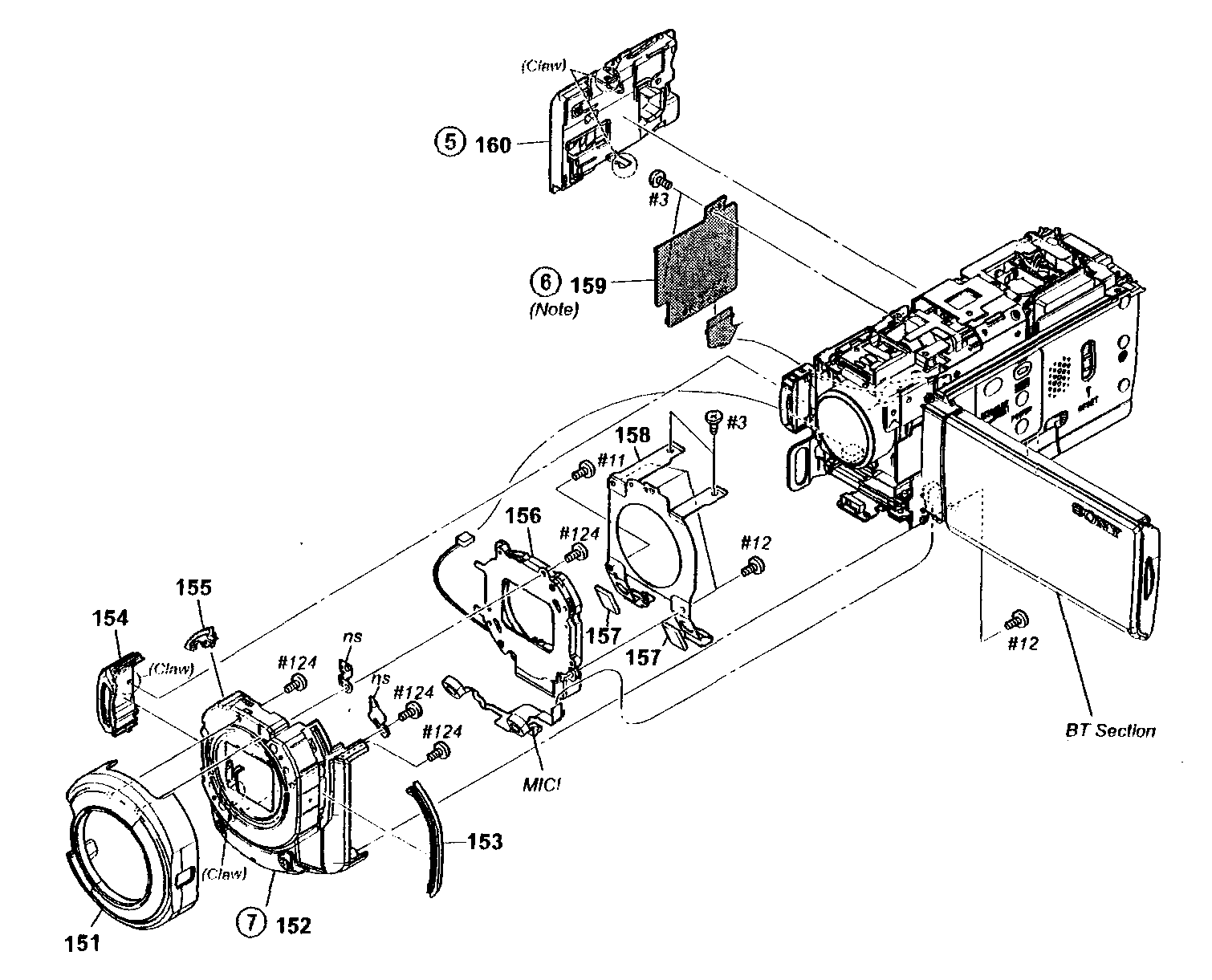

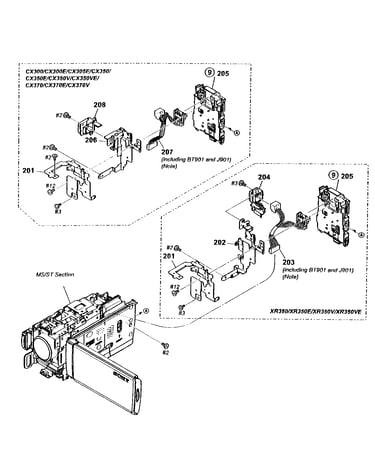

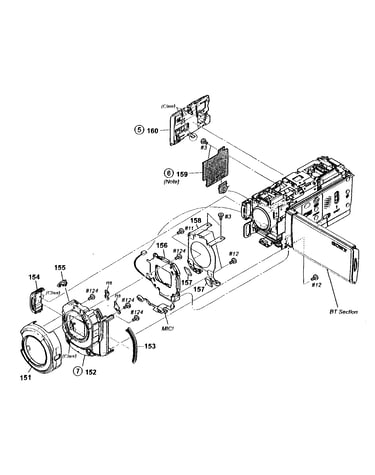

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Sony Sw Block,c 148758711
#53

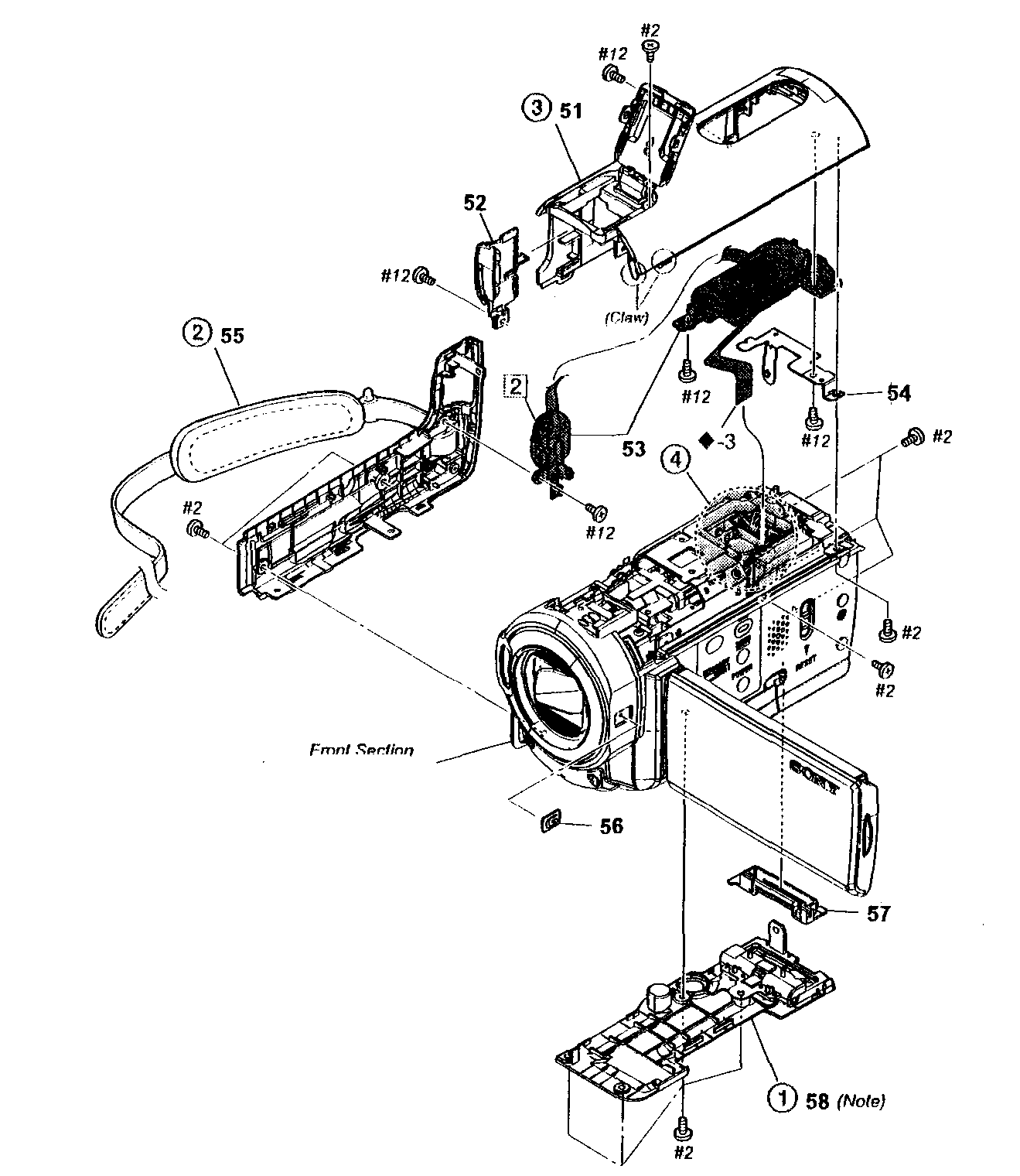

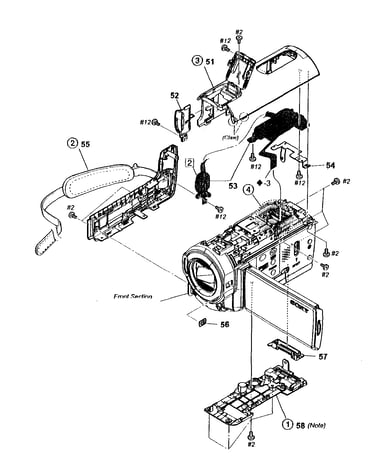

Overall assy diagram

Sony sw block,c

Part #148758711

The manufacturer no longer makes this part, and there's no substitute part

Sheet 417420801
#308

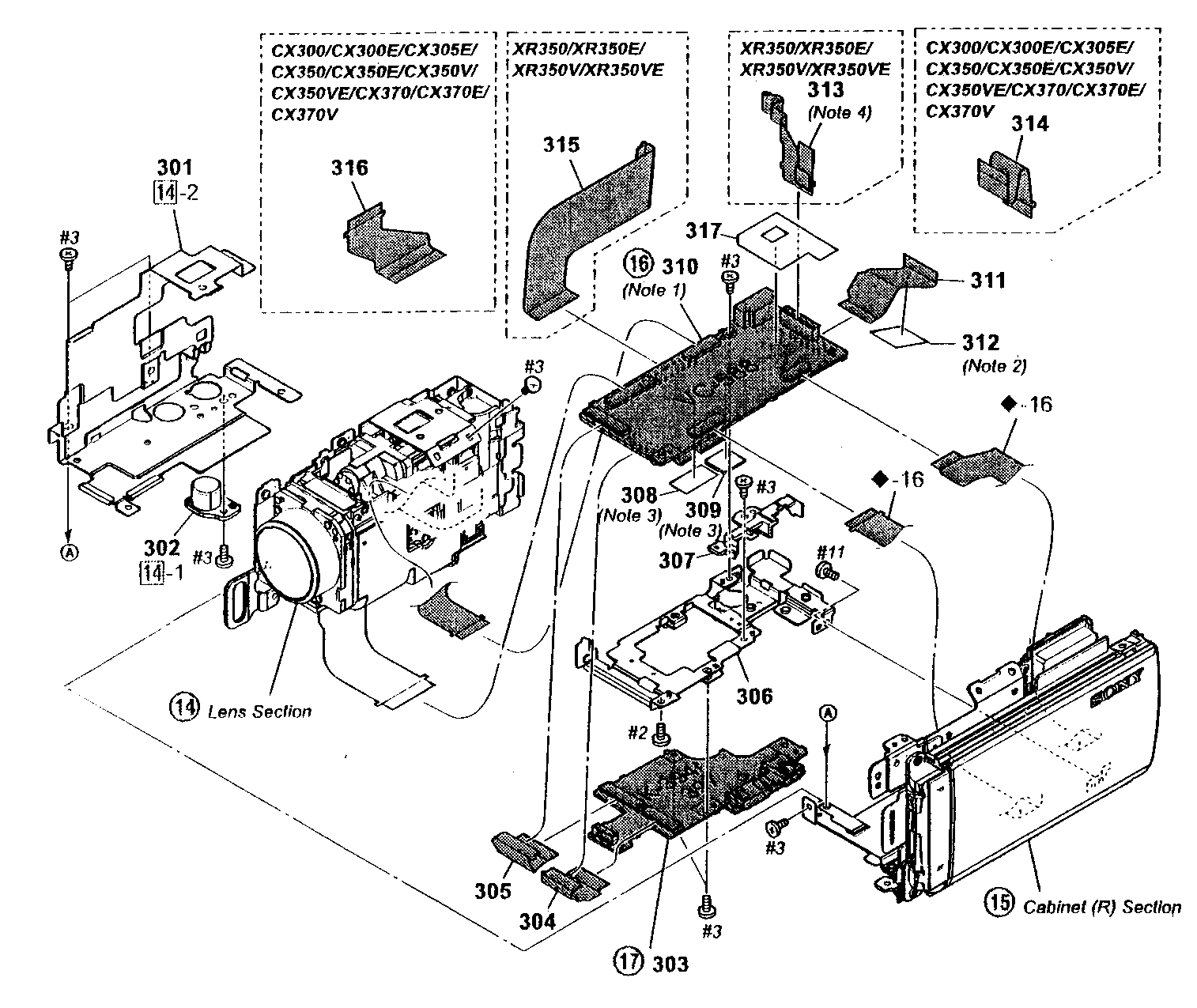

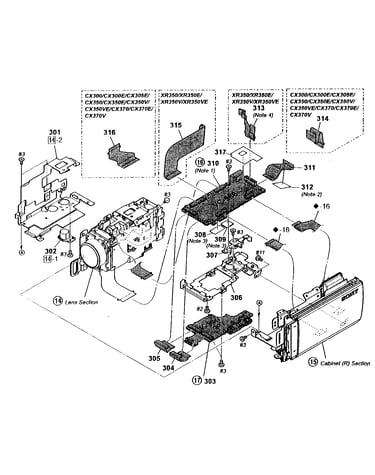

Main section diagram

Sheet

Part #417420801

The manufacturer no longer makes this part, and there's no substitute part

Flash Unit 148759111
#251

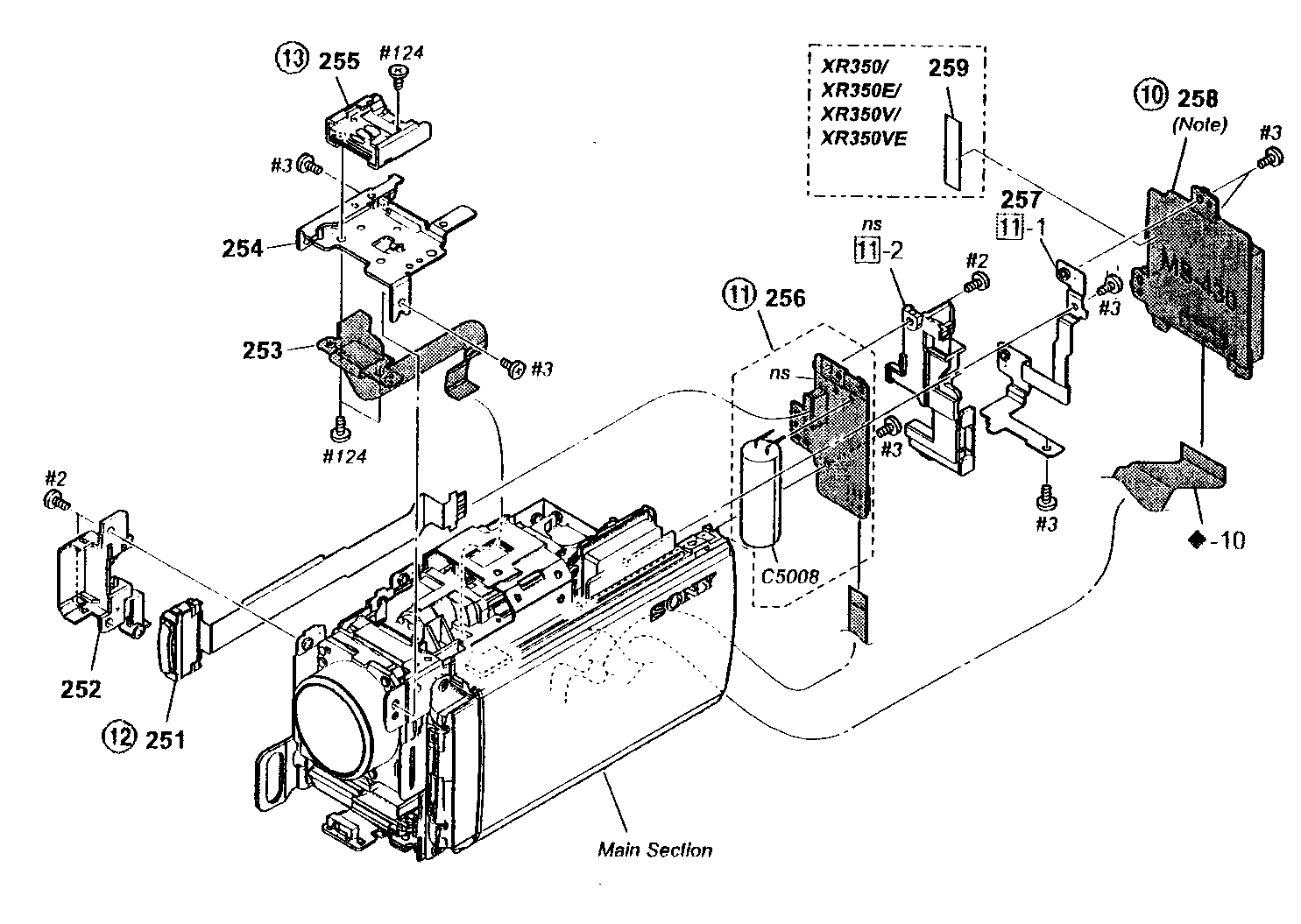

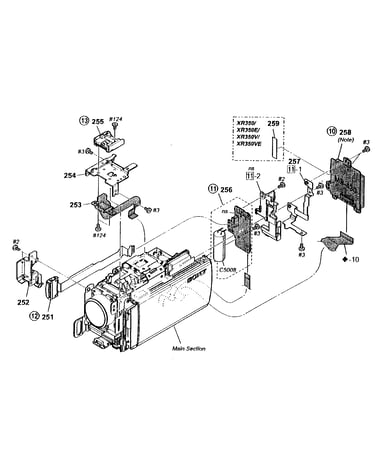

Chassis diagram

Flash unit

Part #148759111

The manufacturer no longer makes this part, and there's no substitute part

Device Lens A1733588A
#354

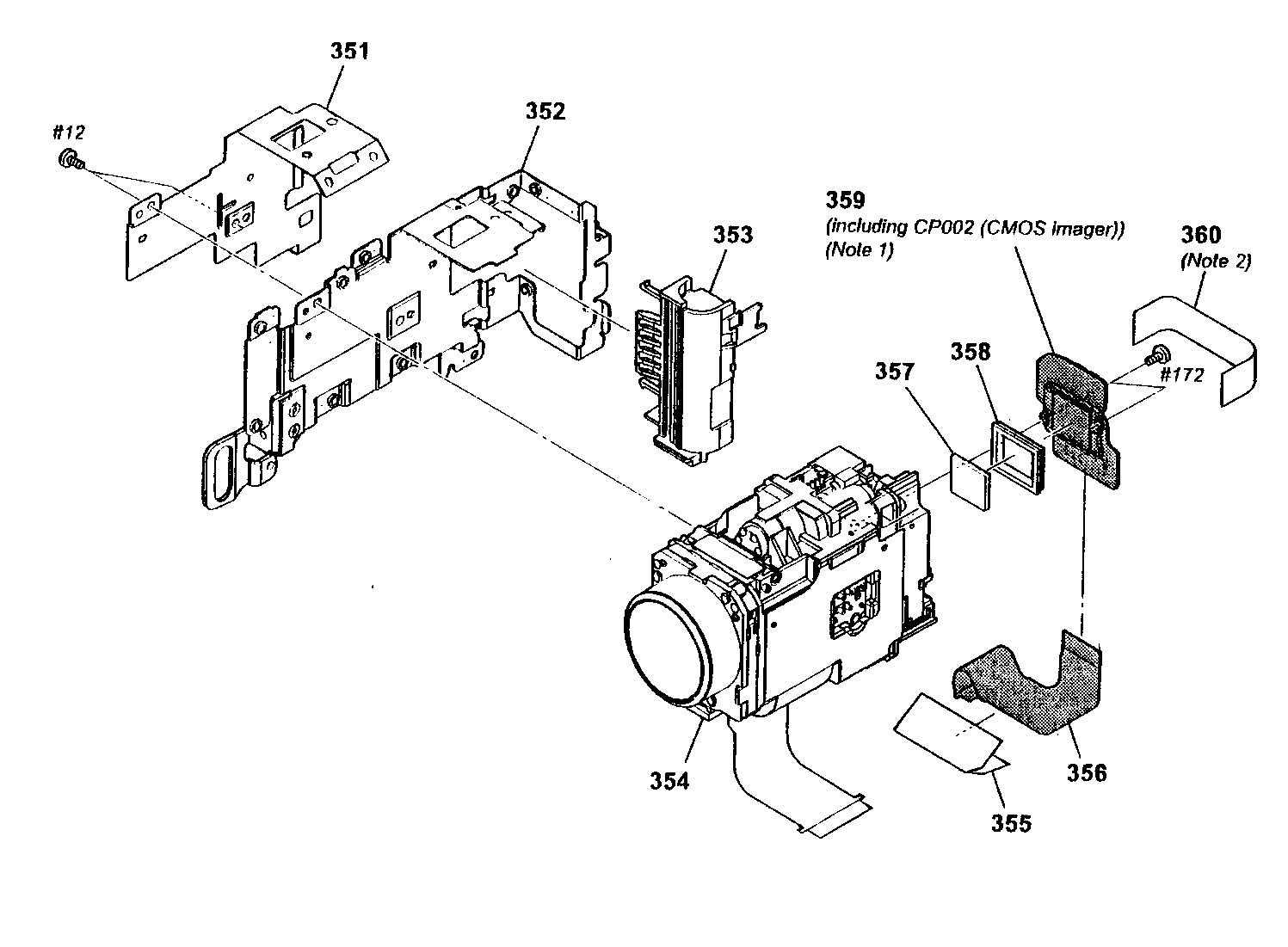

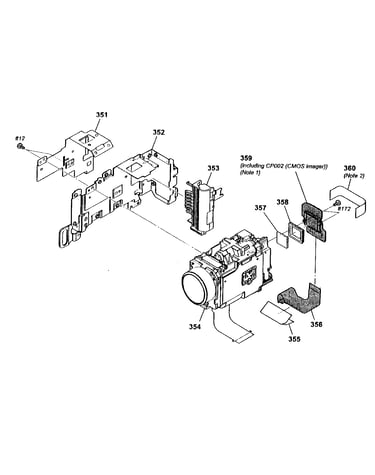

Lens assy diagram

Device lens

Part #A1733588A

The manufacturer no longer makes this part, and there's no substitute part

Cushion 417400701
#458

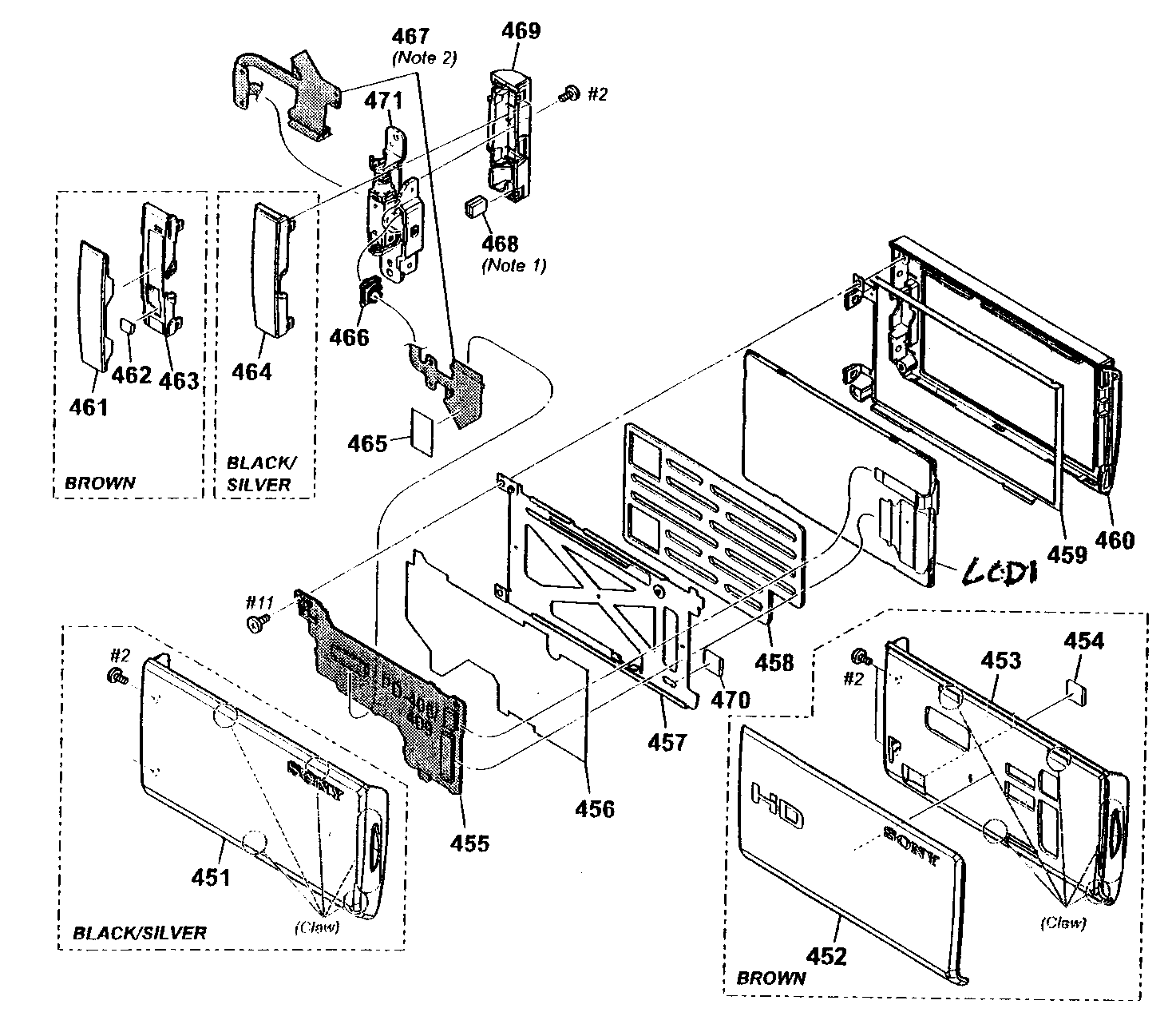

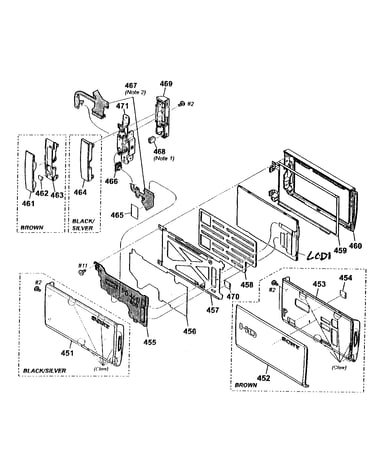

Lcd section diagram

Cushion

Part #417400701

The manufacturer no longer makes this part, and there's no substitute part

Pcb,flex 188022911
#467

Lcd section diagram

Pcb,flex

Part #188022911

The manufacturer no longer makes this part, and there's no substitute part

Sheet 417508501
#409

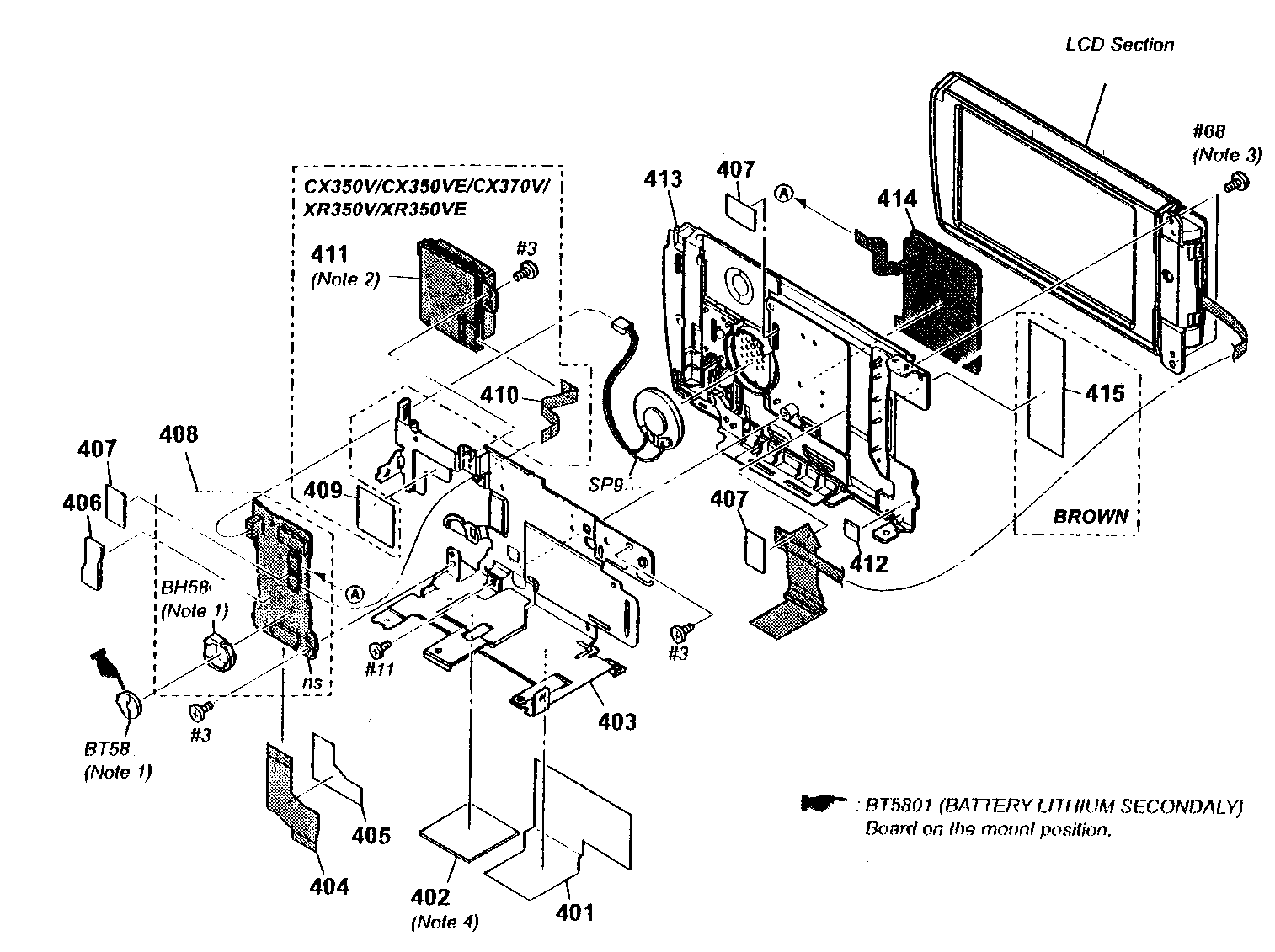

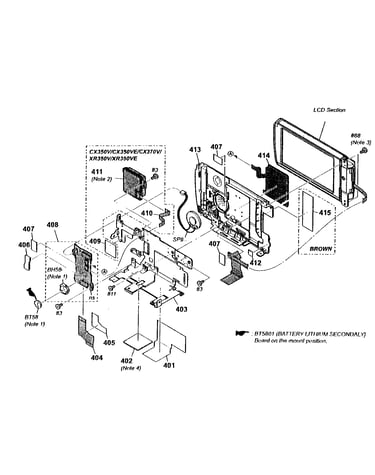

Right cabinet diagram

Sheet

Part #417508501

The manufacturer no longer makes this part, and there's no substitute part

Pd-405 Pcb A1760172A
#455

Lcd section diagram

Pd-405 pcb

Part #A1760172A

The manufacturer no longer makes this part, and there's no substitute part

Guide 417508401
#57

Overall assy diagram

Guide

Part #417508401

The manufacturer no longer makes this part, and there's no substitute part

Insl.sheet 417508701
#405

Right cabinet diagram

Insl.sheet

Part #417508701

The manufacturer no longer makes this part, and there's no substitute part
