Model # CRC18T2-P1304405M Official Amana microwave

Here are the diagrams and repair parts for Official Amana CRC18T2-P1304405M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

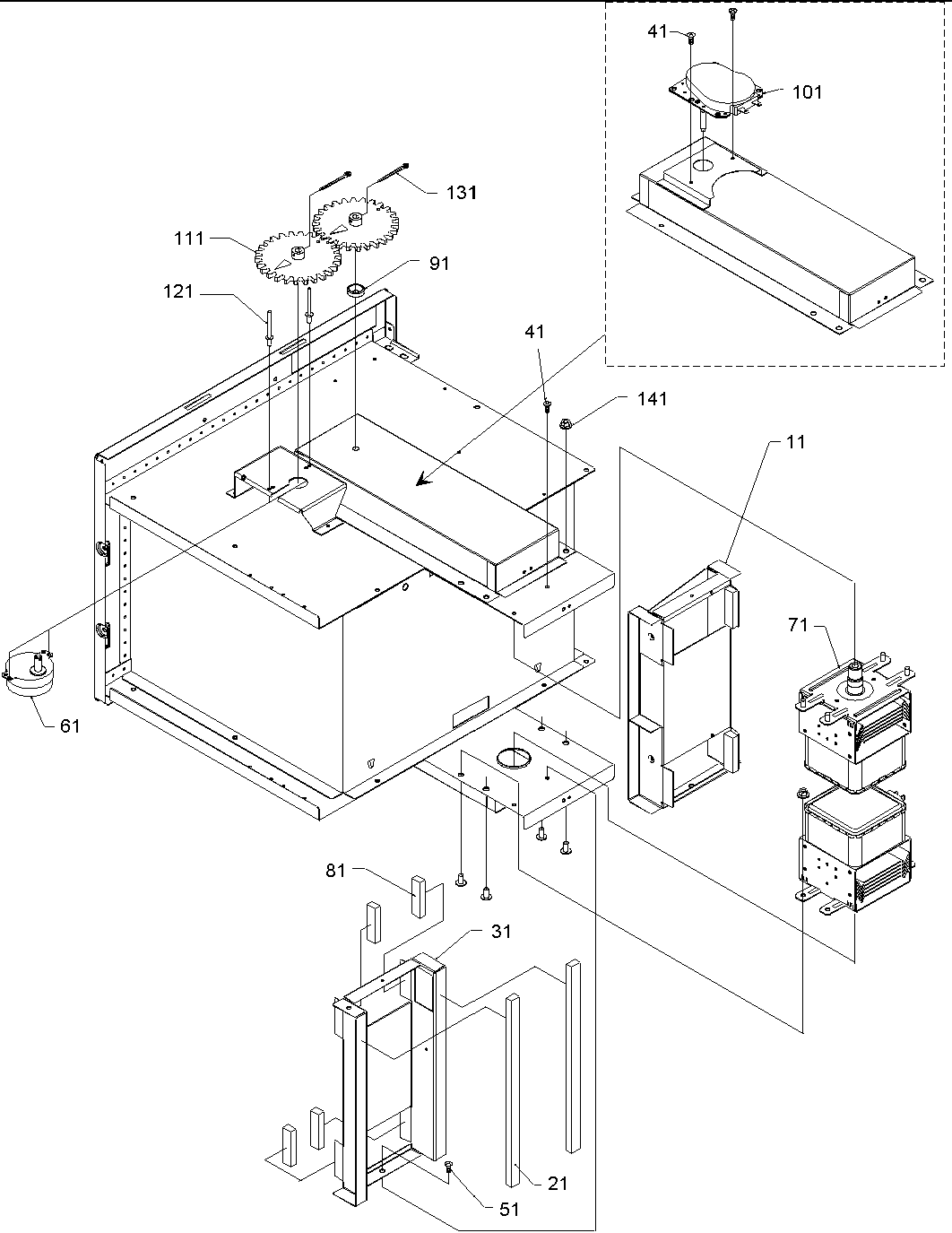

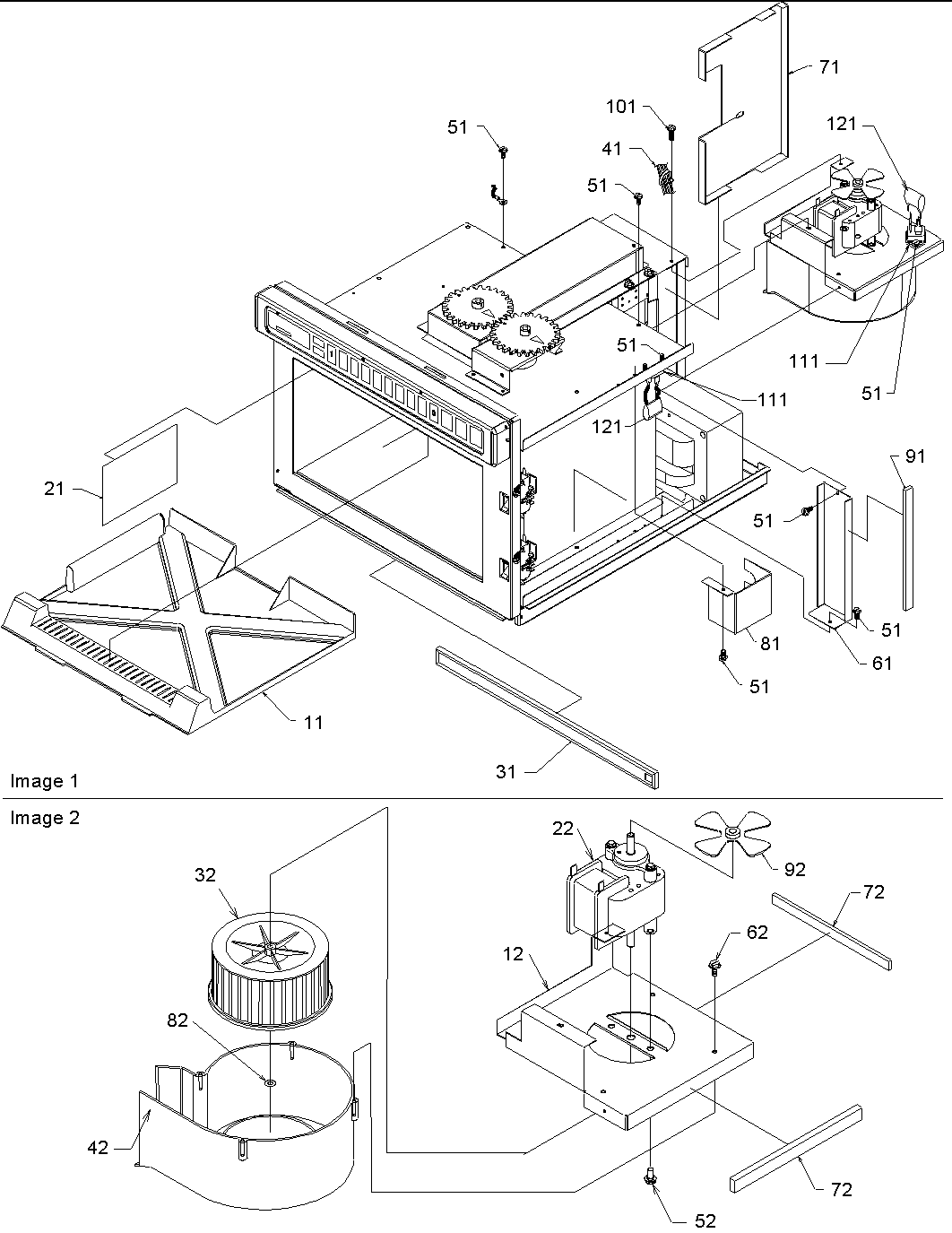

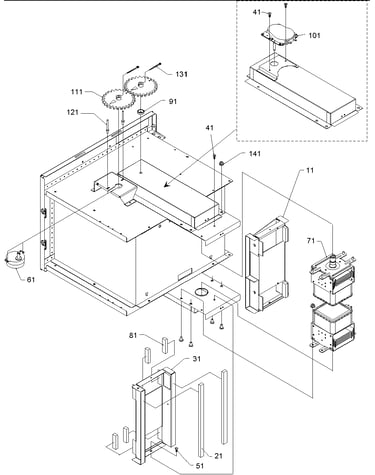

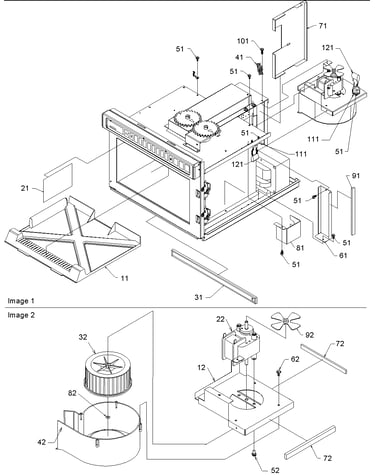

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Sealer M0275598
#161

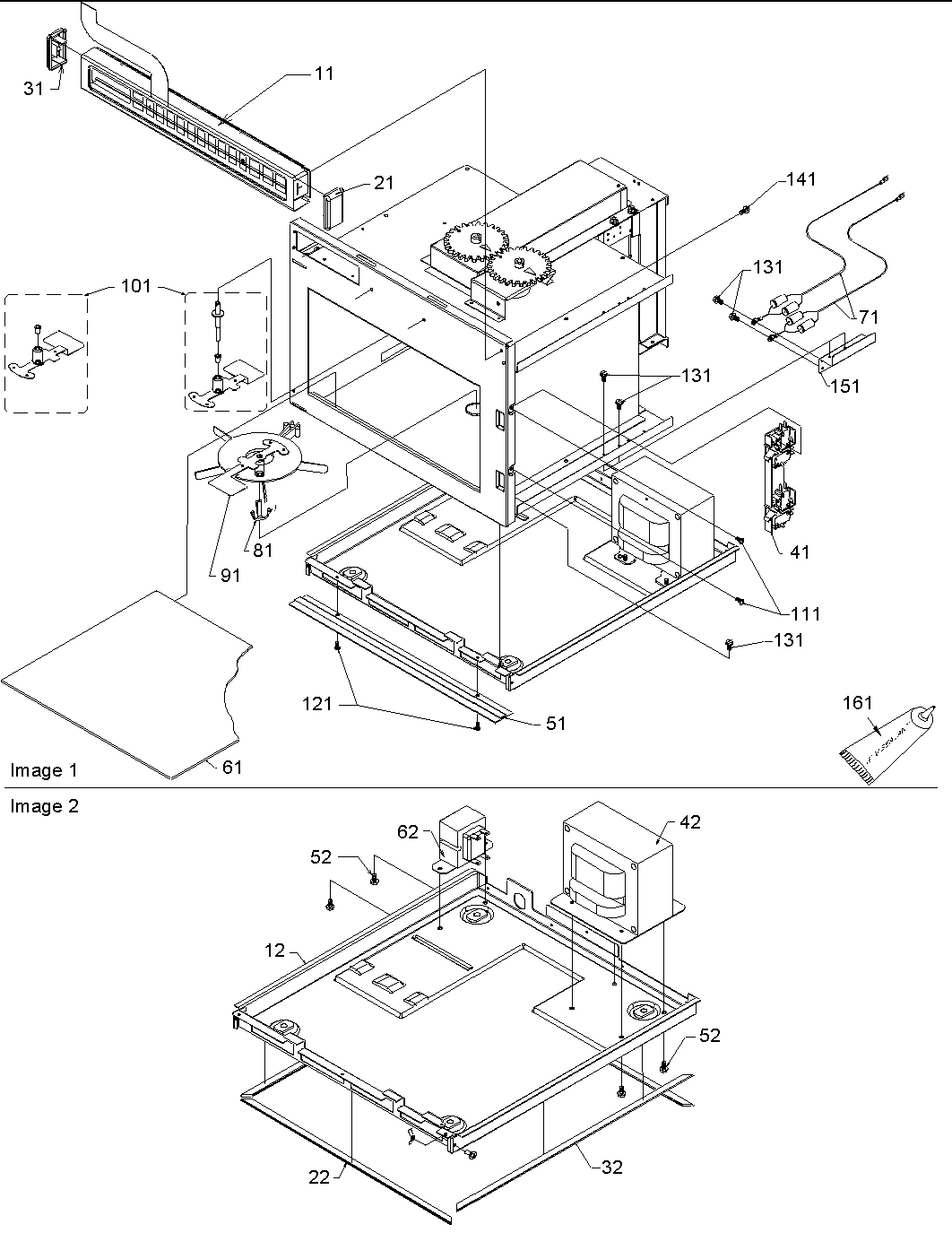

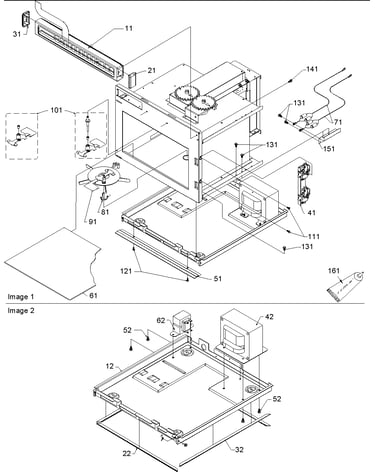

Control/antenna & basepan assembly diagram

Sealer

Part #M0275598

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275598. Substitute parts can look different from the original.
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Glass Tray R0150144
#61

Control/antenna & basepan assembly diagram

Glass tray

Part #R0150144

Replaced by #R0150144

?
Manufacturer substitution
This part replaces R0150144. Substitute parts can look different from the original.
$41.19 |
13% OFF Phone Price : $47.19
In Stock
Capacitor D8547929
#61

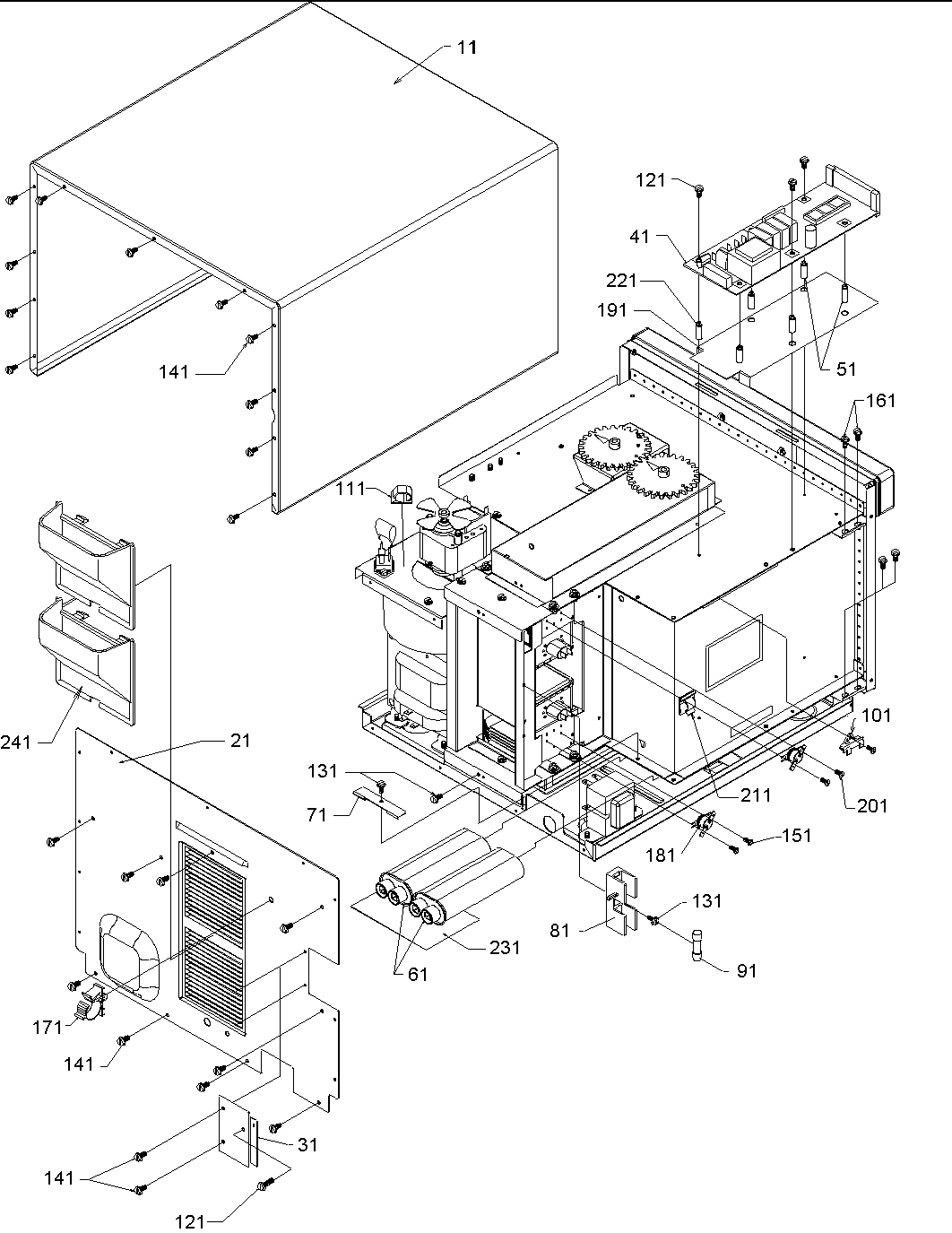

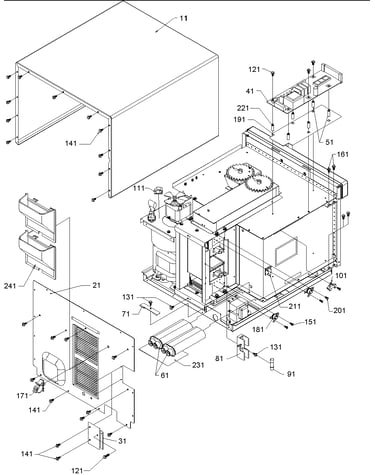

Electrical components diagram

Capacitor

Part #D8547929

Replaced by #59001649

?
Manufacturer substitution
This part replaces D8547929. Substitute parts can look different from the original.
$31.49
In Stock
Transformer C8901509
#62

Control/antenna & basepan assembly diagram

Transformer

Part #C8901509

Replaced by #C8901509

?
Manufacturer substitution
This part replaces C8901509. Substitute parts can look different from the original.
$47.20
In Stock
Door Handle 12133901
#151

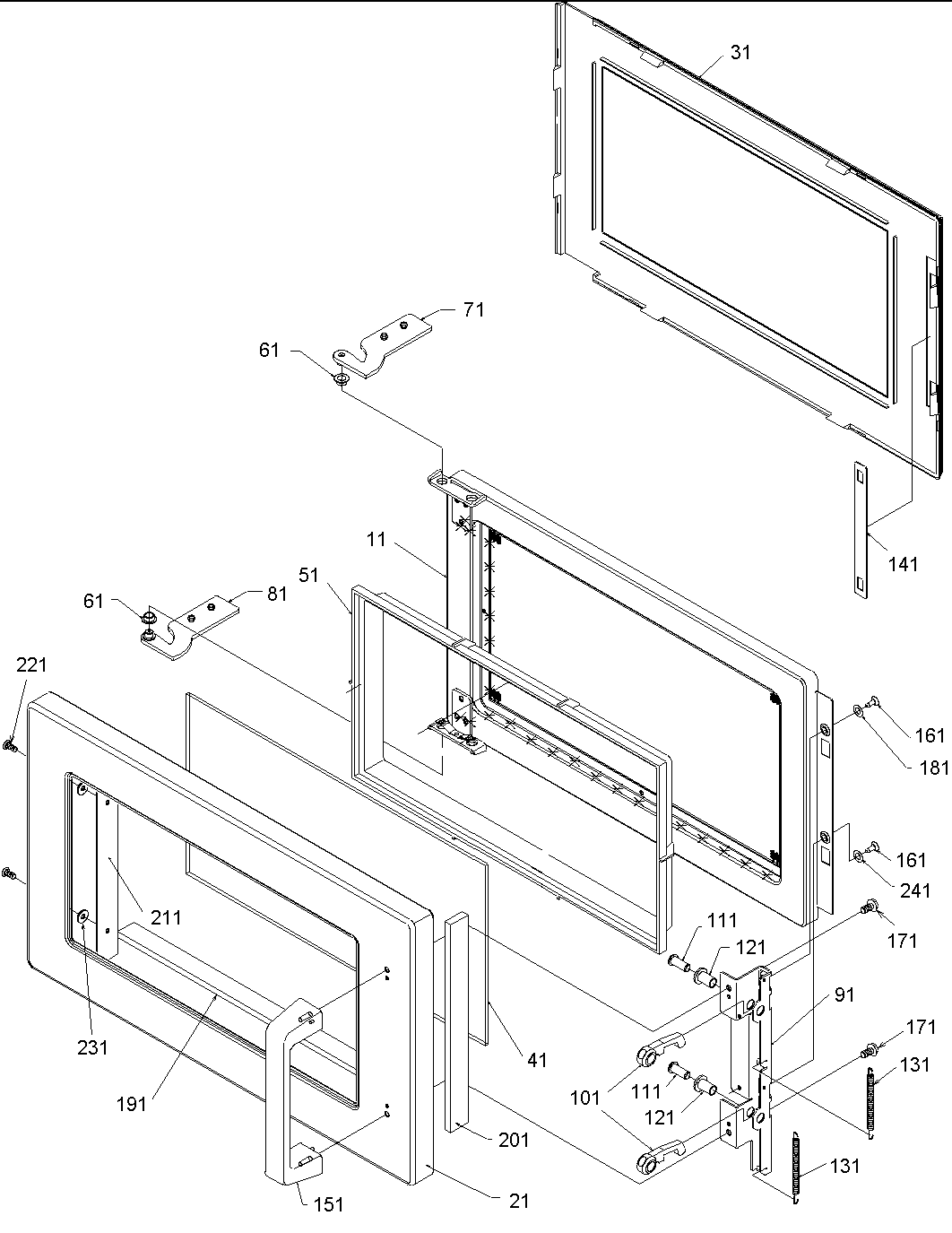

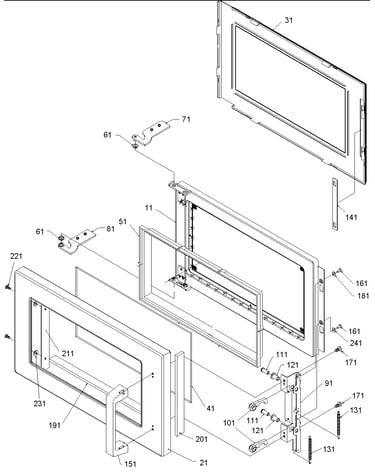

Door assy diagram

Door handle

Part #12133901

The manufacturer no longer makes this part, and there's no substitute part

Strap-capacitor 12132501
#71

Electrical components diagram

Strap-capacitor

Part #12132501

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief M0370003
#21

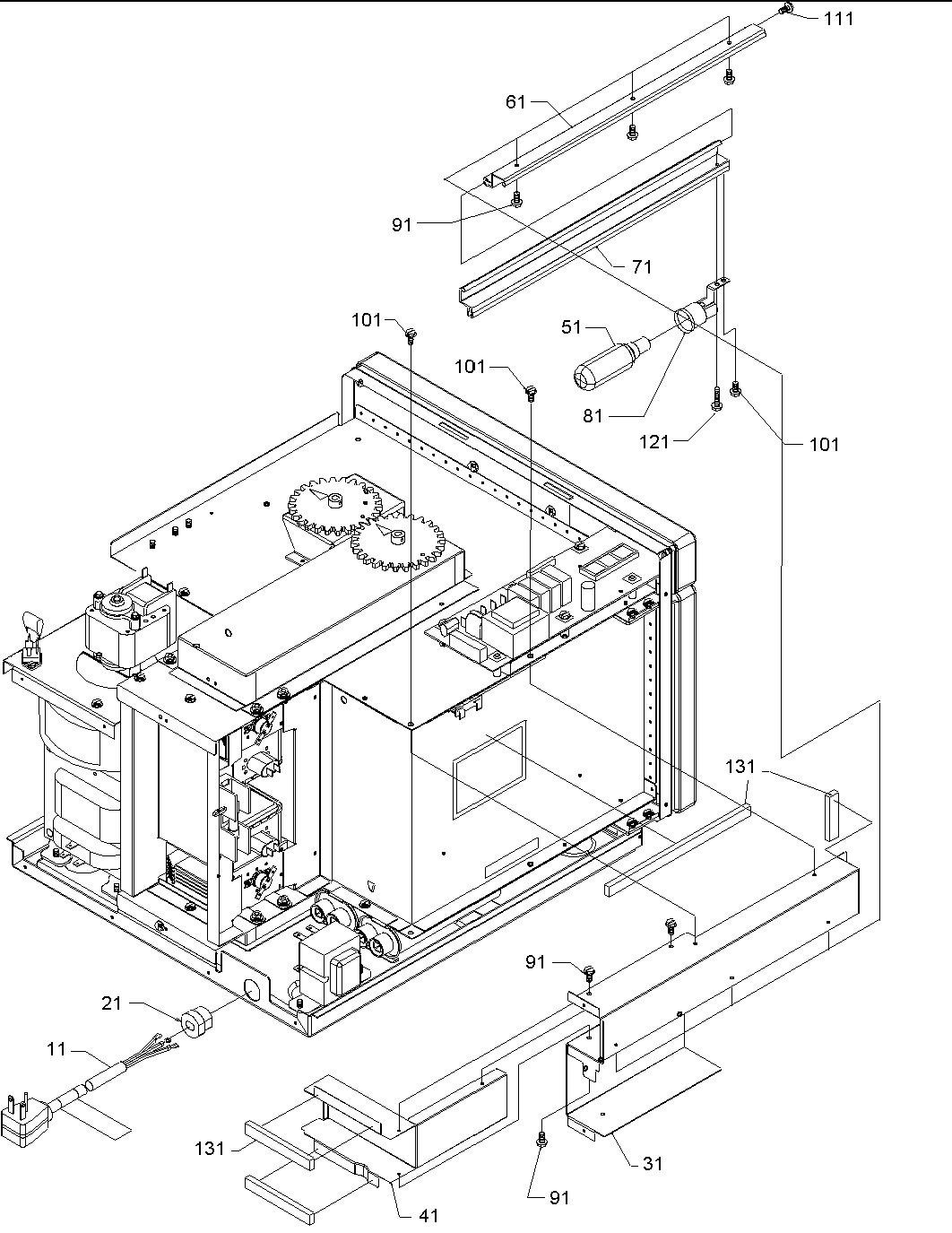

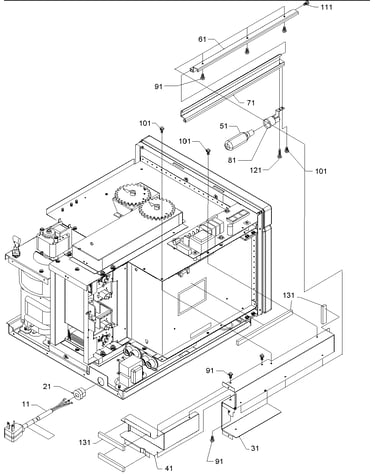

Light diagram

Strain relief

Part #M0370003

The manufacturer no longer makes this part, and there's no substitute part

Plate 12126806
#81

Door assy diagram

Plate

Part #12126806

The manufacturer no longer makes this part, and there's no substitute part

Access Pan 12296802
#21

Electrical components diagram

Access pan

Part #12296802

The manufacturer no longer makes this part, and there's no substitute part

Assy, Touch Pnl R0150145
#11

Control/antenna & basepan assembly diagram

Assy, touch pnl

Part #R0150145

The manufacturer no longer makes this part, and there's no substitute part
