Model # WLTL86541 Official Weslo cadence 865 treadmill

Here are the diagrams and repair parts for Official Weslo WLTL86541 cadence 865 treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038
#3

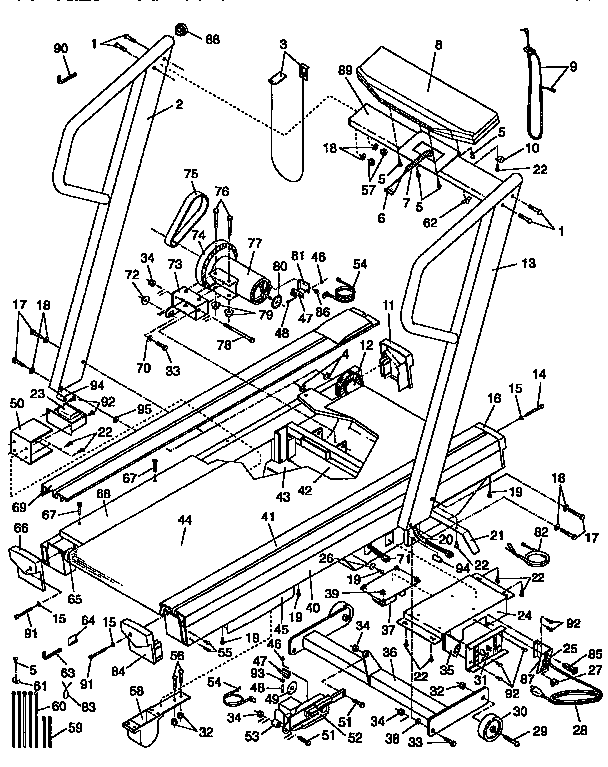

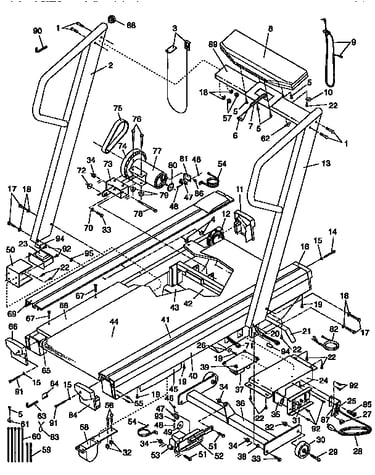

Unit parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229
#28

Unit parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382
#85

Unit parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Belt 118017
#75

Unit parts diagram

Belt

Part #118017

Replaced by #220769

?
Manufacturer substitution
This part replaces 118017. Substitute parts can look different from the original.
This item is not returnable
$15.29 |
12% OFF Phone Price : $17.29
In Stock
Weider Exercise Equipment Optic Sensor 102955
#47

Unit parts diagram

Weider exercise equipment optic sensor

Part #102955

This item is not returnable
$9.29 |
10% OFF Phone Price : $10.29
In Stock
Weider Exercise Equipment Screw 112609
#14

Unit parts diagram

Weider exercise equipment screw

Part #112609

This item is not returnable
$2.16
In Stock
Weider Exercise Equipment Hex Nut 105477
#79

Unit parts diagram

Weider exercise equipment hex nut

Part #105477

This item is not returnable
$2.16
In Stock
Black & Decker Clamp,8cabl 016057
#60

Unit parts diagram

Black & decker clamp,8cabl

Part #016057

This item is not returnable
$2.16
In Stock
Stnrlf,7/16" 115872
#10

Unit parts diagram

Stnrlf,7/16"

Part #115872

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 108080
#22

Unit parts diagram

Exercise equipment screw

Part #108080

This item is not returnable
$2.16
In Stock
