Model # AJCQ12ACDW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ12ACDW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Special Screw WP01X10021
#1440

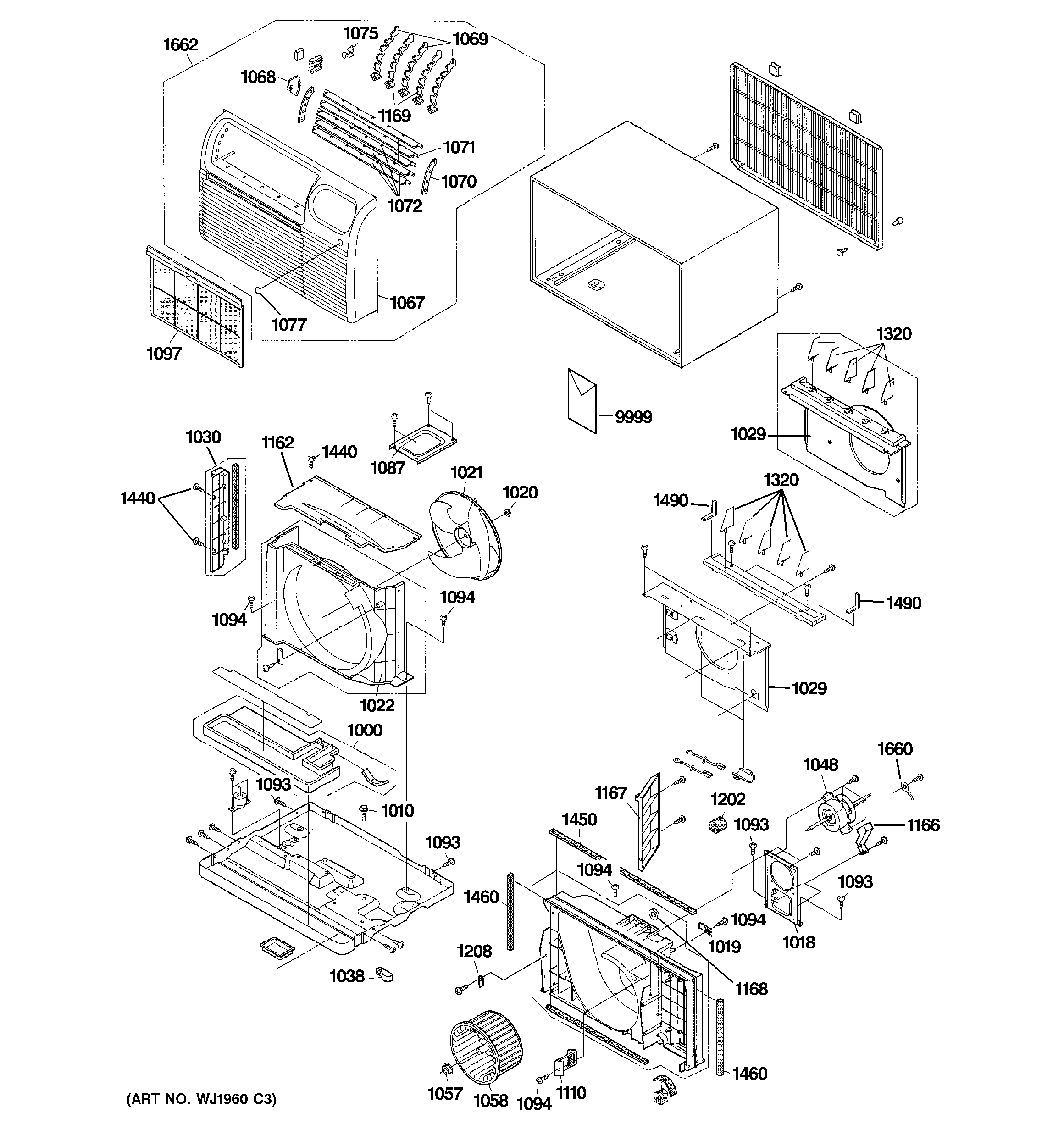

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Louver Holder WJ01X10142
#1169

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
$5.00
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Filter Drier WJ56X10009
#1001

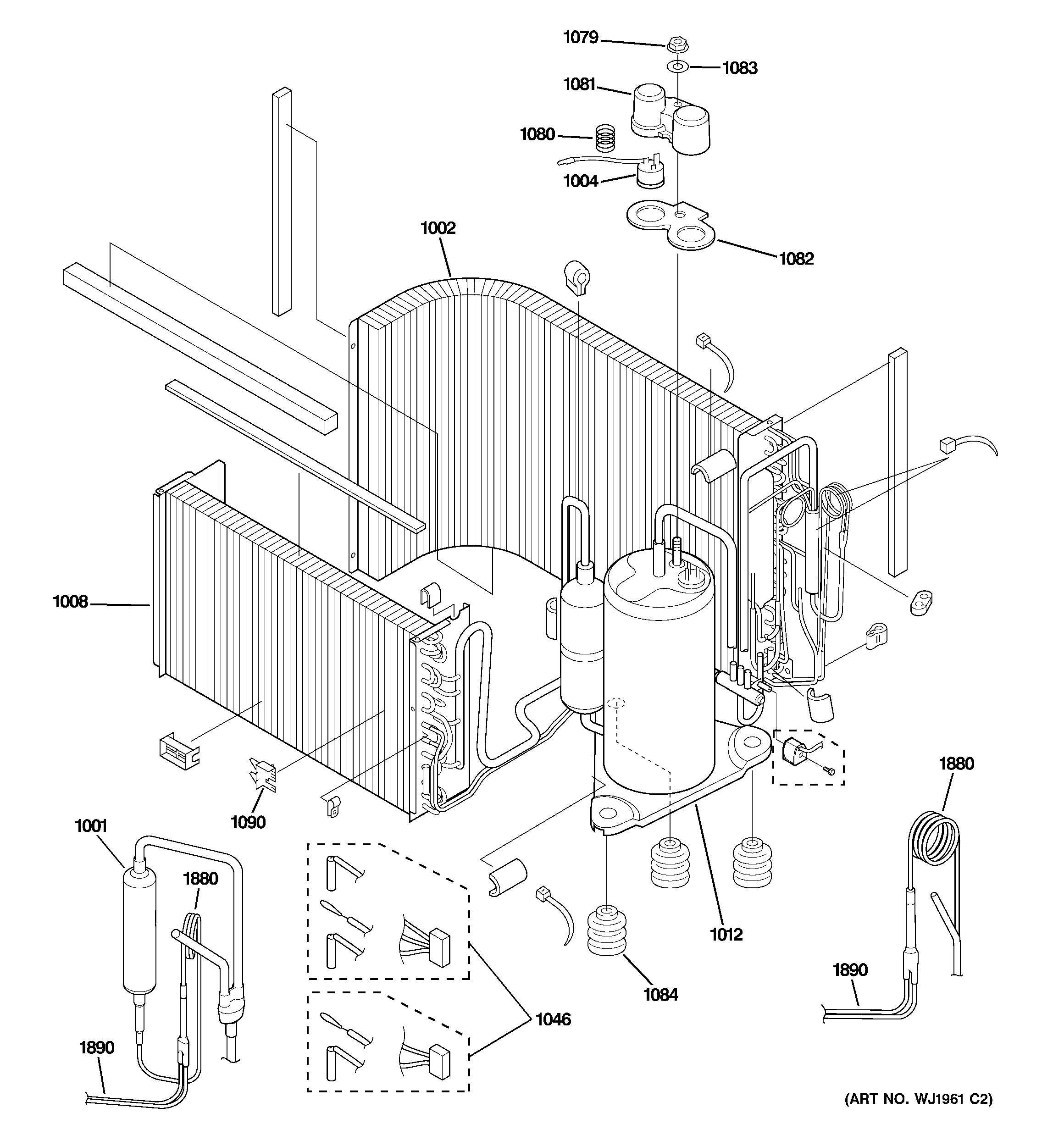

Sealed system & components diagram

Filter drier

Part #WJ56X10009

$30.33
In Stock
Room Air Conditioner Power Cord WJ35X10143
#1042

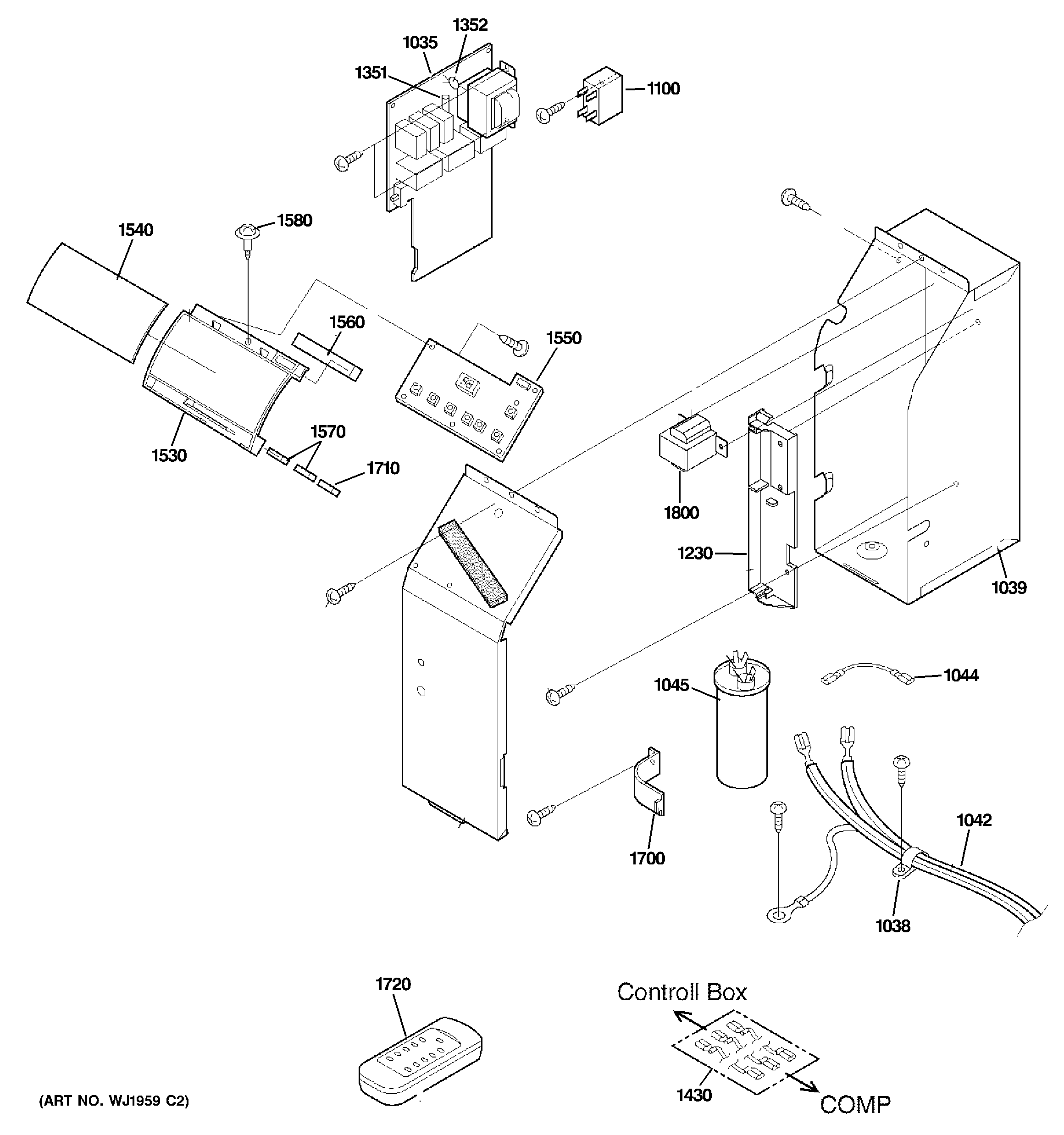

Control parts diagram

Room air conditioner power cord

Part #WJ35X10143

$123.24 |
9% OFF Phone Price : $135.24
In Stock
U&c/iis Air 49-7597-5
#9999

Cabinet & components diagram

U&c/iis air

Part #49-7597-5

$21.99
In Stock
Power Cord WJ35X10147
#1042

Control parts diagram

Power cord

Part #WJ35X10147

Replaced by #WJ35X10143

?
Manufacturer substitution
This part replaces WJ35X10147. Substitute parts can look different from the original.
$123.24 |
9% OFF Phone Price : $135.24
In Stock
Motor Cover WJ79X10200
#1166

Cabinet & components diagram

Motor cover

Part #WJ79X10200

The manufacturer no longer makes this part, and there's no substitute part

Clamp WJ03X10001
Clamp

Part #WJ03X10001

The manufacturer no longer makes this part, and there's no substitute part

Condenser WJ87X10237
#1002

Sealed system & components diagram

Condenser

Part #WJ87X10237

The manufacturer no longer makes this part, and there's no substitute part
