Model # DF17ACLWH Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag DF17ACLWH freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

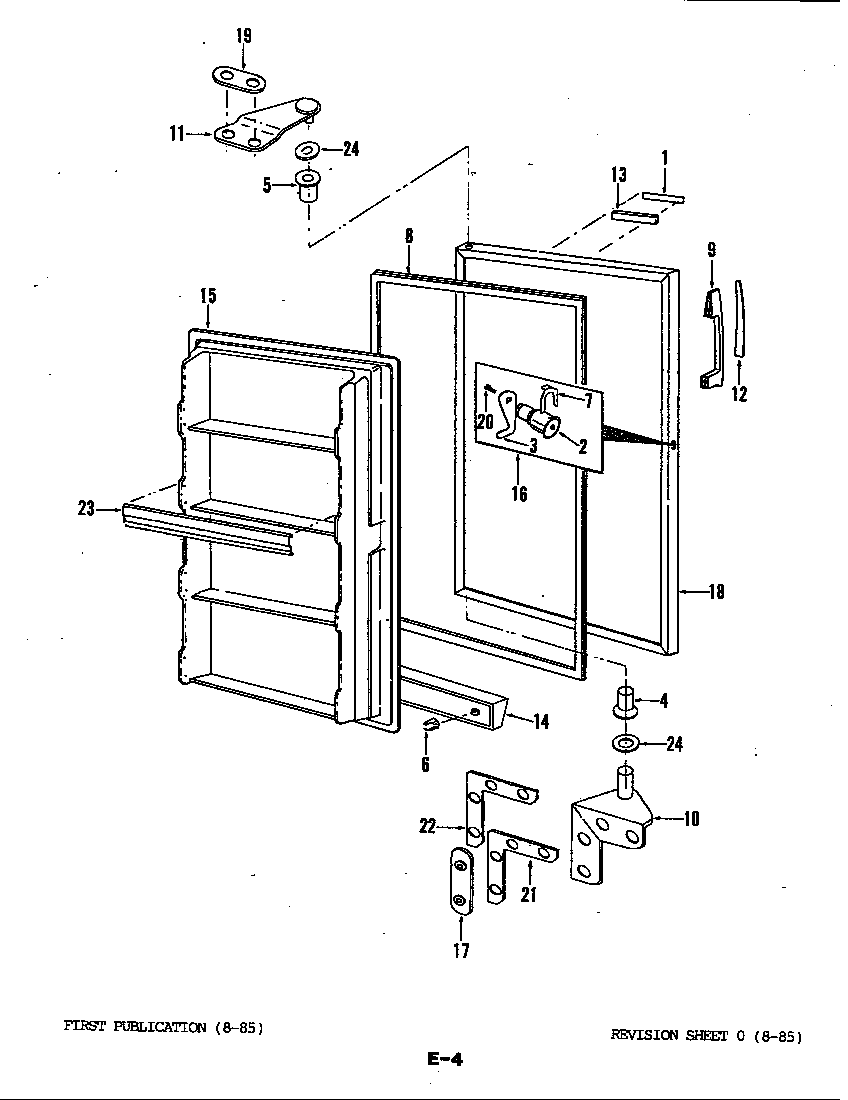

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Drier 13900
#9

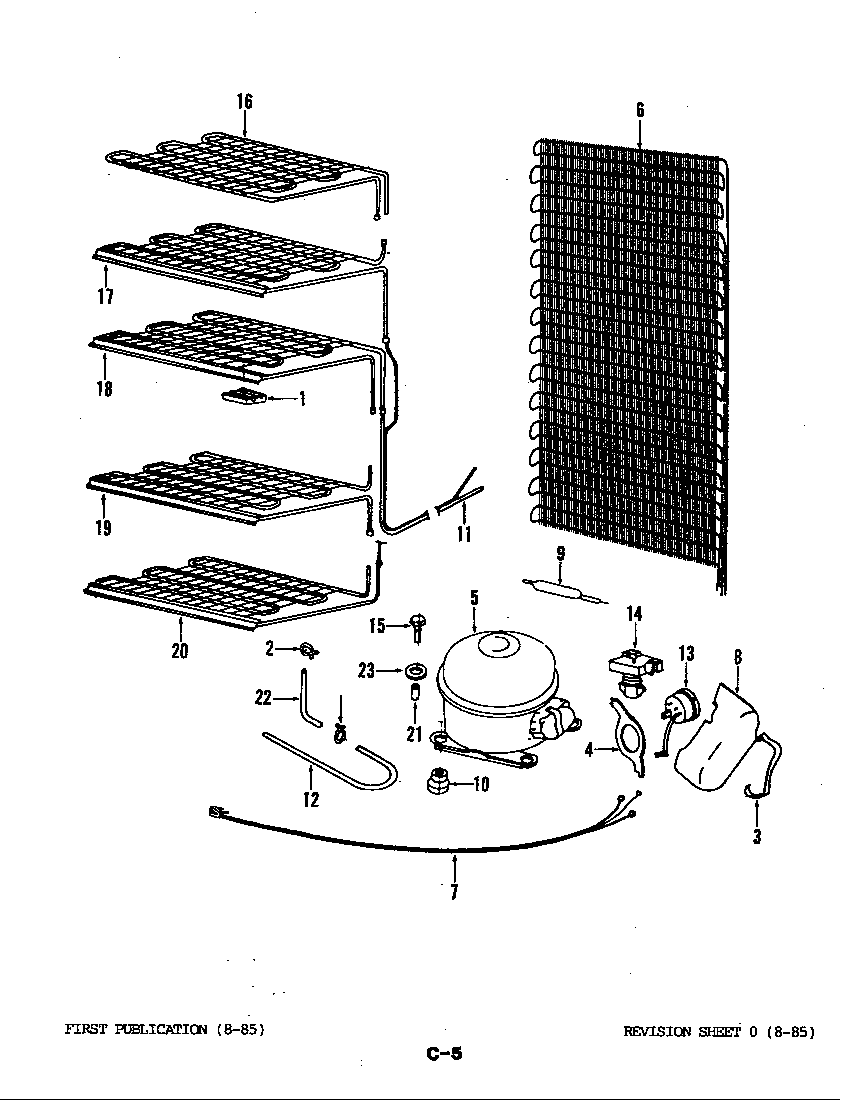

Unit compartment & system diagram

Drier

Part #13900

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 046789-01
#17

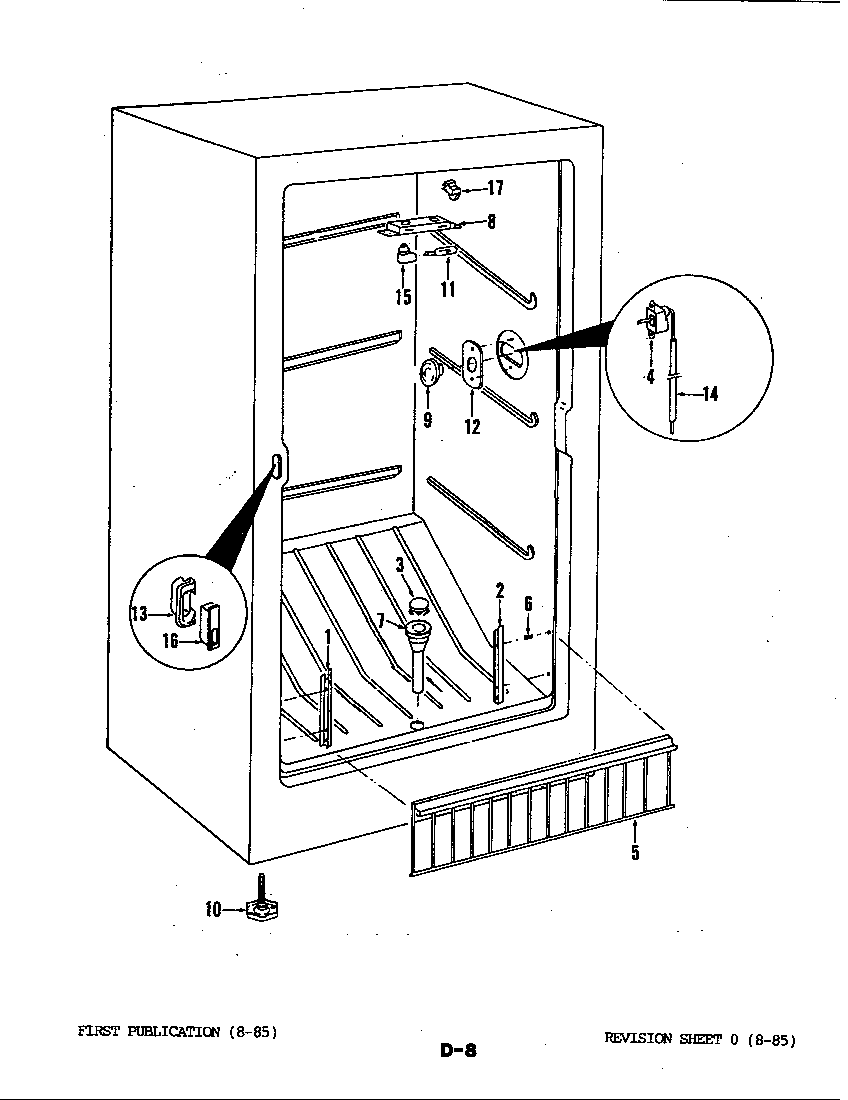

Freezer (df15acl, 17abl, 17acl, 17aclt) (df15aclwh) (df17ablwh) (df17aclwh) (df17aclwht) diagram

Refrigerator light switch

Part #046789-01

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 046789-01. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Screw 046374-14
Refrigerator screw

Part #046374-14

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 046374-14. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Compressor RMC250-1
#5

Unit compartment & system diagram

Compressor

Part #RMC250-1

Replaced by #W10439652

?
Manufacturer substitution
This part replaces RMC250-1. Substitute parts can look different from the original.
$265.04 |
$12.00 OFF Phone Price : $277.04
In Stock
Lock Bolt 046897-02
Lock bolt

Part #046897-02

Replaced by #3-35284-001

?
Manufacturer substitution
This part replaces 046897-02. Substitute parts can look different from the original.
$20.56 |
23% OFF Phone Price : $26.56
In Stock
Control Knob 005308-15
Control knob

Part #005308-15

Replaced by #4-81294-004

?
Manufacturer substitution
This part replaces 005308-15. Substitute parts can look different from the original.
$18.29 |
10% OFF Phone Price : $20.29
In Stock
Kick Plate 045532-07
Kick plate

Part #045532-07

Replaced by #WP4-60461-005

?
Manufacturer substitution
This part replaces 045532-07. Substitute parts can look different from the original.
$46.59 |
11% OFF Phone Price : $52.59
In Stock
Clamp 049137-01
#1

Unit compartment & system diagram

Clamp

Part #049137-01

Replaced by #1-80308-101

?
Manufacturer substitution
This part replaces 049137-01. Substitute parts can look different from the original.
$29.89
In Stock
Leveling Leg 6012-8
Leveling leg

Part #6012-8

Replaced by #W11117769

?
Manufacturer substitution
This part replaces 6012-8. Substitute parts can look different from the original.
$12.39 |
14% OFF Phone Price : $14.39
In Stock
Screw 046897-05
Screw

Part #046897-05

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 046897-05. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
