Model # 217592041 Official Craftsman troller motor

Here are the diagrams and repair parts for Official Craftsman 217592041 troller motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 63 parts |

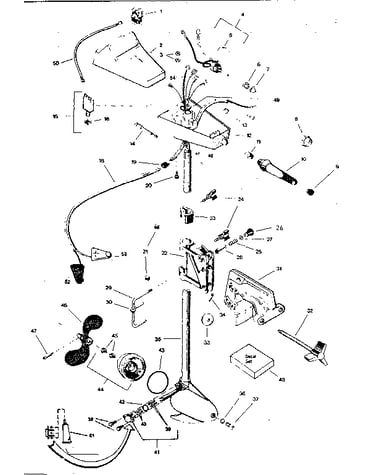

Troller motor diagram

Resistor

Part #36571

The manufacturer no longer makes this part, and there's no substitute part

#45

Troller motor diagram

Oil seal

Part #26329

The manufacturer no longer makes this part, and there's no substitute part

#28

Troller motor diagram

Roll pin

Part #7459

The manufacturer no longer makes this part, and there's no substitute part

Troller motor diagram

Rocker switch

Part #76341

The manufacturer no longer makes this part, and there's no substitute part

#11

Troller motor diagram

Sleeve

Part #66271

The manufacturer no longer makes this part, and there's no substitute part

217.586251 & 217.586270

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

#31

Troller motor diagram

Transom brkt

Part #36617-21

The manufacturer no longer makes this part, and there's no substitute part

#14

Troller motor diagram

Ret. pin

Part #76258

The manufacturer no longer makes this part, and there's no substitute part

#18

Troller motor diagram

Battry cable

Part #76517

The manufacturer no longer makes this part, and there's no substitute part

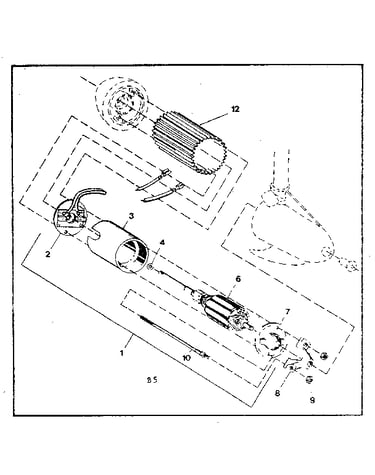

Electrical motor assembly diagram

Motor

Part #37036

The manufacturer no longer makes this part, and there's no substitute part
