Canon
Digital Camcorder

Model # DC410 Official Canon camcorder

Here are the diagrams and repair parts for Official Canon DC410 camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

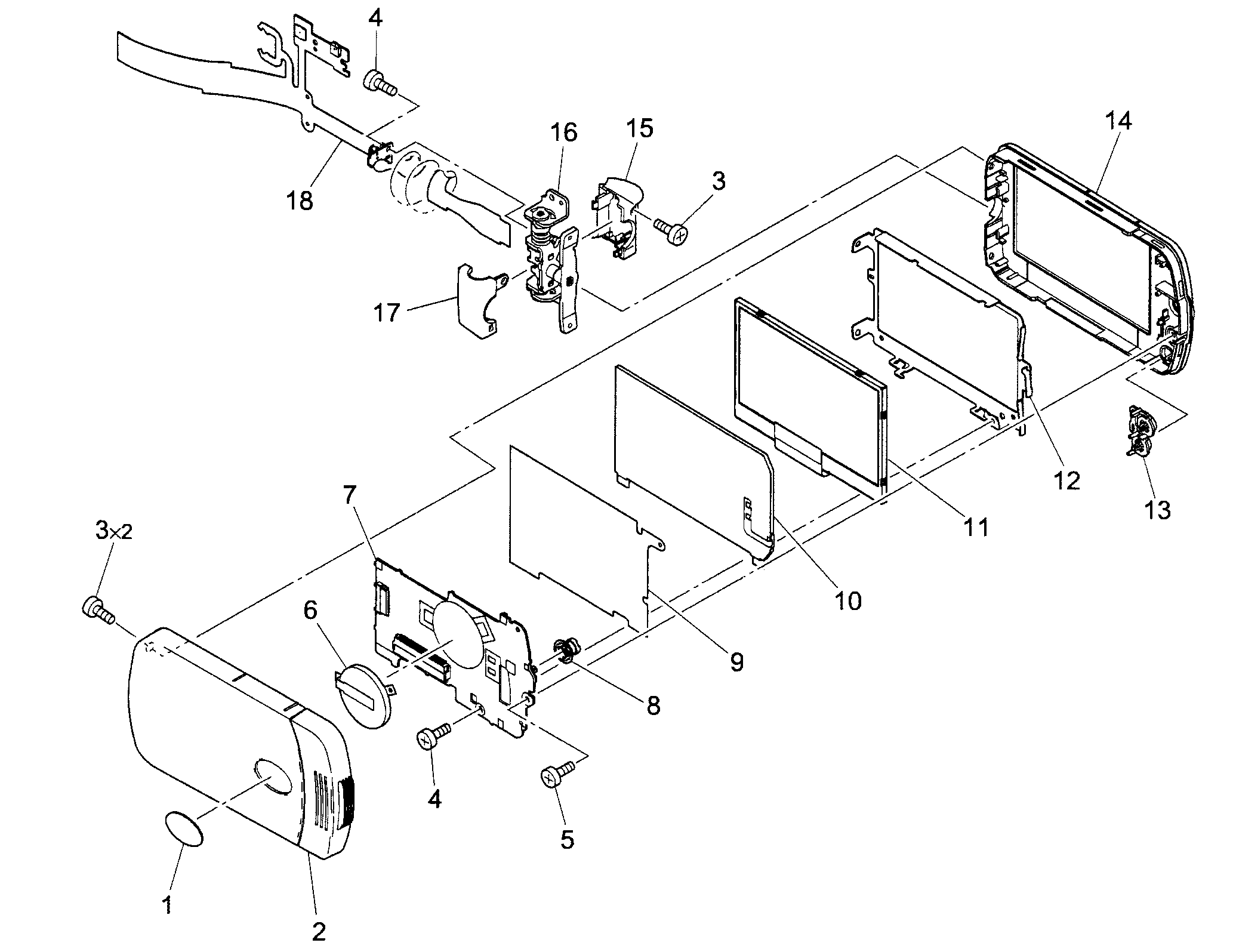

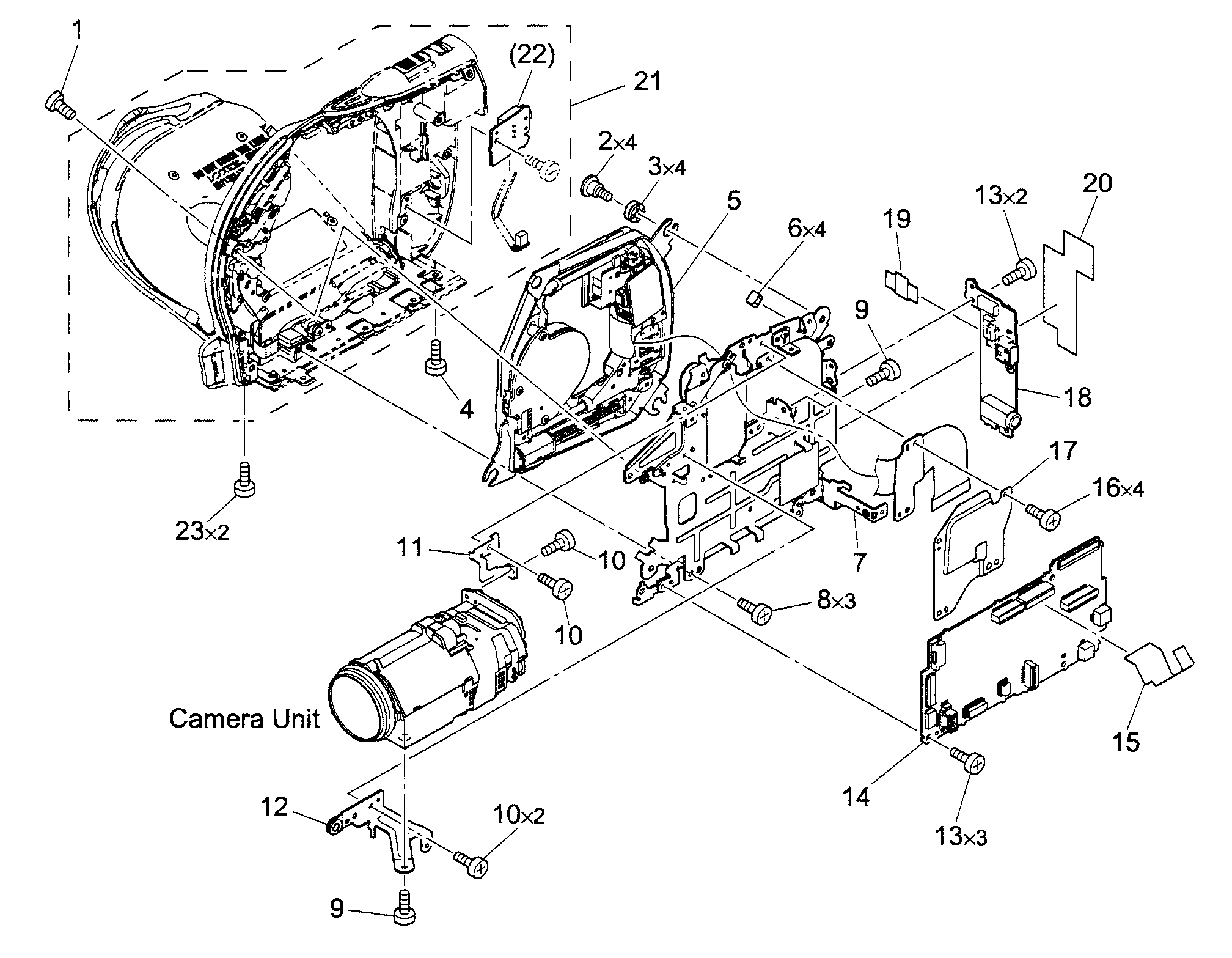

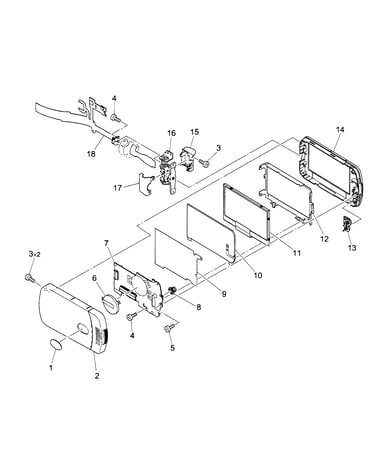

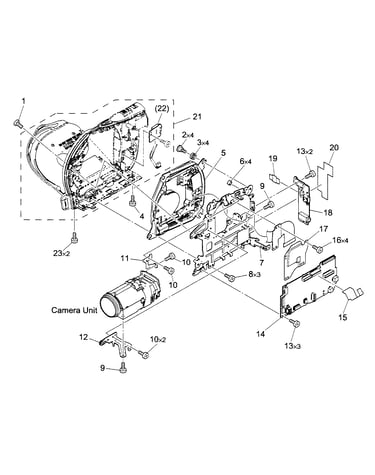

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Lens Assembly DG3-2590-000
#2

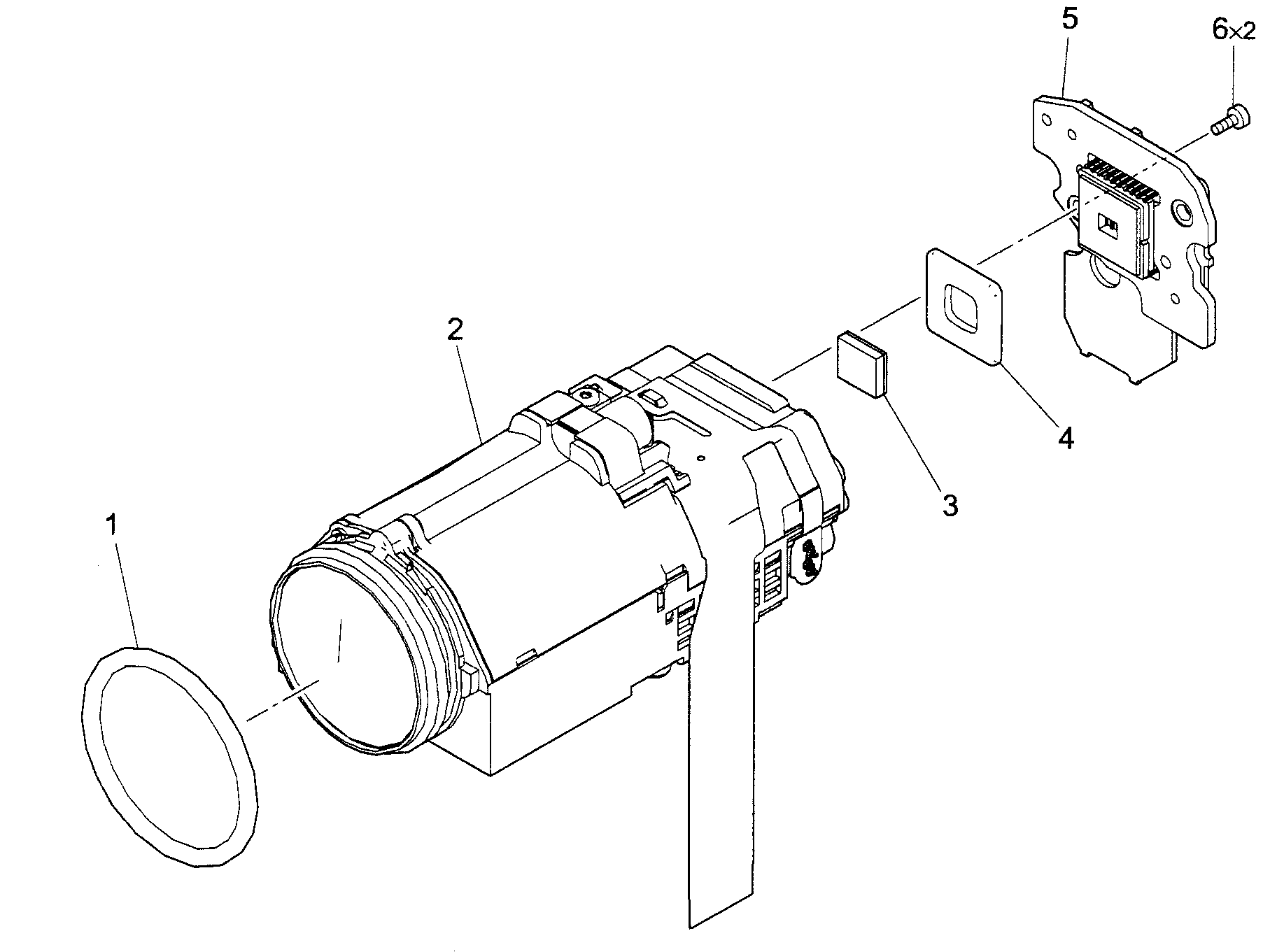

Lens assy diagram

Lens assembly

Part #DG3-2590-000

The manufacturer no longer makes this part, and there's no substitute part

Filter,opt DH9-3066-000
#3

Lens assy diagram

Filter,opt

Part #DH9-3066-000

The manufacturer no longer makes this part, and there's no substitute part

Capacitor DY4-4765-000
#2

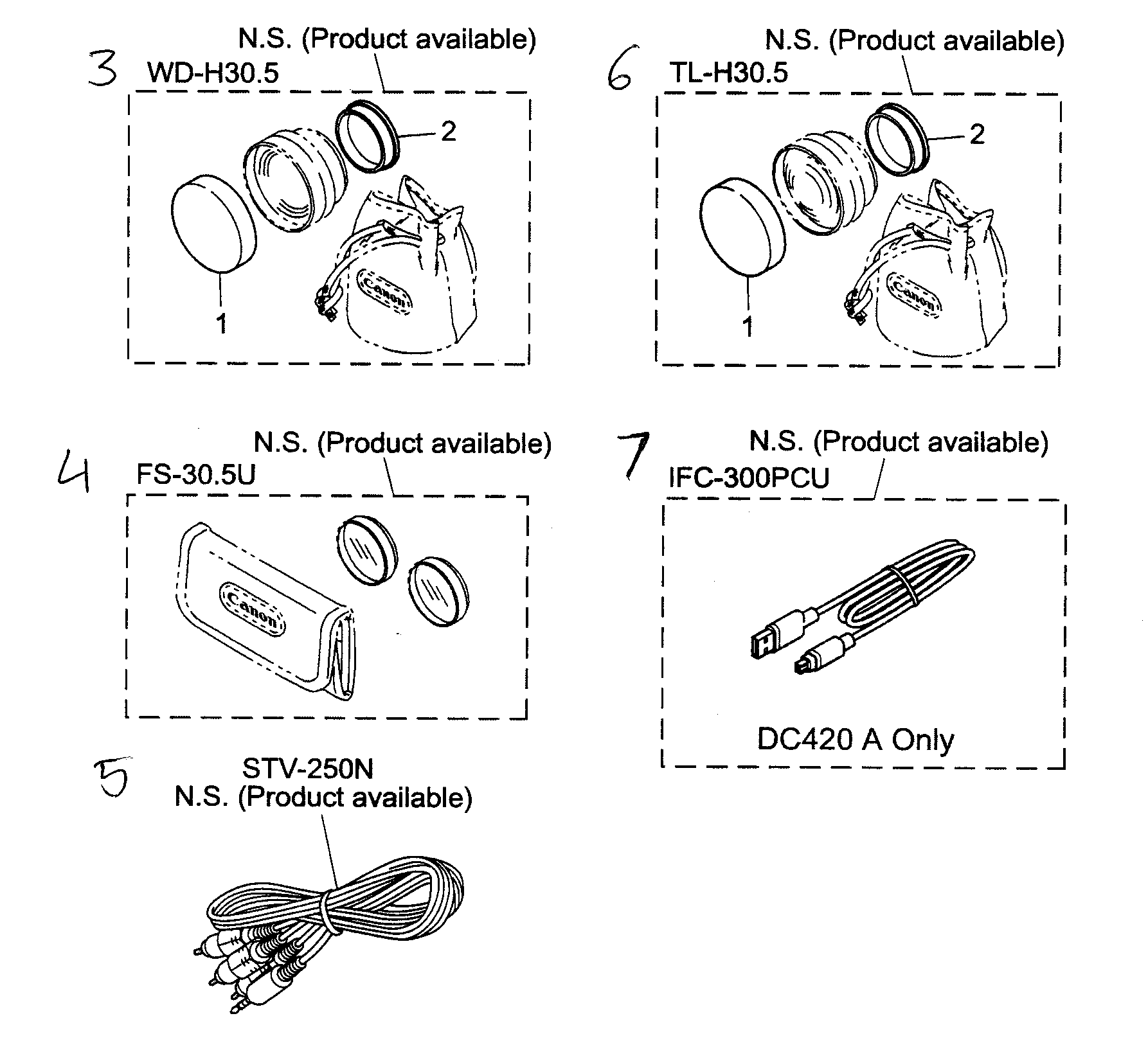

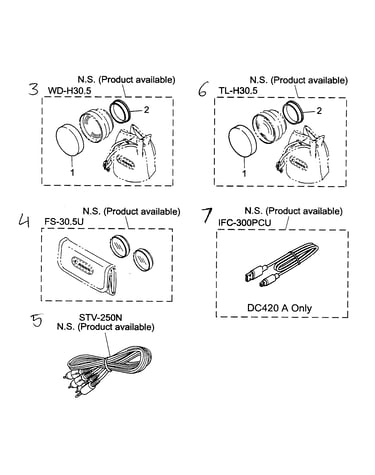

Accessory 2 diagram

Capacitor

Part #DY4-4765-000

The manufacturer no longer makes this part, and there's no substitute part

Spring DA3-7047-000
#5

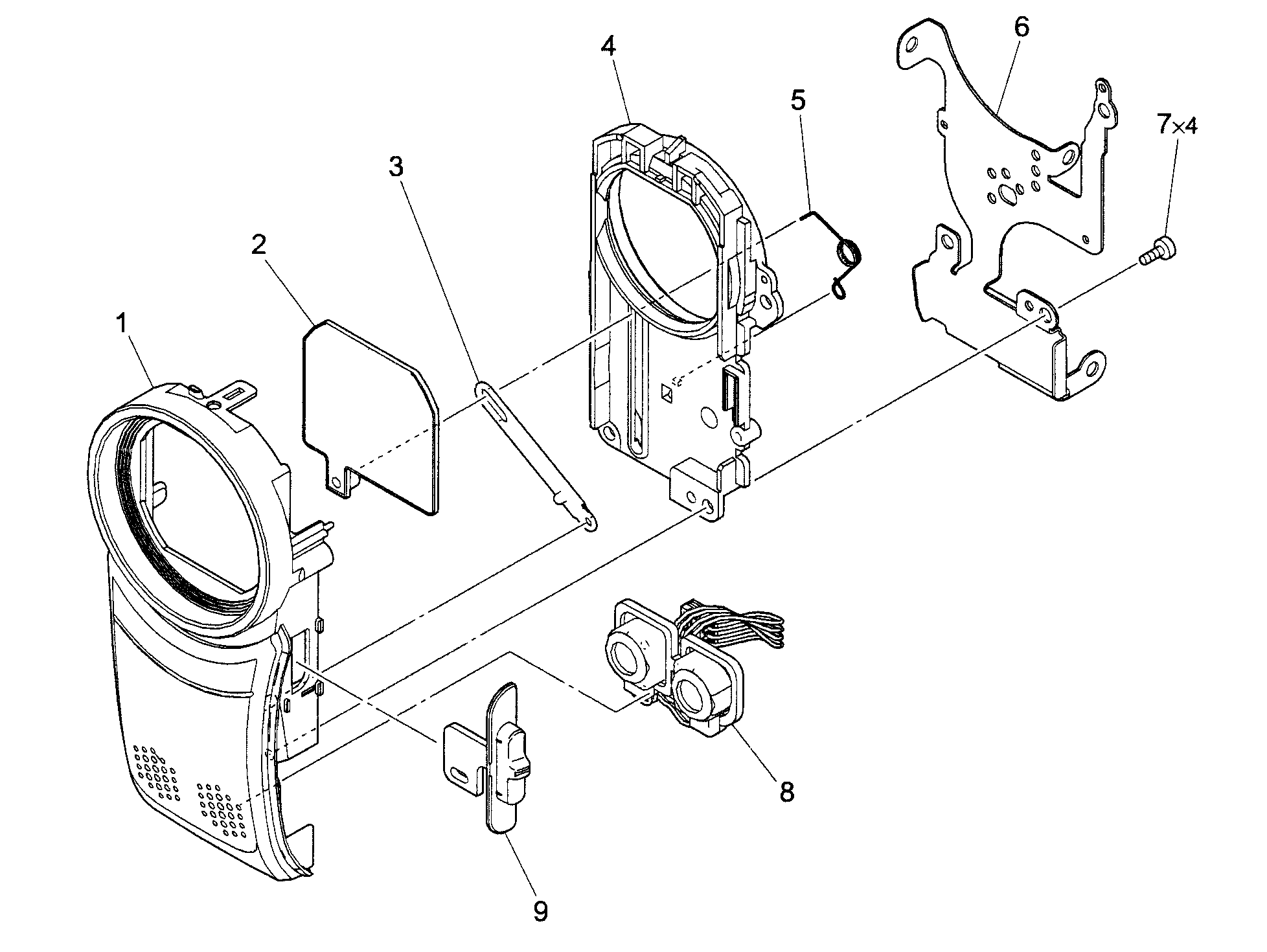

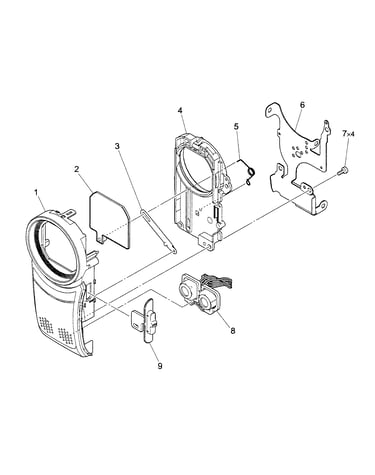

Front unit diagram

Spring

Part #DA3-7047-000

The manufacturer no longer makes this part, and there's no substitute part

Microphone DG3-2266-000
#8

Front unit diagram

Microphone

Part #DG3-2266-000

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-507
#10

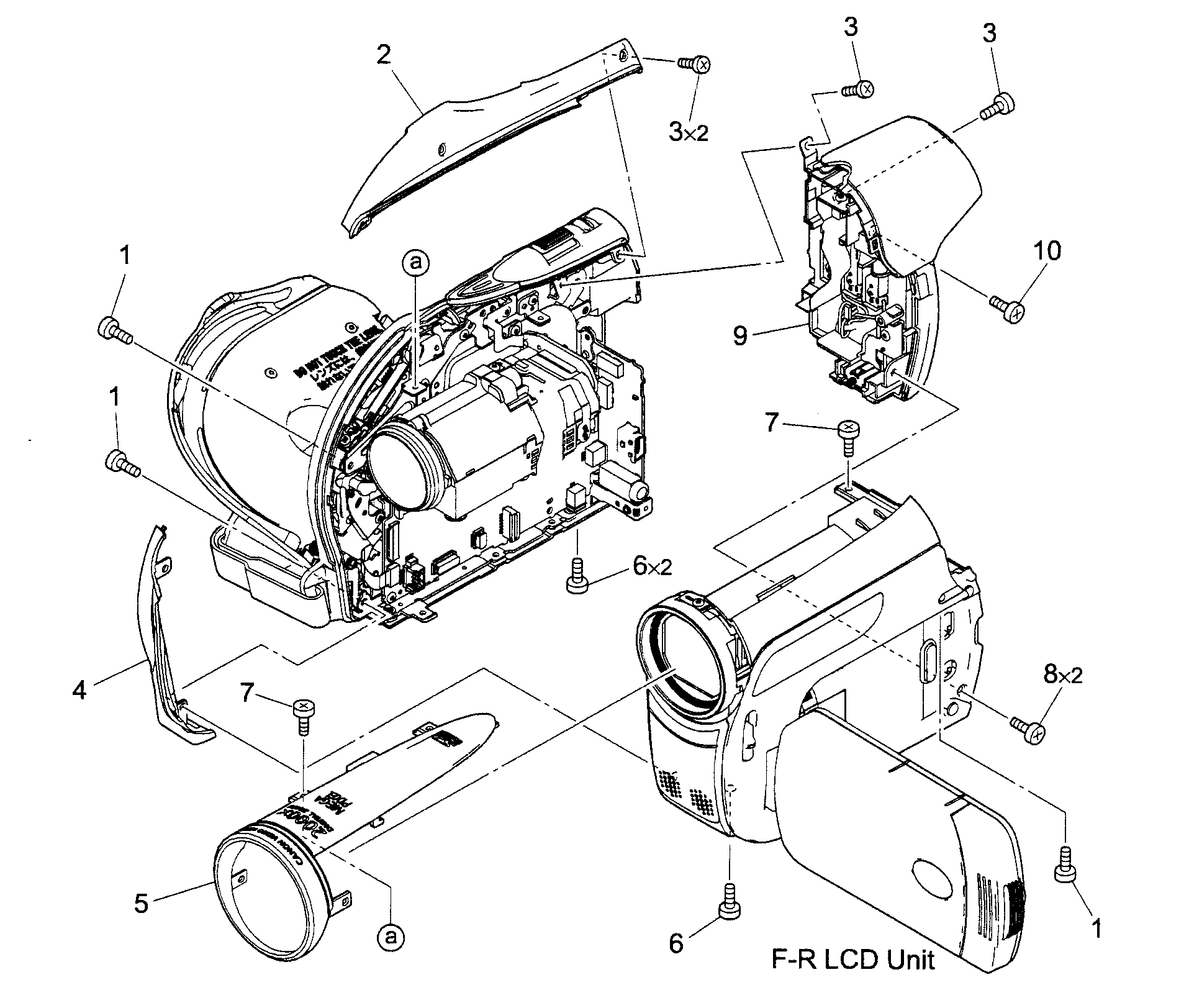

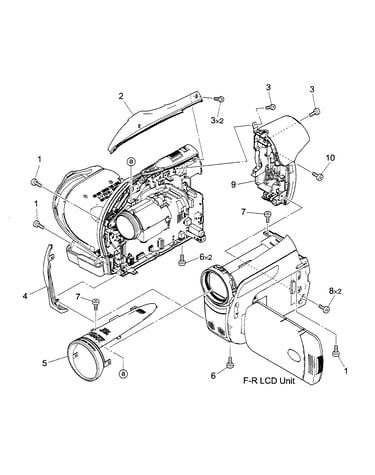

Cabinet assy diagram

Screw

Part #XA4-9170-507

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord D82-0642-000
#1

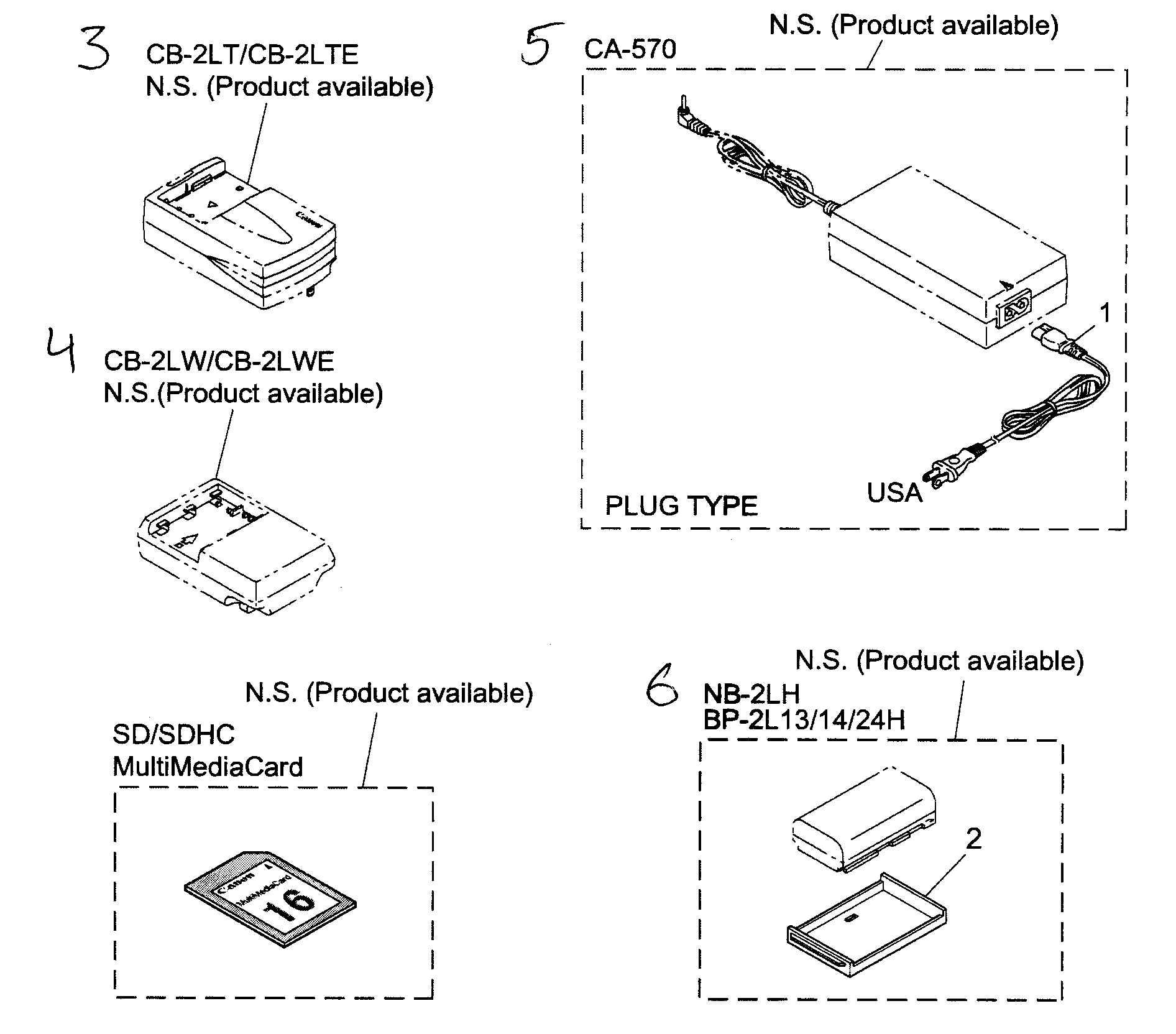

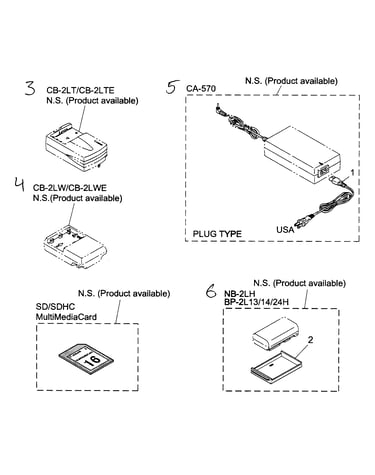

Accessory 1 diagram

Ac cord

Part #D82-0642-000

The manufacturer no longer makes this part, and there's no substitute part

Screw XA4-9170-707
#1

Cabinet assy diagram

Screw

Part #XA4-9170-707

The manufacturer no longer makes this part, and there's no substitute part

Cushion DA3-6124-000
#4

Lens assy diagram

Cushion

Part #DA3-6124-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker WR1-5142-000
#4

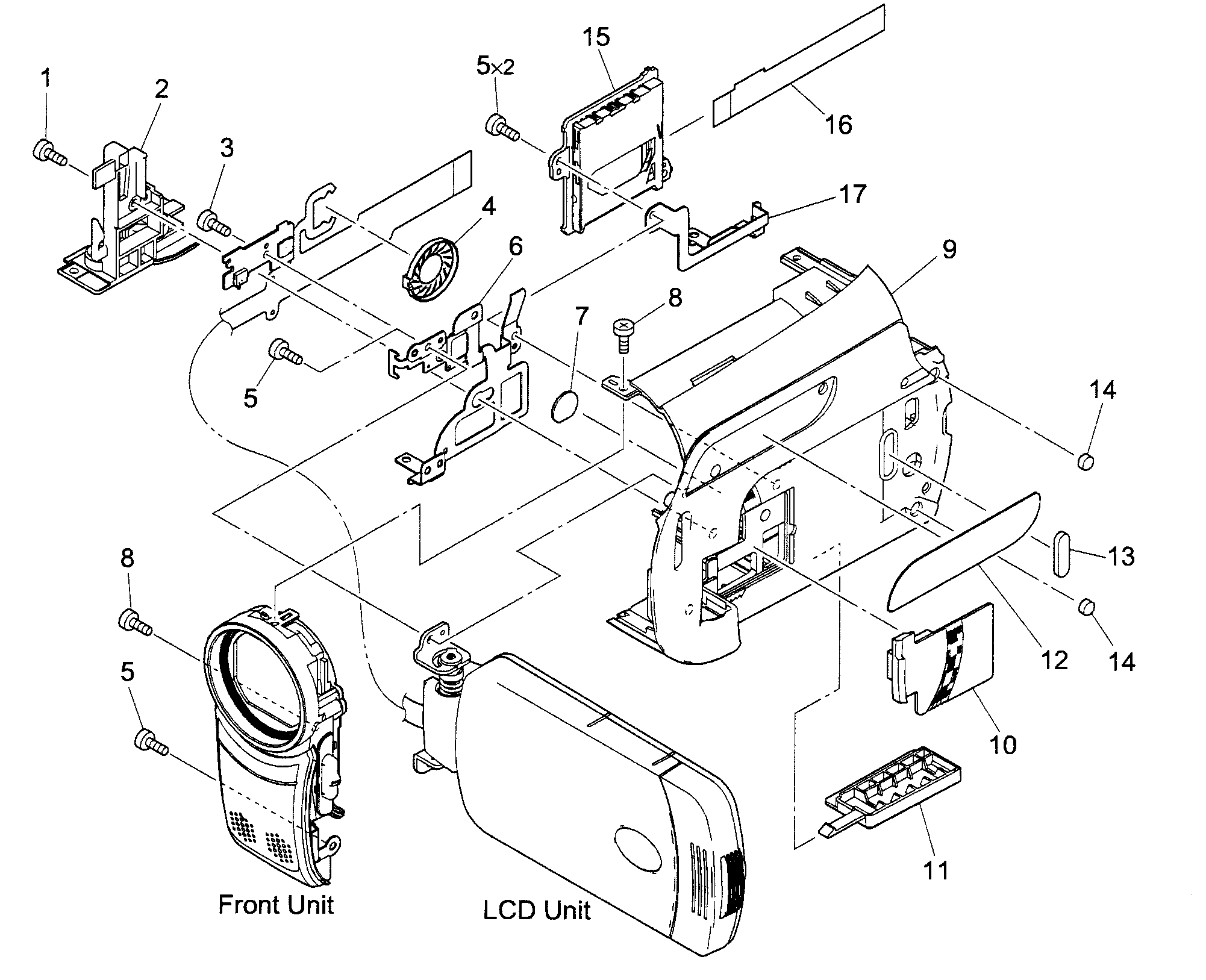

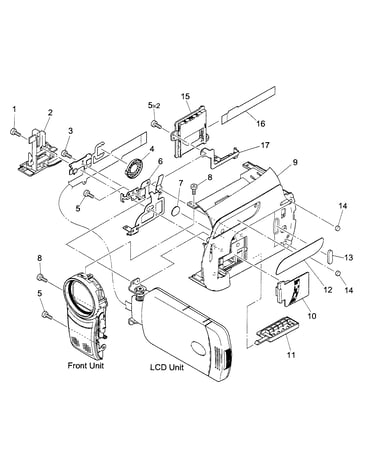

Right side diagram

Camcorder speaker

Part #WR1-5142-000

The manufacturer no longer makes this part, and there's no substitute part
