Fisher & Paykel
Washer

Model # WA37T26EW2-96146B Official Fisher & Paykel washer

Here are the diagrams and repair parts for Official Fisher & Paykel WA37T26EW2-96146B washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Fisher & Paykel Washer Suspension Rod Kit (replaces 426750p) 420952P
#12

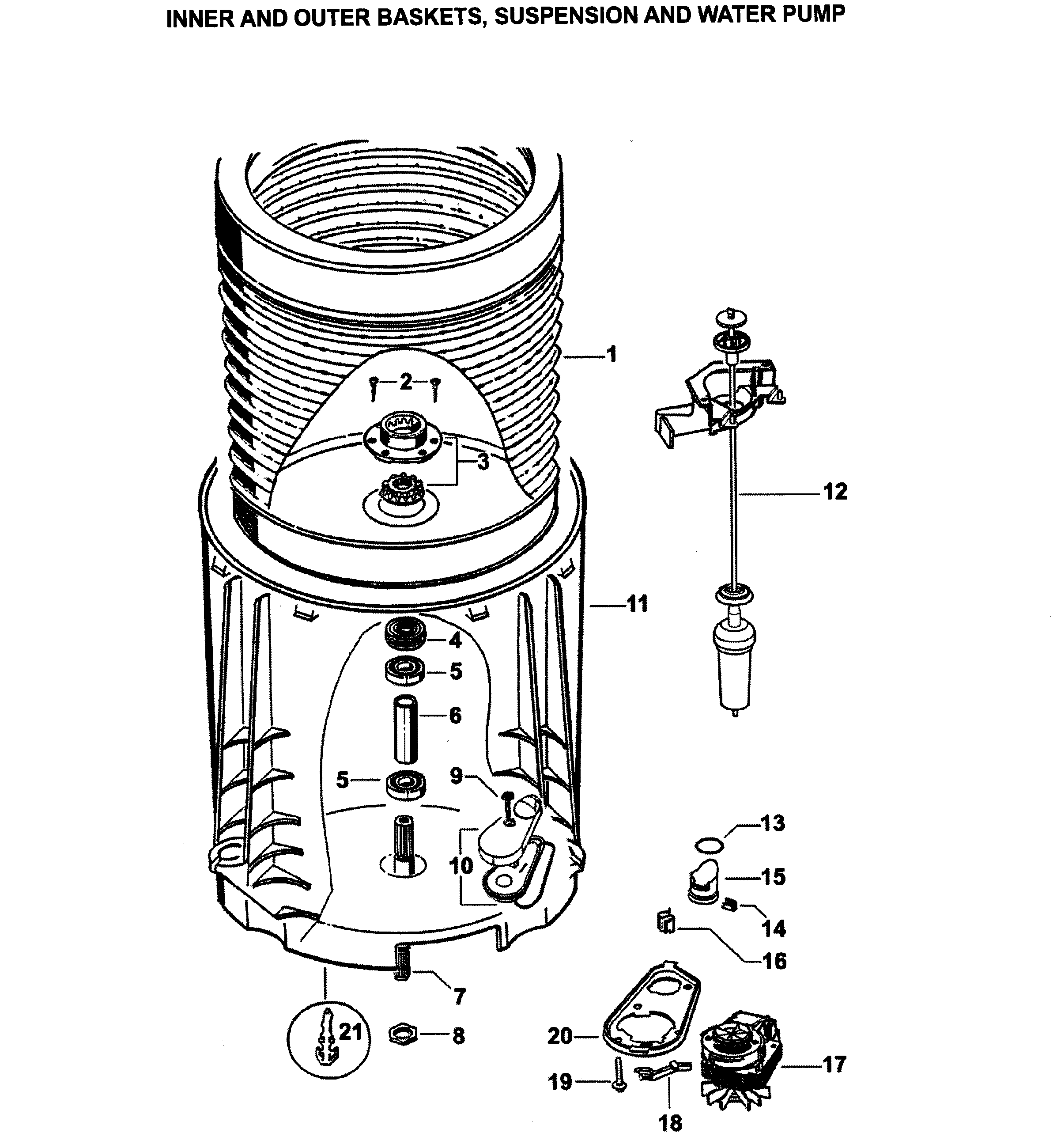

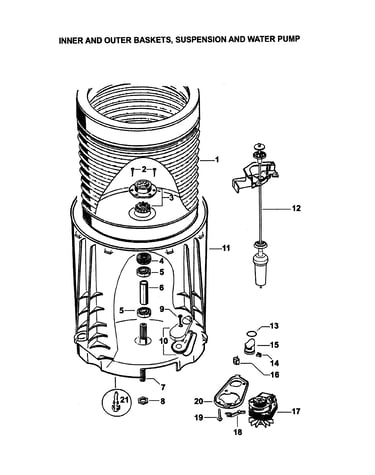

Baskets assy diagram

Fisher & paykel washer suspension rod kit (replaces 426750p)

Part #420952P

$152.47 |
7% OFF Phone Price : $164.47
In Stock
Lid Lock 420700P
#38

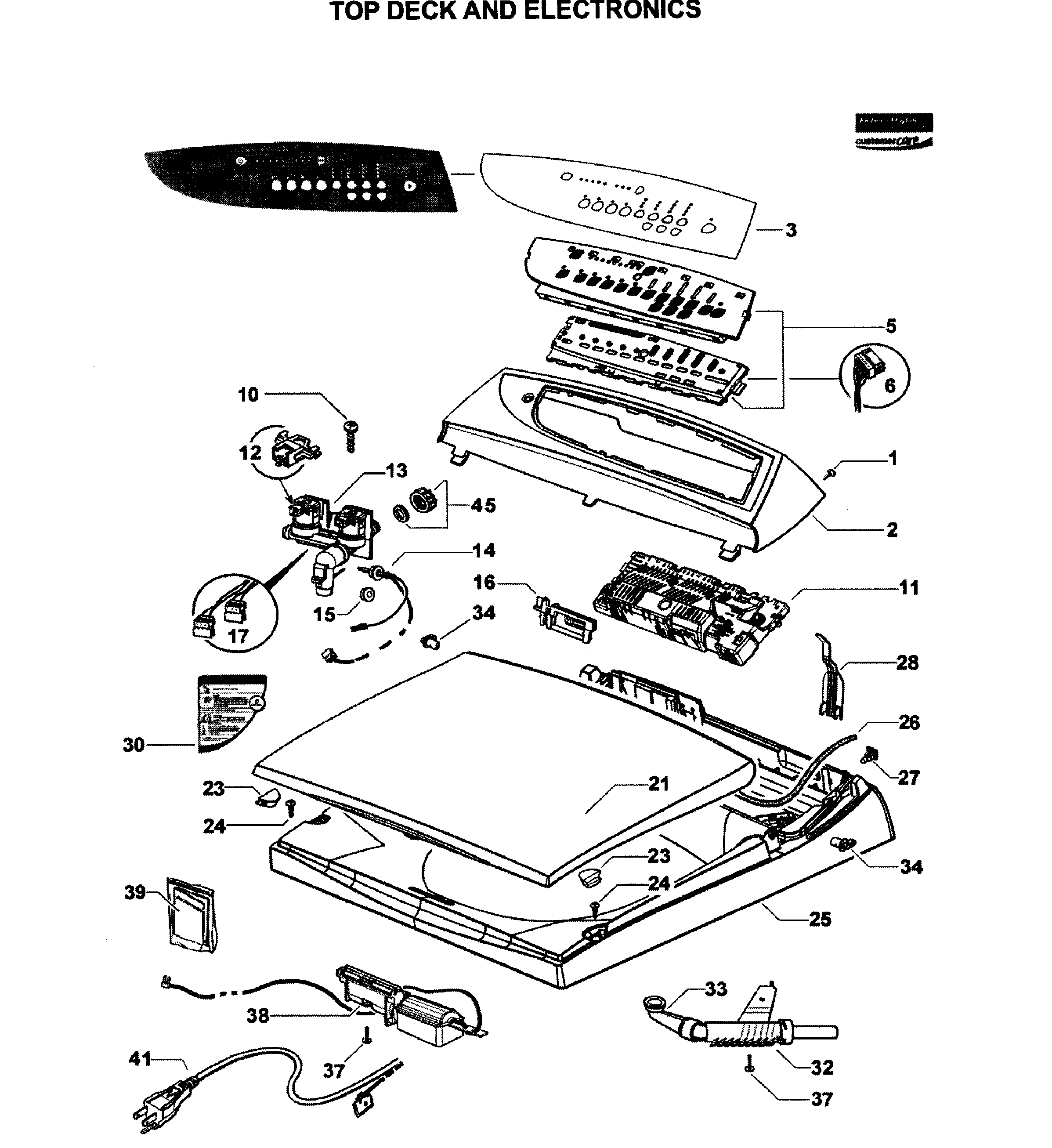

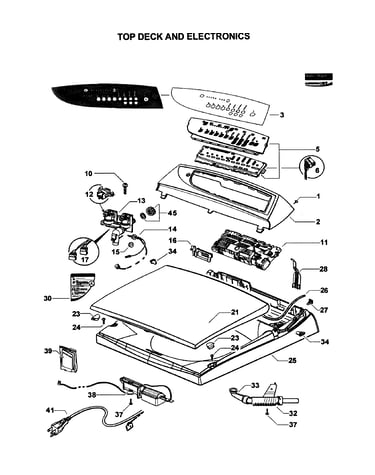

Top deck assy diagram

Lid lock

Part #420700P

Replaced by #424314P

?
Manufacturer substitution
This part replaces 420700P. Substitute parts can look different from the original.
$80.92 |
7% OFF Phone Price : $86.92
In Stock
Fisher & Paykel Screw 425131P
#2

Baskets assy diagram

Fisher & paykel screw

Part #425131P

$11.82
In Stock
Dryer Leveling Leg 472969P
#6

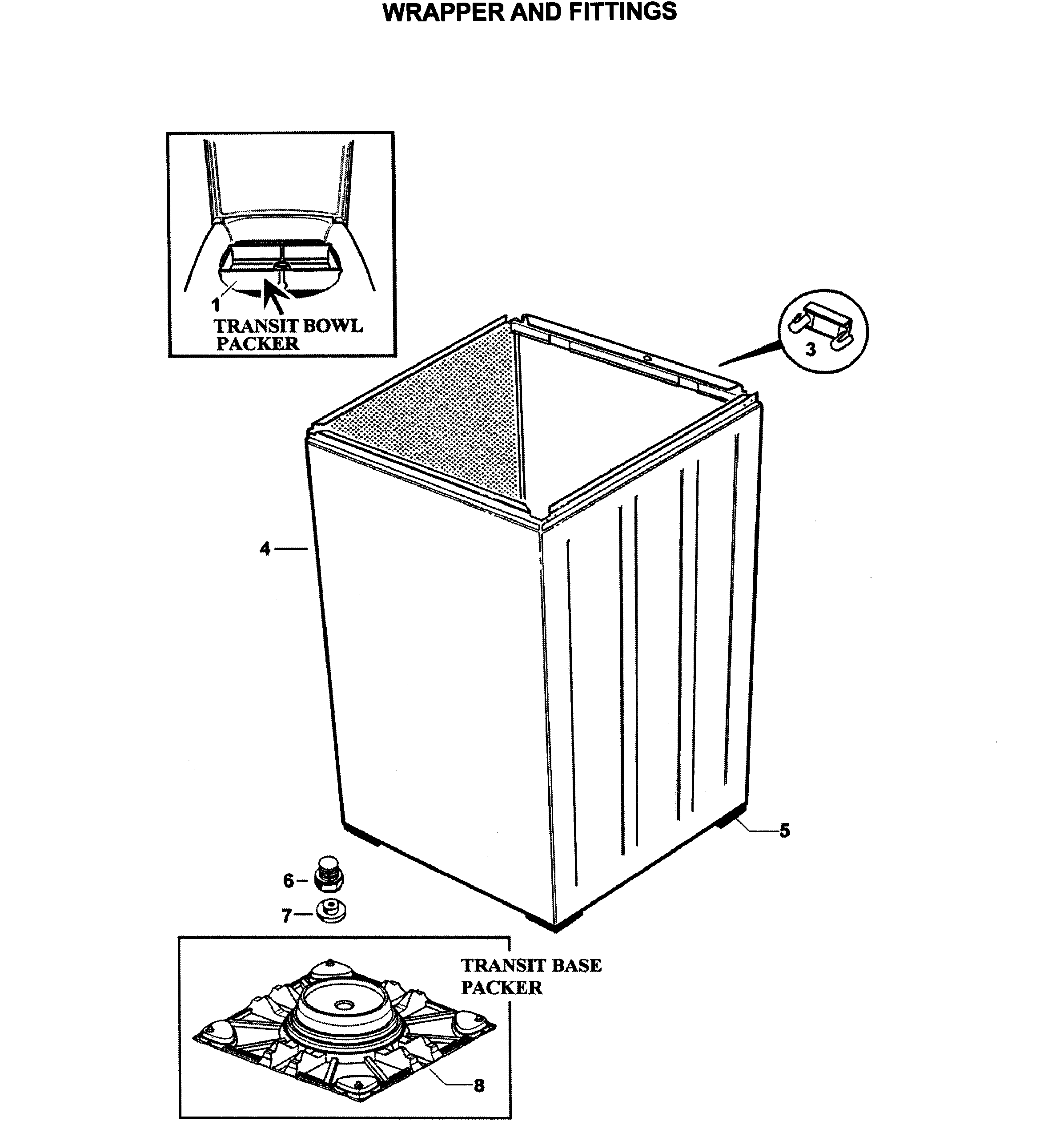

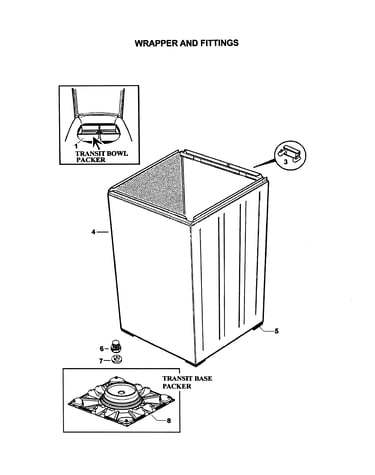

Wraper assy diagram

Dryer leveling leg

Part #472969P

$11.99
In Stock
Fisher & Paykel Washer Fill Hose Screen And Seal Set 420016P
#8

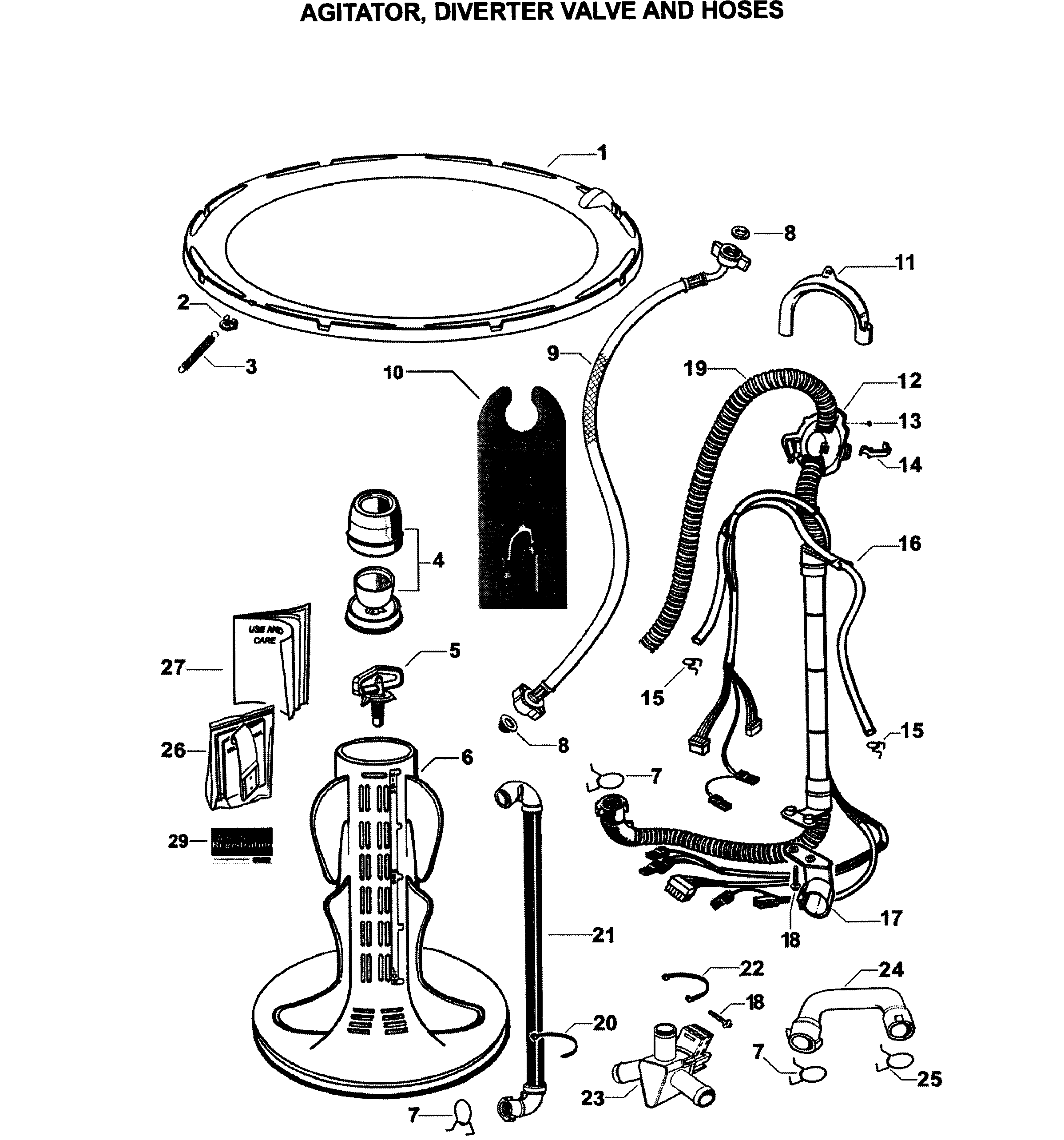

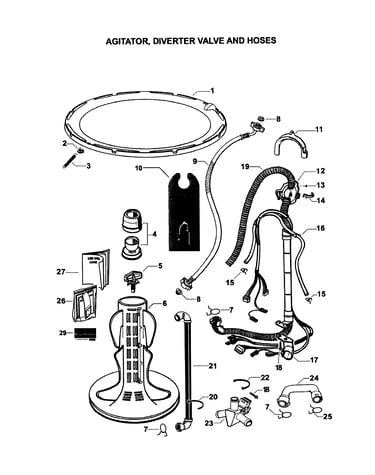

Agitator assy diagram

Fisher & paykel washer fill hose screen and seal set

Part #420016P

$18.49
In Stock
Fisher & Paykel Washer Water Inlet Valve 421177P
#13

Top deck assy diagram

Fisher & paykel washer water inlet valve

Part #421177P

$154.61 |
7% OFF Phone Price : $166.61
In Stock
Thermistor 479452P
#14

Top deck assy diagram

Thermistor

Part #479452P

Replaced by #424429P

?
Manufacturer substitution
This part replaces 479452P. Substitute parts can look different from the original.
$42.00 |
13% OFF Phone Price : $48.00
In Stock
Clip 425128
#18

Baskets assy diagram

Clip

Part #425128

Replaced by #425128P

?
Manufacturer substitution
This part replaces 425128. Substitute parts can look different from the original.
This item is not returnable
$7.15 |
12% OFF Phone Price : $8.15
Back Order
Washer Inlet Hose 420871
#9

Agitator assy diagram

Washer inlet hose

Part #420871

Replaced by #424159

?
Manufacturer substitution
This part replaces 420871. Substitute parts can look different from the original.
$35.73 |
14% OFF Phone Price : $41.73
In Stock
Position Sensor 438515P
#2

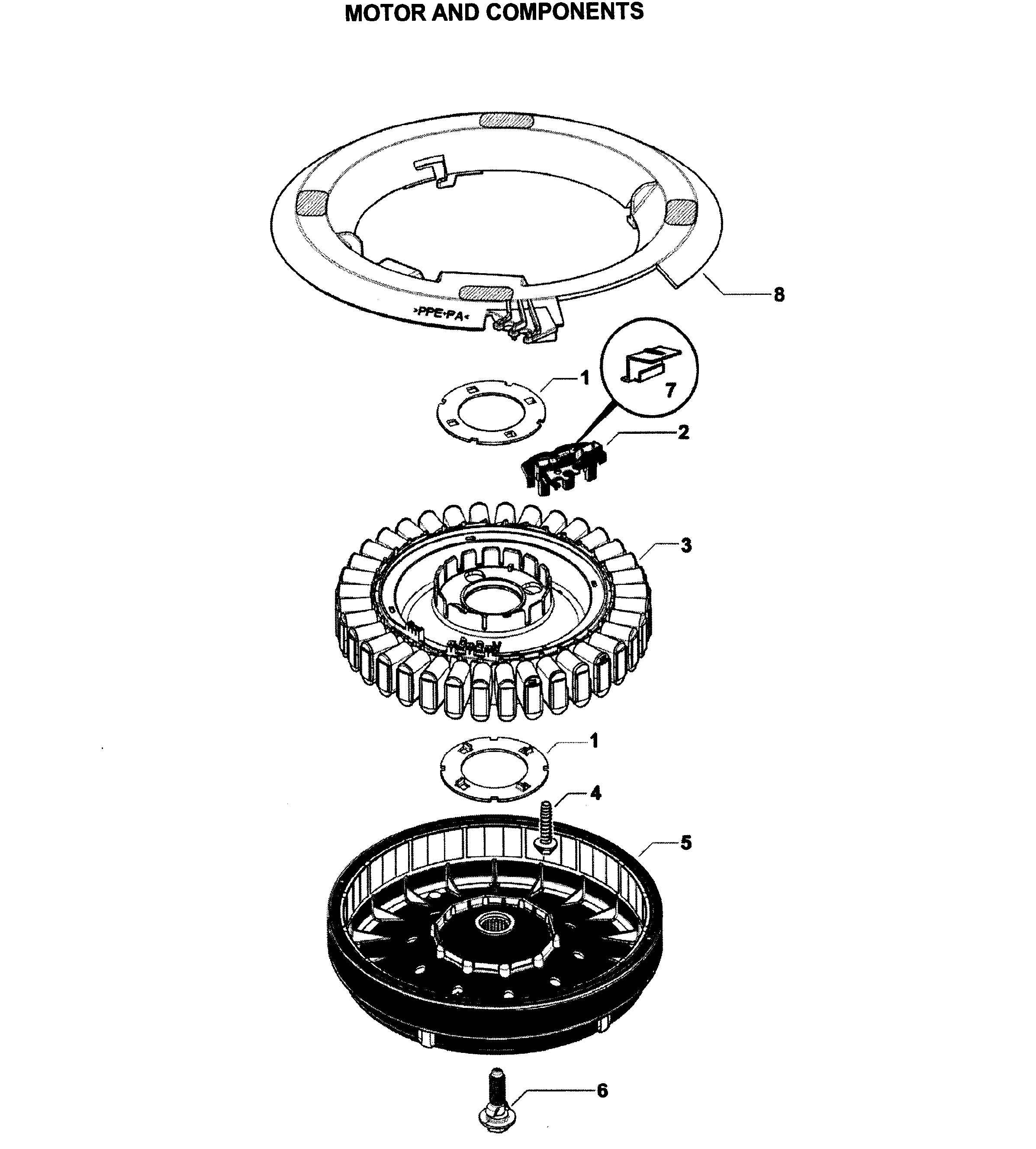

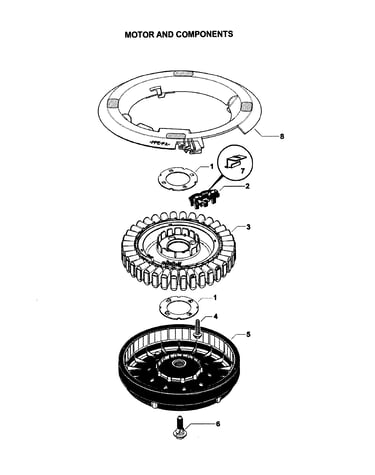

Motor assy diagram

Position sensor

Part #438515P

Replaced by #424349P

?
Manufacturer substitution
This part replaces 438515P. Substitute parts can look different from the original.
$120.19 |
9% OFF Phone Price : $132.19
In Stock
